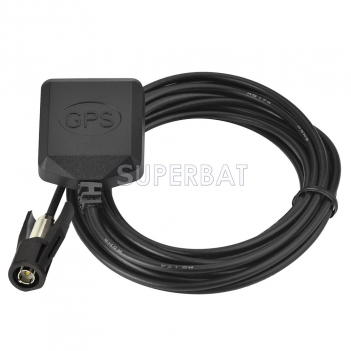

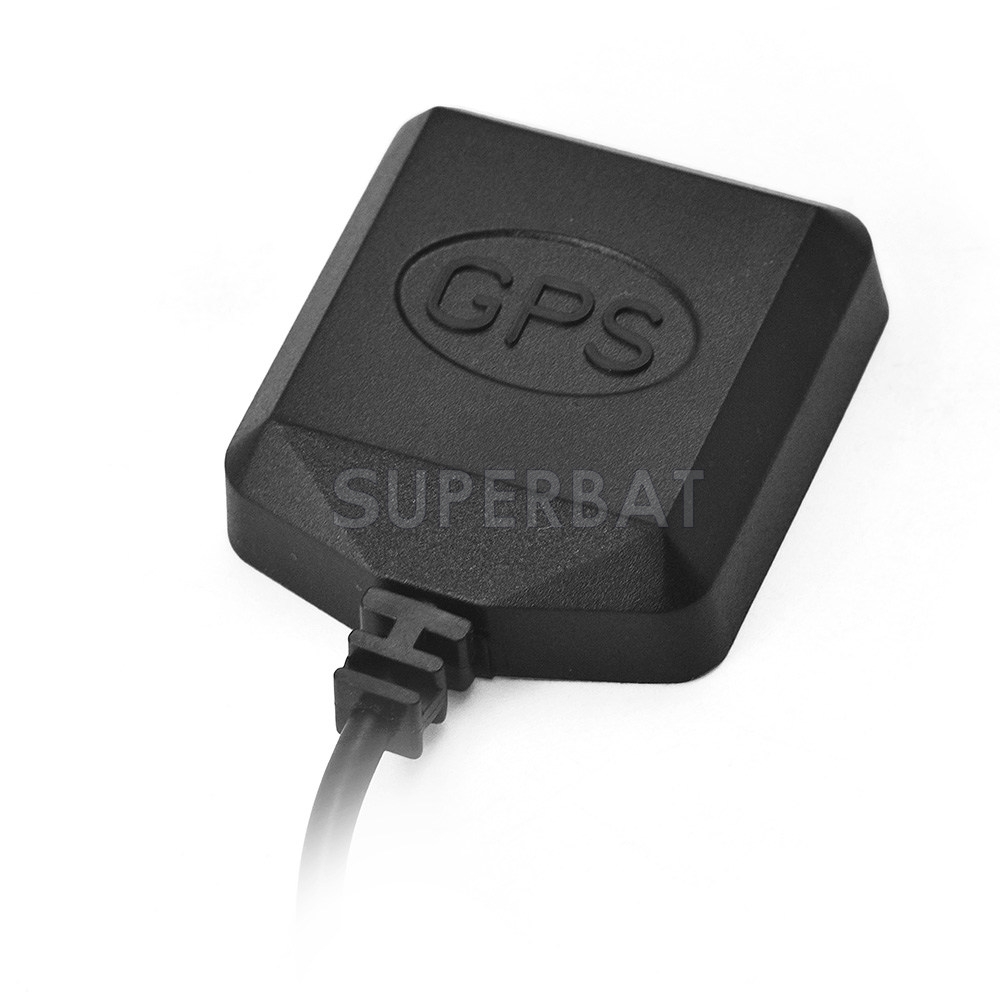

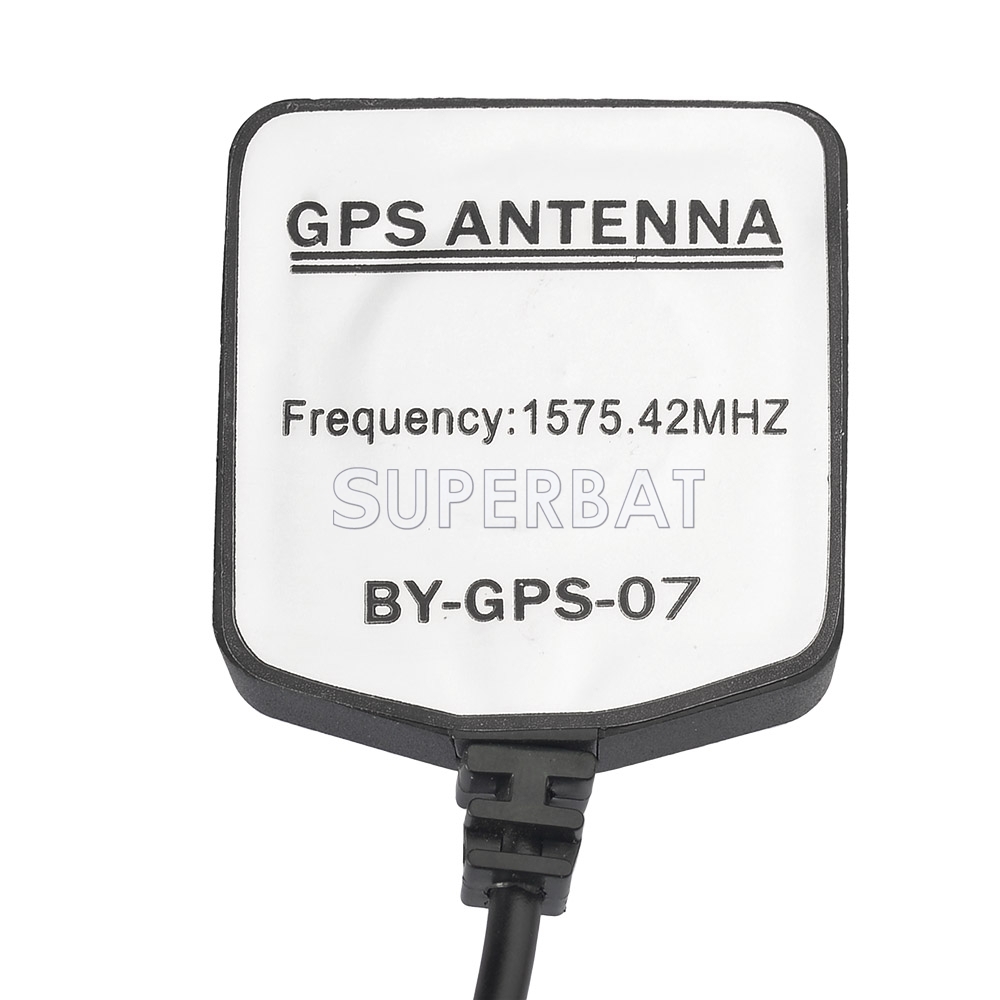

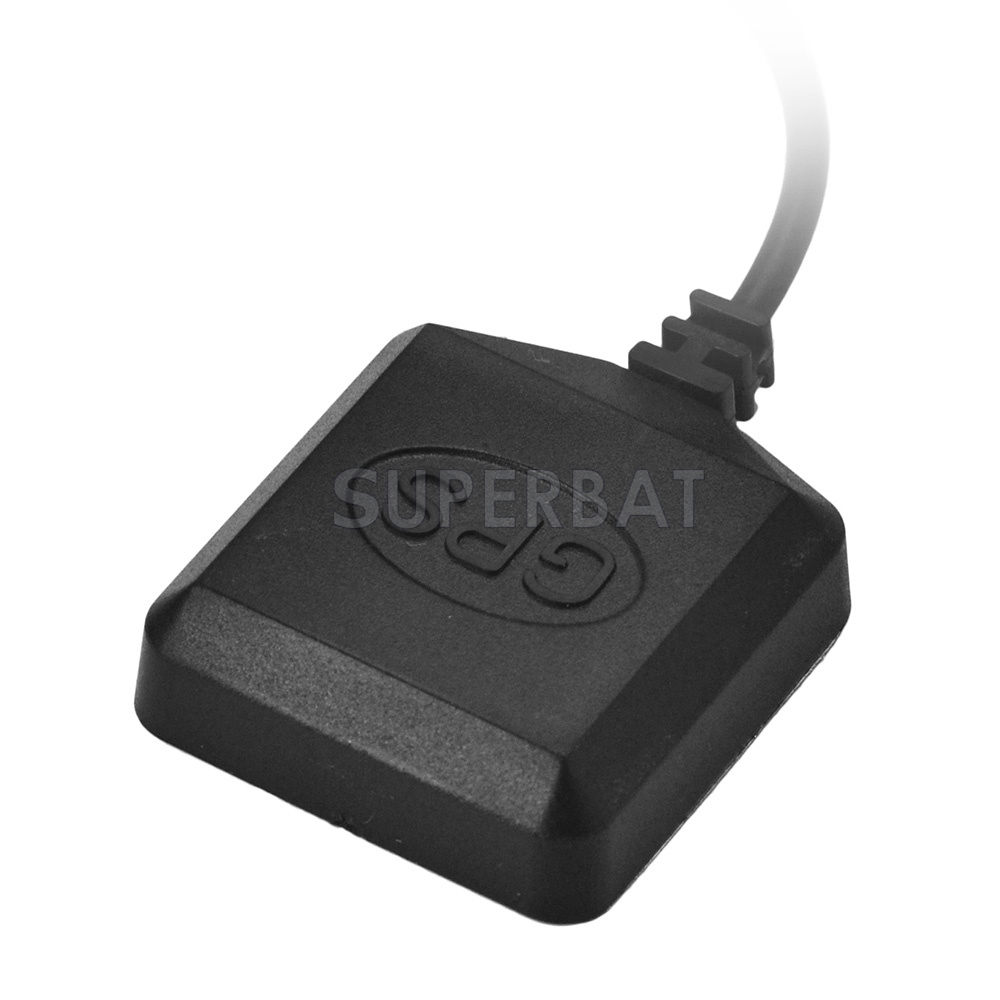

Superbat WICLIC GPS mini Magnetic base Antenna Aerial Connector Cable for Pioneer JVC Beker GPS Navigation Receiver
Unit Price: $9.50
sku:GA07-300-W01SP-GPS
Cable Length
quantity 1 - 9 10 - 99 100 - 999 1000+
Price Each $9.50 $8.55 $7.70 ASK
saving% 0% 10% 19% -
Real Time Availability
Stock: 1000
Quantity: Units

Aplication: Becker , JVC , Pioneer End connector: WICLIC Connector Style: Straight

(i) Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain >3dBic Based on 7×7cm ground plane
Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
Polarization RHCP
(ii) LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Min f0+/-20MHZ ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max
(iii)Mechanical
Weight <100gram
Size 38x34x11mm
Cable :RG174 3 meter / contact us for other length

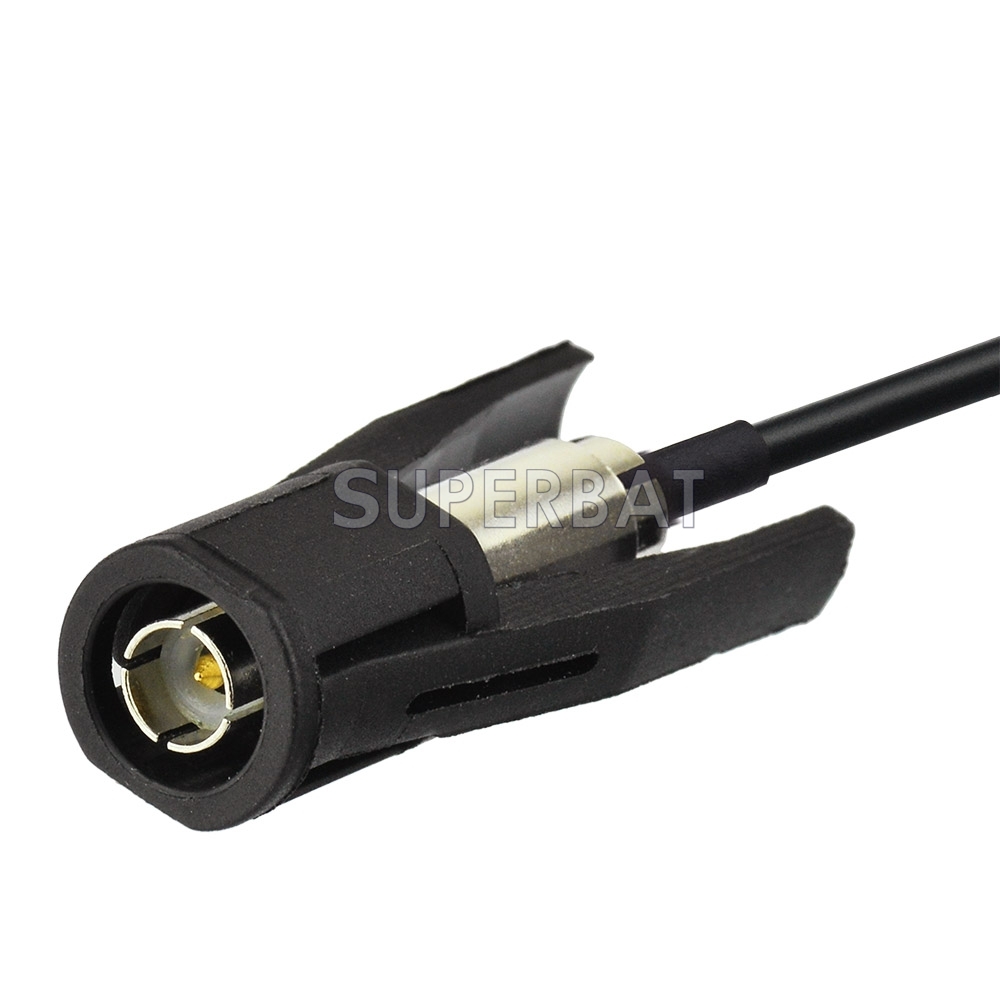

Connector :WICLIC male straight default/ SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/AVIC/ in straight or right angle please give us some notes if the antenna connector is chosen.Tks!
Mounting Magnetic base
Housing Black
(iv)Environmental
Working Temp -40℃~+85℃
Storage Temp. -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof
(V) FEATURES:
Compact Construction/ Low Profile/
Fully Waterproof
Magnet and Screw Mount Base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity

(VI) APLICATIONS:

Pioneer

ANH-P9R

ANH-P-9R-BK

ANH-P 10MP

JVC

KD-NX1

KD-NX1R

KD-NX1B

KDNX301

Becker

Becker Traffic Pro 4720, 4723, 4724, 4725, 4730, 4733, 6549

Becker Traffic High Speed 7820, 7822, 7823, 7824, 7825, 7830, 7833

Becker Indianapolis 7920, 7922, 7925, 7923, 7935
