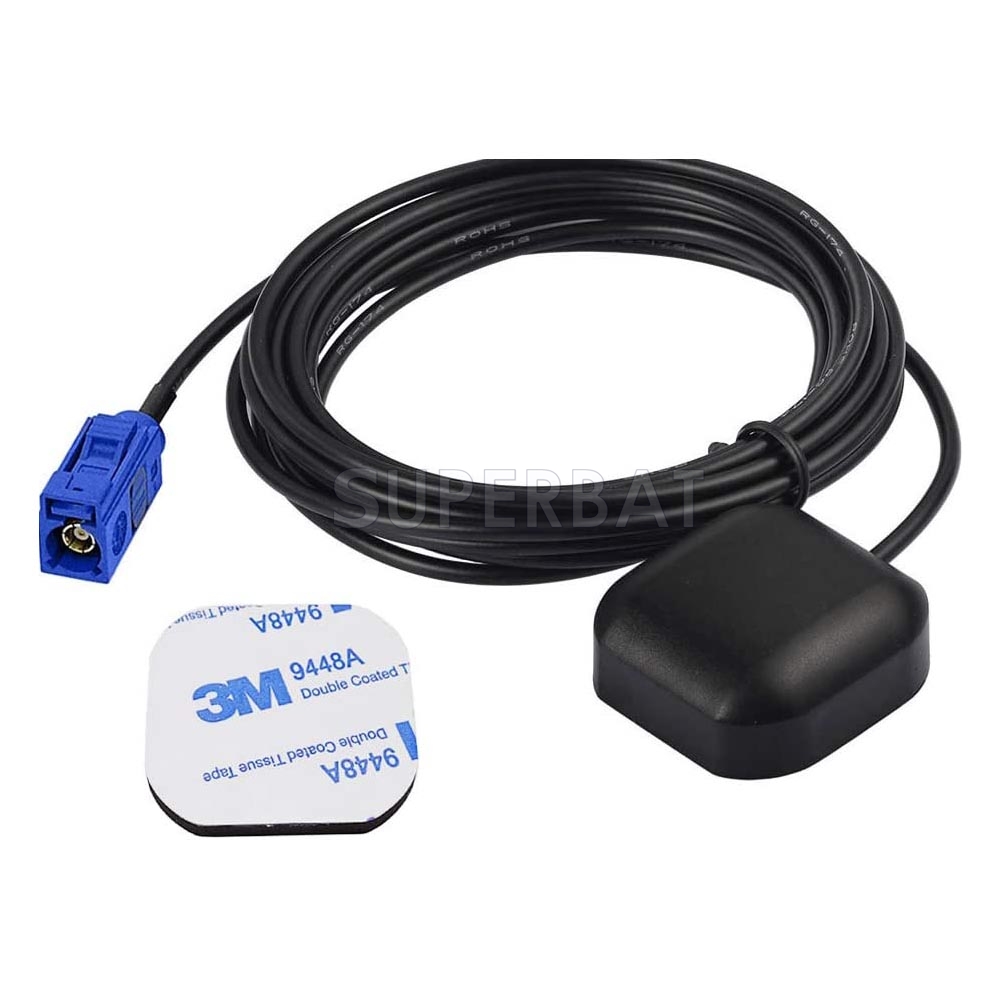

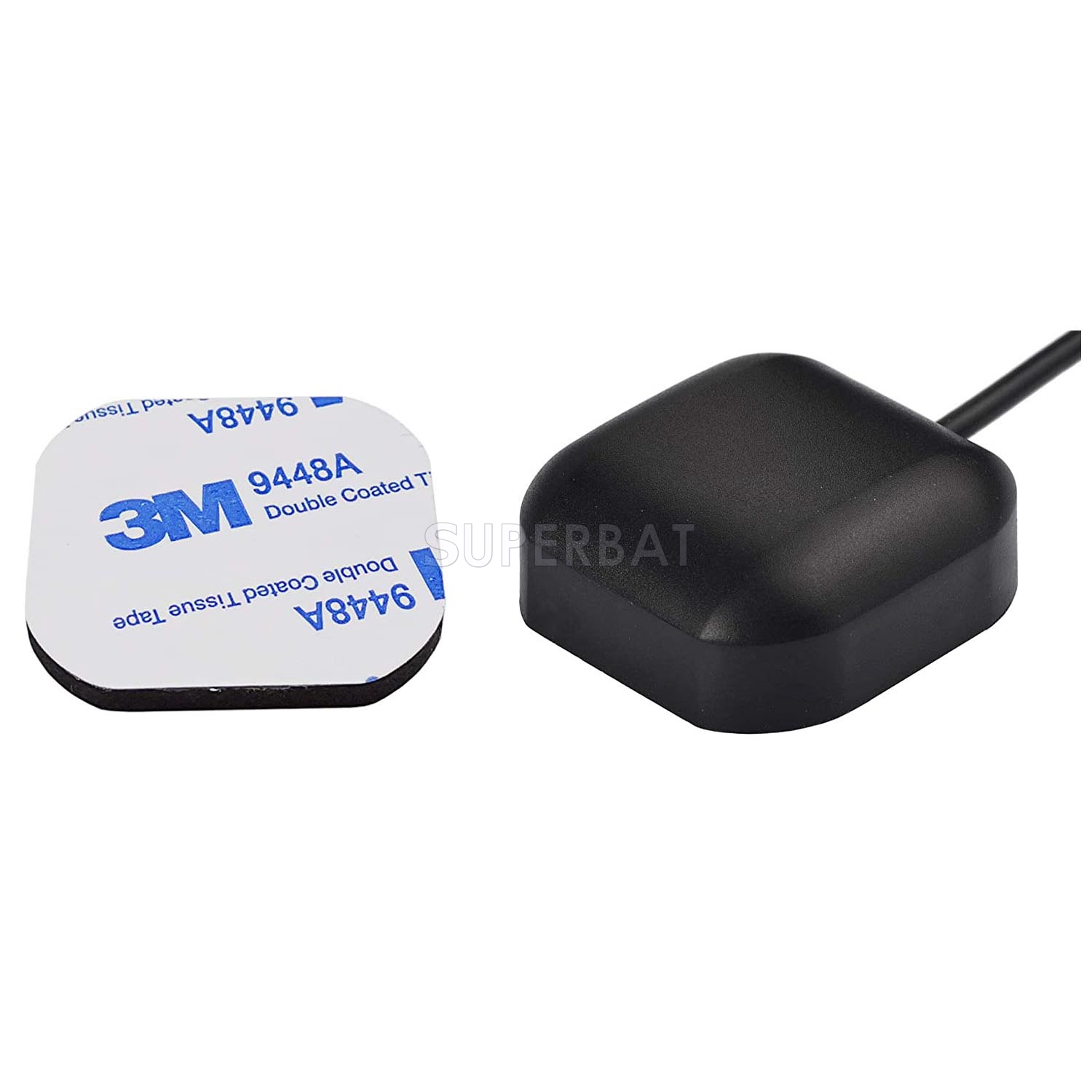

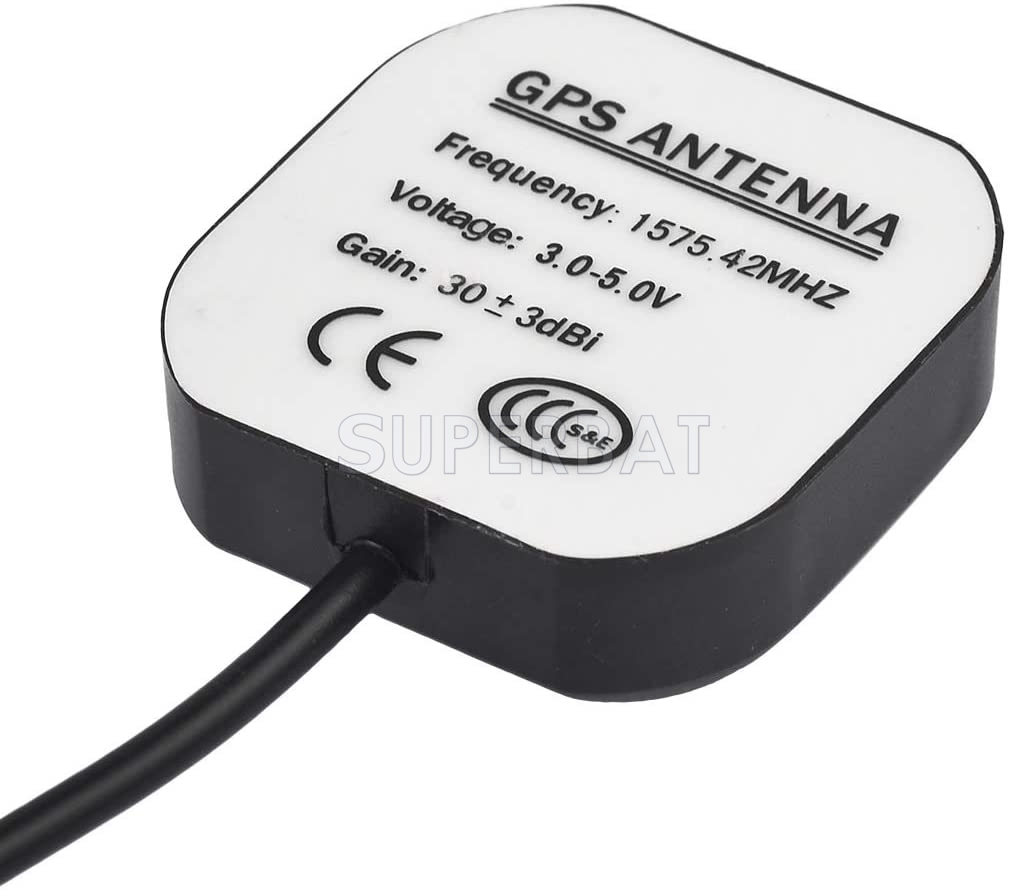

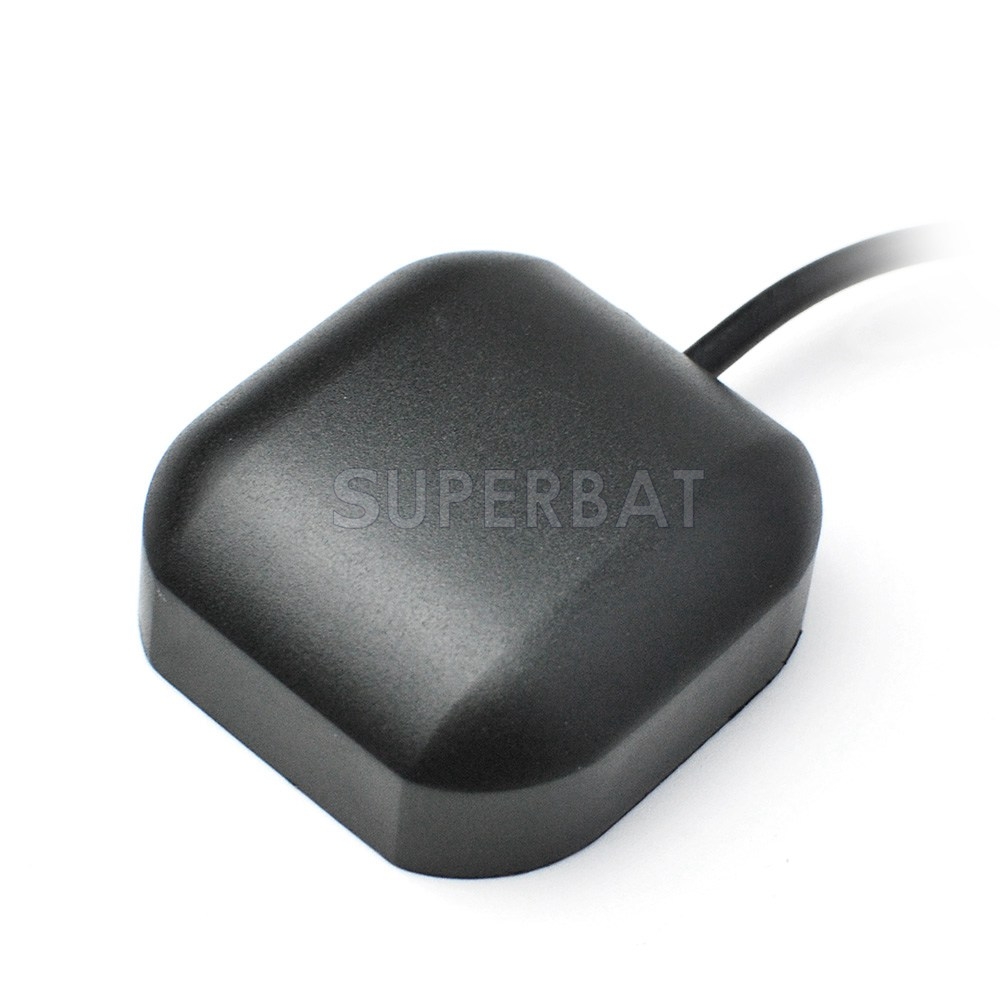

Superbat Vehicle Waterproof Active GPS Navigation Antenna Fakra C Blue GPS Antenna Compatible with Ford GM Chevy Chevrolet Jeep Cadillac BMW Audi Merc
Unit Price: $7.18
sku:GA34-300-F03CSJ&GA34-JD
Cable Length
quantity 1 - 9 10 - 99 100 - -1 0+
Price Each $7.18 $6.82 $6.10 ASK
saving% 0% 5% 15% -
Real Time Availability
Stock: 10000
Quantity: Units

Vechicle: BMW , Chevrolet , Ford , Mercedes-Benz , Volkswagen , Audi End connector: Fakra C Connector Style: Straight

Specifications:

1. Dielectric Antenna

Center Frequency: 1575.42MHz ±3MHz

V.S.W.R: 2:01

Bandwidth: ±5 MHz

Impedance: 50

Peak Gain: > 3dBic based on 7x7cm ground plane

Gain Coverage: > -4dBic at -90 < 0 < 90 (over 75 volume)

Polarization: RHCP

2. LNA/Filter

LNA Gain Without cable: 28dB Typical

Noise Figure: 2.0dB

Filter Out Band Attenuation: (f0=1575.42MHz)

7dB Min f0+/-20MHz;

20dB Min f0+/-50MHz;

30dB Min f0+/-100MHz

V.S.W.R: < 2.0

DC Voltage: 3V to 5V

DC current: 7-10MA

3. Overall

Frequency Range: 1575/1609MHz

V.S.W.R: 2.0

Gain: 30±3dBic

Impedance: 50 Ohm

3. Mechanical

Weight: 60 gram

Size: 35x30x15mm

Cable: RG174

Length: 3m

Connector: Fakra C Blue

Mounting: Magnet base

Housing: Black

4. Environmental

Working Temp: -40 to 85℃

Waterproof test: 4 hours under the tap, let the water rush over the housing;

Vibration: Sine sweep 1g (0-p) 10 ~ 50 ~ 10Hz each axis

Humidity: 95% ~ 100% R

Package List: 1 x Antenna (As the Picture Shown)
