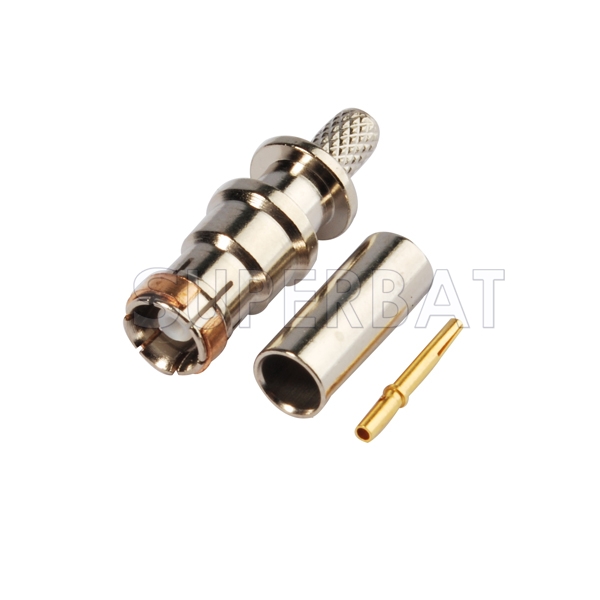

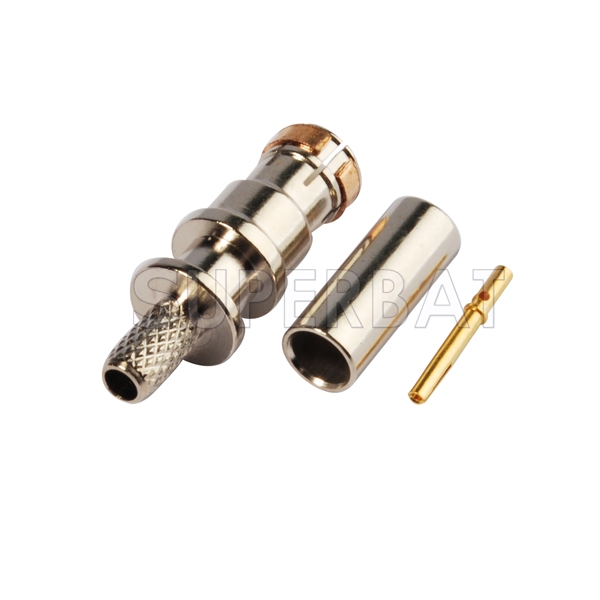

Superbat SMB male Jack crimp RG316 RG174 cable 50 Ohm connector for FAKRA Connector
Superbat SMB male Jack crimp RG316 RG174 cable 50 Ohm connector for FAKRA Connector
Unit Price: $2.36
sku:S05-SP316-41BS02
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $2.36 $2.12 $1.91 $1.72 ASK
saving% 0% 10% 19% 27.1% -
Real Time Availability
Stock: 9994
Quantity: Units

Series: SMB Termination Type: Coaxial Cable Gender: Plug , Female Polarity: Reverse Polarity Interface Type: RG174 , RG316 Body Style: Straight Impedance: 50 Attachment Method: Crimp Body Material: Brass Body Plating: Gold Dielectric Type: PTFE Frequency Range: 3GHz

Description:

SMB RF connectors are semi-precision, subminiature devices that provide repeatable electrical performance from DC to 4 GHz. The SMB family of connectors provides a means of quick connect and disconnect through a snap-on type coupling. This makes them useful in areas that are inaccessible to normal mating action. They are best suited for use with cables in the range of .070" to .120" diameters, such as RG 178, RG 174, RG 316. The series is similar in size to SMC connectors but is generally used at a lower frequency. SMB type connectors are designed to conform to MIL-C-39012 specifications.


Its smaller physical size and snap-on coupling make the SMB an ideal general purpose connector where packaging density, ease of mating/unmating and economy are prerequisites. Typical applications for SMB connectors are telecommunications, test equipment, instrumentation, and GPS.
