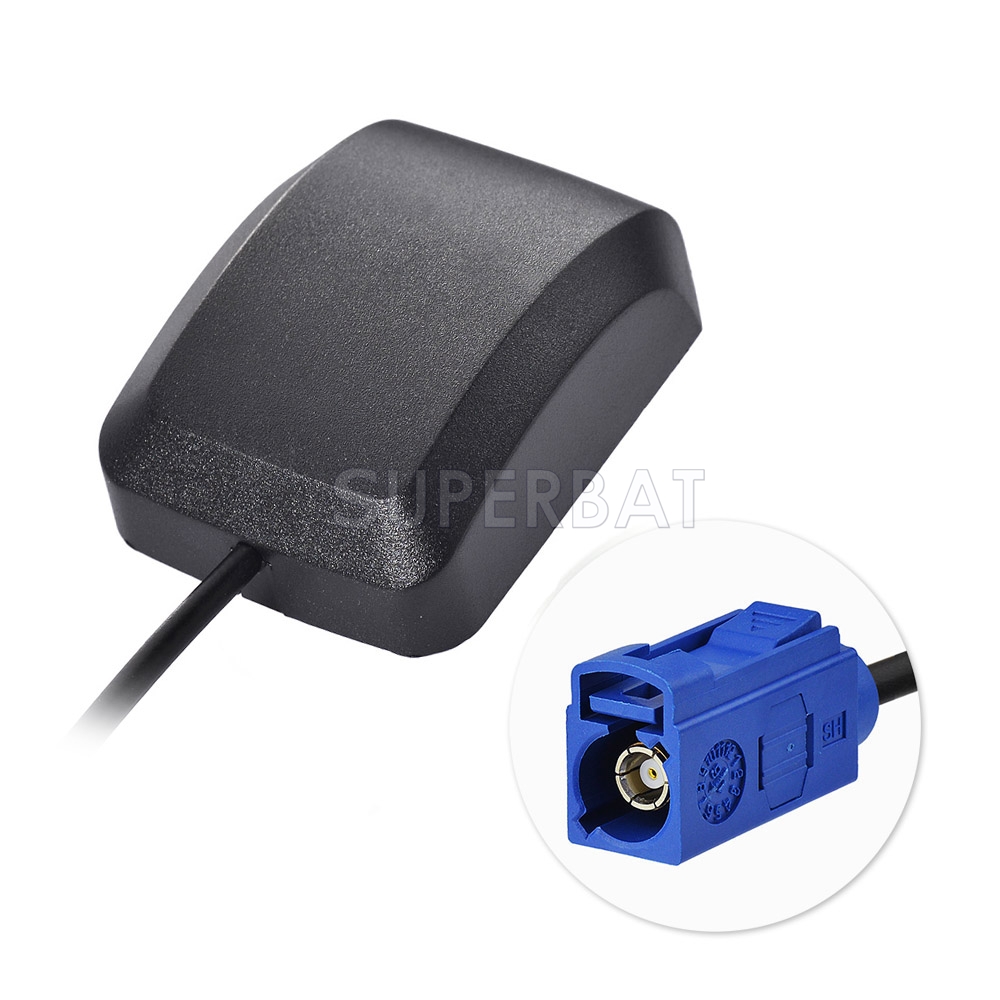

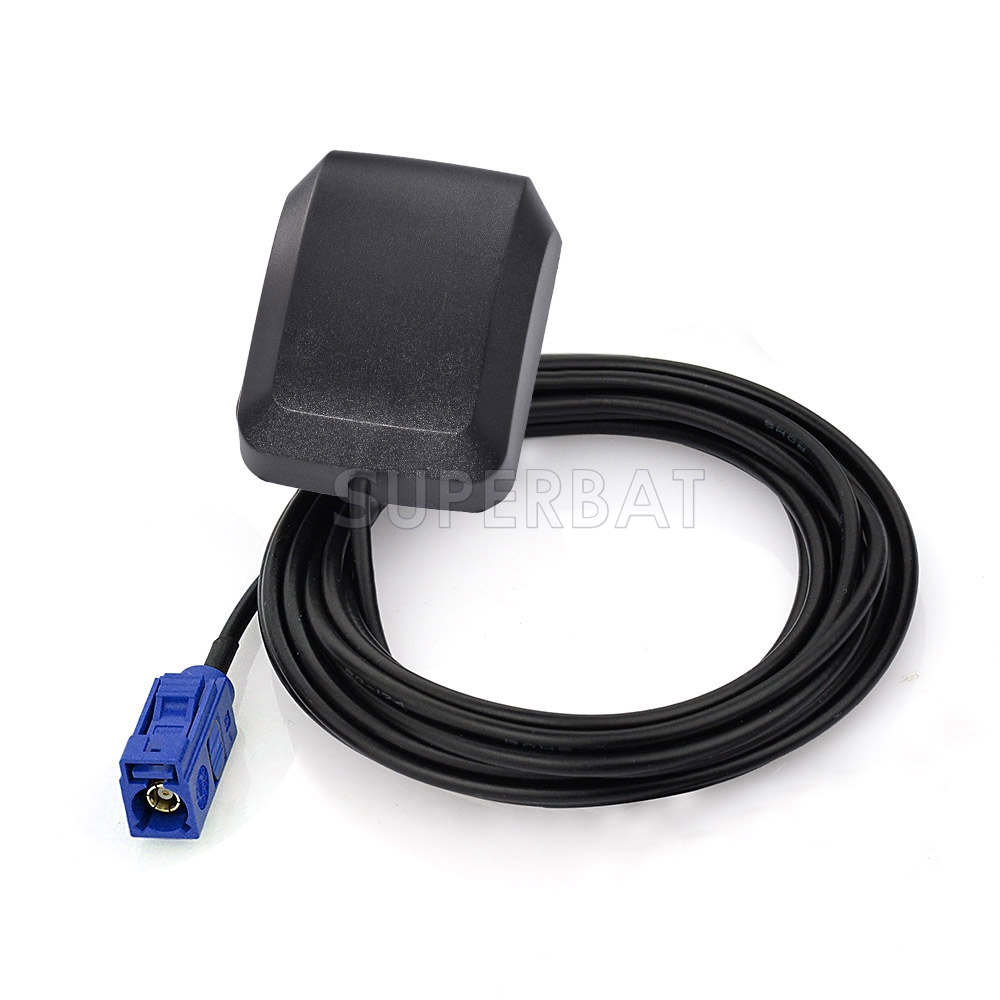

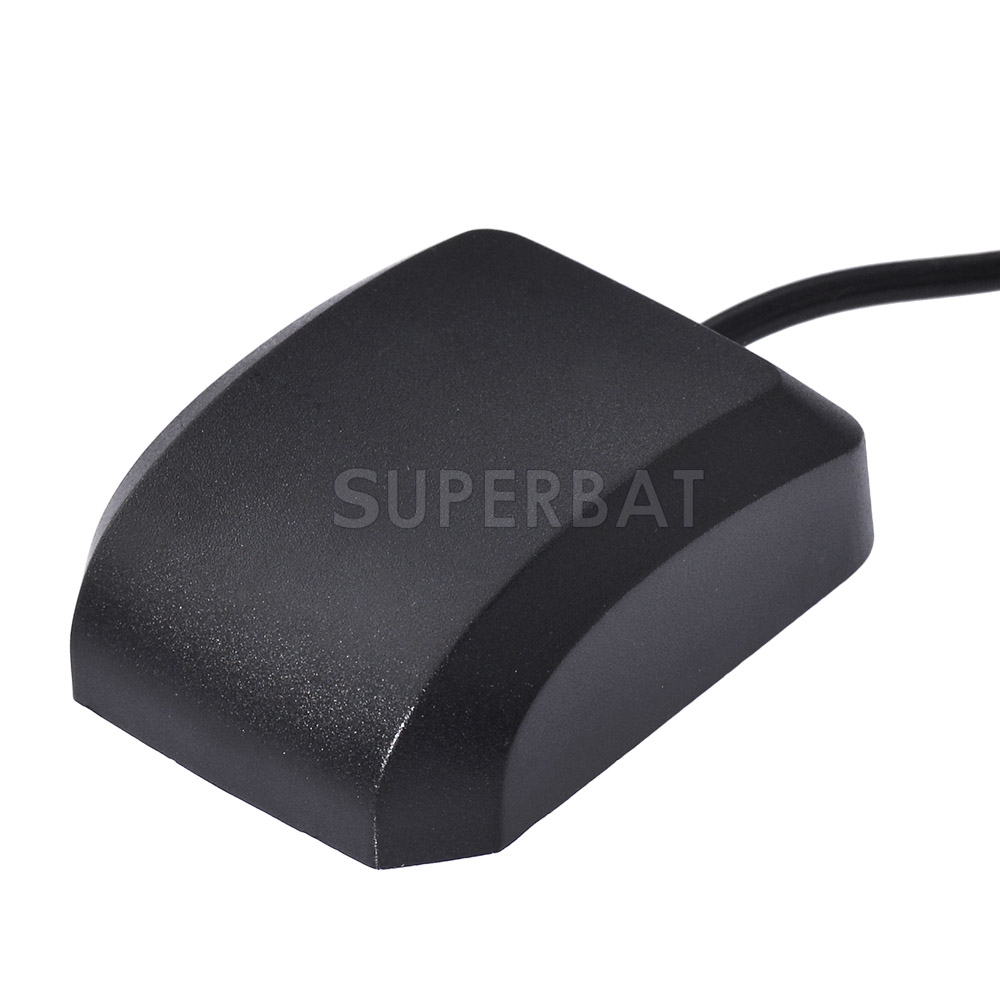

Superbat GPS Antenna FAKRA C 3M Antenna for VW AUDI BMW Ford Benz GPS Navigation System
Unit Price: $8.70
sku:GA05-300-F03CSJ-GPS
Cable Length
quantity 1 - 9 10 - 99 100 - 999 1000+
Price Each $8.70 $7.83 $7.05 ASK
saving% 0% 10% 19% -
Real Time Availability
Stock: 1000
Quantity: Units

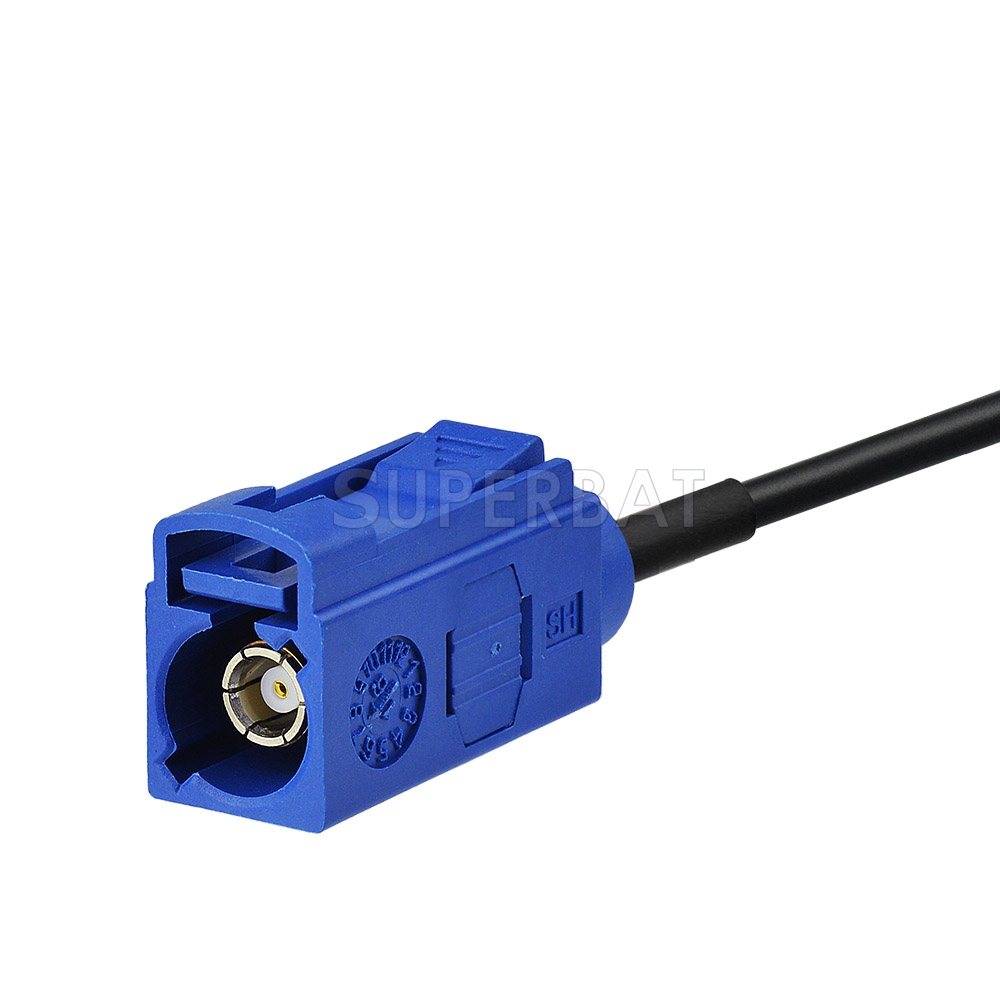

Vechicle: BMW , Ford , Mercedes-Benz , Opel , Skoda , Volkswagen , Audi End connector: Fakra C Connector Style: Straight

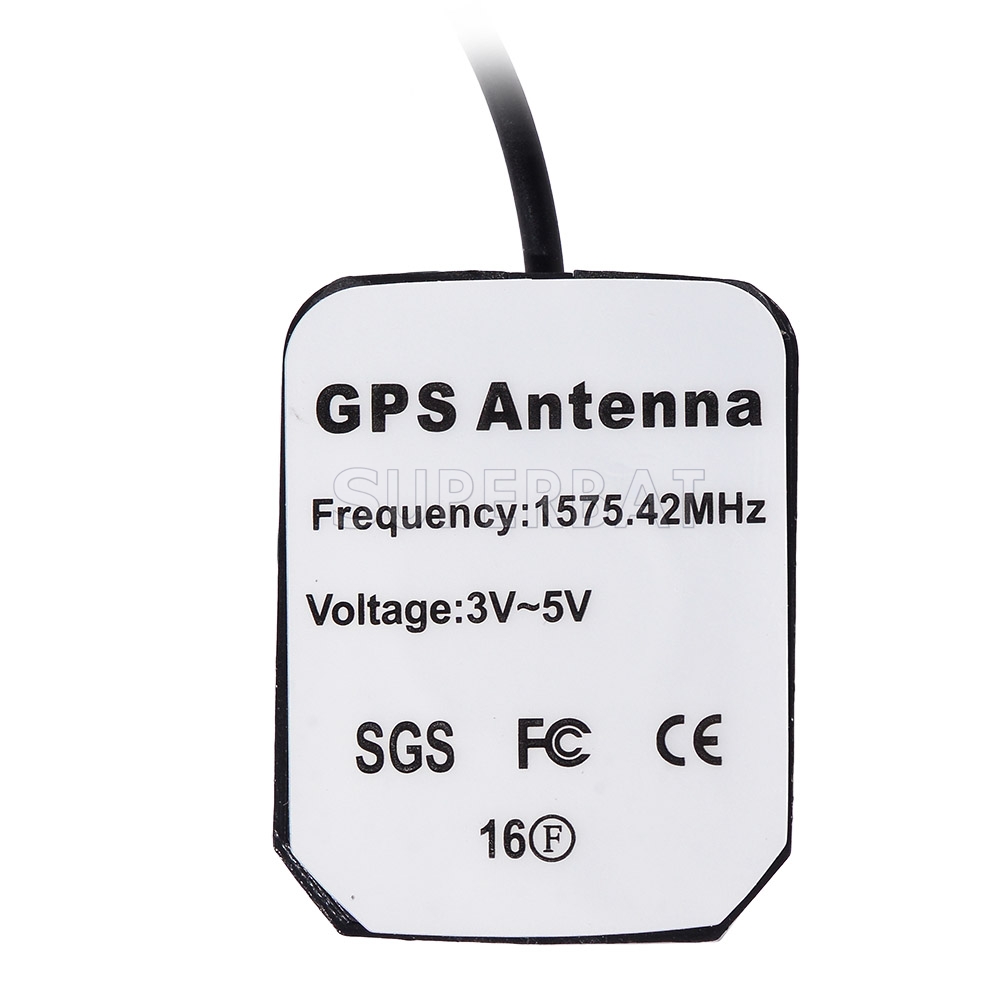

Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width±5 MHz
Impedance 50 ohm
Peak Gain >3dBic Based on 7×7cm ground plane
Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
Polarization RHCP
LNA/Filter
LNA Gain (Without cable) 13dB/26dB/28dB/other Typical
Noise Figure 1.5dB
Filter Out Band Attenuation (f0=1575.42 MHZ)
7dB £íin f0+/-20MHZ ;
20dB £íin f0+/-50MHZ;
30dB £íin f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 3V , 5V, 3V to 5V or other
DC Current 5mA /11mA/15mA Max

APLICATION:

Fakra C Adapter GPS Antenna for VW: MFD2 RNS2, Golf 5, Golf Plus, Jetta, Passat, Touran, Touareg, T5, T5 Multivan RNS300 310, RNS315, RNS500, RNS510



Audi: RNS-E (16: 9), MMI DVD 2G, 3G, BNS low line



Skoda: RNS2, MFD2, Amundsen, Columbus; SEAT: RNS2, MFD2, Media System Low, Medium, High;



Mercedes-Benz: E-Class W211 Comand APS, CKL W209 APS 50 NTG 1, NTG 2, NTG 2.5, NTG 3, NTG 4



BMW Navigation Systems: CHAMP2, ENTRY, ENTRYNAV & ENAVEVO
