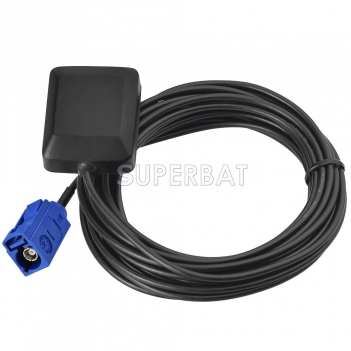

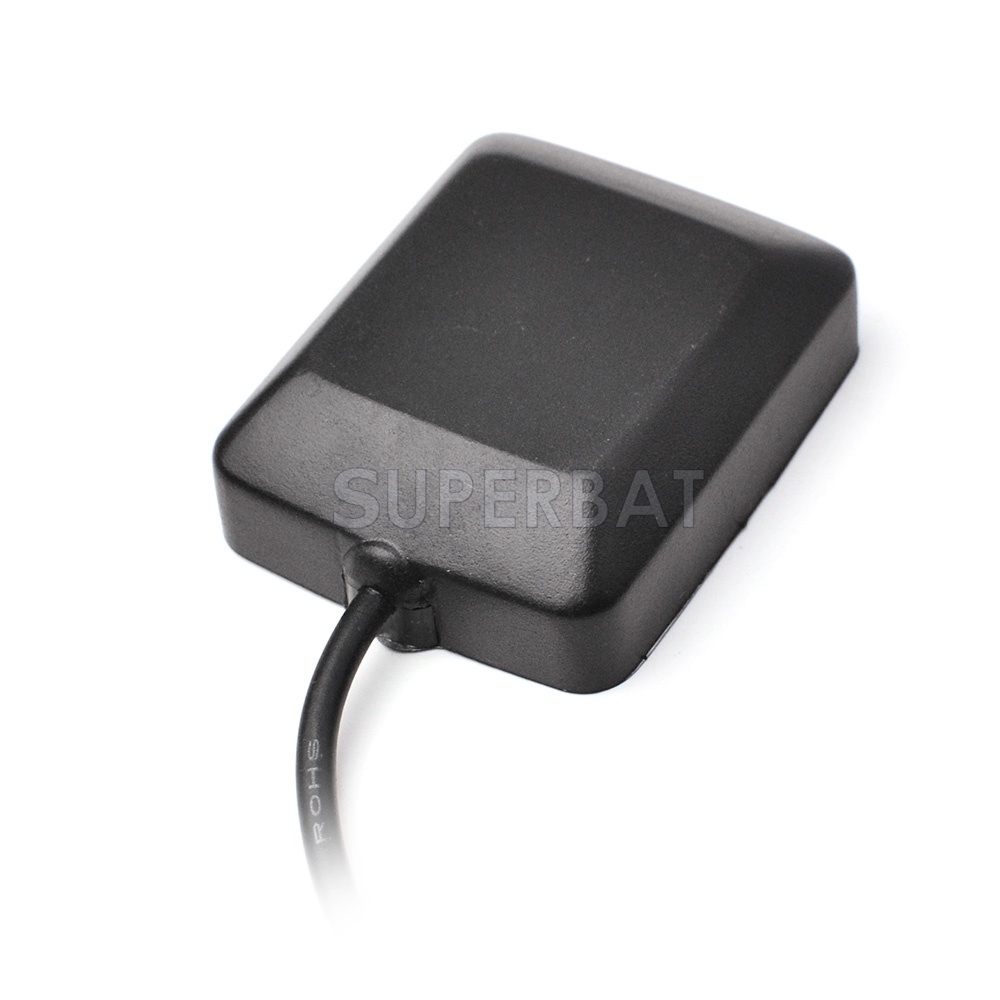

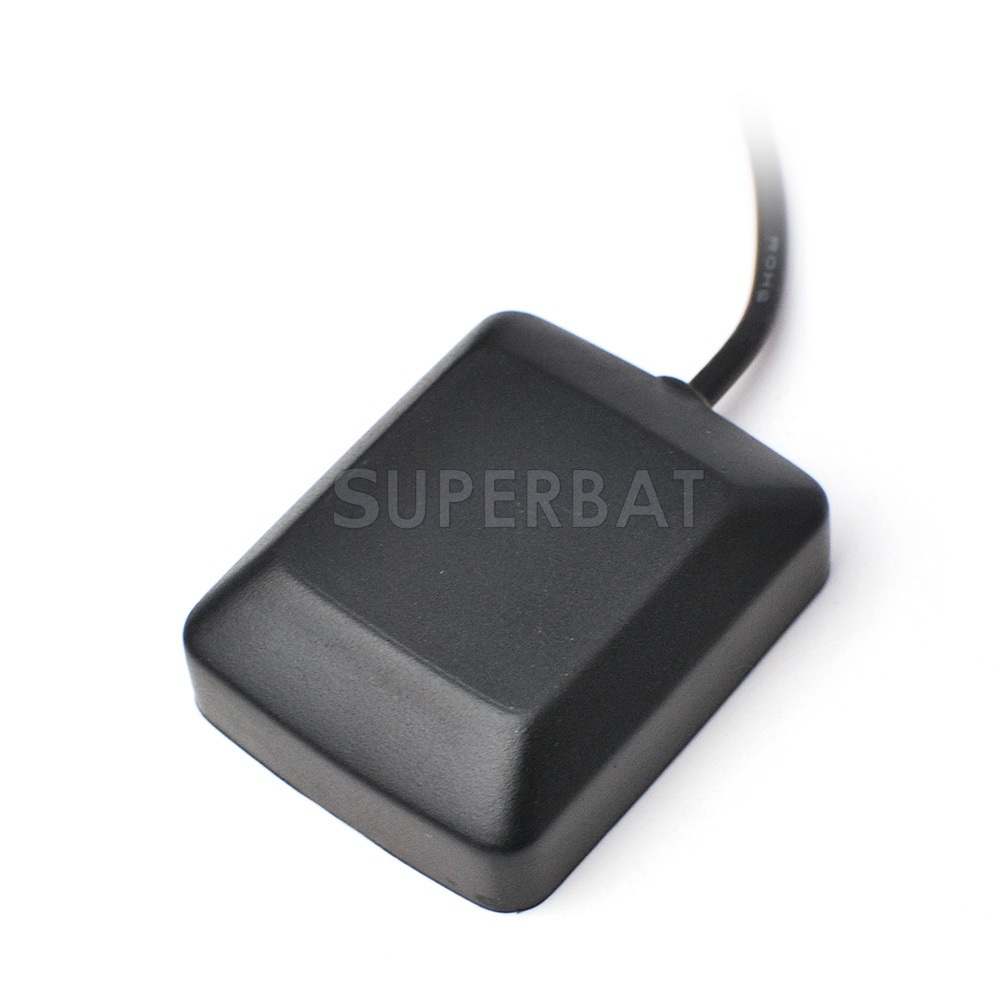

Superbat Fakra C Jack GPS Active Magnetic base Antenna Aerial Connector Cable for VW AUDI BMW Ford Benz GPS Navigation System
Unit Price: $10.00
sku:GA03-300-F03CSJ-GPS
Cable Length
quantity 1 - 9 10 - 99 100 - 999 1000+
Price Each $10.00 $9.00 $8.10 ASK
saving% 0% 10% 19% -
Real Time Availability
Stock: 1000
Quantity: Units

Vechicle: BMW , Chevrolet , Ford , Mercedes-Benz , Opel , Skoda , Volkswagen , Audi End connector: Fakra C Connector Style: Straight

(i) Dieletric Antenna

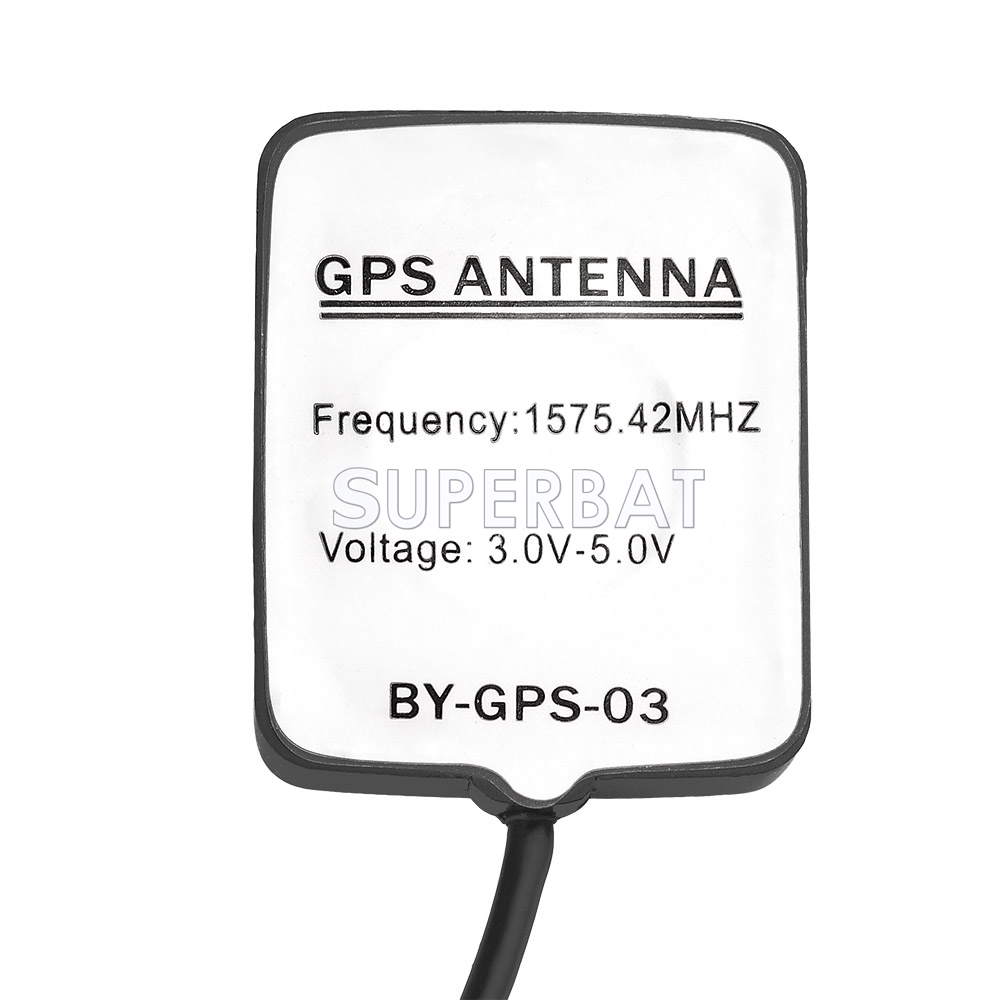

Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain >3dBic Based on 7×7cm ground plane
Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
Polarization RHCP
(ii) LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Min f0+/-20MHZ ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max
(iii)Mechanical
Weight <100gram
Size :45x36x14mm
Cable :RG174 3 meter / Contact us for other length

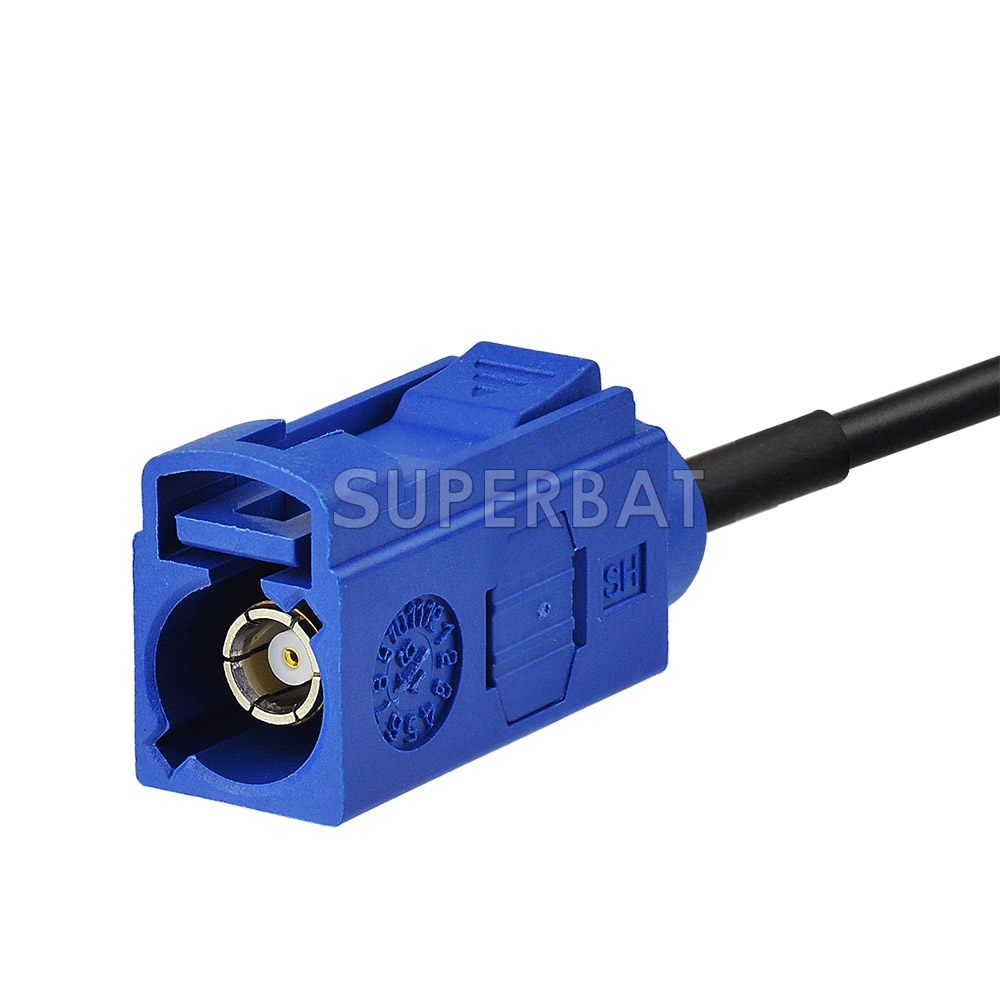

Connector: FAKRA Jack straight
Mounting Magnetic base
Housing Black
(iv)Environmental
Working Temp -40℃~+85℃
Storage Temp. -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof
(V) FEATURES:
Compact Construction/ Low Profile/
Fully Waterproof
Magnet and Screw Mount Base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity
(VI) APPLICATIONS:

Fakra C Adapter GPS Antenna for VW: MFD2 RNS2, Golf 5, Golf Plus, Jetta, Passat, Touran, Touareg, T5, T5 Multivan RNS300 310, RNS315, RNS500, RNS510



Audi: RNS-E (16: 9), MMI DVD 2G, 3G, BNS low line



Skoda: RNS2, MFD2, Amundsen, Columbus; SEAT: RNS2, MFD2, Media System Low, Medium, High;



Mercedes-Benz: E-Class W211 Comand APS, CKL W209 APS 50 NTG 1, NTG 2, NTG 2.5, NTG 3, NTG 4



BMW Navigation Systems: CHAMP2, ENTRY, ENTRYNAV & ENAVEVO
