Your position: Home > RF Connector > SMA Connectors

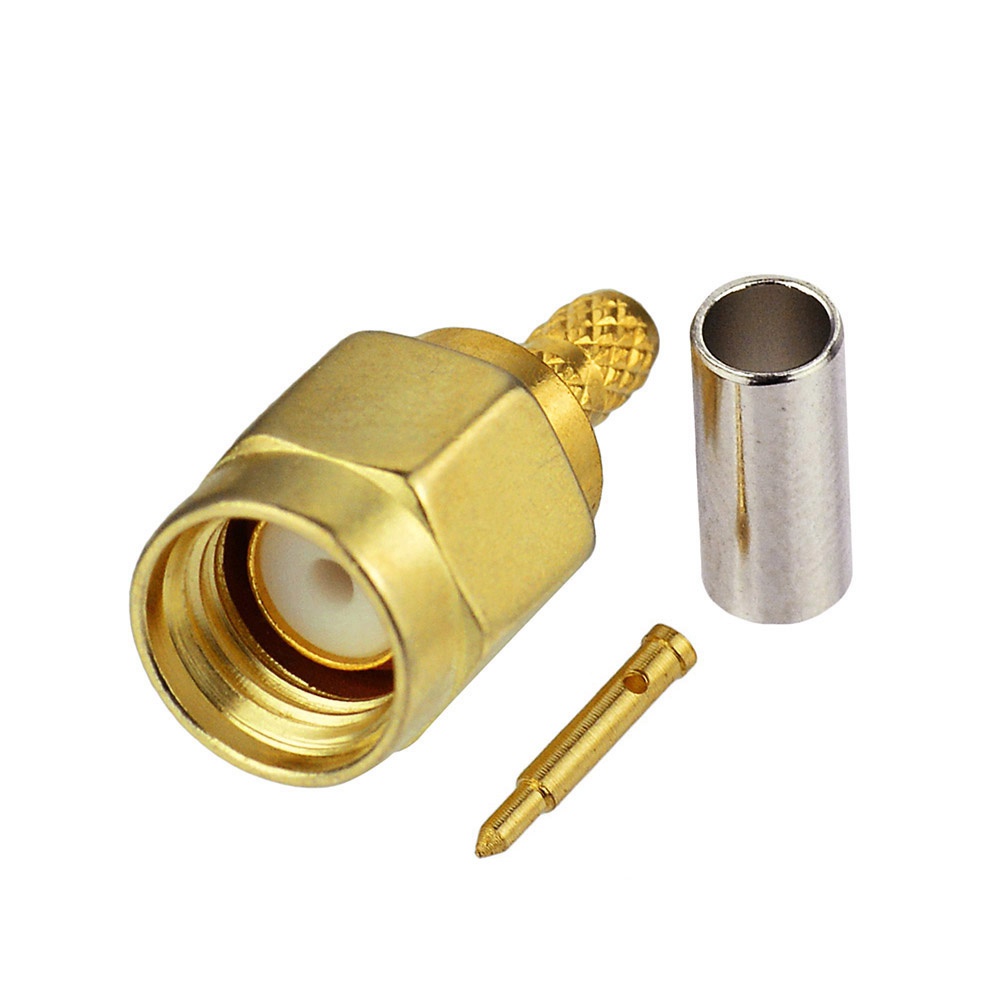

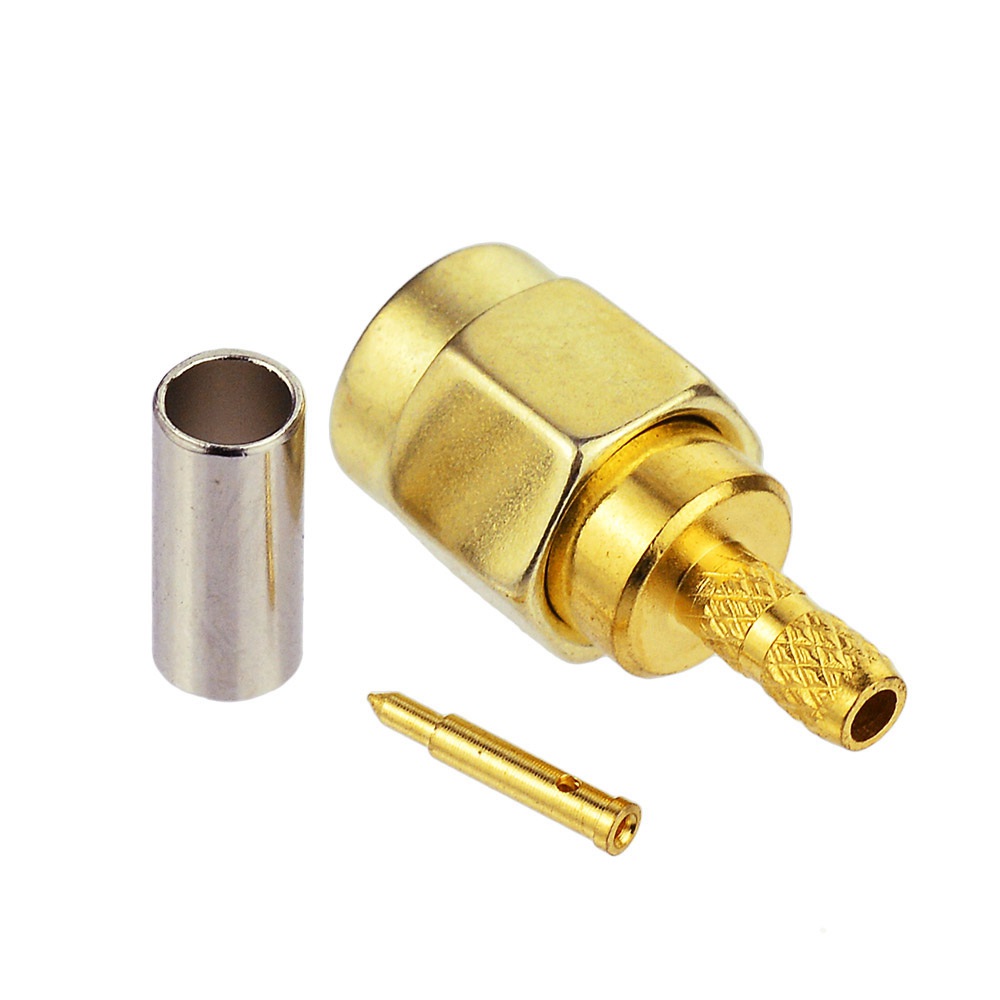

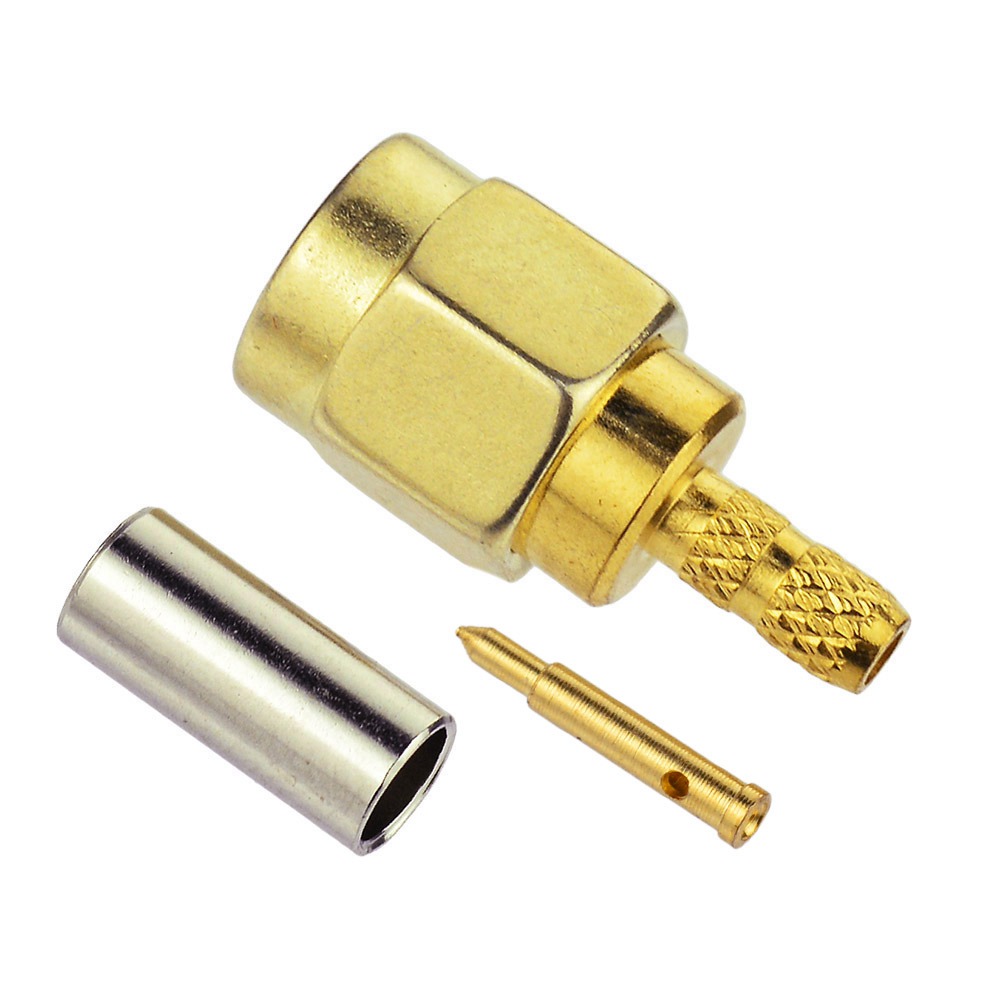

Superbat DC-6GHz SMA Male RF Connector Crimp for RG174 RG316 Gold Plated
DC-6GHz SMA Male RF Connector Crimp for RG174 RG316 Cable
Unit Price: $1.90
sku:S01-SP316-11BS00-ML
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $1.90 $1.80 $1.71 $1.61 ASK
saving% 0% 5% 10% 15% -
Real Time Availability
Stock: 9021
Quantity: Units

Series: SMA Termination Type: Coaxial Cable Gender: Plug , Male Polarity: Standard Interface Type: LMR-100 , RG174 , RG316 Body Style: Straight Impedance: 50 Attachment Method: Crimp Body Material: Brass Body Plating: Gold Dielectric Type: PTFE Frequency Range: DC-6GHz

Description:

SMA Male Connector Solder Attachment For RG174, RG316, RG188. S01-SP316-11BS00-ML SMA male coaxial connector has an interface type of RG174, RG316, RG188 and a 50 Ohm impedance.  SMA male connector uses Crimp as an attachment method. Our male SMA coaxial connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.SMA male coaxial connector has a teflon dielectric type and a VSWR of 1.15.  SMA coaxial connector has a brass body with nickel plating. Our S01-SP316-11BS00-ML SMA connector uses brass contact. This SMA male coaxial RF connector is RoHS.


Attachment MethodCrimp
Frequency Range DC-6GHz
Maximum VSWR1.15
Maximum operating voltage250V
