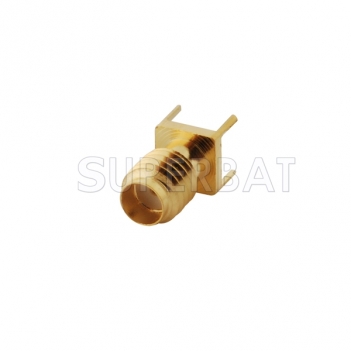

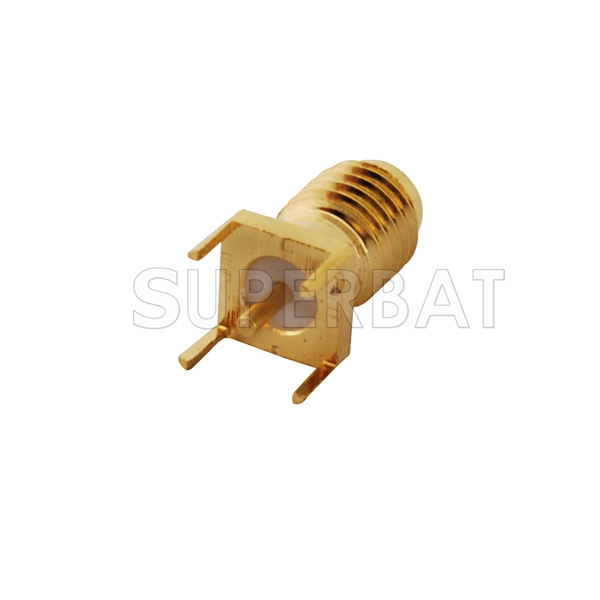

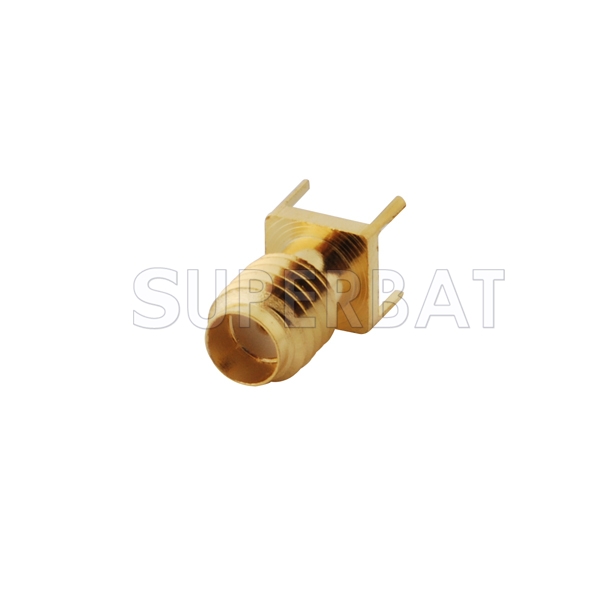

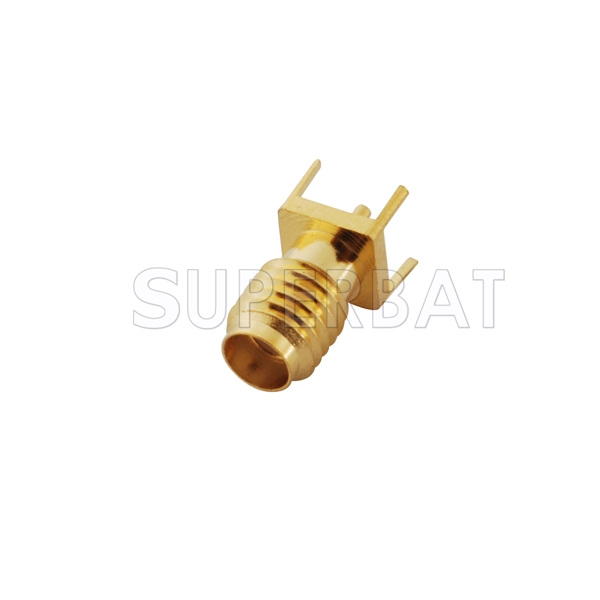

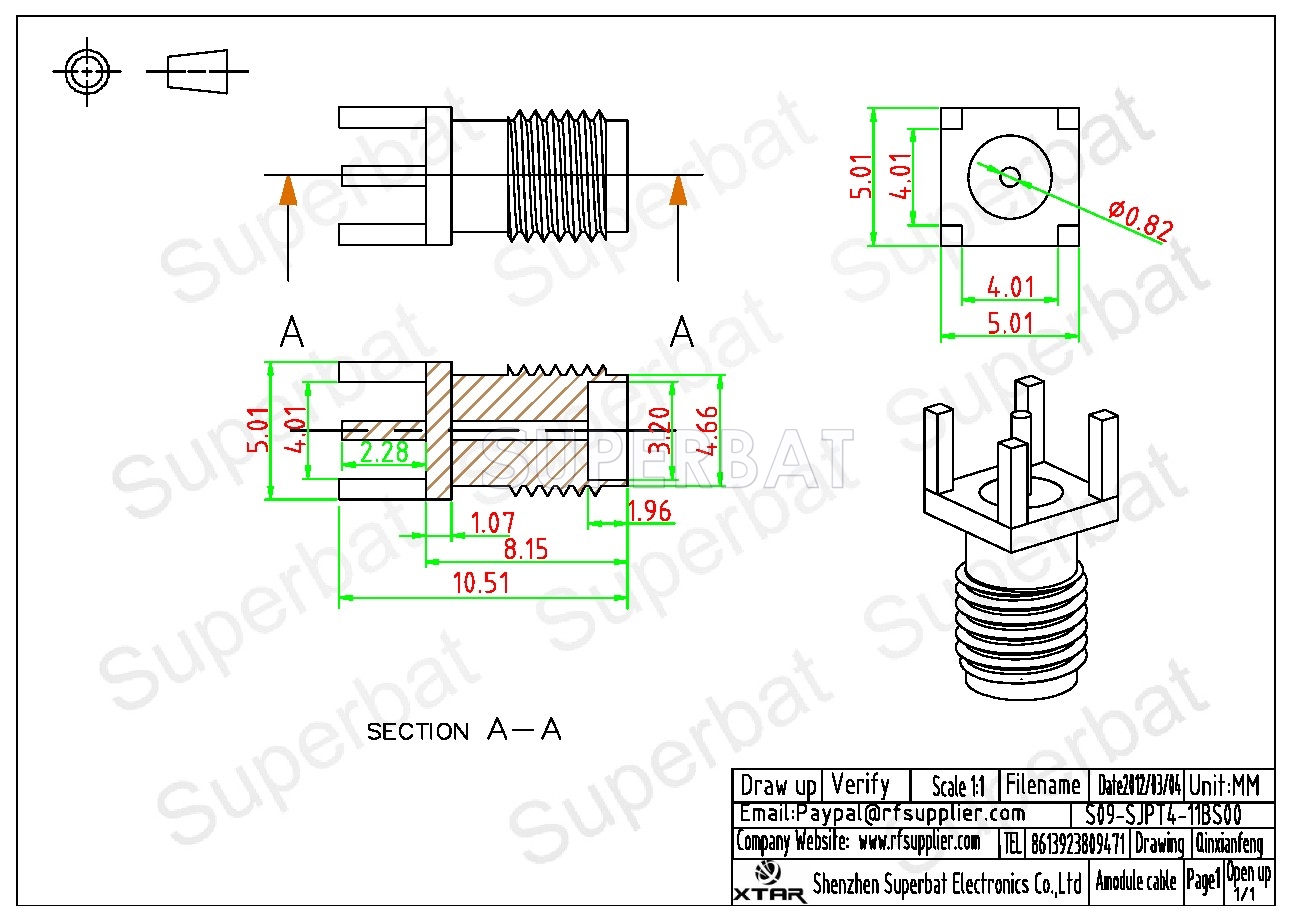

SSMA female connector thru hole Jack vertical PCB Mount straight New
Unit Price: $1.88
sku:S09-SJPT4-11BS00
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $1.88 $1.79 $1.60 $1.49 ASK
saving% 0% 5% 15% 21% -
Real Time Availability
Stock: 10000
Quantity: Units

Series: SSMA Termination Type: PCB Gender: Jack , Female Polarity: Standard Body Style: Straight Impedance: 50 Attachment Method: Solder Body Material: Brass Body Plating: Gold

Seires SSMA are thead coupling sub-miniature coaxial connectors ,as smaller version of SMA connectors.Which have the excellent performance of light weight ,small size ,rugged construction ,wide frequency range and high rellability ,are widely used in RF and microwave telelcommuniction system
The interface diementions and technical characteristics are in occord with specifications of IEC169-18 and CECC 22140



Technical characteristics
 Temp.range................-55~ +155
 Impedanec.................50Ω
 Frequency Range...........DC0~35GHz
 Working Voltage...........335V max
 Dielectric Withstand Voltage.........750V rms
 Contact resistance
 Center Contact............≤4mΩ
 Outer Contact.............≤2.5mΩ
 Insulation resistance ....≥1000 mΩ
 VSWR .....................≤1.07+0.01f
 Durability(mating)........ 500 (cycles)




MATERIAL & PLATING
shell ..............brass ...............goldplated
contact pin ........brass................goldplated
socket............. beryllium........... goldplated
elastic contact.... beryllium........... goldplated
insulator ..........PTFE
crimping suite..... copper alloy......... nickel or goldplated
0-ring sealing .....6146 silastic



APPLECABLE STANDARD
MIL-C-39012;
CECC 22130;
IEC 60169-10
