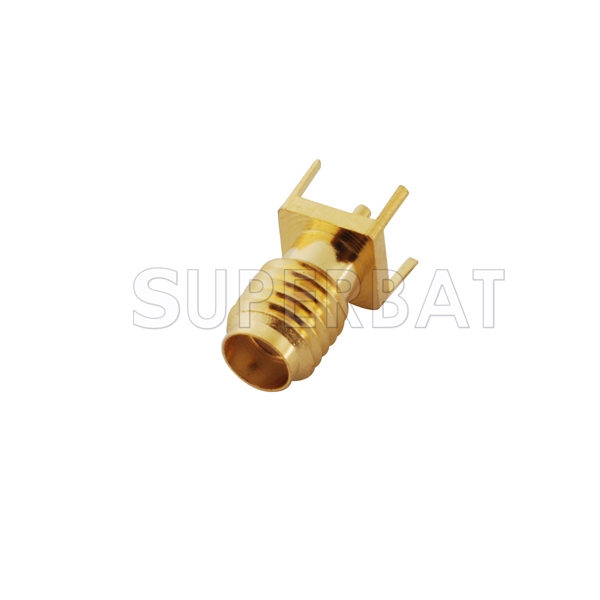

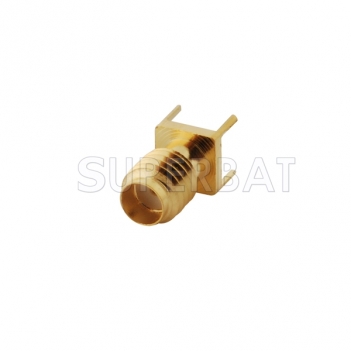

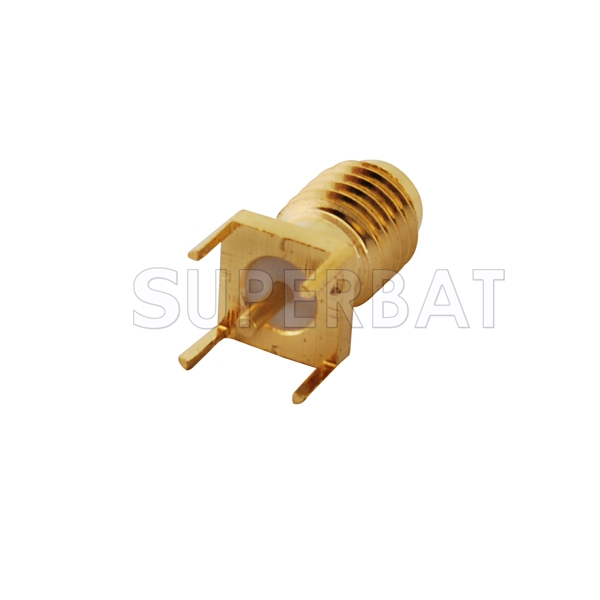

The SSMA series are threaded coupling sub-miniature coaxial connectors, designed as a compact version of the standard SMA interface. They offer excellent performance characterized by light weight, small size, and high structural ruggedness. Ideal for high-density RF and microwave telecommunication systems.
Compliant with IEC 60169-18 and CECC 22140 standards.
| Temp. Range | -55°C to +155°C |
| Impedance | 50 Ω |
| Working Voltage | 335V max |
| Withstand Voltage | 750V rms |
| Contact Resistance | Center ≤ 4.0 mΩ / Outer ≤ 2.5 mΩ |
| Insulation Resistance | ≥ 1000 MΩ |
| VSWR | ≤ 1.07 + 0.01f |
| Body / Shell | Brass, Gold Plated |
| Contact Pin | Beryllium Copper, Gold Plated |
| Insulator | PTFE |
MIL-C-39012; CECC 22130; IEC 60169-10; IEC 60169-18
