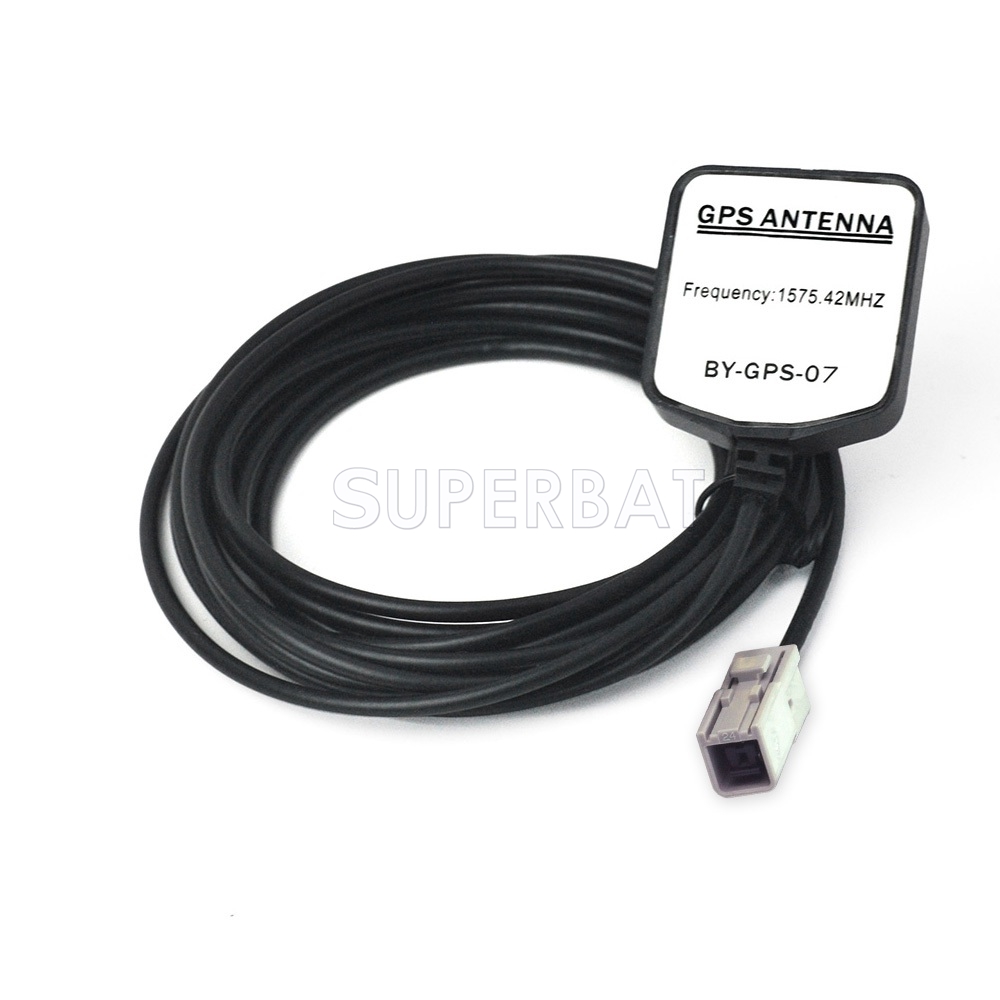

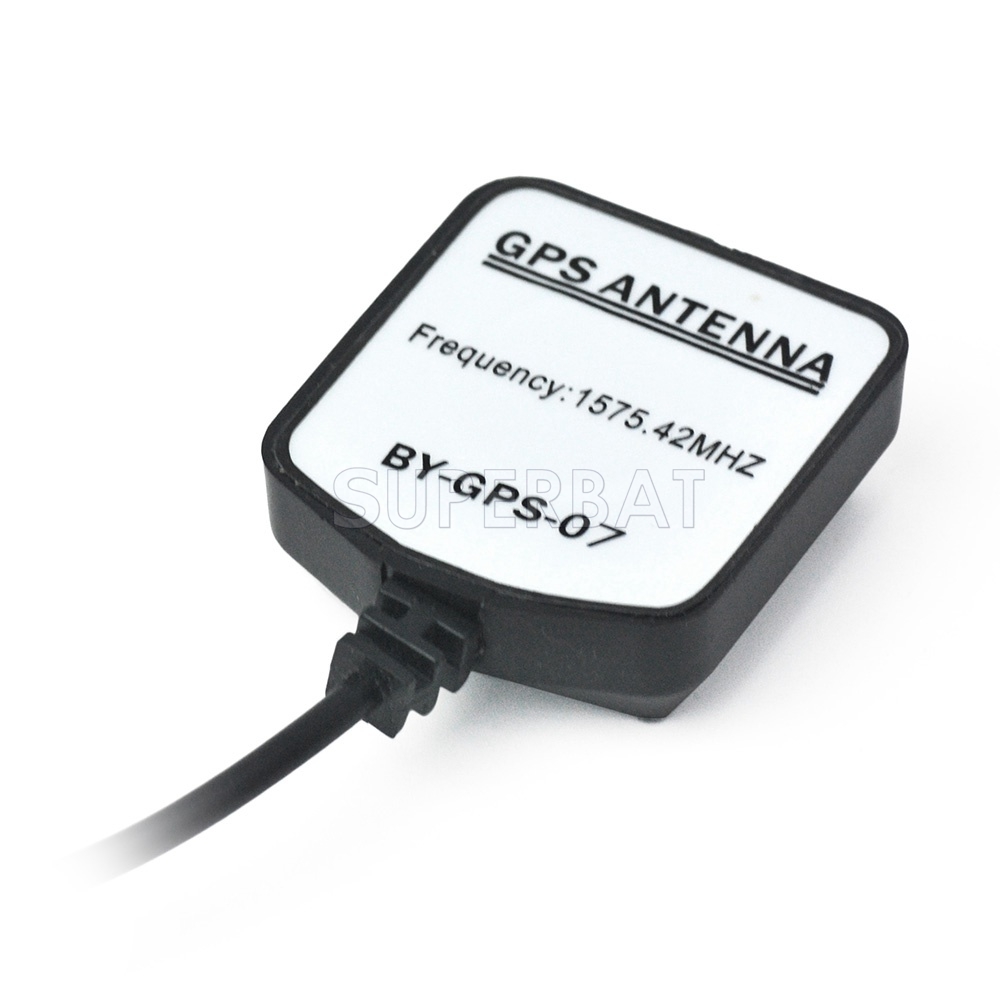

Mini GPS NAV Antenna 1575.42MHz±3 MHz 3M GT5-1S for Alpine Kenwood JVC Toyota Honda Nissan
Unit Price: $15.68
sku:GA16-300-GT5SJ-GPS
Cable Length
quantity 1 - 9 10 - 99 100 - 999 1000+
Price Each $15.68 $14.11 $12.70 ASK
saving% 0% 10% 19% -
Real Time Availability
Stock: 1000
Quantity: Units

Vechicle: Honda , Nissan , Toyota Aplication: Alpine , Kenwood , JVC , Furuno , Clarion End connector: GT5-1S Connector Style: Straight

  Characteristic:
    (i) Dieletric Antenna
    Center Frequency 1575.42MHz±3 MHz
    V.S.W.R 1.5:1
    Band Width ±5 MHz
    Impendence 50 ohm
    Peak Gain >3dBic Based on 7×7cm ground plane
    Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
    Polarization RHCP



    (ii) LNA/Filter
    LNA Gain (Without cable) 28+/-3dB
    Noise Figure 1.5dB Typ.
    Filter Out Band Attenuation (f° =1575.42MHz)
    7dB Min f0+/-20MHZ ;
    20dB Min f0+/-50MHZ;
    30dB Min f0+/-100MHZ
    V.S.W.R <2.0
    DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
    DC Current 5mA /11mA/15mA Max



    (iii)Mechanical
    Weight <100gram
    Size 39.5*35.5*13.8mm
    Cable :RG174 3 meter / contact us for other length

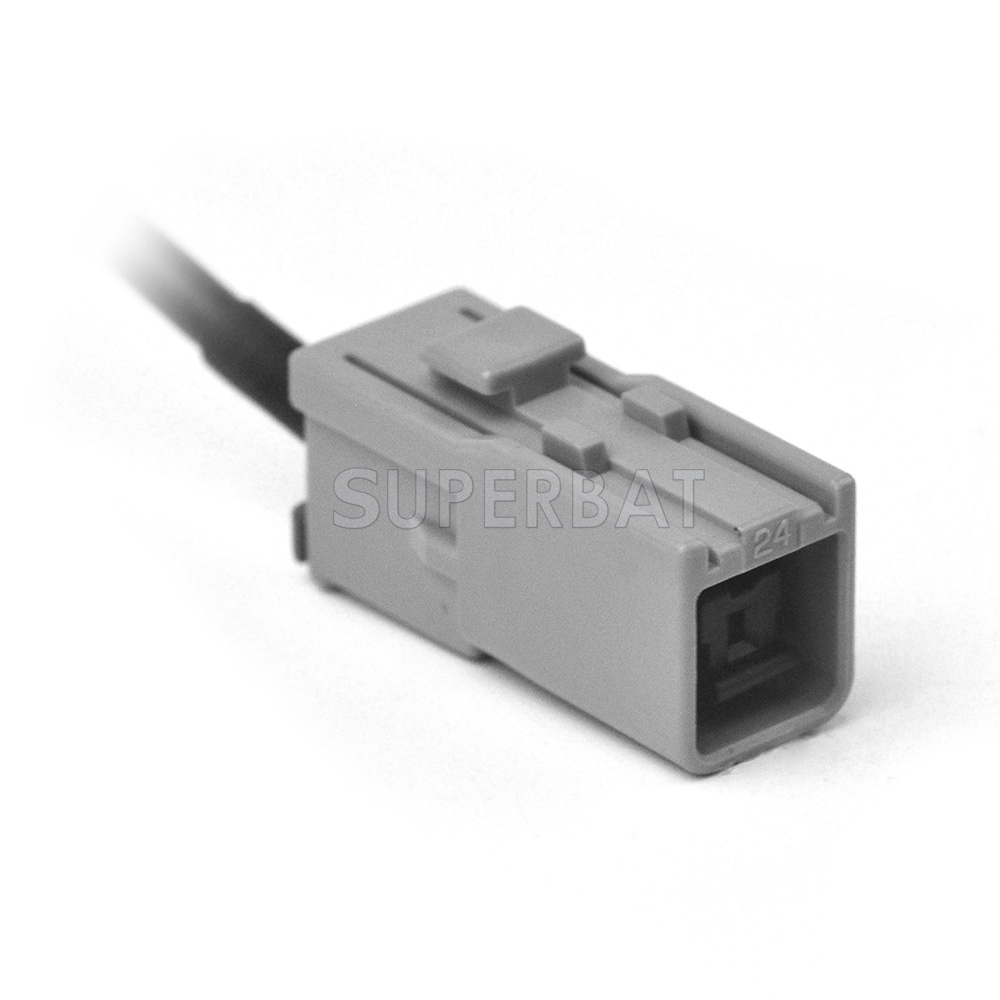

    Connector :SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/AVIC/GT5 in straight or right angle please give us some notes if the antenna connector is chosen.Tks!

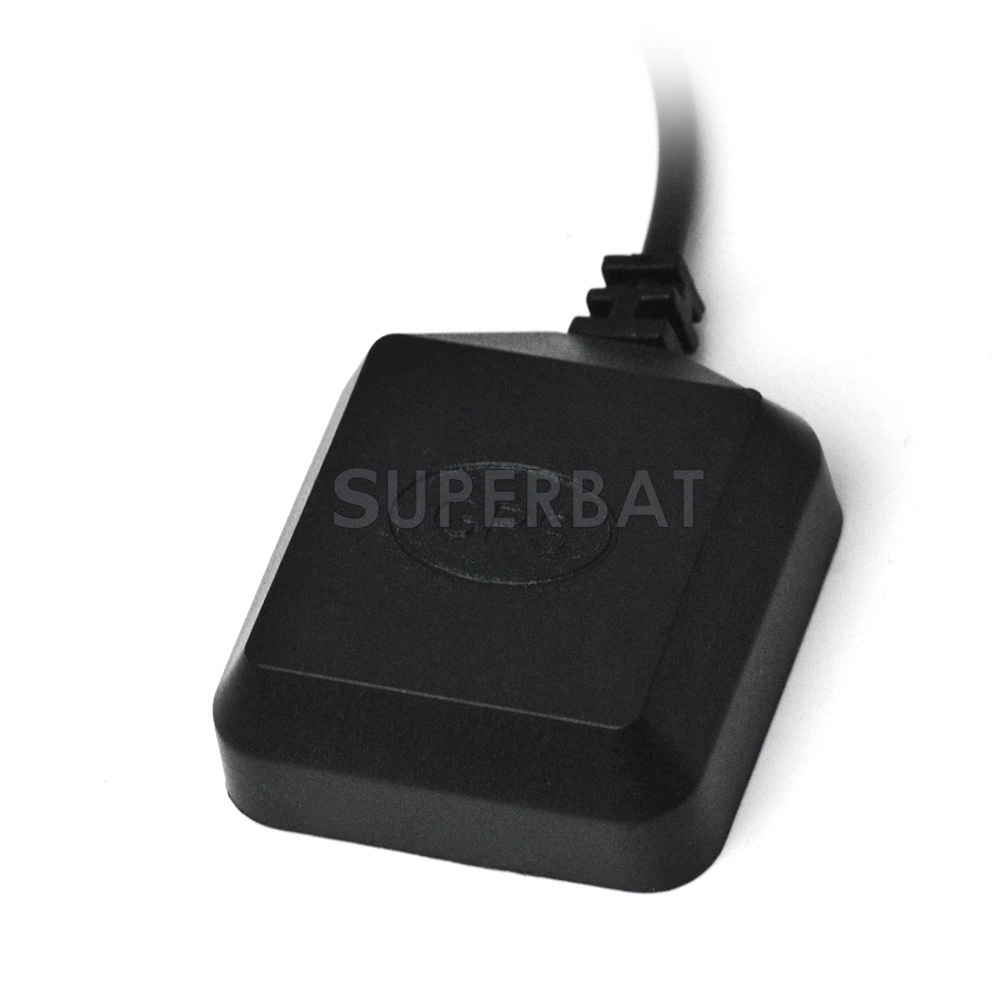

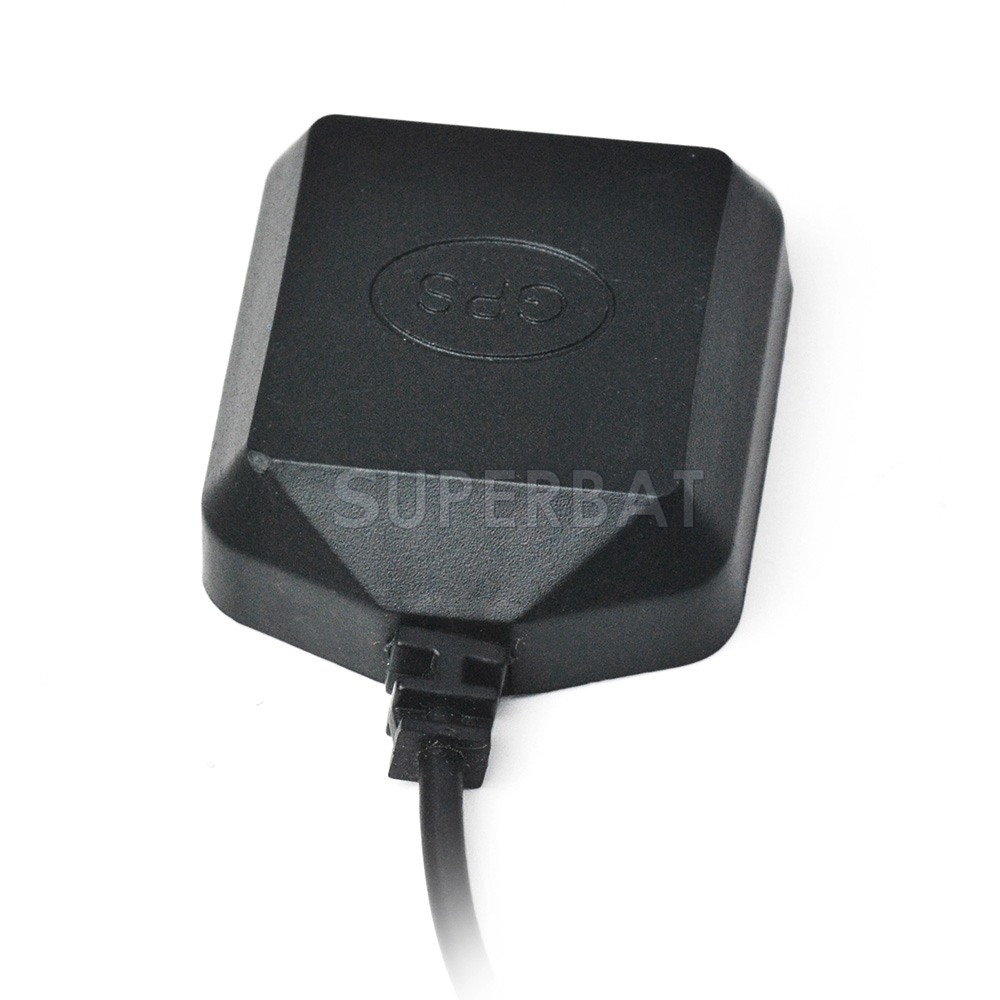

    Mounting Magnetic base
    Housing Black



    (iv)Environmental
    Working Temp -40℃~+85℃
    Storage Temp. -45℃~+100℃
    Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
    Relative Humidity 95% non-condensing
    Weatherproof 100% Waterproof



    (V) FEATURES:
    Compact Construction/ Low Profile/
    Fully Waterproof
    Magnet and Screw Mount Base
    Excellent Temperature Stability
    Low Noise Figure
    High Sensitivity



    (VI) APPLICATIONS:

Honda Navigation

Toyota Navigation

Nissan Navigation

Alpine

Alpine INE-W960HDMI

Alpine INE-W970HD

Alpine INE-W987HD

Alpine X308U

Alpine X009-GM

Alpine X009-TND

Alpine X009-FD2

Alpine X009-GM2

Alpine X209-WRA-OR

Kenwood

DNX7000EX

DNX7100

DNX710EX

DNX6140

DNX5220

DNX5220BT

DNX7220

DNX8220BT

DNX520VBT

DNX600EX

DNX6020EX

DNX5220

DNX5220BT

DNX7220

DNX8220BT

DNX520VBT

DNX600EX

DNX6020EX

DNX5120

DNX7120

DNX8120

DNX8120BT

DNX5160

DNX5260BT

DNX5360

DNX6160

DNX5180

DNX7180

DNX9960

DNX7160

DNX7000EX

DNX7100

DNX710EX

DNX7200

DNX7240BT

DNX7340BT

DNX7340BTM

JVC

KW-NT800HDT

KW-NT700

KW-NT500HDT

KW-NT300
