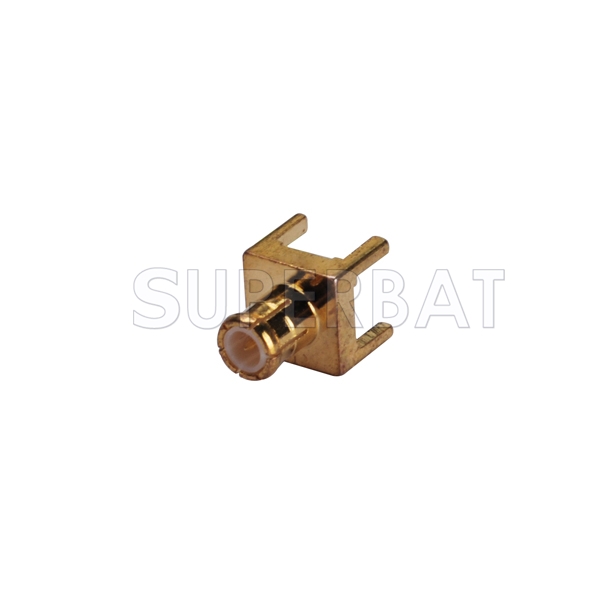

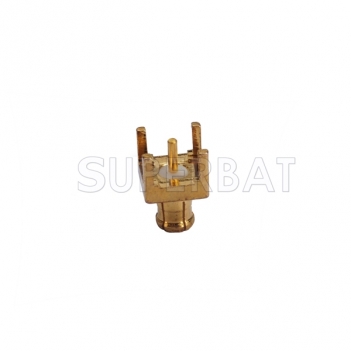

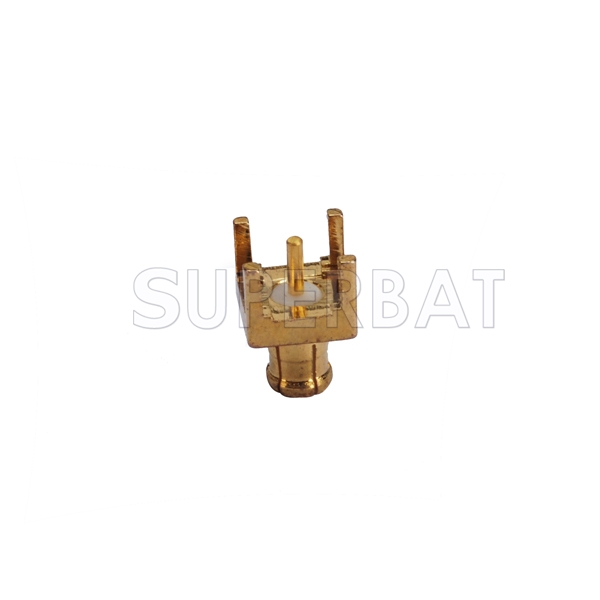

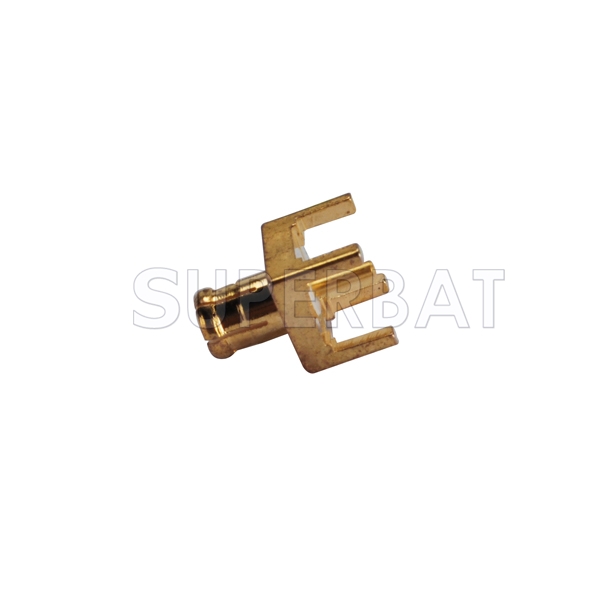

MCX Plug Male Connector Straight Solder
Unit Price: $1.20
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $1.20 $1.08 $0.96 $0.88 ASK
saving% 0% 10% 20% 27% -
Real Time Availability
Stock: 1978
Quantity: Units

Series: MCX Termination Type: PCB Gender: Plug , Male Polarity: Standard Body Style: Straight Impedance: 50 Attachment Method: Solder Body Material: Brass Body Plating: Gold Dielectric Type: PTFE Frequency Range: 3GHz

The MMCX (Micro-Miniature Coaxial) connector series is a micro-miniature version of the MCX. It has the all features of the MCX series, including 50 Ohm impedance with a broadband capability of DC to 6 GHz and secure, fast and easy snap-on/ snap-off coupling, and a wide range of available connectors. However, MMCX connectors have a smaller foot print than the MCX series.
Like the MCX, the MMCX series conforms to the European CECC 22000 specification.
A range of connectors are available, including surface mount, edge card, and cable connectors.

Features and Benefits
Broadband performance with low reflection DC to 6 GHz, providing a high-quality solution at a low cost
Quick connect/disconnect snap-on mating reduces installation time
Conforms to European CECC 22025 specifications
Available in straight and right angle plugs and printed circuit board connectors

Base Stations
