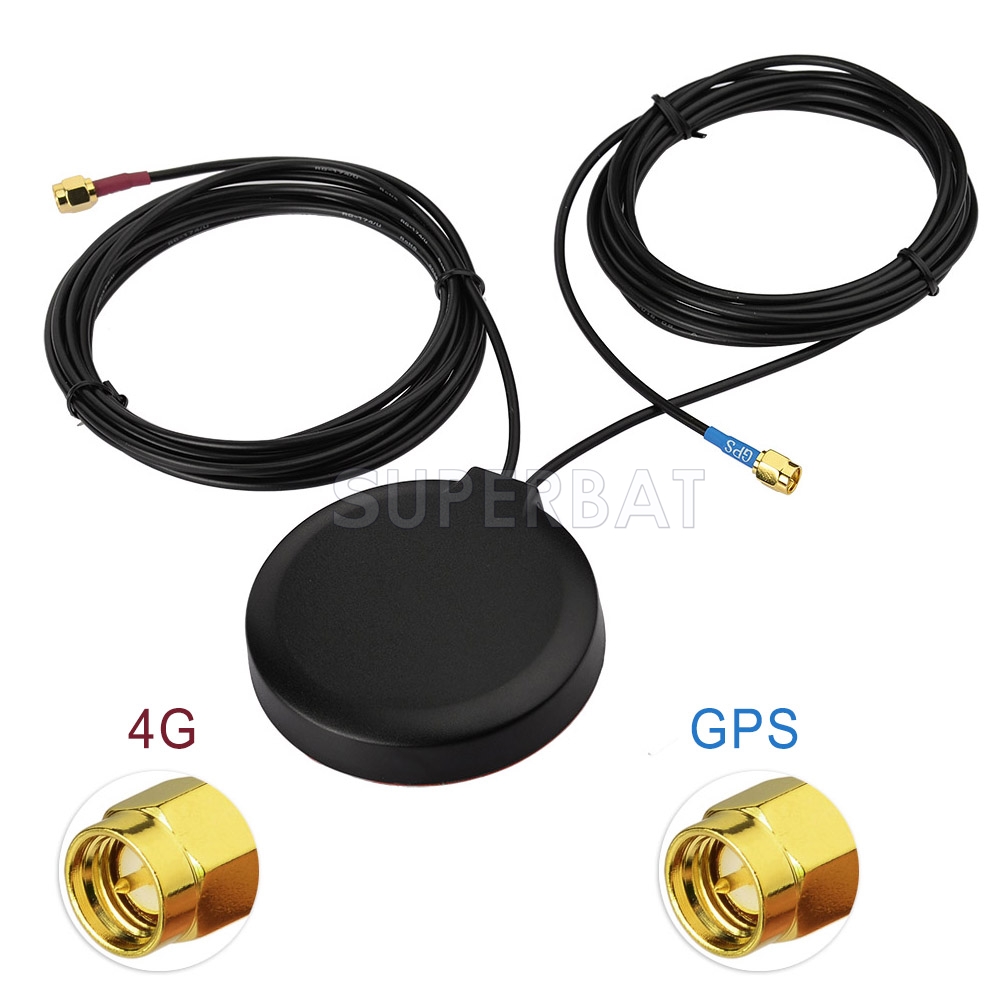

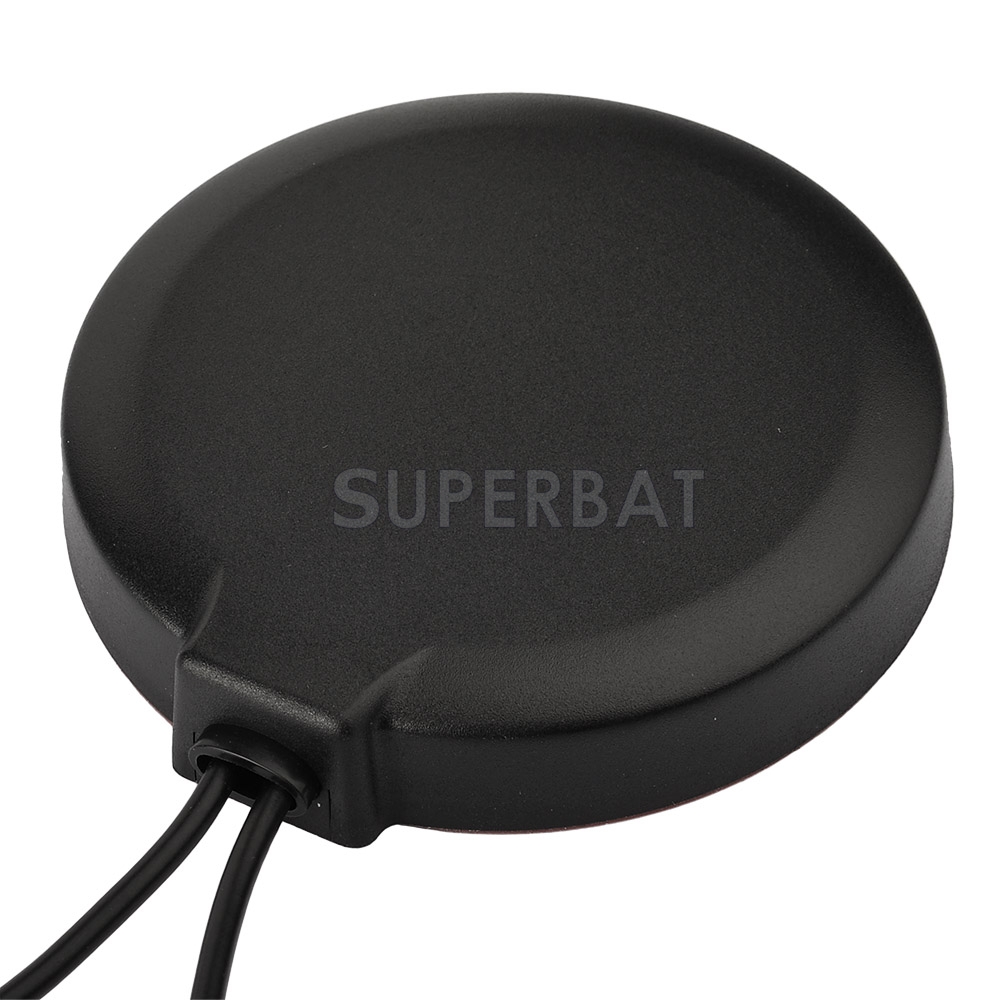

Vehicle Truck RV GPS 4G LTE Magnetic Mount Combined Antenna for GPS Navigation Head Unit Car Telematics 4G LTE Mobile Cell Phone Booster System
Unit Price: $19.14
sku:GA47-300-S01SP-S01SP-JCB305L
quantity 1 - 9 10 - 99 100 - 499 500+
Price Each $19.14 $17.23 $15.50 ASK
saving% 0% 10% 19% -
Real Time Availability
Stock: 500
Quantity: Units

Antenna Type: Combined Network: 4G/LTE Antenna Frequency: 698~960/1710~2700MHz + 1575.42MHz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Radiation: Omnidirectional V.S.W.R: <2.0 Cable Type: RG174 Cable Length: 3M Weight: 50g

Vehicle Truck RV GPS 4G LTE Magnetic Mount Combined Antenna for GPS Navigation Head Unit Car Telematics 4G LTE Mobile Cell Phone Booster System


GPS Antenna Specification:

Center Frequency: L1:1575.42MHz±1.023 MHz

Band Width: >9MHz

Polarization: RHCP

Gain: 2dBic(Zenith)

V.S.W.R: <1.5

Impendance: 50Ω

Axial Ratio: 3dB(max)

LNA Gain: 28±2dB

LNA Noise Figure: <1.5

LNA Ex-bandAttenuation: 12dB@CF+50MHz/16dB@CF-50MHz

LNA V.S.W.R: <2.0

LNA Supply Voltage:  2.2~5V DC

LNA Current Consumption:  5~15mA


4G LTE Antenna Specification:

Frequency Range: 698~960/1710~2700MHz

V.S.W.R: <3.0

Polarization: Linear

Gain: 2.0dBi

Impendance: 50Ω

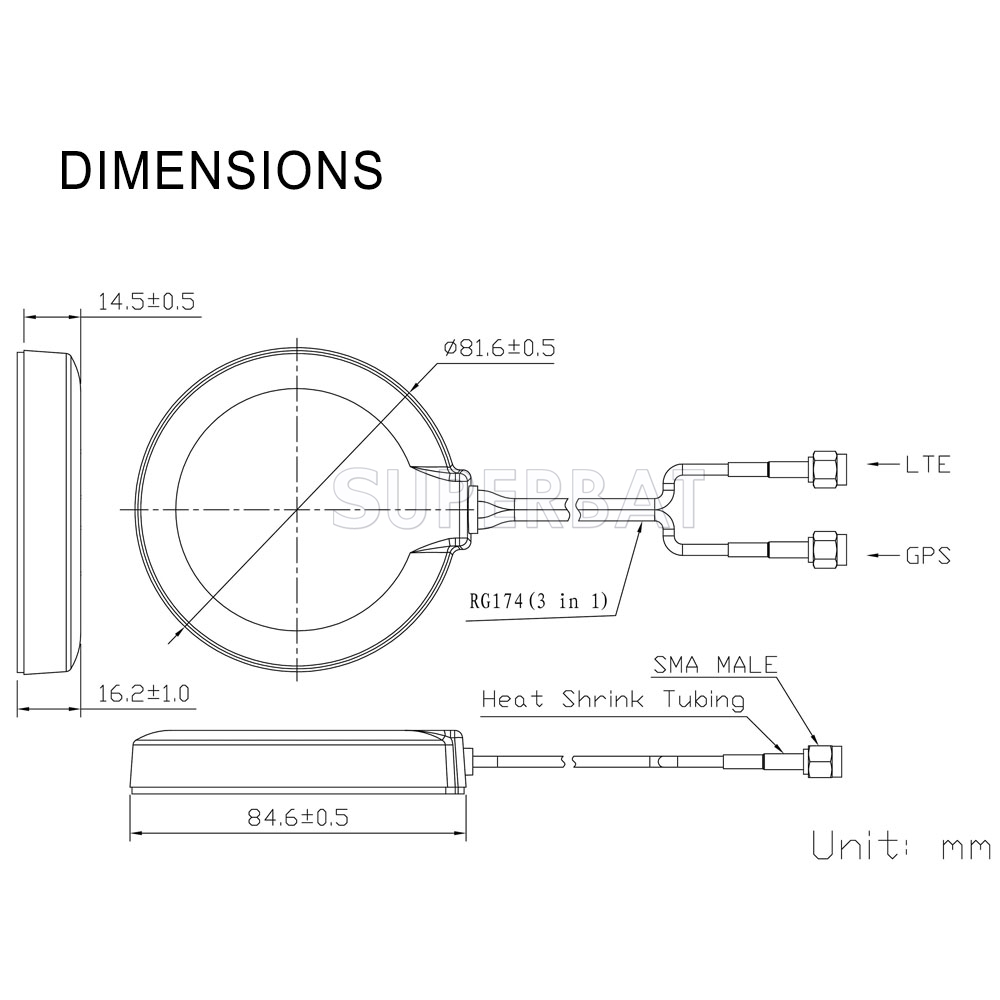

Mechanical:

Cable: RG174

Cable Length: 3 Meters

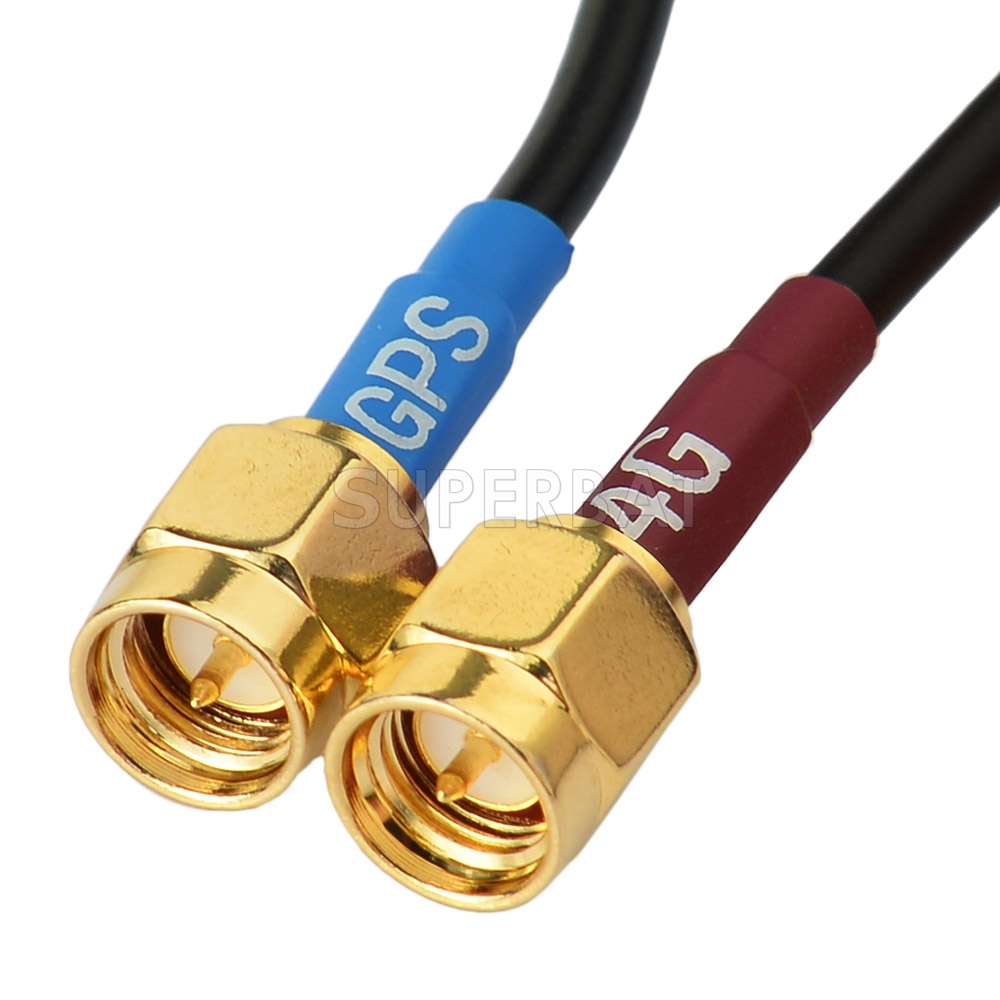

Connector: SMA Male Connector

Material: ABS

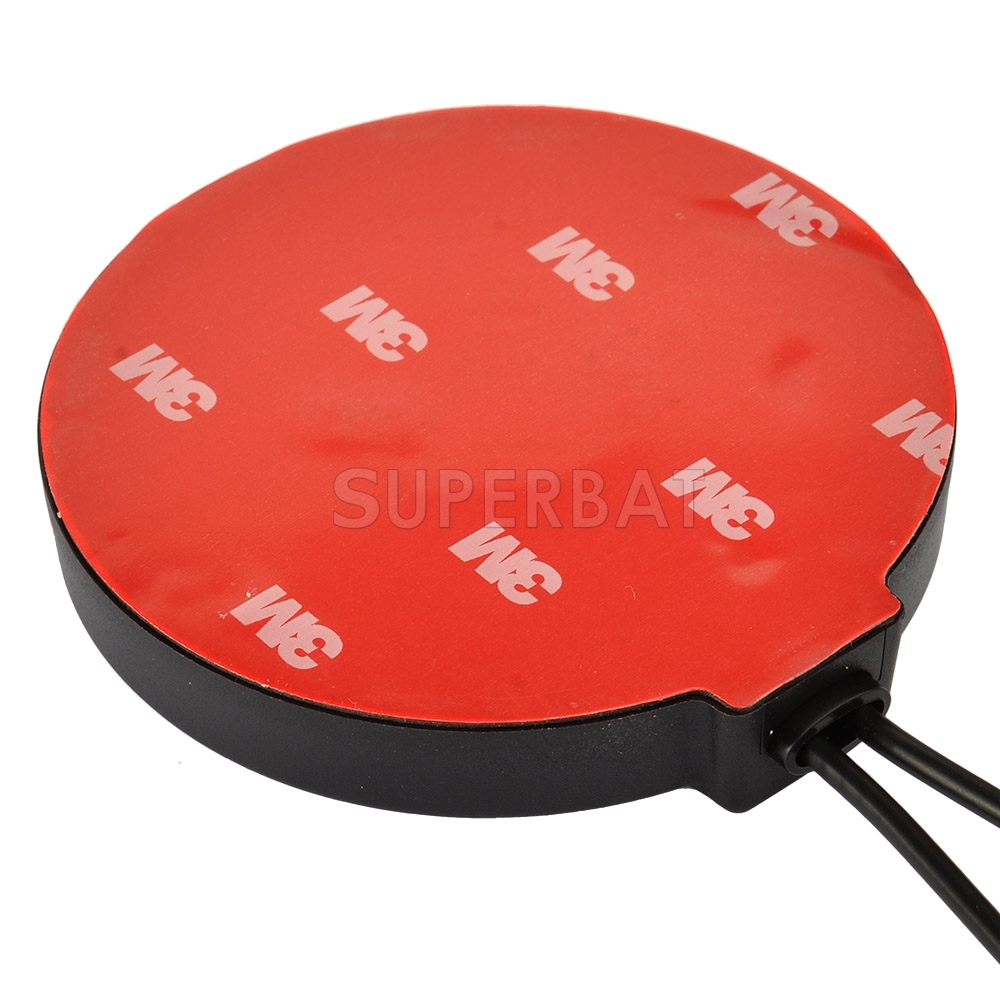

Mounting Method: Adhesive/Magnet

Weight: 140g


Environmental:

Operating Temperature: -40℃~+85℃

Relative Humidity: Up to 95%

Ingress Protection: IP67

Vibration: 10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly: ROHS Compliant
