Triple-System High-Precision Tracking

Supports BeiDou (1561.098±2.046MHz) and GPS (1575.42±1.023MHz); Dual independent 4G antennas (824-960/1710-2690MHz) ensure cellular redundancy for critical IoT applications.

Dual 4G LTE Enhanced Coverage

Dual antennas provide peak gain up to 2.87dBi; ≤3.0 VSWR with 45-48% efficiency across bands (tested at 820/960/1700/2700MHz);Gain: 2.5dB;Includes 3M RG174 cable with SMA connector

Industrial-Grade Resilience

IP65-rated ABS housing; Operates in extreme temperatures (-40°C to +85°C); The antenna complies with RoHS standards, has an IP65 waterproof rating, and is vibration resistant (sine sweep frequency 10-50Hz).

Plug-and-Play Integration

Low power consumption (≤30mA @3.3V); Horizontal mounting optimization; RoHS compliant for global deployments.

Applications:

Automotive fleet telematics

Industrial IoT sensor networks

Remote asset tracking in logistics

Emergency response systems

Specification:

GNSS Module:

Frequency:

BeiDou: 1561.098±2.046MHz

GPS: 1575.42±1.023MHz

Bandwidth: >5MHz

Gain: 4.5dBic (70x70mm ground plane)

VSWR: ≤2.0

Polarization: Right-Hand Circular (RHCP)

LNA Specifications:

Gain: 28dB

Noise Figure: <1.5dB

Operating Voltage: 3.0-3.6V DC

Current Consumption: ≤30mA @3.3V

Dual 4G LTE Modules:

Frequency Bands: 824-960MHz & 1710-2690MHz

VSWR: ≤3.0 (Measured: 1.25-1.83)

Efficiency: 43.16-48.61%

Gain: 2.5dBi

Mechanical & Environmental:

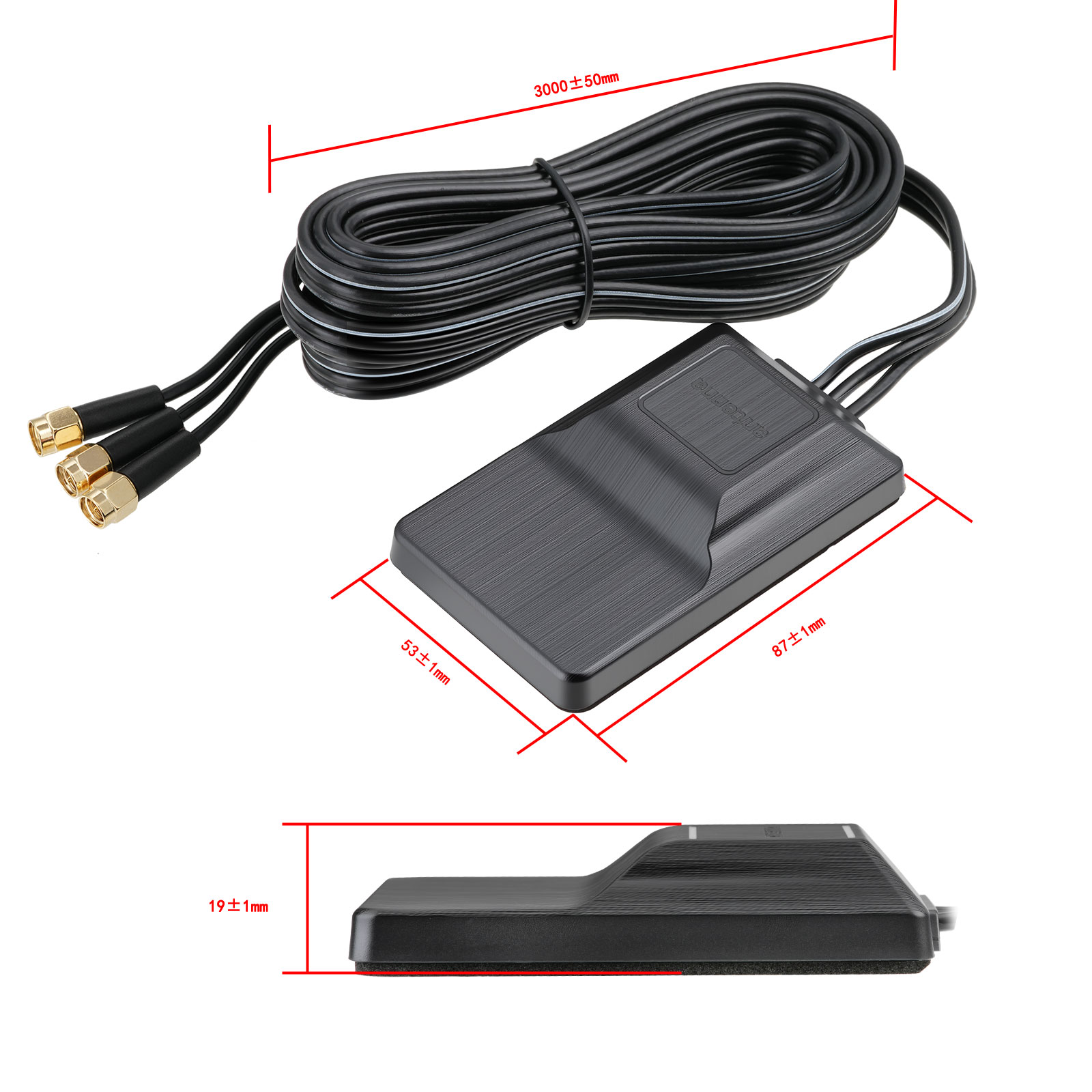

Dimensions: 87x53x19mm (optimized for horizontal mounting)

Cable: RG174, 3Meter

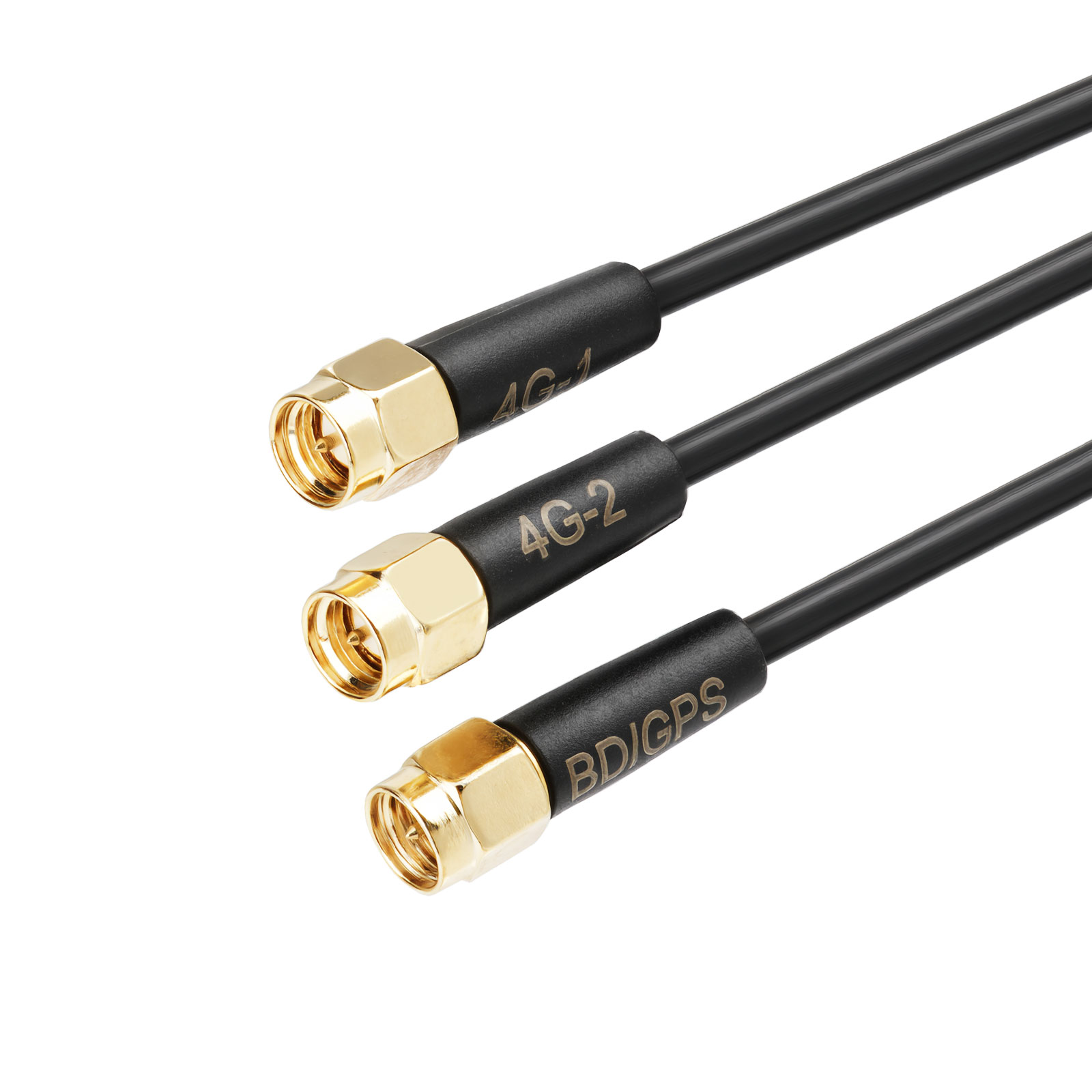

Connectors: Triple SMA male

Operating Temperature: -40°C to +85°C

Storage Temperature: -40°C to +90°C

Certifications & Compliance:

RoHS compliant

IP65 waterproof rating

Vibration resistant (sine sweep 10-50Hz)

Applications:

Automotive fleet telematics

Industrial IoT sensor networks

Remote asset tracking in logistics

Emergency response systems

List:1 x Combination Antenna
