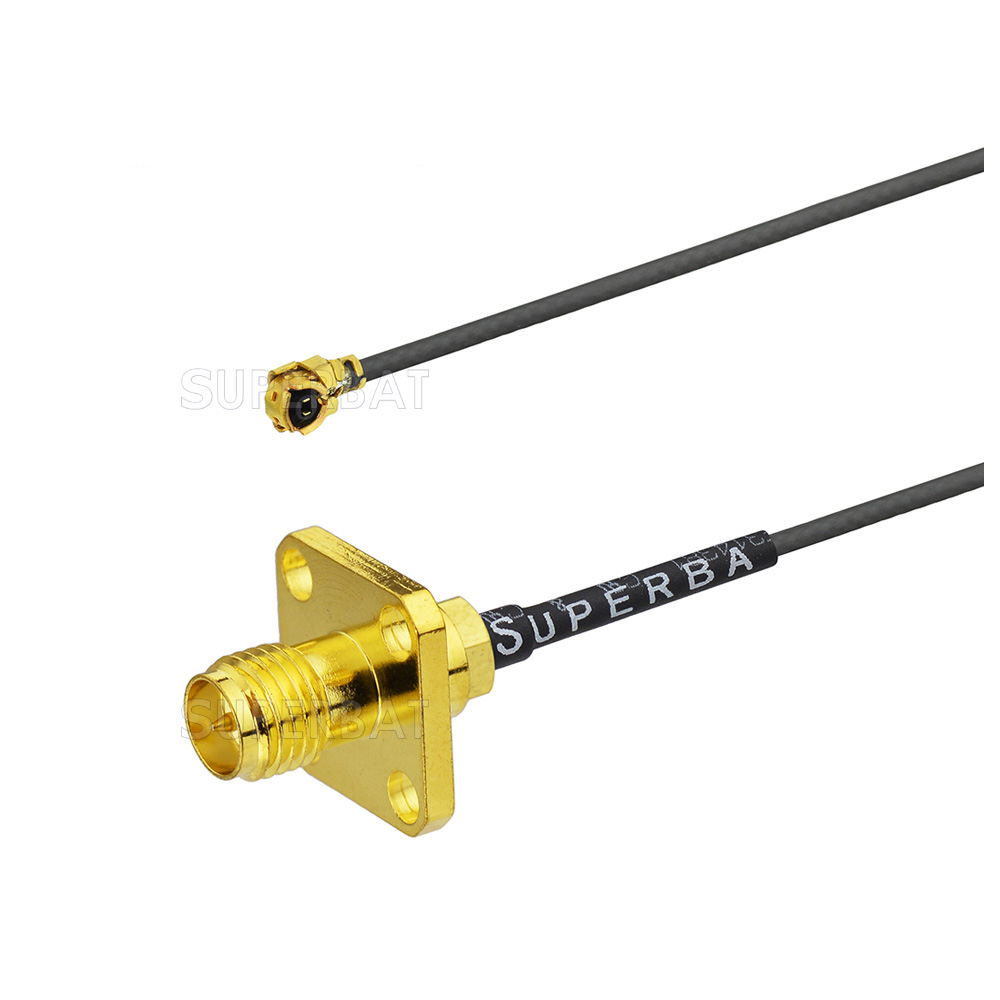

UFL/u.FL/IPX/IPEX to RP SMA Female 4 Hole Flange Mount Panel Connector RF 1.13mm cable Coax Pigtail for wifi Drone
Superbat RF Cable Assemblies,Jumper Cable, Pigtail Cable, Coax Cable, Lead patch, RF Cable, ipx to sma Cable.
Unit Price: $2.43
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $2.43 $2.21 $1.97 $1.82 ASK
saving% 0% 9% 19% 25% -
Real Time Availability
Stock: 9547
Quantity: Units

Cable Type: 1.13mm Connector 1 Series: RP-SMA Connector 2 Series: U.FL Connector 1 Gender: Female Connector 2 Gender: Female Connector 1 Polarity: Reverse Polarity  Connector 2 Polarity: Standard Body Style 1: Straight Body Style 2: Right Angle Mount Method 1: 4 Hole Flange Mount Method 2: None Cable Impedance: 50

IPEX (IPX) MHF Connector is equivalent to the Hirose U.FL connector. IPEX MHF is the generation one of the IPEX micro RF coaxial connector. MHF connector is designed to have a 2.5mm mating height and can operate 0~6GHz frequency.

Simple connection and disconnection Applications include Mobile phones, WLAN, Mini PCI, Bluetooth, PDA, GPS, electronic measuring instrument, etc.


Product name: IPX /U.fl Jack female right angle to RP SMA female 4 holes Flange mount 1.13mm cable

Connector A: IPX/u.fl

Connector B:  RP SMA female with flange straight

Cable length: It can be optional

Cable type: Cable OD 1.13mm,

Impedance: 50 Ω;

Operating temperature : -40°C ~ +85°C.

Custom Service: if you require the different length with the same both ends of connectors ,or other type of RF cable assemblies ,welcome to bulid the cable through our RF custom cable wizard :
