U.FL IPEX IPX I-PEX IPEX MHF4 connector to RP SMA Female Bulkhead 0.81mm cable for WiFi Card Wireless Router

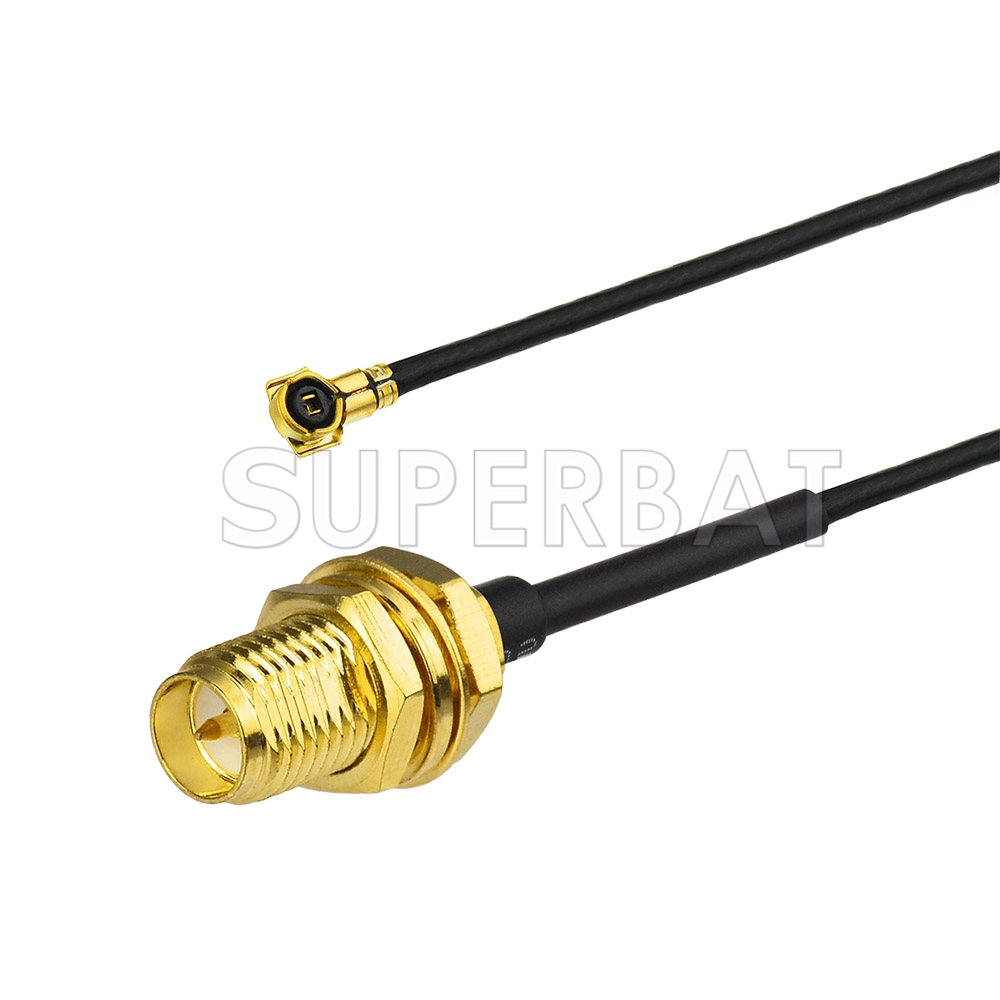

MHF4 to RP-SMA female bulkhead straight pigtail cable 0.81mm
Unit Price: $3.56
quantity 1 - 9 10 - 99 100 - 499 500 - 1000 1001+
Price Each $3.56 $3.38 $3.20 $2.85 ASK
saving% 0% 5% 10% 20% -
Real Time Availability
Stock: 419
Quantity: Units

Cable Type: 0.81mm Connector 1 Series: RP-SMA Connector 2 Series: MHF4 Connector 1 Gender: Female Connector 2 Gender: Female , Jack Connector 1 Polarity: Reverse Polarity  Connector 2 Polarity: Standard Body Style 1: Straight Body Style 2: Right Angle Mount Method 1: Bulkhead Mount Method 2: None Cable Impedance: 50

This antenna cable is compliant for all types of wireless antennas,  including : WiFi & WiMax networks: 802.11N, AC, G, A, B. 900MHz, 2.4GHz & 5GHz applications, ISM, GSM, LTE antennas, as well as any other frequency between 0 and 18GHz.

Fit 7260NGW Intel Dual Band Wireless-AC, Intel Wireless Gigabit Antenna M10041R, Intel Tri-Band Wireless-AC 17265, 7260 802.11ac WIFI Board

IPEX Cables Have Bulkhead Gold Plated Connector, IPX UFL Terminal Block Connector for mini pci card, U.FL MHF4, Wide application: Mobile phones, Antenna, WLAN, Mini PCI, Bluetooth, PDA, GPS, drone, transmitter, electronic measuring instrument

Gender: RP SMA Female /Ufl./Ipx MHF4;

Cable Length: 15cm,30cm,etc optional

Applicable cable: 0.81mm

RF coaxial cable; Application Technology: IEEE802.12 a/b/g/n, WiMax, Zigbee, Bluetooth Wireless

The MHF4 to RP-SMA series cable is impedance matched to 50 ohm cables.

The MHF4 to RP-SMA series coaxial cables have medium-sized, threaded coupling connectors designed for use from DC to 11 GHz.  Their consistently low broadband VSWR has made them popular over the years in many applications.

MHF4 miniature RF coaxial connector is the smallest mini RF connector in the world, which provides good working performance in various applications of Wireless LAN. This very thin cable is typically needed in tight spaces inside of enclosures so that the U.FL connector will snap down on the jack without popping off.

Custom Service: if you require the different length with the same both ends of connectors or other types of RF cable assemblies, welcome to build the cable through our RF Custom Cable Wizard:
