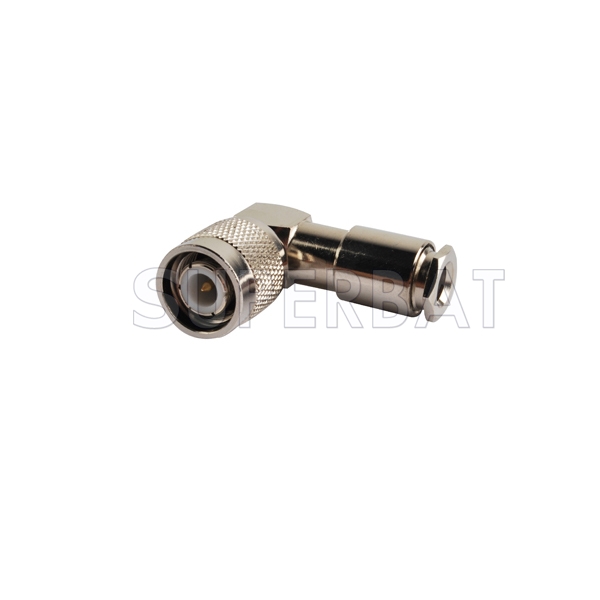

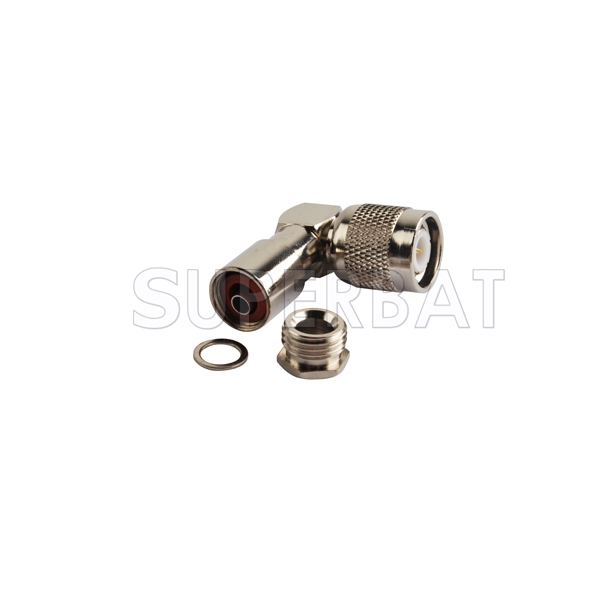

TNC Plug Male Connector Right Angle Clamp LMR-195
TNC Plug Male Connector Right Angle Clamp LMR-195
Unit Price: $2.50
sku:T01-RAL19-41BS01
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $2.50 $2.38 $2.25 $2.20 ASK
saving% 0% 5% 10% 12% -
Real Time Availability
Stock: 1978
Quantity: Units

Series: TNC Termination Type: Coaxial Cable Gender: Plug , Male Polarity: Standard Interface Type: LMR-195 , RG58 Body Style: Right Angle Impedance: 50 Attachment Method: Clamp Body Material: Brass Body Plating: Nickel Dielectric Type: PTFE Frequency Range: 3GHz

The TNC connector series is a miniature, threaded weatherproof series with a constant 50 Ω impedance and a frequency range of DC - 11 GHz.
TNC connectors are produced with standard and reverse polarity. Reverse polarity is a keying system accomplished with a reverse interface, and ensures that reverse polarity interface connectors do not mate with standard interface connectors. Superbat accomplishes this by inserting female contacts into plugs and male contacts into jacks to ensure quality. Other manufacturers may use reverse threading to accomplish reverse polarity keying.
Because of their versatility and durability, TNC connectors are used in many applications.

Features and Benefits
Threaded coupling interface ensures connector with not de-couple in vibration-intense applications
Durable construction
Performance from DC - 25 GHz operations in many applications

Applications
Antennas
Industrial
Wireless
Military
Broadband
