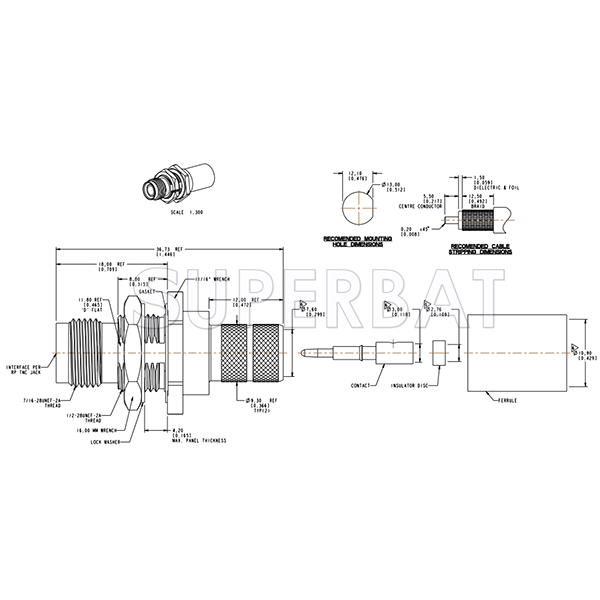

TNC Jack (male pin) Crimp Reverse Polarized Bulkhead Connector 50 Ohm with O-ring for LMR-400
TNC Jack (male pin) Crimp Reverse Polarized Bulkhead Connector 50 Ohm with O-ring for LMR-400
Unit Price: $3.59
sku:T02-BOL40-41BS01A
Real Time Availability
Stock: CONTACT US
Quantity: Units

Series: TNC Termination Type: Coaxial Cable Gender: Jack Polarity: Reverse Polarity Interface Type: LMR-400 , RG213 , RG214 Body Style: Straight Mount Method: Bulkhead With O-Ring Impedance: 50 Attachment Method: Crimp Body Material: Brass Body Plating: Nickel Frequency Range: DC-3GHz

Note: This connector is custom one ,the MOQ is 500 pcs.

The TNC connector series is a miniature, threaded weatherproof series with a frequency range of DC - 3 GHz.
TNC connectors are produced with standard and reverse polarity. Reverse polarity is a keying system accomplished with a reverse interface, and ensures that reverse polarity interface connectors do not mate with standard interface connectors. Superbat accomplishes this by inserting female contacts into plugs and male contacts into jacks to ensure quality. Other manufacturers may use reverse threading to accomplish reverse polarity keying.
Because of their versatility and durability, TNC connectors are used in many applications.

Features and Benefits
Threaded coupling interface ensures connector with not de-couple in vibration-intense applications
Durable construction
Performance from DC - 34 GHz operations in many applications

Applications
Antennas
Industrial
Wireless
Military
Broadband
