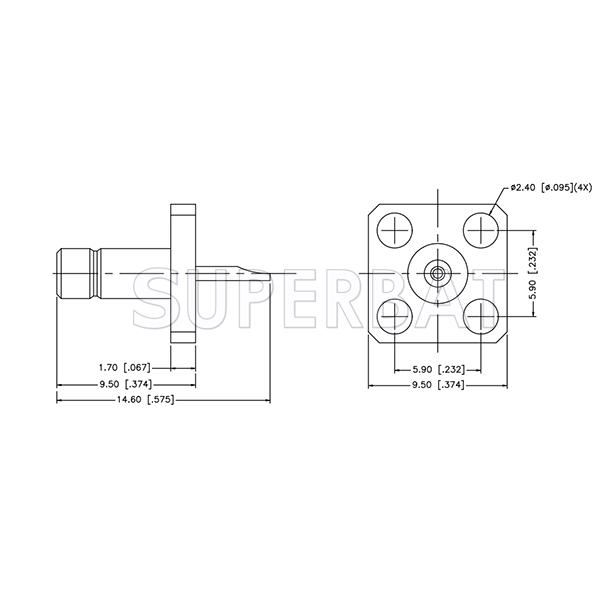

Superbat SMB Jack (male pin) Straight 4 Hole Flange Bulkhead Solder Cup 50 Ohm
Superbat SMB Jack (male pin) Straight 4 Hole Flange Bulkhead Solder Cup 50 Ohm
Unit Price: $2.49
sku:S05-FJHL4-11BS00A
Real Time Availability
Stock: CONTACT US
Quantity: Units

Series: SMB Termination Type: Terminal Gender: Jack , Female Polarity: Standard Body Style: Straight Mount Method: 4 Hole Flange Impedance: 50 Body Material: Brass Body Plating: Gold Frequency Range: DC-3GHz

Note: This connector is custom one ,the MOQ is 500 pcs.

The SMB interface features a snap-on coupling mechanism and is available in 50 Ohm and 75 Ohm configurations. SMB connectors conform to the requirements of MIL-C-39012, and the interface is in compliance with MIL-STD-348. SMB connectors offer broadband performance with low reflection DC to 14 GHz and utilize die cast components on non-critical areas to provide a low-cost solution.

Features and Benefits
Selective plating provides corrosion resistance finish as well as good solder-ability characteristics
Various plating options in nickel, gold, and tin lead
SMB PCB slide-on plug and jack allows board-to-board mounting with a low insertion force making this is ideal for mating a high number of connectors on a pair of PCB’s

Applications
Base Stations
Antennas
Radio Boards
PC/LAN
GPS
