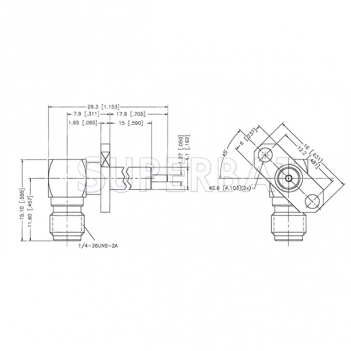

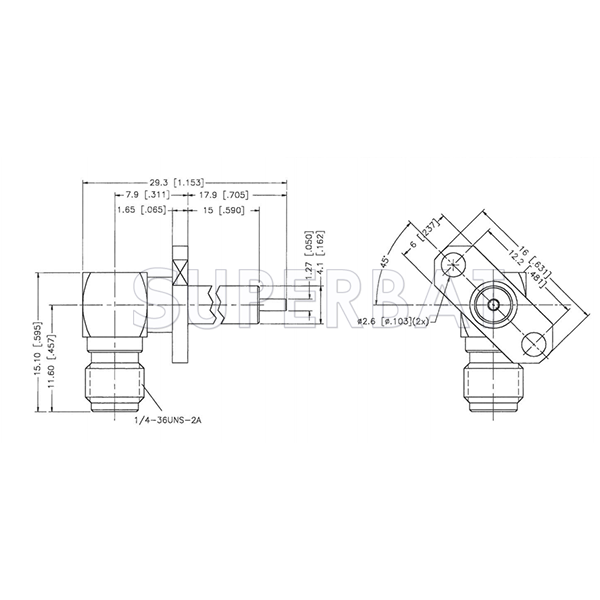

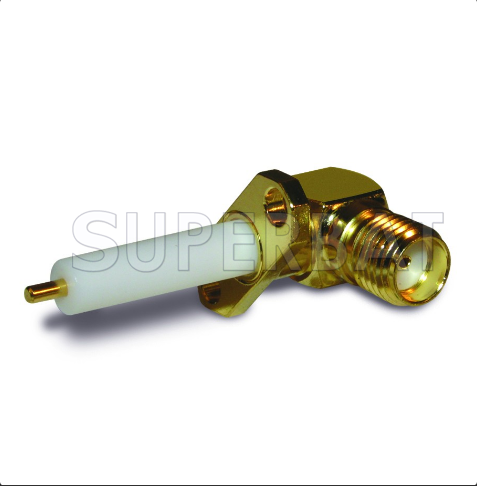

Superbat SMA Connector Right angle Jack Female panel mount receptacle 2 hole flange with extended PTFE
Unit Price: $1.16
sku:S01-RRHL2-11BS00A
Real Time Availability
Stock: CONTACT US
Quantity: Units

Series: SMA Termination Type: Terminal Gender: Jack , Female Polarity: Standard Body Style: Right Angle Mount Method: 2 Hole Flange Impedance: 50 Body Material: Brass Body Plating: Gold Dielectric Type: PTFE
Note: This connector is custom one ,the MOQ is 500 pcs.

Using a threaded interface, SMA 50 Ohm connectors are semi-precision units that provide excellent electrical performance from DC to 18 GHz and outstanding mechanical durability. SMA connectors feature stainless steel or brass construction and ¼ - 36 threaded coupling, which offers high performance in a compact design.


For phase array radar, test equipment, ILS landing systems and other instrumentation using phase matching techniques, SMA interconnects offer a precise and simple means of phase adjustment for microwave devices. Built in accordance with MIL-C-39012 and CECC 22110/260, SMA connectors can be mated with all connectors that meet these specification mating diameters regardless of manufacturer.


Features and Benefits


Light weight, compact and vibration proof design

Low cost commercial grade (Brass SMA) available in nickel or gold plating

Terminates to all standard flexible coaxial cables, low-loss (LMR) type cables and industry standard semi-rigid and conformable cables


Applications


Base stations

Antennas

Telecommunications

Instrumentation

PC/LAN
