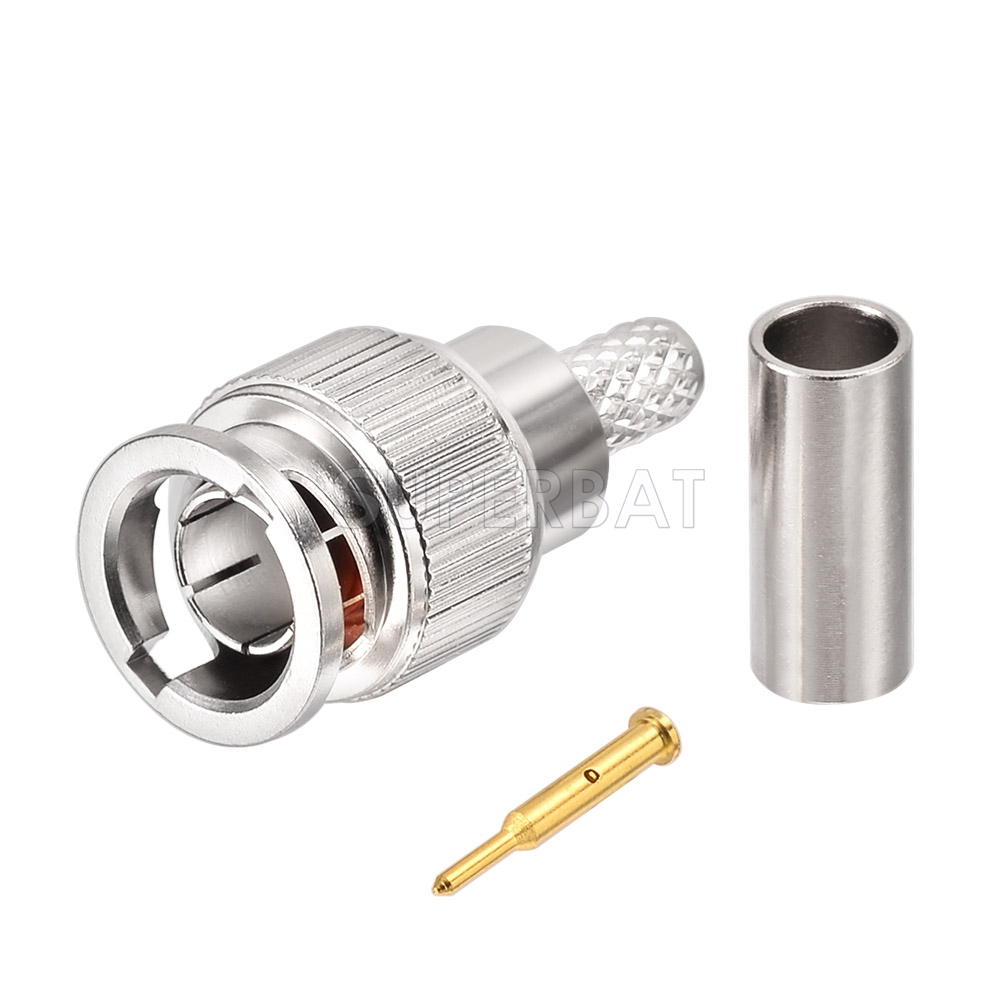

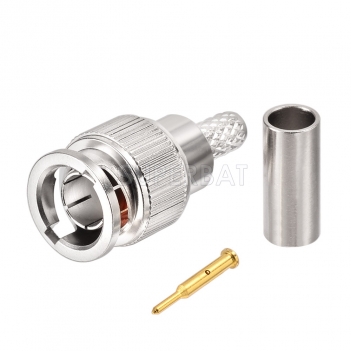

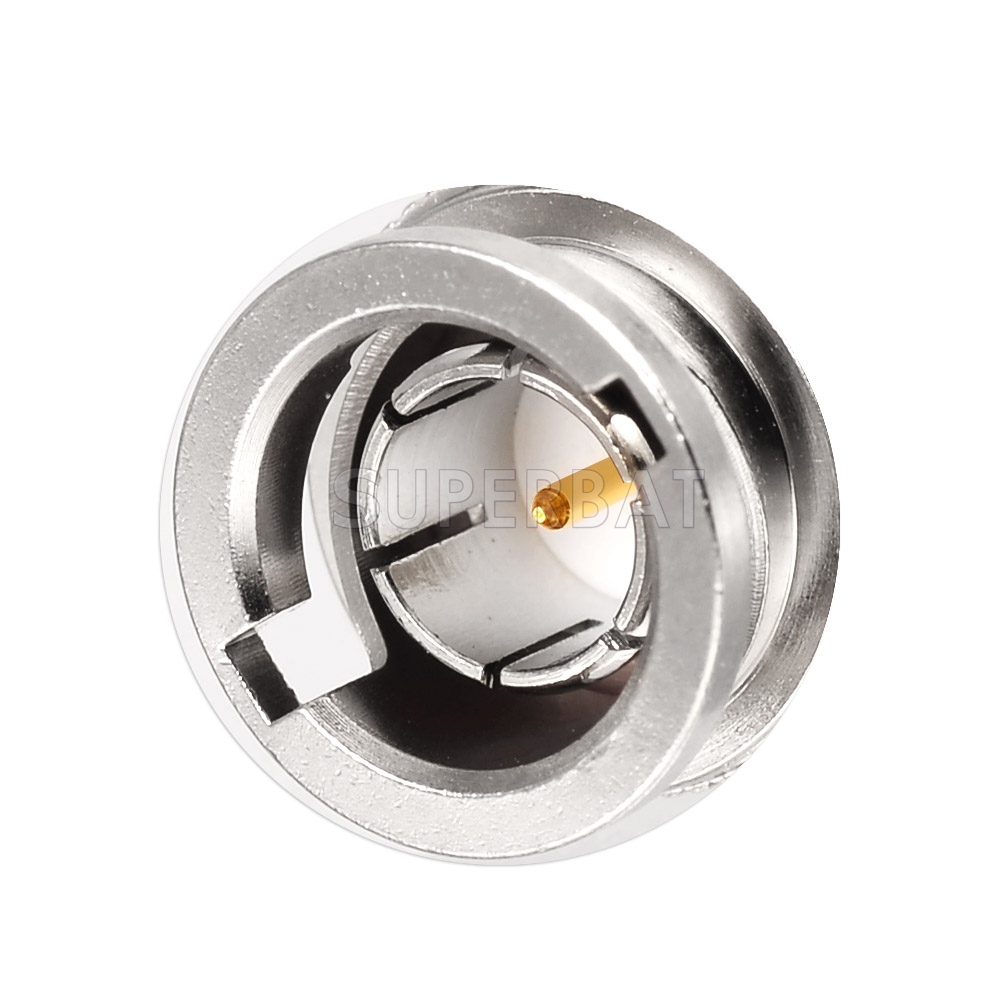

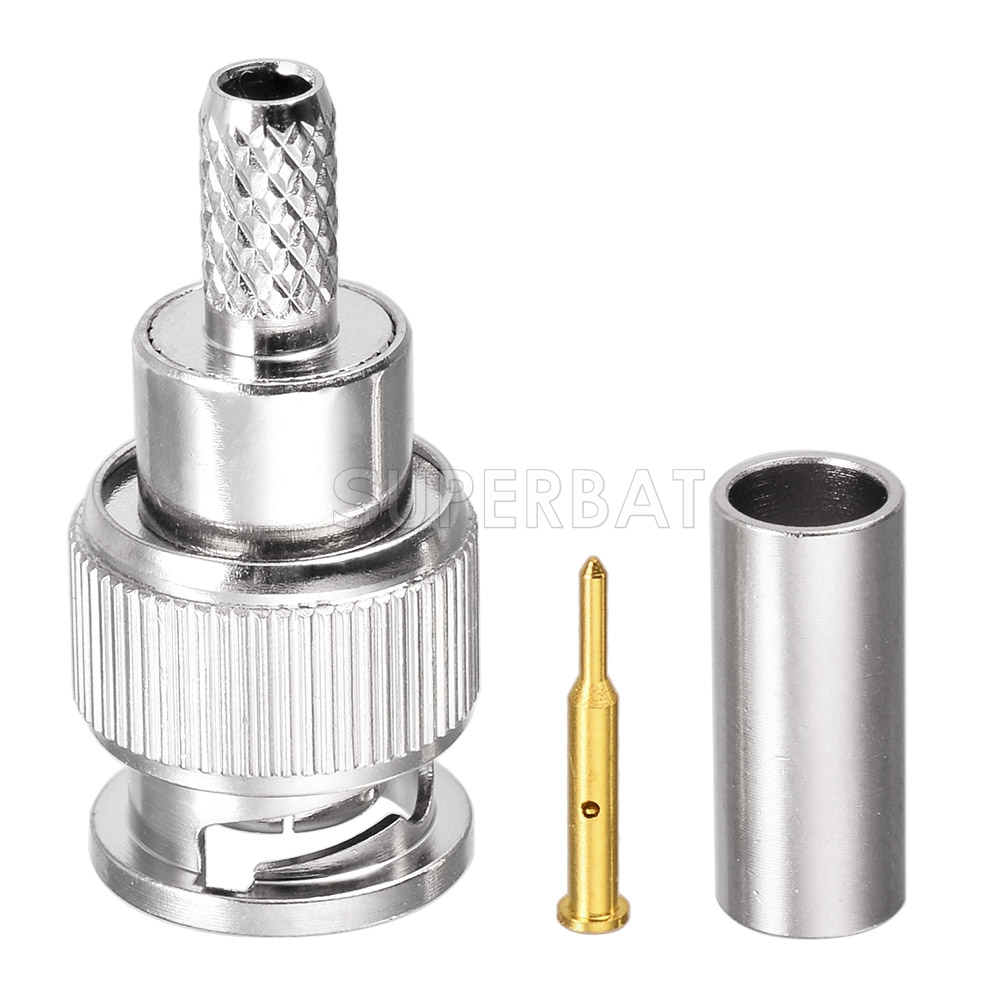

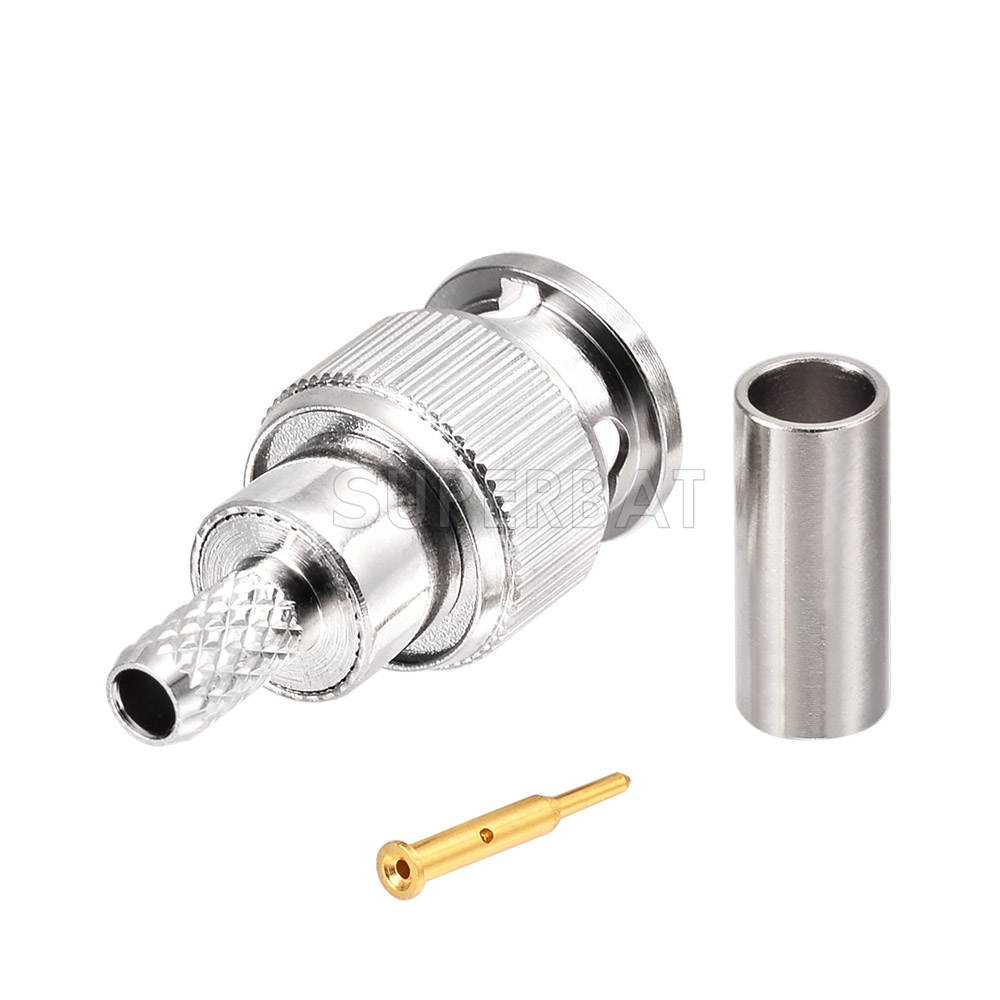

Mini BNC 75 ohm full crimp straight bulkhead jack This rear mounted jack has a gold plated crimp centre contact, the outer contact is nickel plated. Both centre contact and crimp sleeve are annealed for enhanced performance. Suitable for use with RG179 and similar cables in group AB.

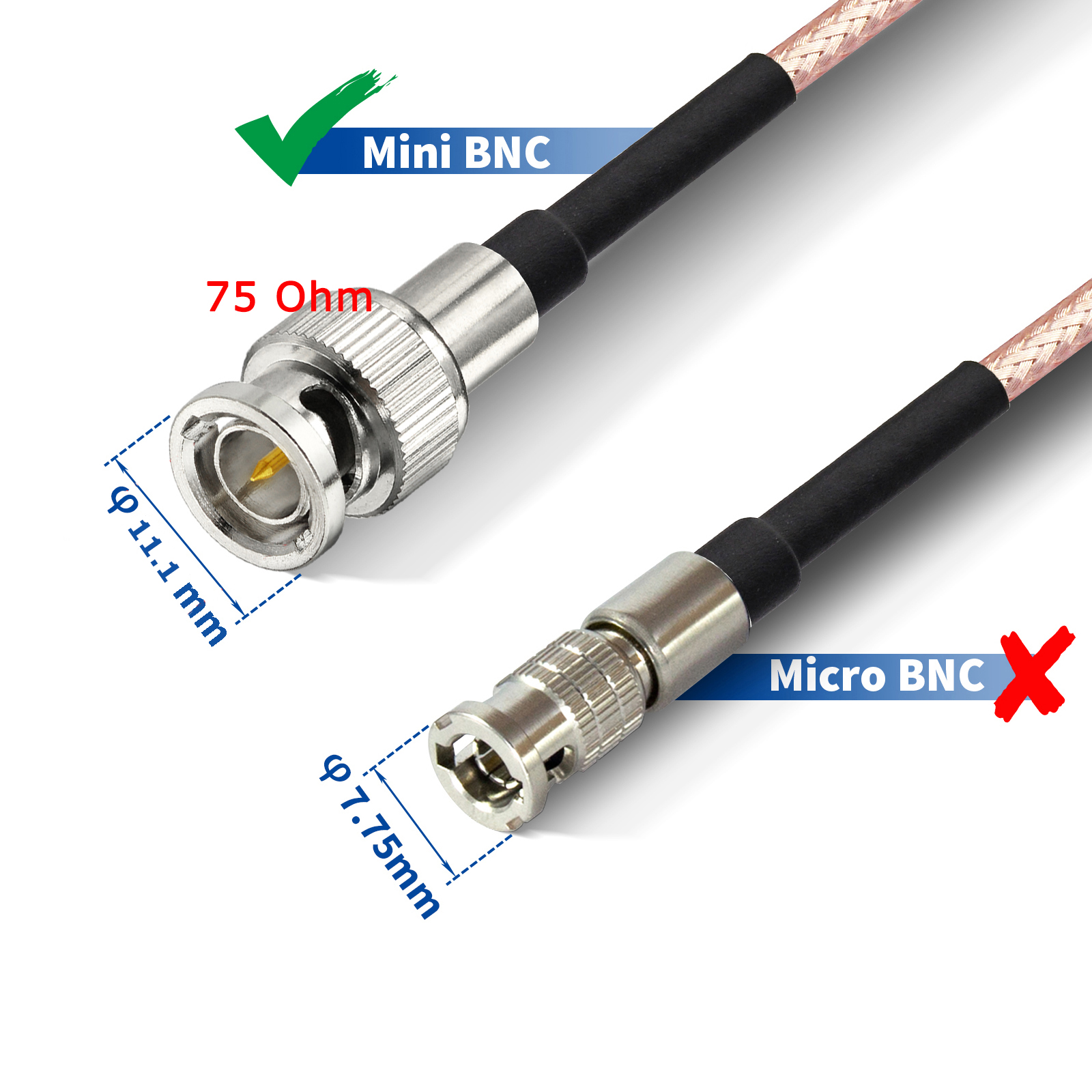

Mini BNC 75 ohm RF connector series is a smaller version of the standard BNC.  At around 40% smaller than BNC, the jacks can be mounted on a 14mm pitch, this series is ideal where space is at a premium yet performance can not be compromised.  Suitable for use up to 2Ghz, Mini BNC is used in telecom, broadcast and security markets.

FEATURES AND BENEFITS

Crimp/Crimp design compatible with Trompeter tooling

Same standard installation tooling using the best-in-class Telco DSC cable terminations assignment

Same foot print on the jack side, making the Mini BNC a drop-in replacement for most high-density applications using SMB or SMZ jacks

75 Ω allowing room for movement up the frequency chain while matching impedance

Bayonet locking coupling mechanism

APPLICATIONS

Antennas

Medical Equipment

Automotive (GPS)

Computers/LANs

Mil-Aero

Base Stations

Cable Modems

Instrumentation

Network Analyzers

Telecom
