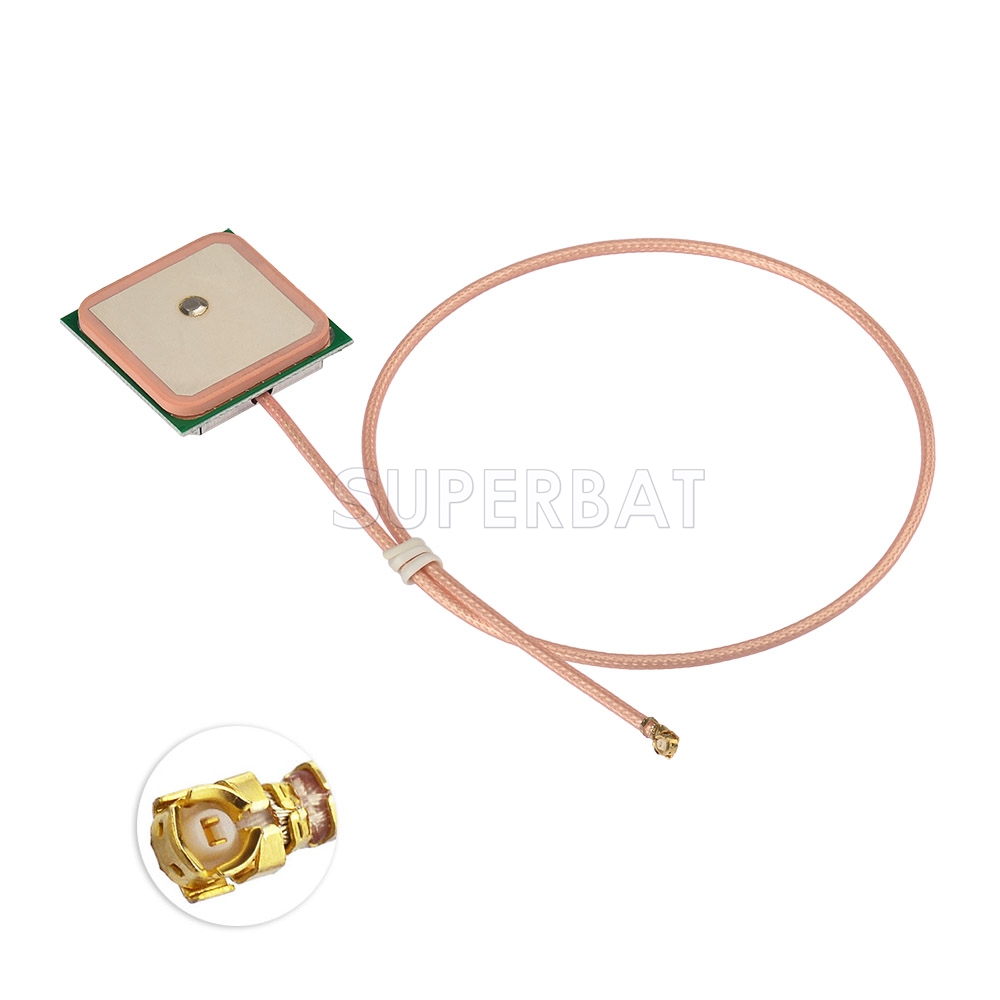

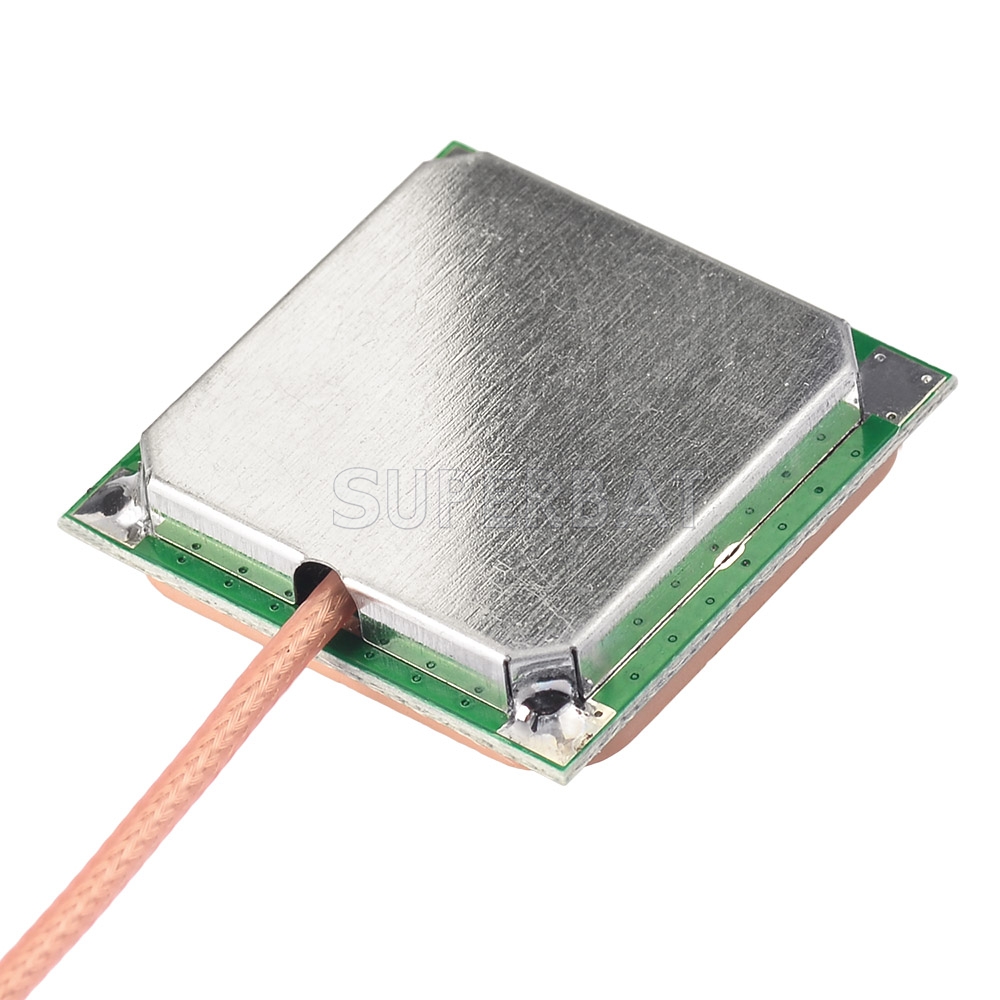

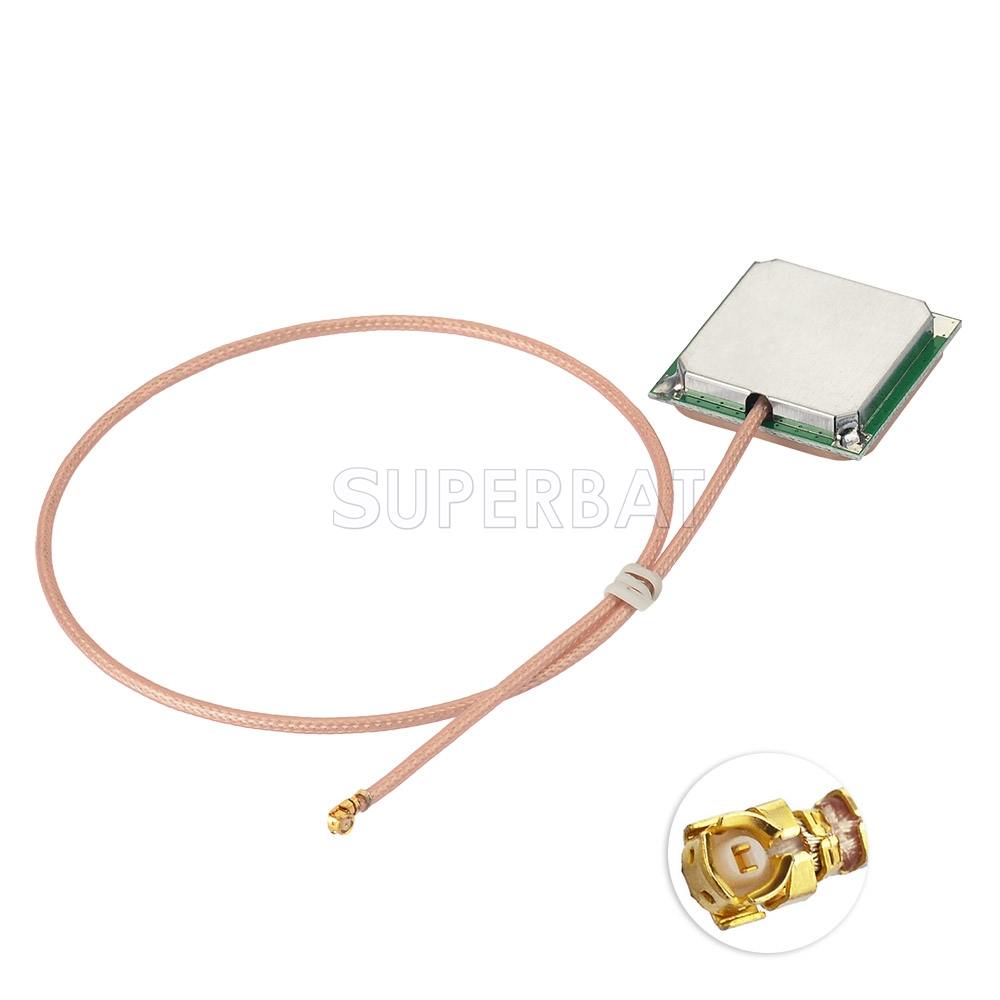

Superbat GPS Active Antenna internal Aerial IPEX connector with RG178 for PND Laptop Mobile Phone
Unit Price: $8.78
sku:GA01-1-30-178-U04RJ
quantity 1 - 9 10 - 99 100 - 999 1000+
Price Each $8.78 $7.90 $7.11 ASK
saving% 0% 10% 19% -
Real Time Availability
Stock: 10000
Quantity: Units

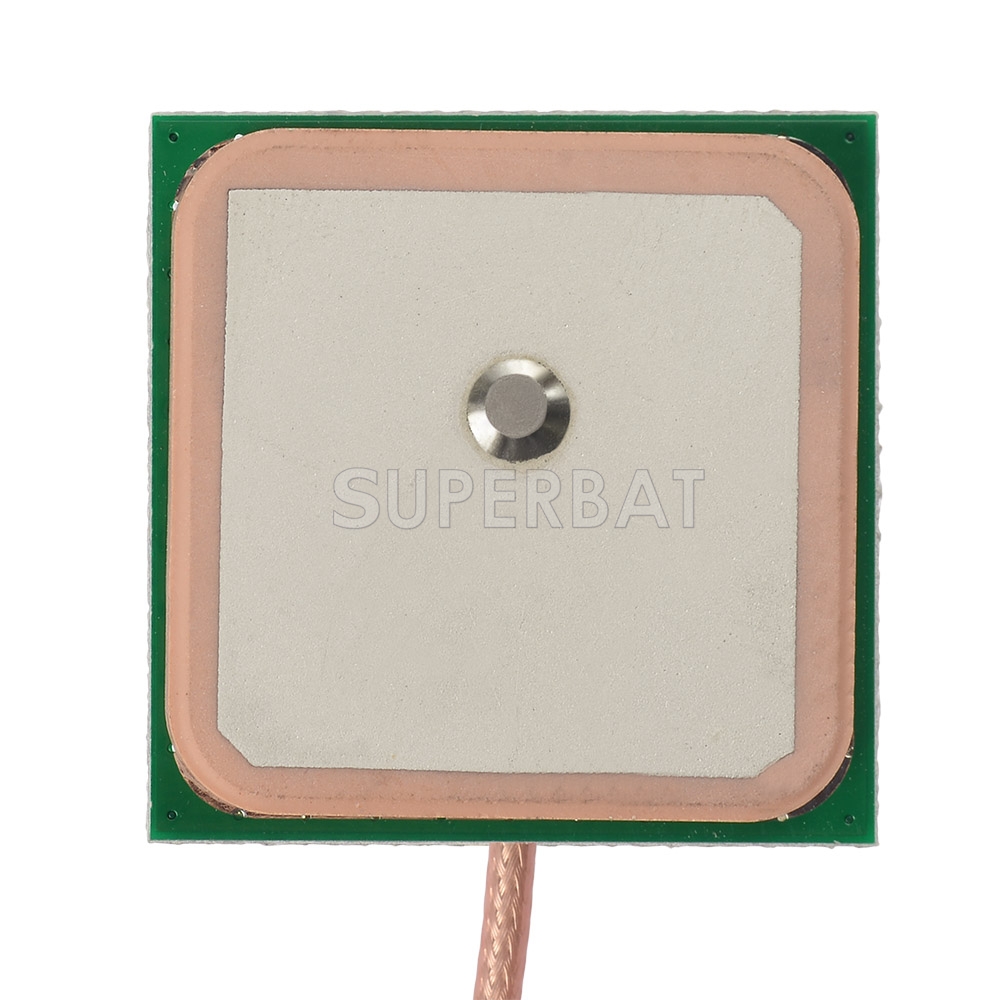

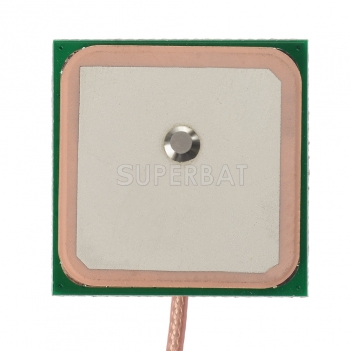

(i) Dieletric Antenna

Center Frequency:1575.42MHz±3 MHz

V.S.W.R:1.5:1

Band Width:±5 MHz

Impendence:50 ohm

Peak Gain:>3dBic  Based on 7×175px ground plane

Gain Coverage:>-4dBic at –90°<0<+90°(over 75% Volume)

Polarization:RHCP



(ii)Mechanical

Weight:<60gram

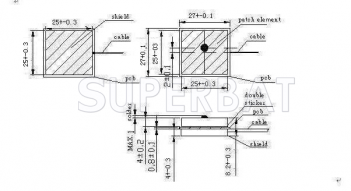

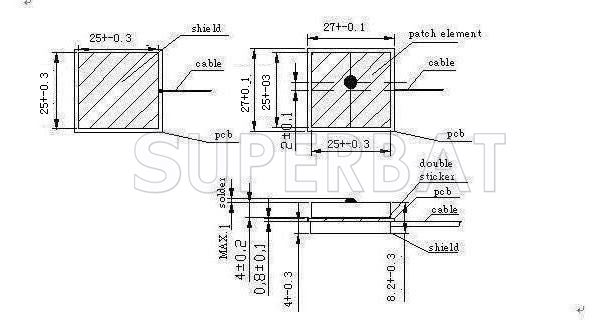

Size:27×27X8.2mm

Cable:RG178,30cm,Contact us for other length

Connector:IPEX/SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX or other



(i i i)Environmental

Working Temp:-40℃~+85℃

Storage Temp:-45℃~+100℃

Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis


GA01-1-30-178-U04RJ is a compact GPS antenna in the market. It is specially designed feo the portable device that needs GPS antenna embedded such as PND,laptop,mobile phone and so on.This antenna is compatible with most GPS receivers available on the market and provides a perfect alternative for the application of the GPS in different fields.Cables and connectors can be customized according to request.
