Superbat Fakra male curry code K Front mount connector for Radio with IF

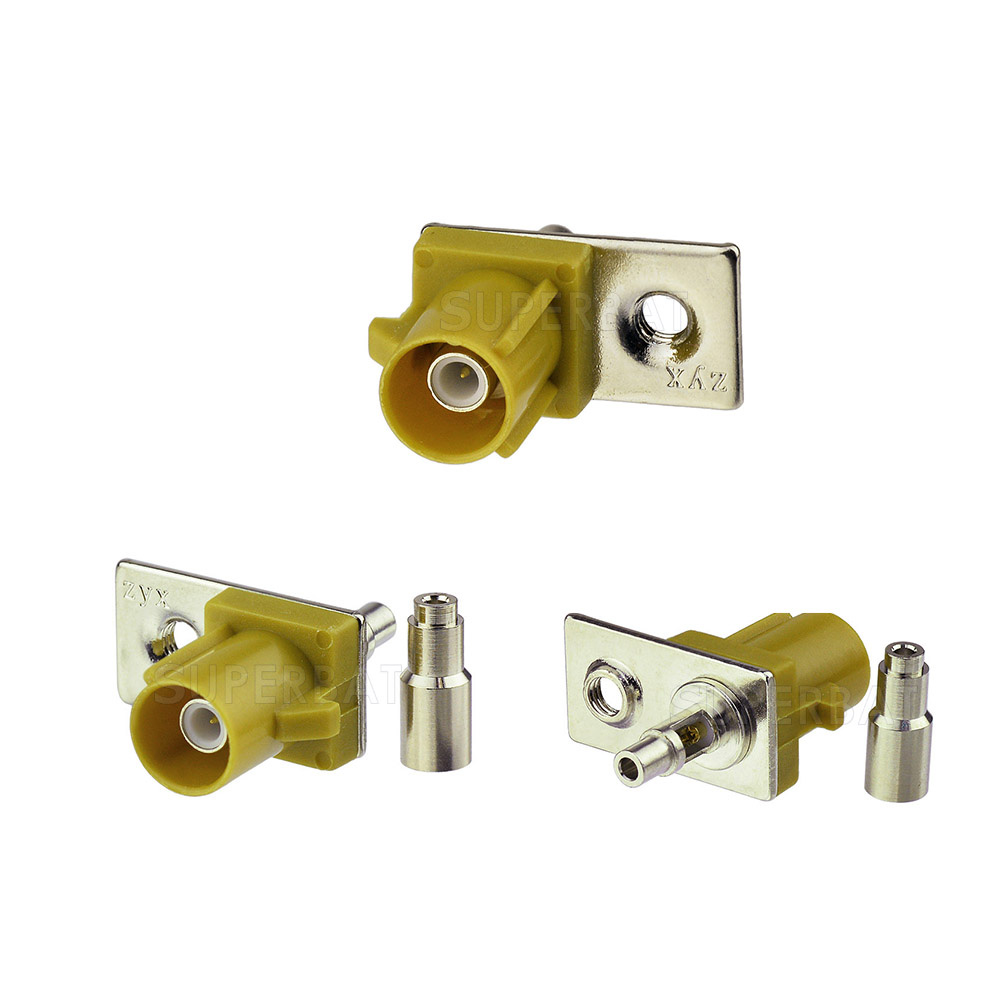

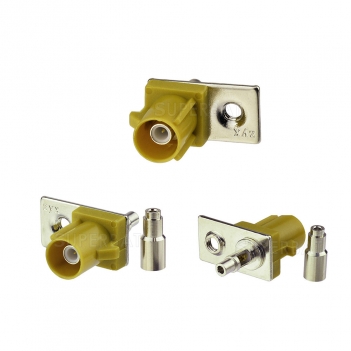

Fakra Male Curry Code K Front Mount 1 Hole Flange Connector
Unit Price: $3.13
sku:F03-FPF13HL1-K
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $3.13 $2.82 $2.54 $2.28 ASK
saving% 0% 10% 19% 27.1% -
Real Time Availability
Stock: 10000
Quantity: Units

Series: FAKRA Termination Type: Coaxial Cable Gender: Plug , Male Polarity: Standard Interface Type: 1.13mm , 1.37mm Body Style: Straight Mount Method: 1 Hole Flange Impedance: 50 Attachment Method: Solder Body Material: Brass Body Plating: Nickel Dielectric Type: PTFE Coding: K Frequency Range: 3GHz

Description:
Type: Fakra K
Color: Curry
Gender:plug
suitable cable:1.13mm,1.37mm,RG178 cable

FAKRA connectors are utilized for automotive RF solutions and provide multiple colors and key codes for ease of final assembly

FAKRA connectors coaxial connections are used on devices with external antennas; such applications include SDARS, Cellular, GPS Navigation, key-less entry and satellite radio. The FAKRA connector provides a mechanical key feature along with a visual color code to differentiate between applications .FAKRA connectors with a high-temperature plastic shroud that is fully compatible with lead-free reflow processes are offered
The antenna with this Fakra Connector is compatible with:
    VW RNS510 (MFD3);
    VW MFD2 (RNS2);
    SKODA COLUMBUS;
    MERCEDES COMMAND SYSTEMS W211 (E-CLASS);
    MERCEDES APS 50;
    AUDI RNS-E (DVD NAVIGATION);
    AUDI MMI (A6 4F, A8 4E);
