Feature:

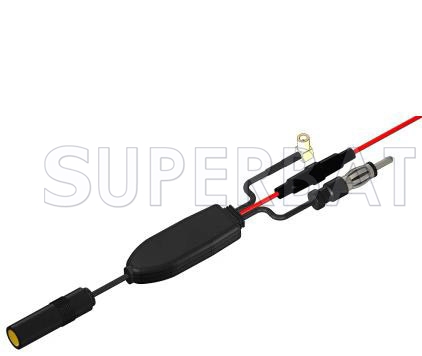

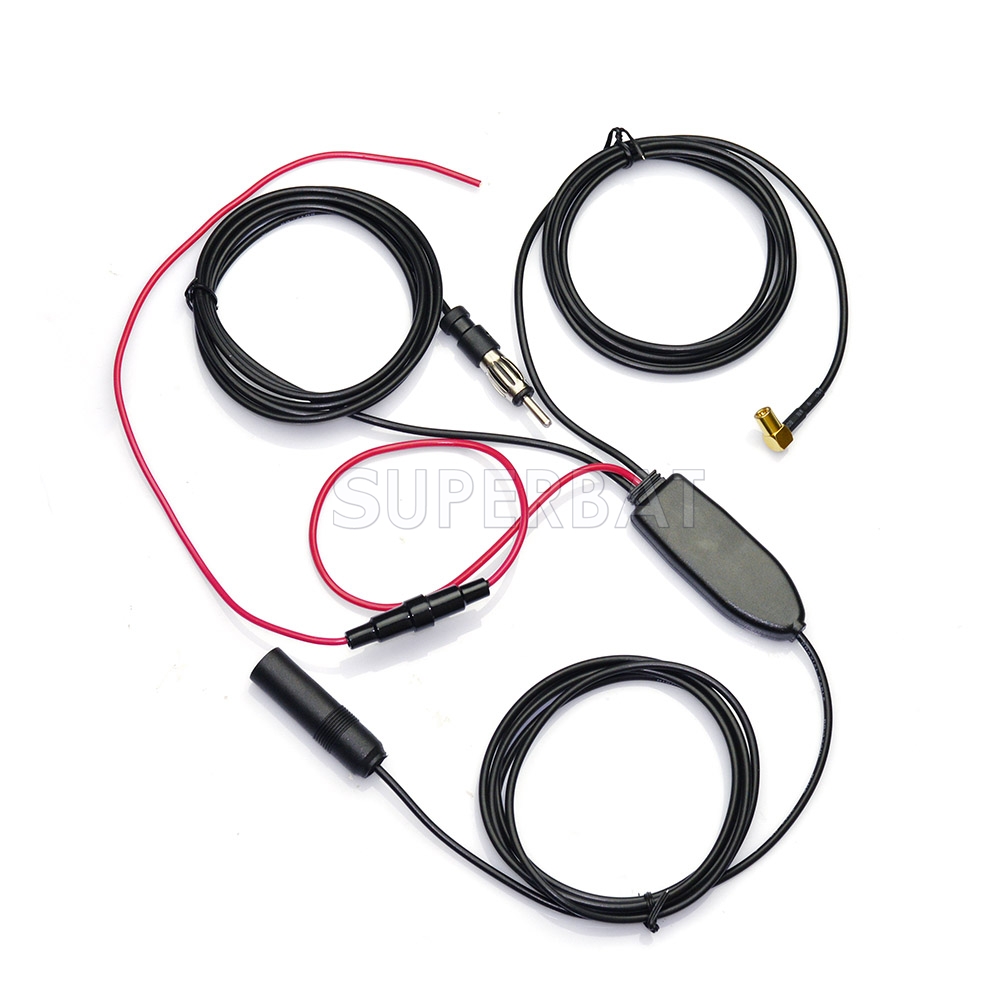

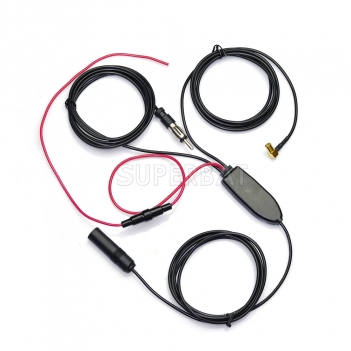

This active Adaptor/Splitter allows your standard non amplified AM/FM car aerial to receive DAB Digital radio signals, enabling you to retain your existing aerial and fit a DAB aftermarket radio without the need for an additional DAB aerial.

Quick and simple to fit saving you time and and money when fitting an aftermarket DAB Stereo. Allowing a hugh improvement over windscreen mounted aerials without the need for a second aerial

NOTE: This will only work on passive antenna systems. Therefore it is not suitable for factory amplified/active aerials. Amplified/active aerials are usually either the bee sting style, built in to the rear glass or are shorter than 50cm & have a power feed to the aerial base

Installation:

Simply plug inline with your head unit aerial connection and then plug the DAB plug into the DAB socket on the back of the headunit

Connect the Red wire to the aerial power lead that is 12 volts with the radio switched on

Amplifier

        Frequency Range 525~1605KHz/88~108MHz/174~237MHz

        Wave Band AM/FM/DAB BⅢ

        Impendance 50Ω

        Gain AM/FM:10±2dB  DAB:20±2dB

        V.S.W.R ＜2.0

        Noise Figure ＜3.0

        Supply Voltage 9~24V DC

        Current Consumption 26~28mA

Mechanical

        Cable RG174

        Fuse 500mA

        PCB FR4

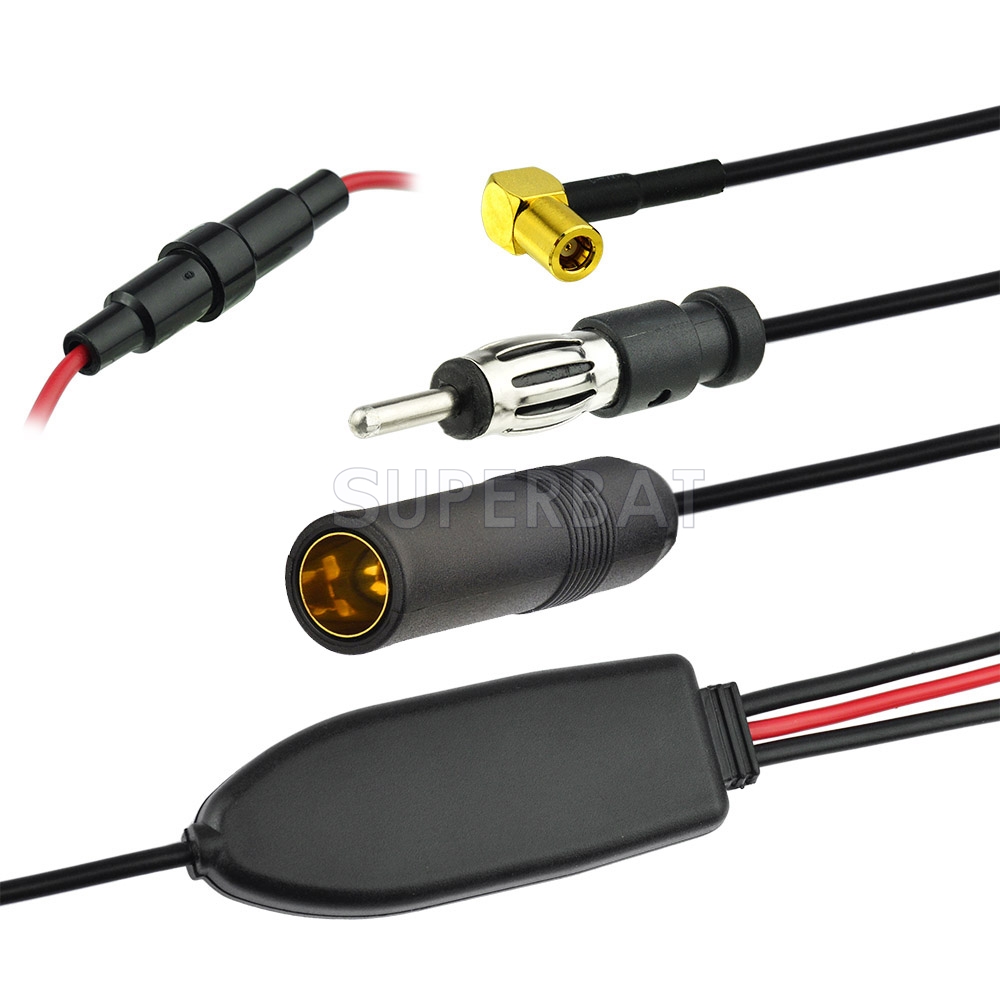

        Connector Car Antenna Plug&SMB Female right angle

        Plastic Housing ABS

Environmental

        Operating Temperature  -40℃~+85℃

        Relative Humidity Up to 75%

        Vibration 10 to 55Hz with 1.5mm amplitude 2hours

        Environmentally Friendly ROHS Compliant
