Description:

Category:Connectors, Interconnects

 Family:Coaxial, RF - Adapters -SMA

 Series:IN-Series

 Convert From (Adapter End):SMA Jack, female Pin

 Convert To (Adapter End):SMA Jack, female Pin

 Impedance:50 Ohm

 Style:Straight

 Material:Brass

 Plating:Gold-plated

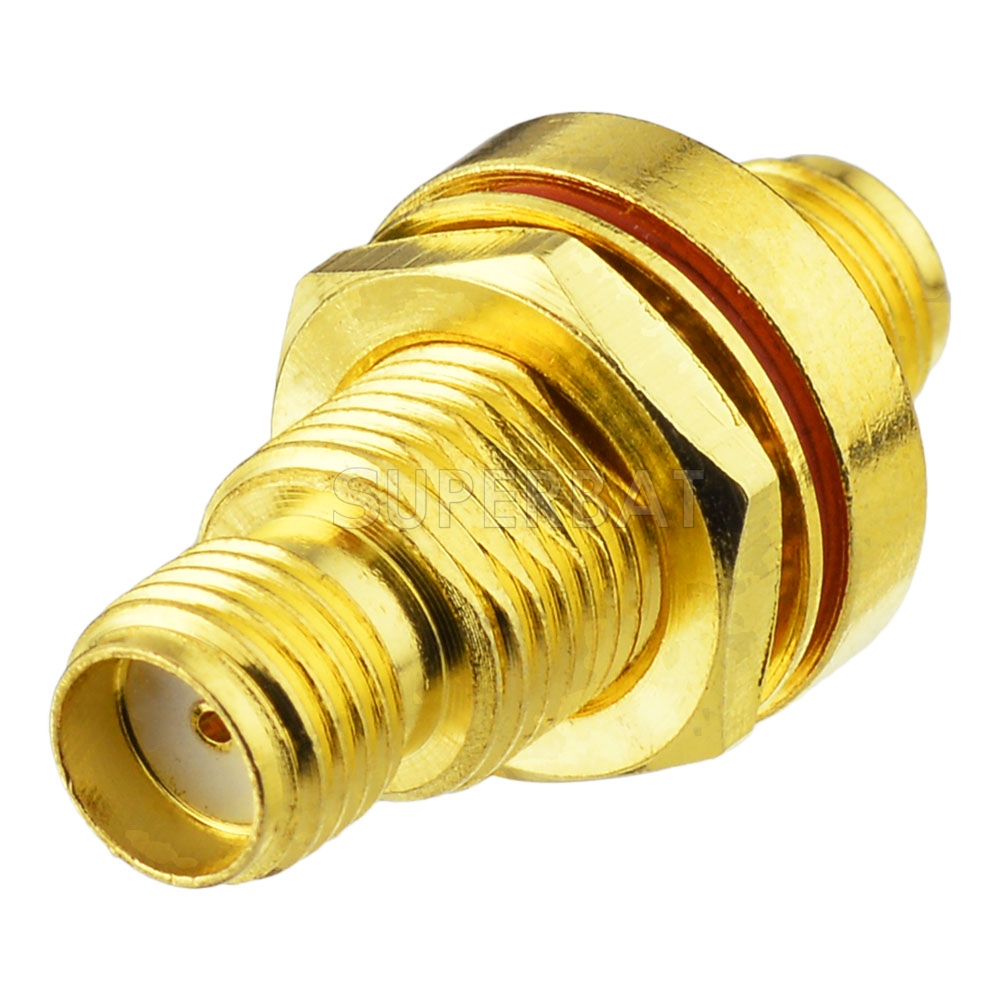

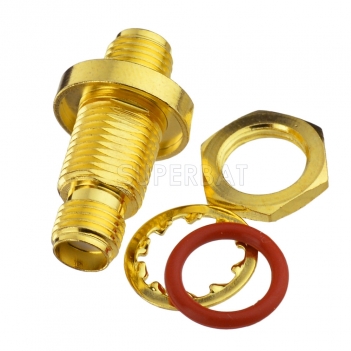

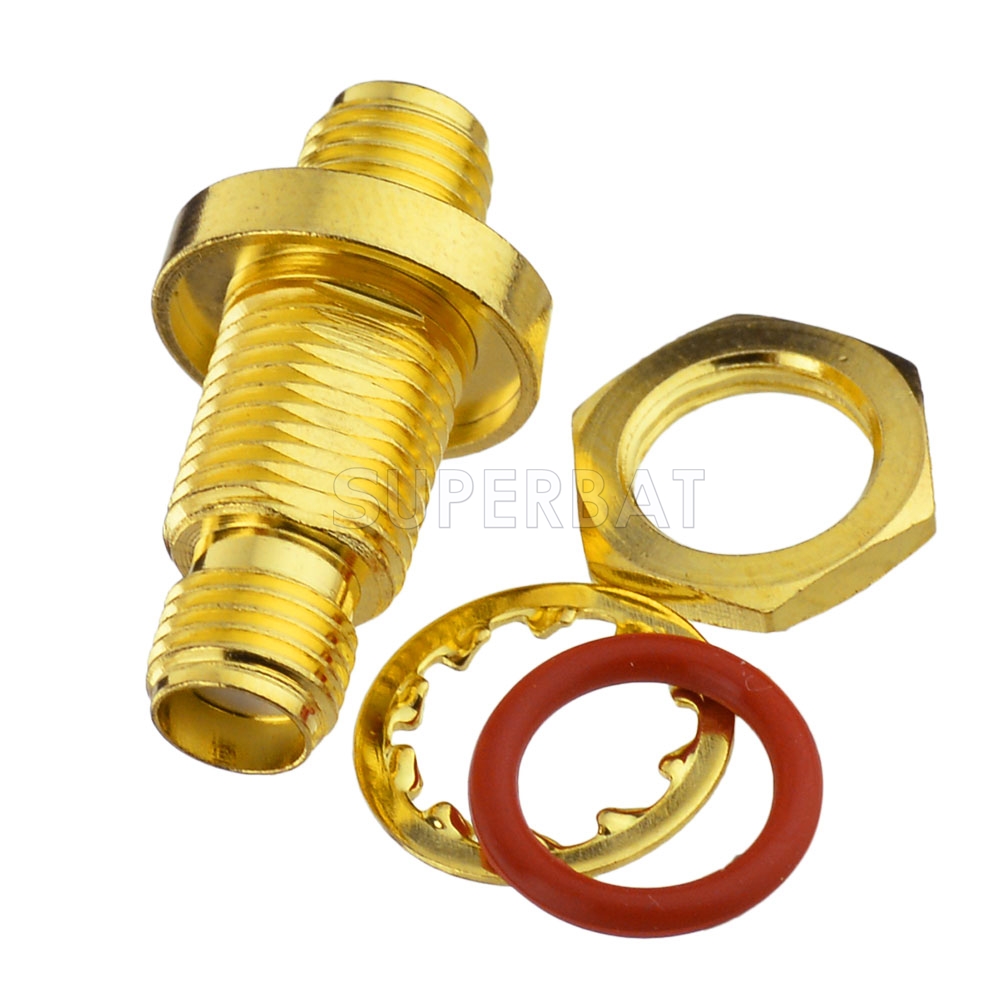

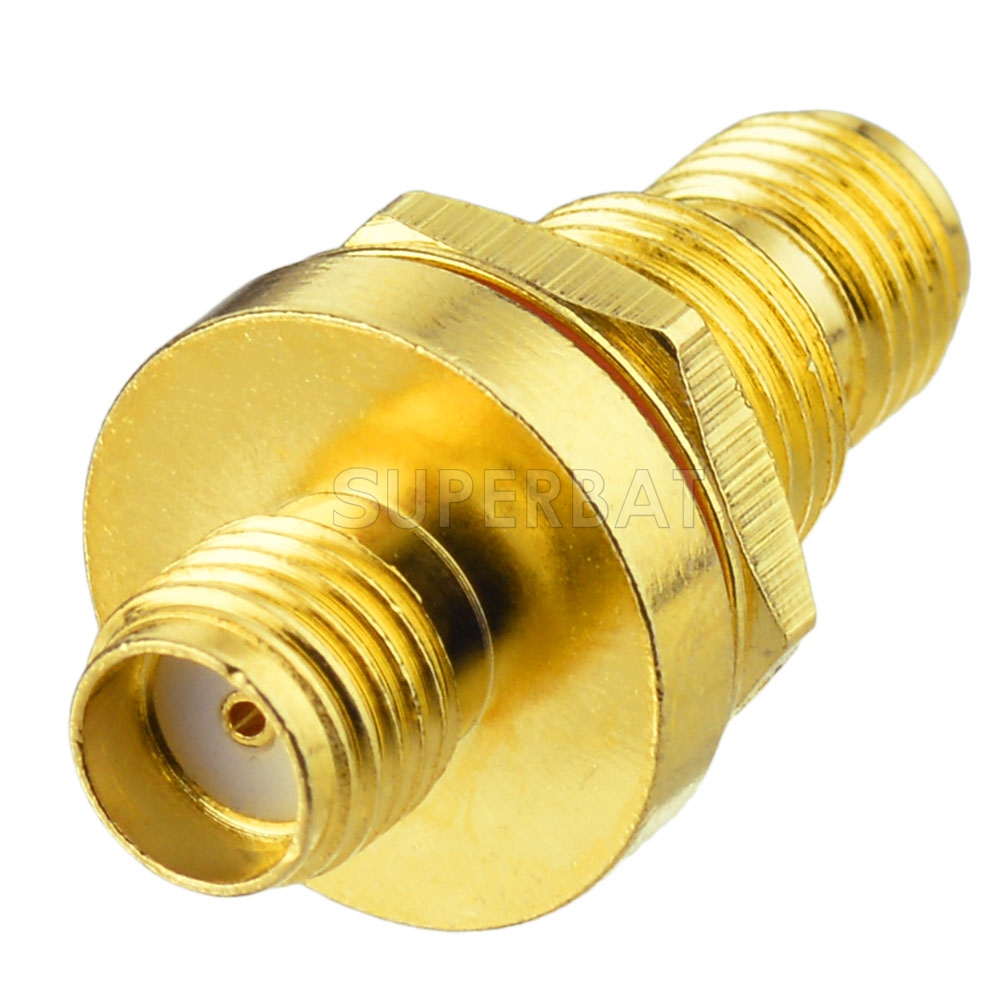

Features:bulkhead with O-ring

 Mounting Type:Free Hanging (In-line)

RF adapters cost effective solution, which is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.

RF adapter product line includes in-series RF adapters design and between series adapter designs as well as T and Cross RF adapters.

Interface types are included in RF adapter ,such as SMA, TNC, N and BNC,which are available in male, female, plug, jack, receptacle gender, in 50 Ohm &75 Ohm impedance and in standard polarity or RP.

RF adapters are available in quick disconnect (QD), push-on or standard interface , straight, 90 degrees versions,as well as bulkhead ,or 272 hole panel configurations.

RF adapters in standard and high performance with brass body .The stainless steel body will be customized !

AD-S01-JOJ-11BS00.pdf
