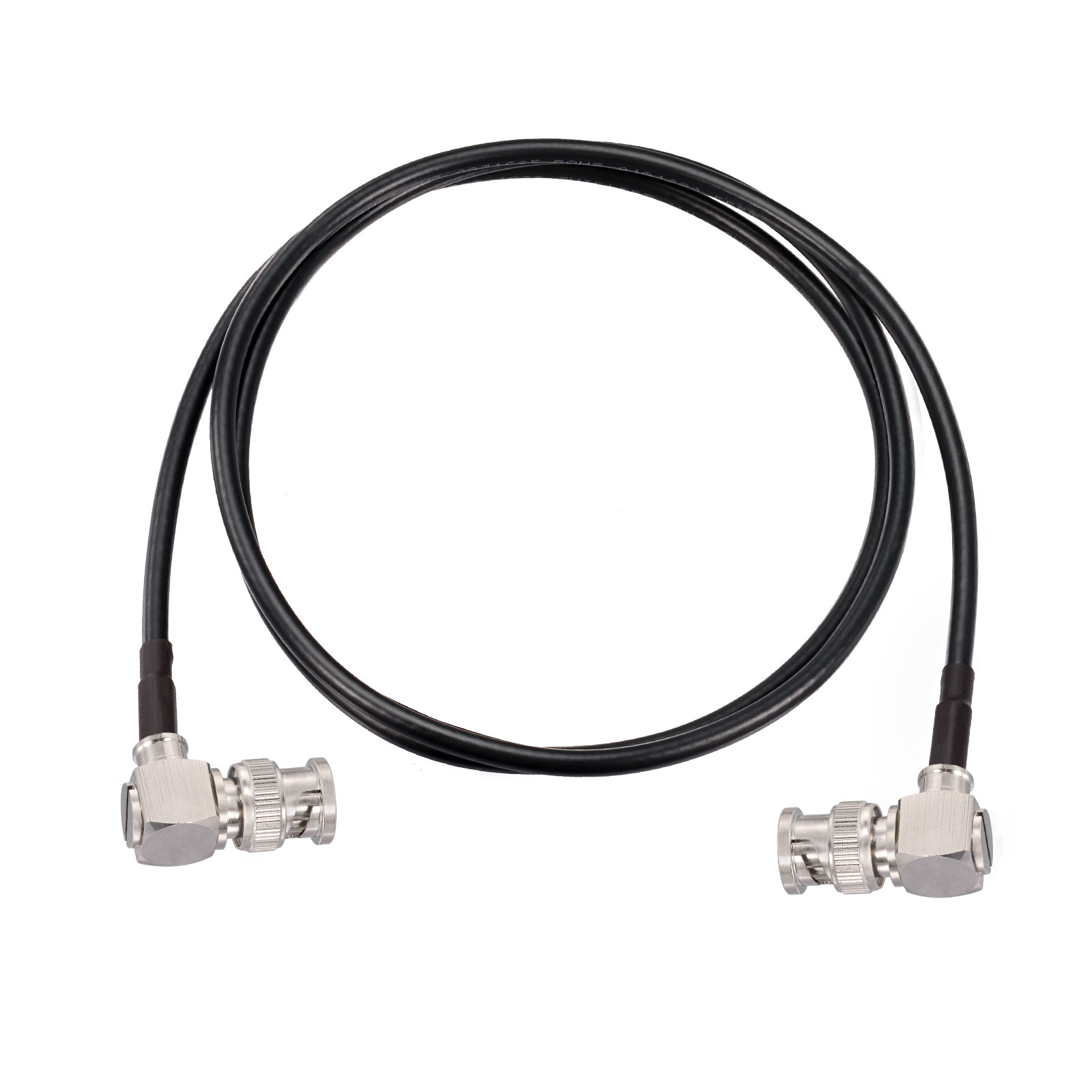

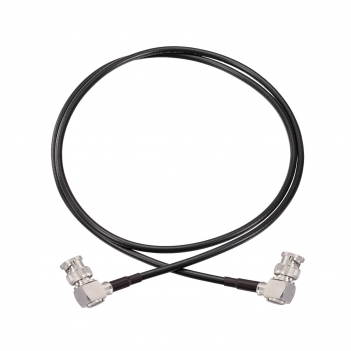

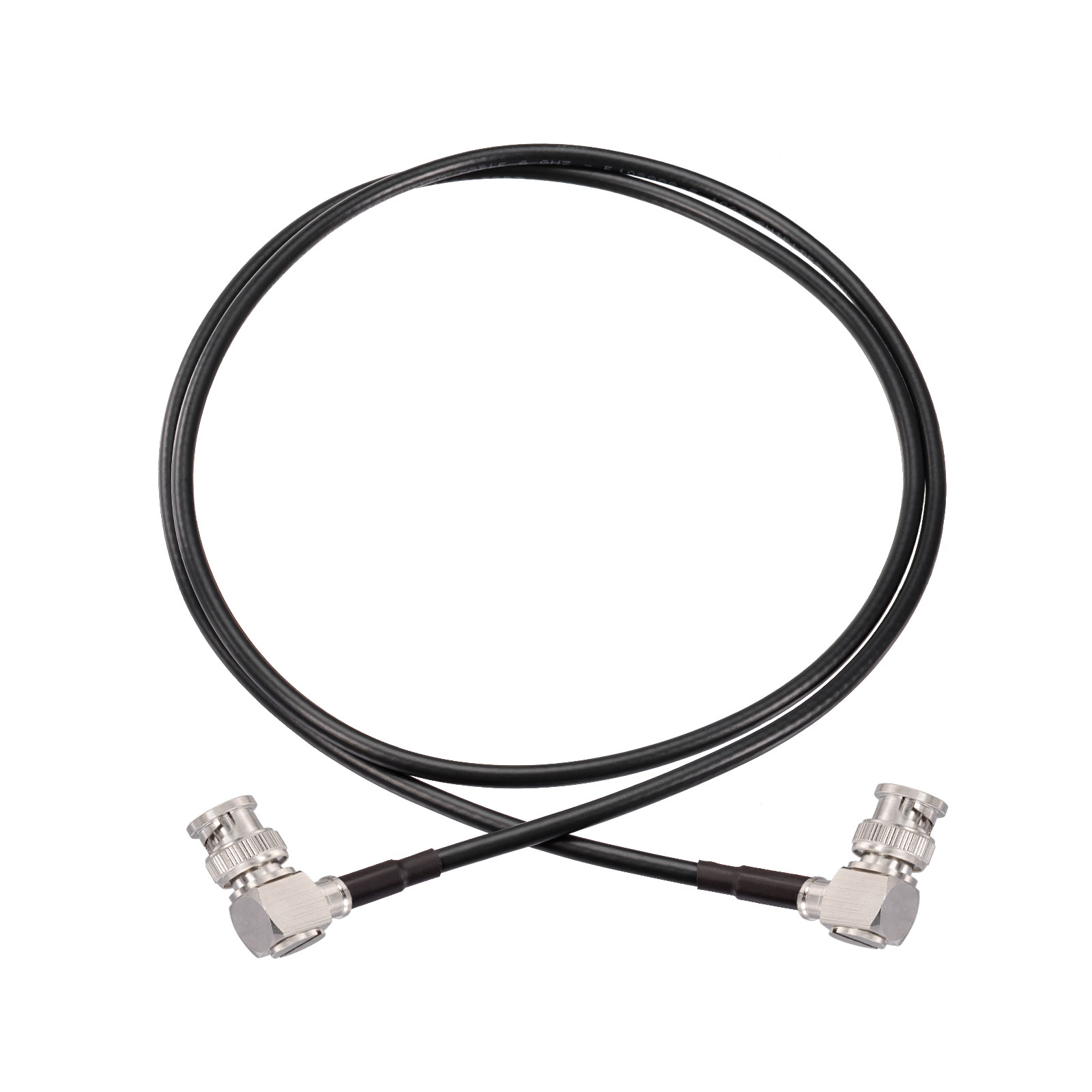

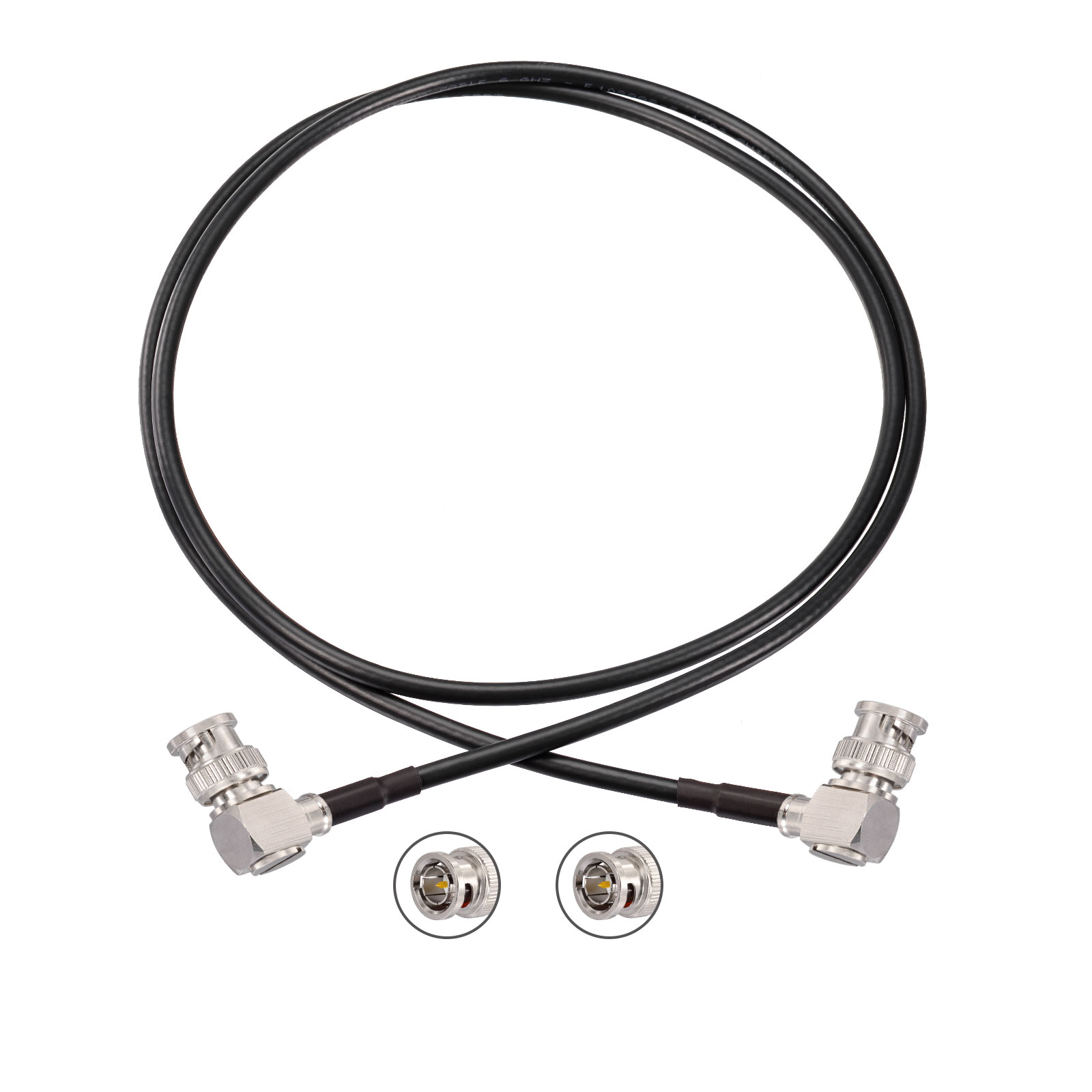

Superbat 75 Ohm BNC Right Angle Male to BNC Right Angle Male (Belden 1855A) 3G 6G HD SDI Vedio Camera Cable
Unit Price: $9.90
sku:AC-B04RA-B04RA-1855A-100
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $9.90 $9.40 $8.91 $8.42 ASK
saving% 0% 5% 10% 15% -
Real Time Availability
Stock: 1000
Quantity: Units

Cable Type: Belden 1855A Connector 1 Series: BNC Connector 2 Series: BNC Connector 1 Gender: Male , Plug Connector 2 Gender: Male , Plug Connector 1 Polarity: Standard Connector 2 Polarity: Standard Body Style 1: Right Angle Body Style 2: Right Angle Cable Impedance: 75

Connector 1: BNC Male Right Angle Plug;

Connector 2: BNC Male Right Angle Plug;

Cable Type: Belden 1855A;

Length: 100cm default/ if you need other lengths pls contact us

Cable Impedance: 75 Ohm;

Package Included: 1X 1M SDI Cable;


Environmental Space: Indoor - Riser

Capacitance: 16.3 pF/ft;

Inductance: 0.107 µH/ft;

UL Voltage Rating: 300 V RMS;


Return Loss (RL):

5 MHz - 1600 MHz RL>23 dB

1600 MHz - 4500 MHz RL>21 dB

4500 MHz - 6000 MHz RL>15 dB


Conductor Count: 1

Conductor Size: 23 AWG

Conductor DCR:

Nominal Conductor DCR: 20.1 Ohm/1000ft


Custom Service:

We are a professional connectors and cables manufacturer, so we can make high quality but low price connectors and cables and we can customize the cables according to your requirements. If you are interested in them, please contact us, thank you!
