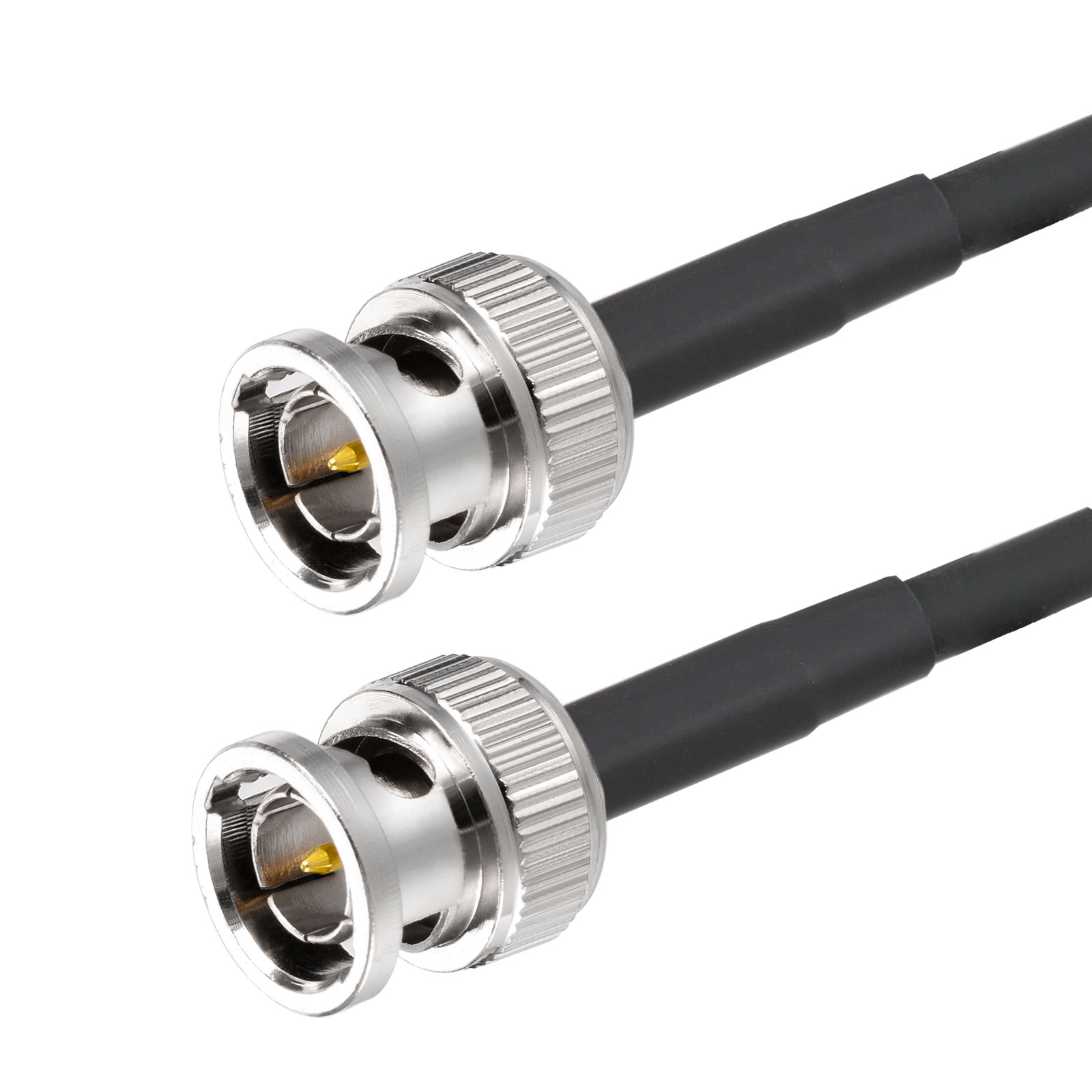

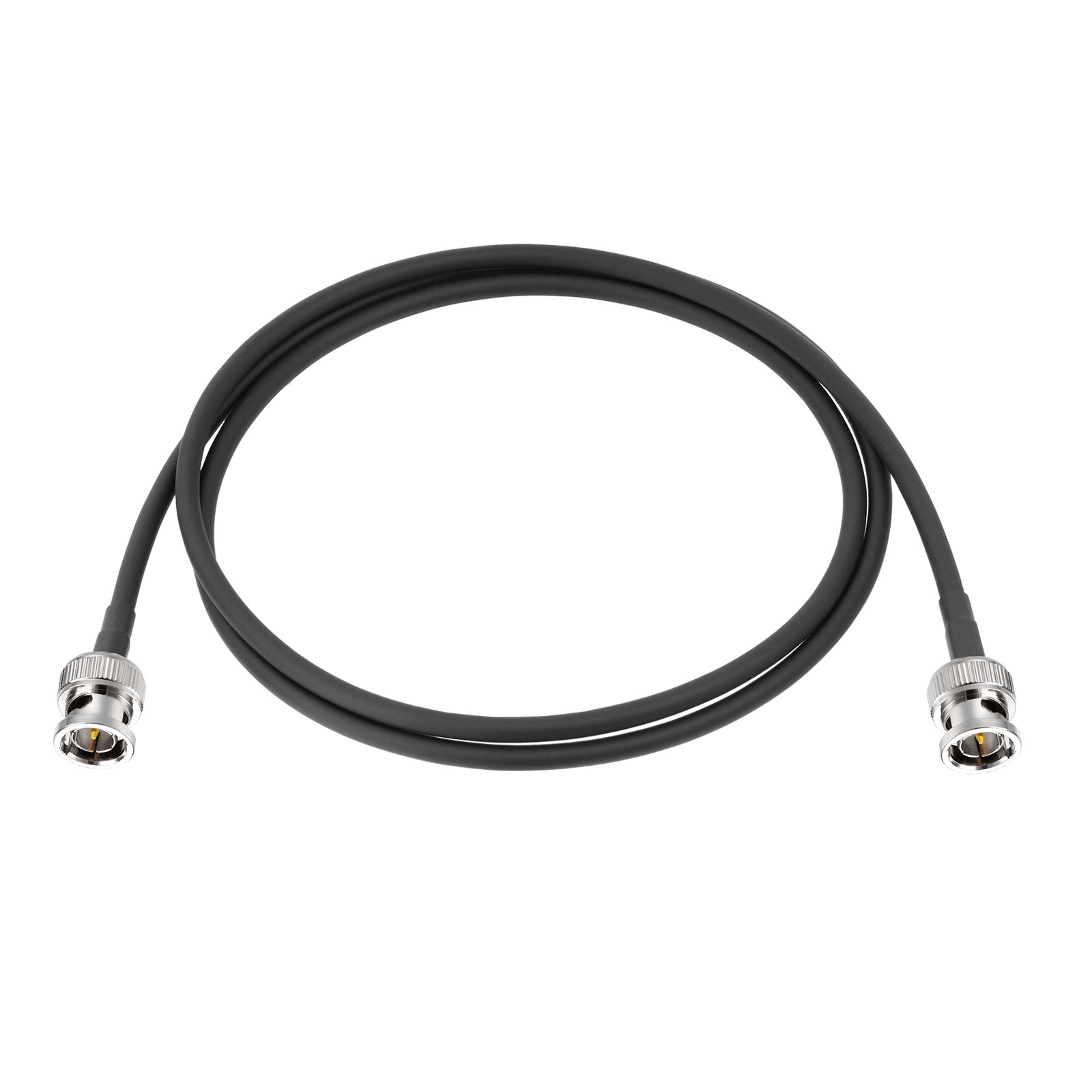

Cable Type: Belden UVC-25F; Connector: BNC Male to Male; Impedance: 75ohm;

Multi-Rate Compatible: Supports HD-SDI/3G-SDI/6G-SDI/12G-SDI, ensures lossless transmission of high-definition video signals in professional audio-visual applications

High-Flex Design: Features 19-strand Tin-plated Copper conductor and Foam PE insulation. Cable is easy to bend, facilitating wiring in confined spaces or scenarios that require frequent movement

High Shield Effectiveness: Features Tinned Copper Double-Braided Shield, offering strong resistance to EMI and RFI. The design ensures signal purity in complex equipment environments such as OB Vans, Studios and Equipment Cabinets

Compatible with: Professional Camcorder, Broadcast Video Camera, CCTV Monitor, SDI Converter, Video Splitter, DVR Recorder, Surveillance Camera, Video Switcher, Medical Imaging Equipment

Specifications

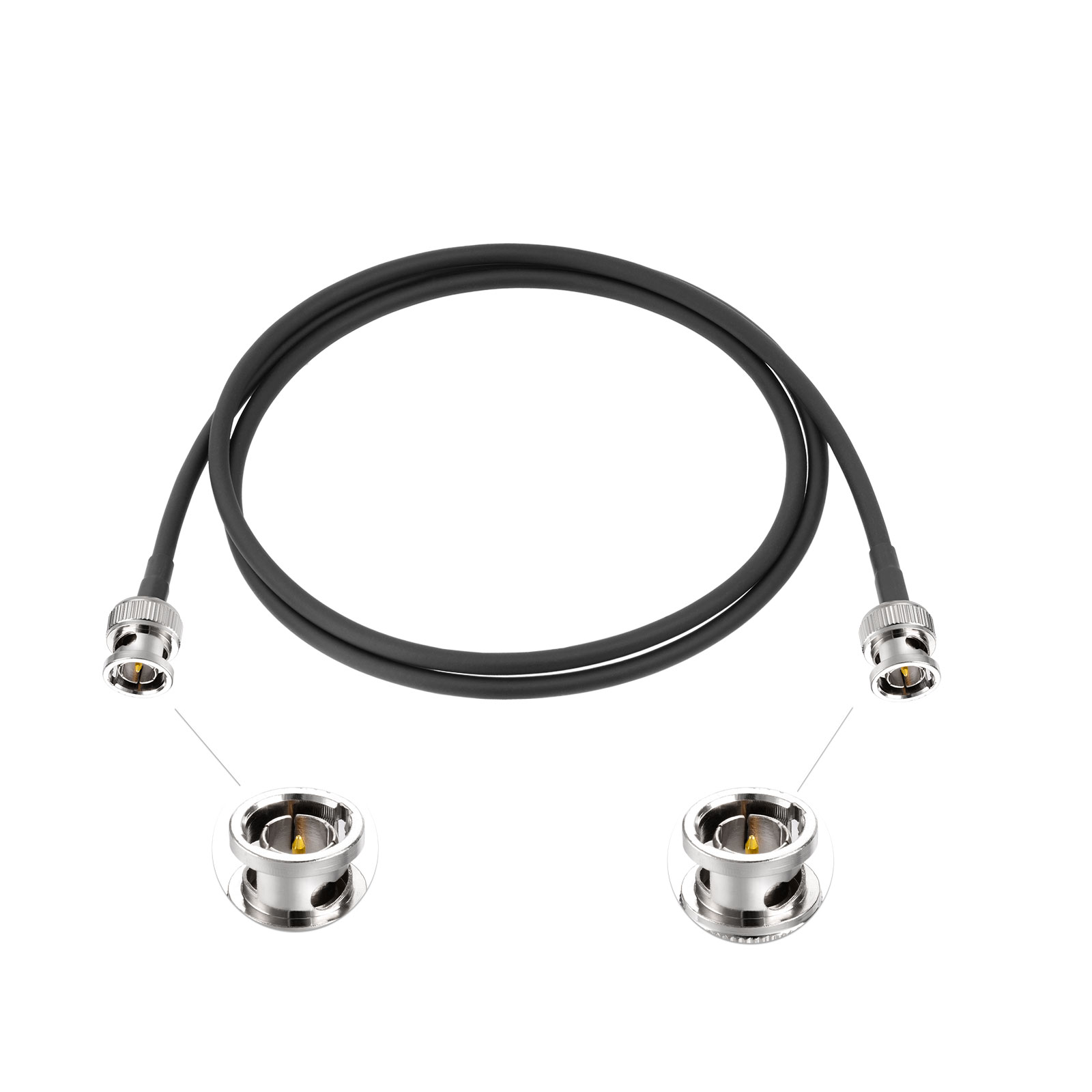

Connector 1: BNC male

Connector 2: BNC male

Cable:UVC-25F Flexible SDI Cable

Color:Black

Impedance: 75 Ohms

Max Frequency: 12GHz

Operating Temperature : -20°C to +120°C;

Storage Temperature : -40°C to +120°C

Application:broadcast studios, live event production, digital signage, and professional AV installations.

Serial Digital Data Rates

Standard Definition SD-SDI (270 Mbps, ST 259)

HD standard HD-SDI (1.483 Gbps, ST 292)

3G-SDI (2.97 Gbps, ST 424)

6G-SDI (5.94 Gbps, ST 2081)

12G-SDI((11.88 Gbps, ST 2082))
