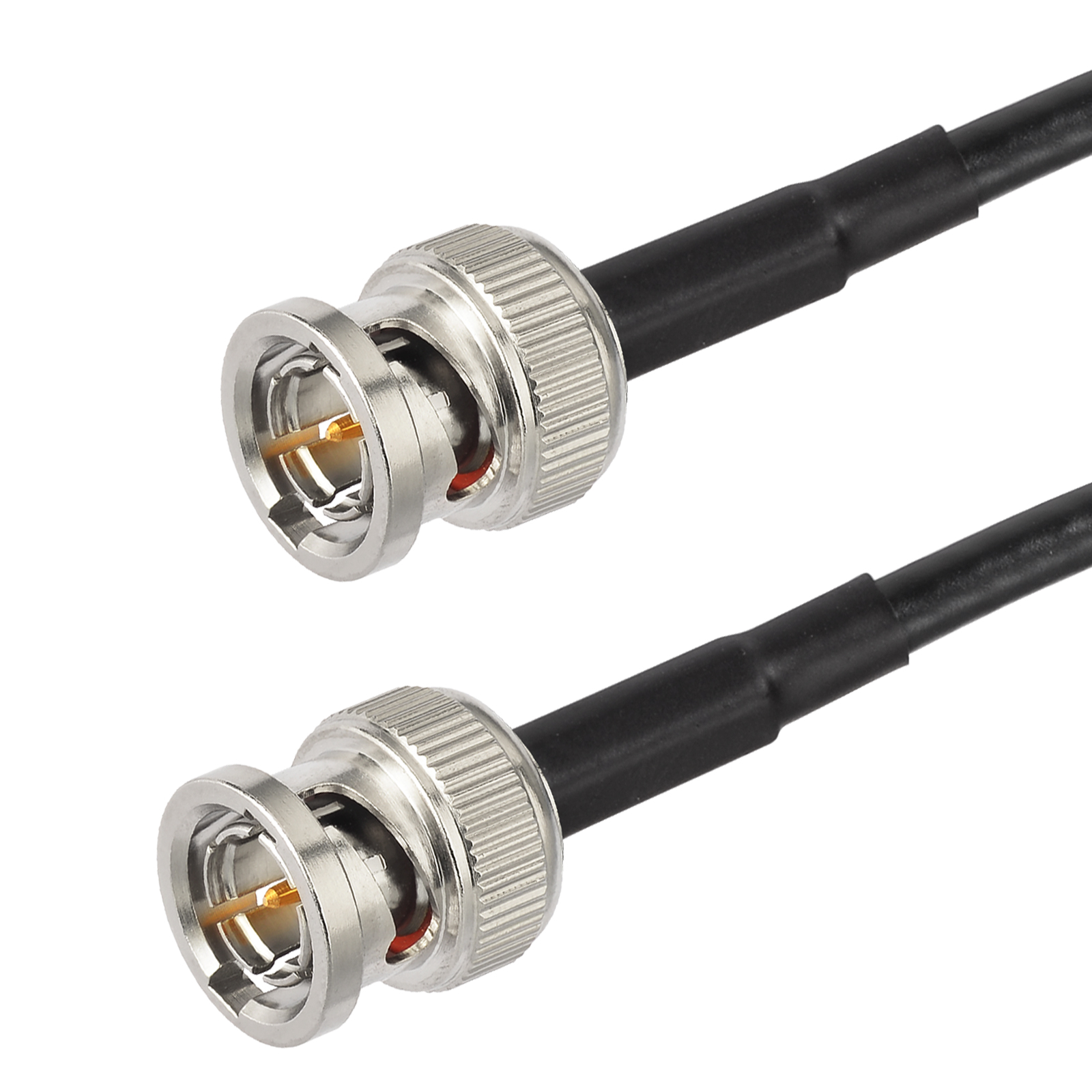

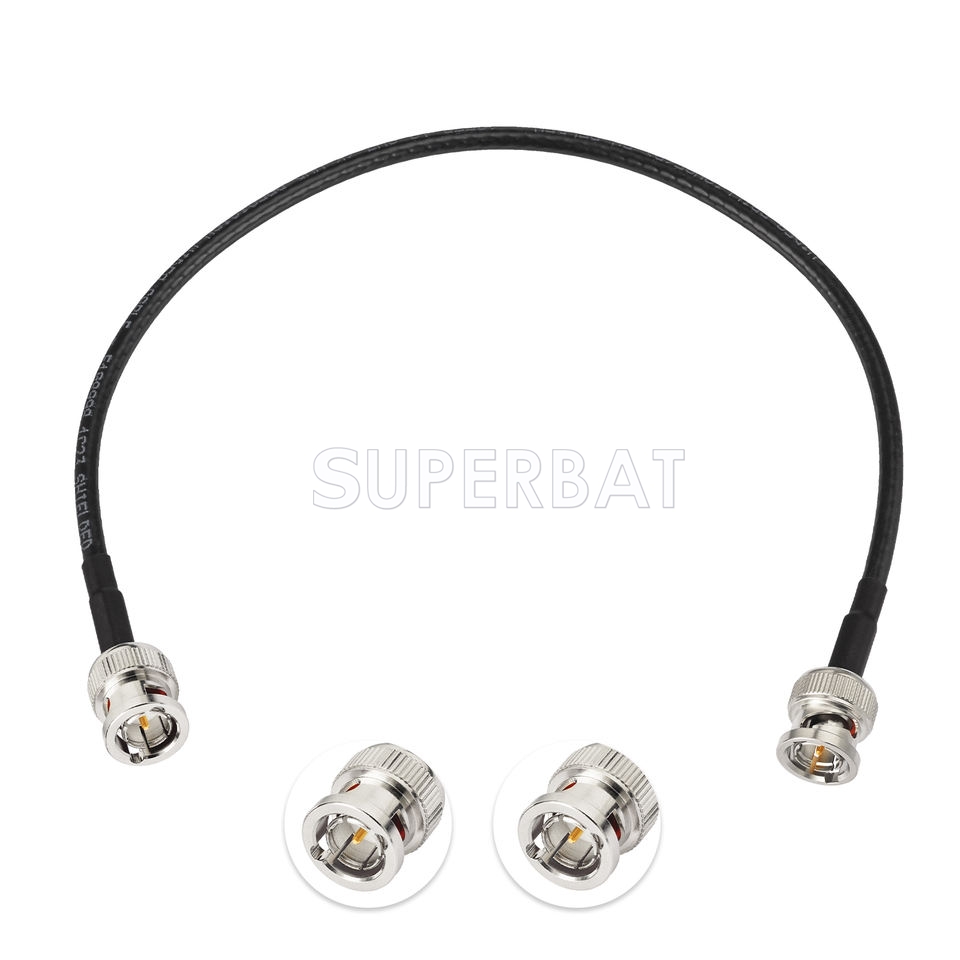

Superbat 1FT 75Ohm BNC Male to BNC Male Belden 4855R SDI Cable 12G SDI for for Surveillance Camera System
Unit Price: $7.20
sku:AC-B04SP-B04SP-4855R-30
quantity 1 - 9 10 - 99 100 - 999 1000+
Price Each $7.20 $6.84 $6.48 ASK
saving% 0% 5% 10% -
Real Time Availability
Stock: 1000
Quantity: Units

Product Specifications:


Connector 1 BNC  Male Plug
Connector 2BNC Male Plug
Connector material Gold plated

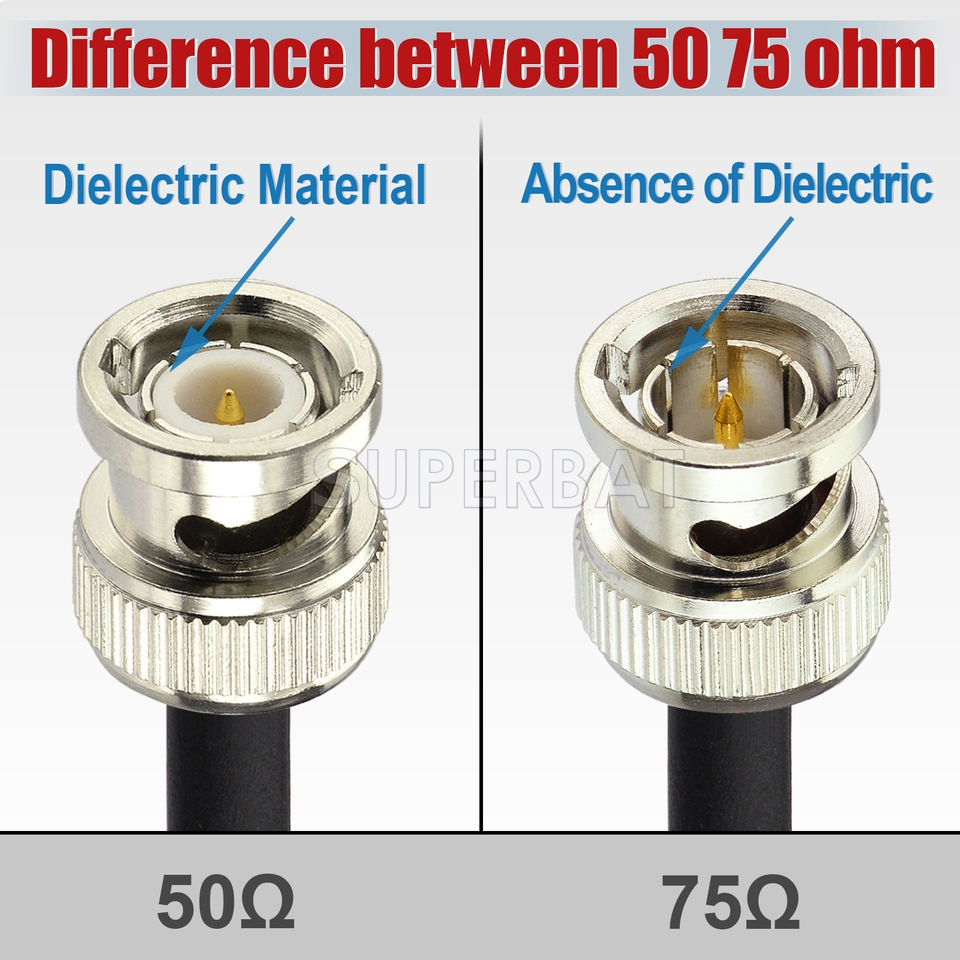

Impedance 75 ohm
Cable Type Belden 4855R
Cable Lenght1ft (30cm) or customize

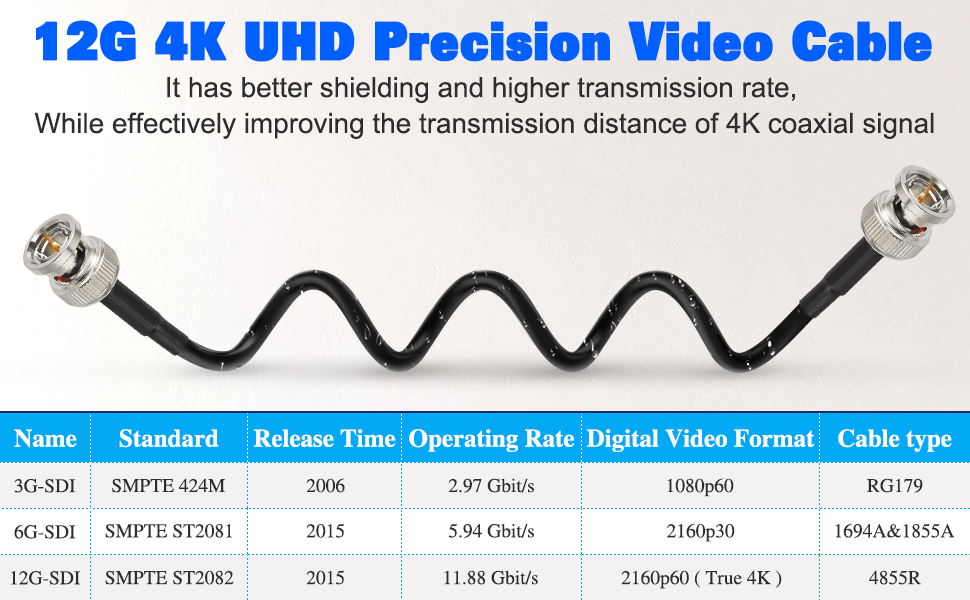

Standard Definition: SD-SDI (270 Mbps, ST 259) HD standard HD-SDI (1.483 Gbps, ST 292)3G-SDI (2.97 Gbps, ST 424) 6G-SDI (5.94 Gbps, ST 2081) 12G-SDI (11.88 Gbps, ST 2083)



Product Features:

BELDEN 4855 PRECISION SERIAL DIGITAL VIDEO COAXIAL CABLE: features exceptionally low attenuation and a 4.5 GHz Bandwidth in an RG6 type coax cable. Featuring RG-6/U type, 18 AWG solid. 040" bare copper conductor, Gas-injected FHDPE - Foam High-Density Polyethylene + tinned copper braid shield (95% coverage tinned copper braid combined with Duofoil foil/poly/foil 101% shield), PVC - Polyvinyl Chloride.


Product application:

It is suitable for HDTV and professional SDI applications: Supports HD-SDI, 4G-SDI, component, composite, MADI, WORD CLOCK, SYNC, etc.This shielded coaxial cable is compatible with a wide variety of popular software, including Blackmagic, AJA, Grass Valley, Evertz, Marshall, Cobalt Digital, Atomos, Postium, AVID, and Decimator. Our HD-SDI cable is great for use in HD-serial digital video transfer,HDTV upgrades, broadband facilities, and other applications with HD-SDI video.



Custom Service:

We are a professional connectors and cables manufacturer, so we can make high quality but low price connectors and cables and we can customize the cables according to your requirements. If you are interested in them, please contact us, thank you!
