Superbat 12G SDI Cable 100FT/150FT/200FT BNC Cable 75 Ohm Belden 4694R + SDI Cable Reel for 6G/12G-SDI 4k/8k Video Mixer Surveillance DVR Recorder 12G HDR SDI Frame Synchronizer etc.
Unit Price: $229.00
sku:AC-B04SP-B04SP-4694R-3048+XP-SY01+STD-01-SPL+HZ-17
Length(cm)
quantity 1 - 9 10 - 99 100 - 999 1000+
Price Each $229.00 $210.68 $194.65 ASK
saving% 0% 8% 15% -
Real Time Availability
Stock: 1000
Quantity: Units

Cable Type: Belden 4694R Connector 1 Series: BNC Connector 2 Series: BNC Connector 1 Gender: Male , Plug Connector 2 Gender: Male , Plug Connector 1 Polarity: Standard Connector 2 Polarity: Standard Body Style 1: Straight Body Style 2: Straight Cable Impedance: 75

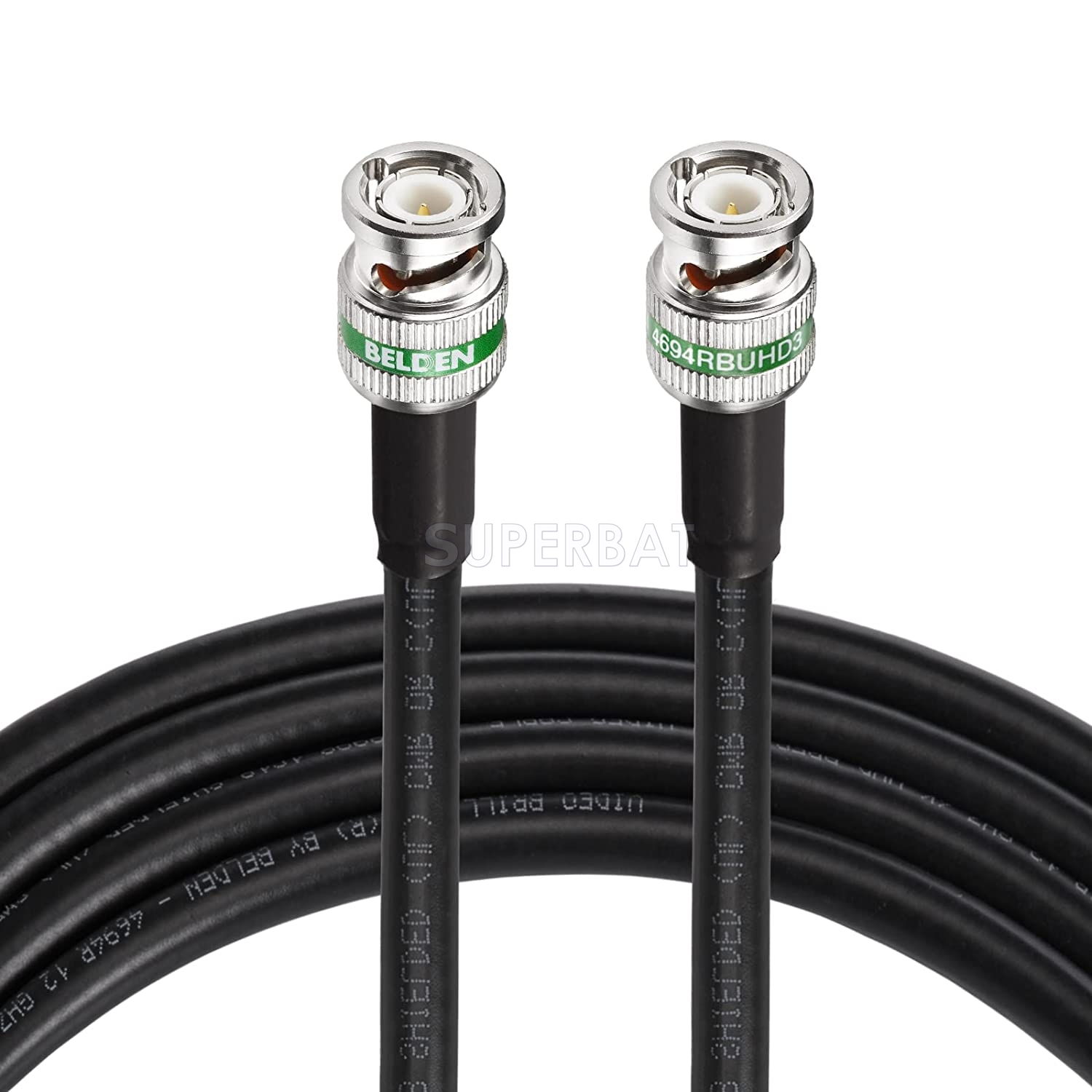

75 Ohm BNC to BNC Digital Video Cable 12G/6G-SDI Cable


Specifications:

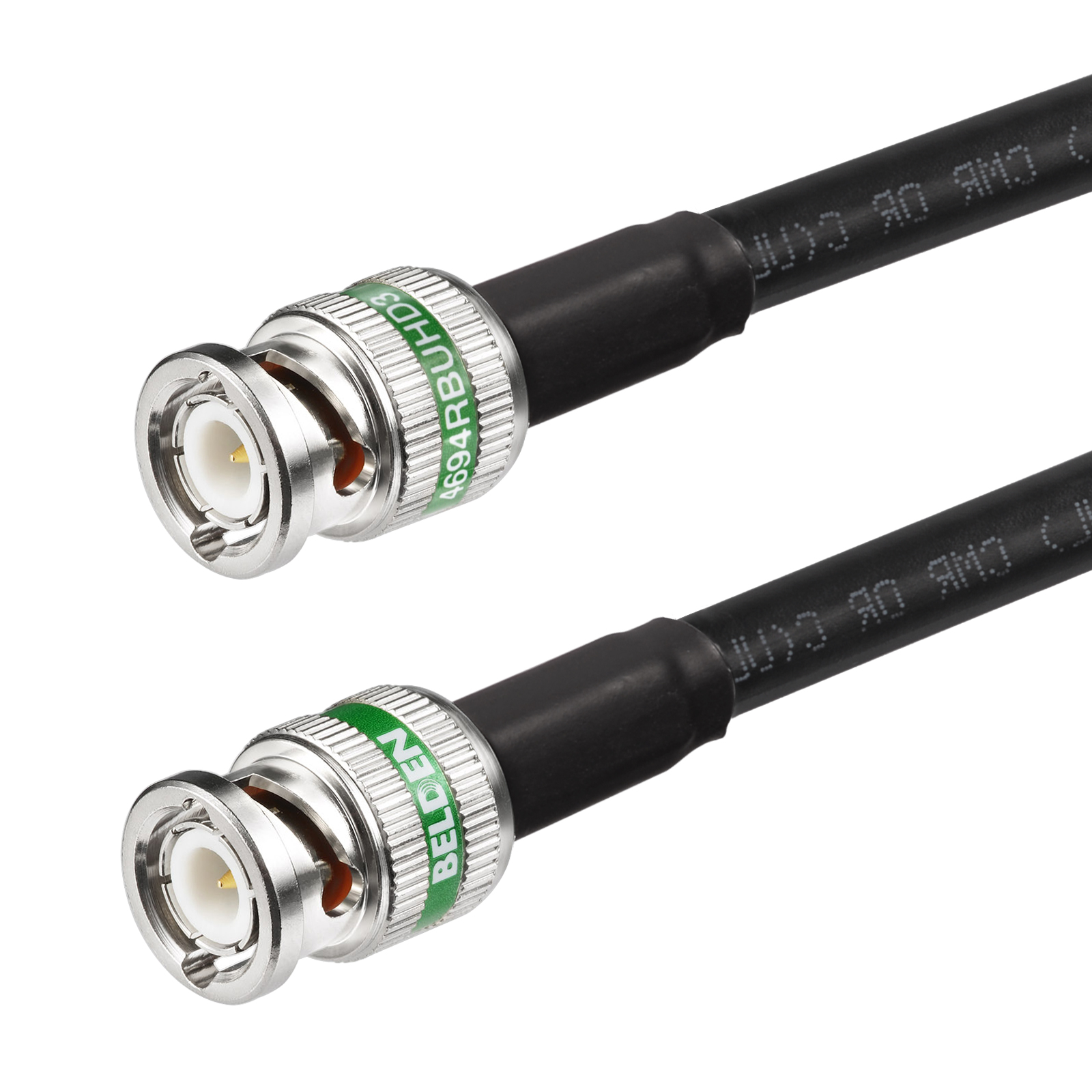

  • Belden BNC male to male connector | Gold plated

    Impedance: 75 Ohm

    Cable Type: Belden 4694R;18 AWG |Standard Definition 3G-SDI (2.97 Gbps, ST 424) 6G-SDI (5.94 Gbps, ST 2081) 12G-SDI (11.88 Gbps, ST 2082)

  • BELDEN 4694R PRECISION SERIAL DIGITAL VIDEO COAXIAL CABLE: Featuring RG-6 type, 18 AWG Solid Silvered Copper Conductor, PE Insulation, Foil + 95% Tinned Copper Braid Shield, PVC Jacket, CMR | for outdoor sdi cable 4K UHD Coax 12G sdi cable is suitable for professional SDI applications: for Ultra-High Definition Digital Video, 4K Single-link 12 Gb/s UHDTV, 4K D-Cinema, 8K Quad-link UHDTV, HD-SDI 1080p. This shielded coaxial cable compatible with SDI Vedio Monitor, SDI Vedio Camera, SDI Camera Monitor, SDI Recorder, SDI to HDMI Converter Splitter, SDI Capture Card, SDI Vedio Frame Grabber, SDI Digital Video Audio Broadcast Router, SDI Switcher Hub, SDI Frame Synchronizer etc.


  • Package list:

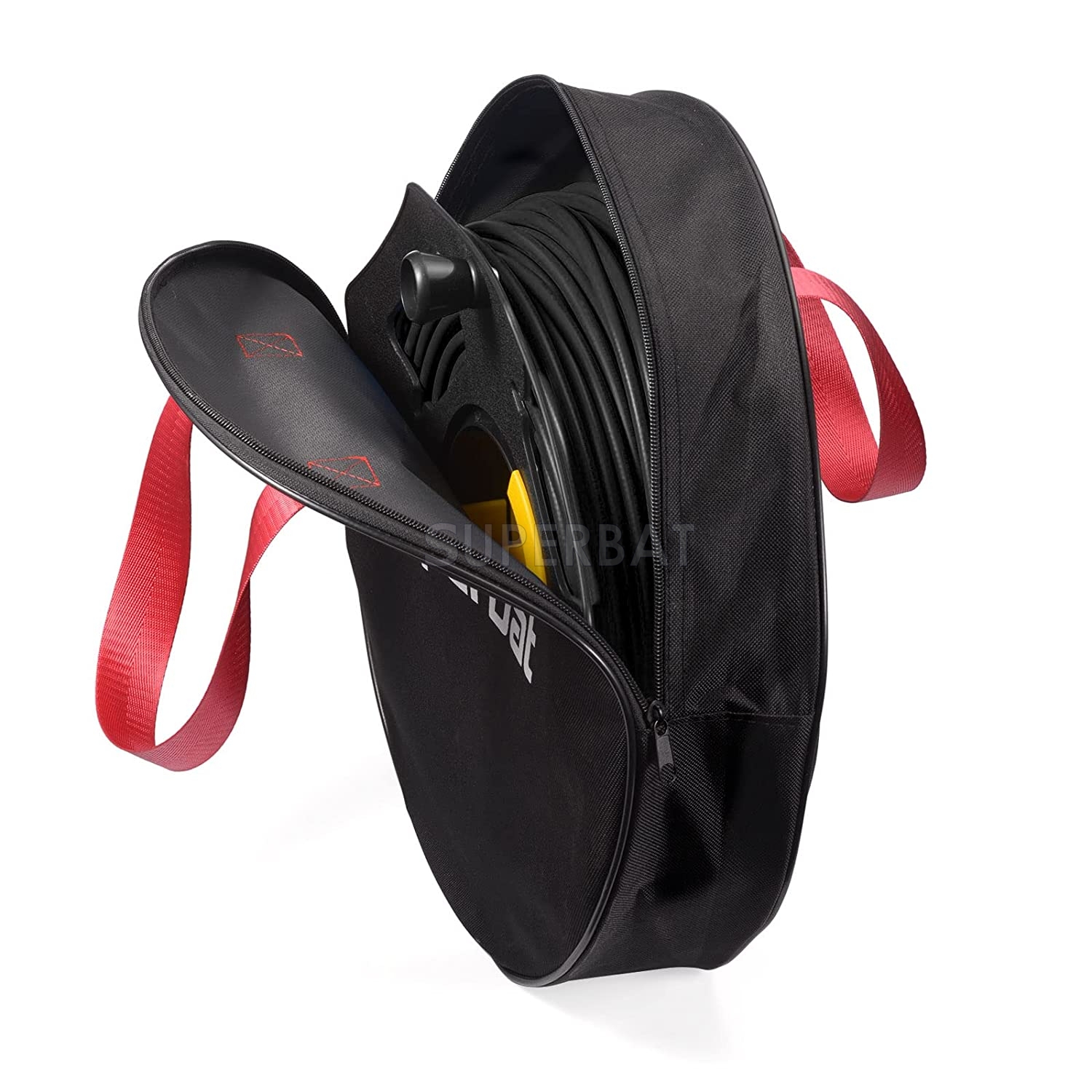

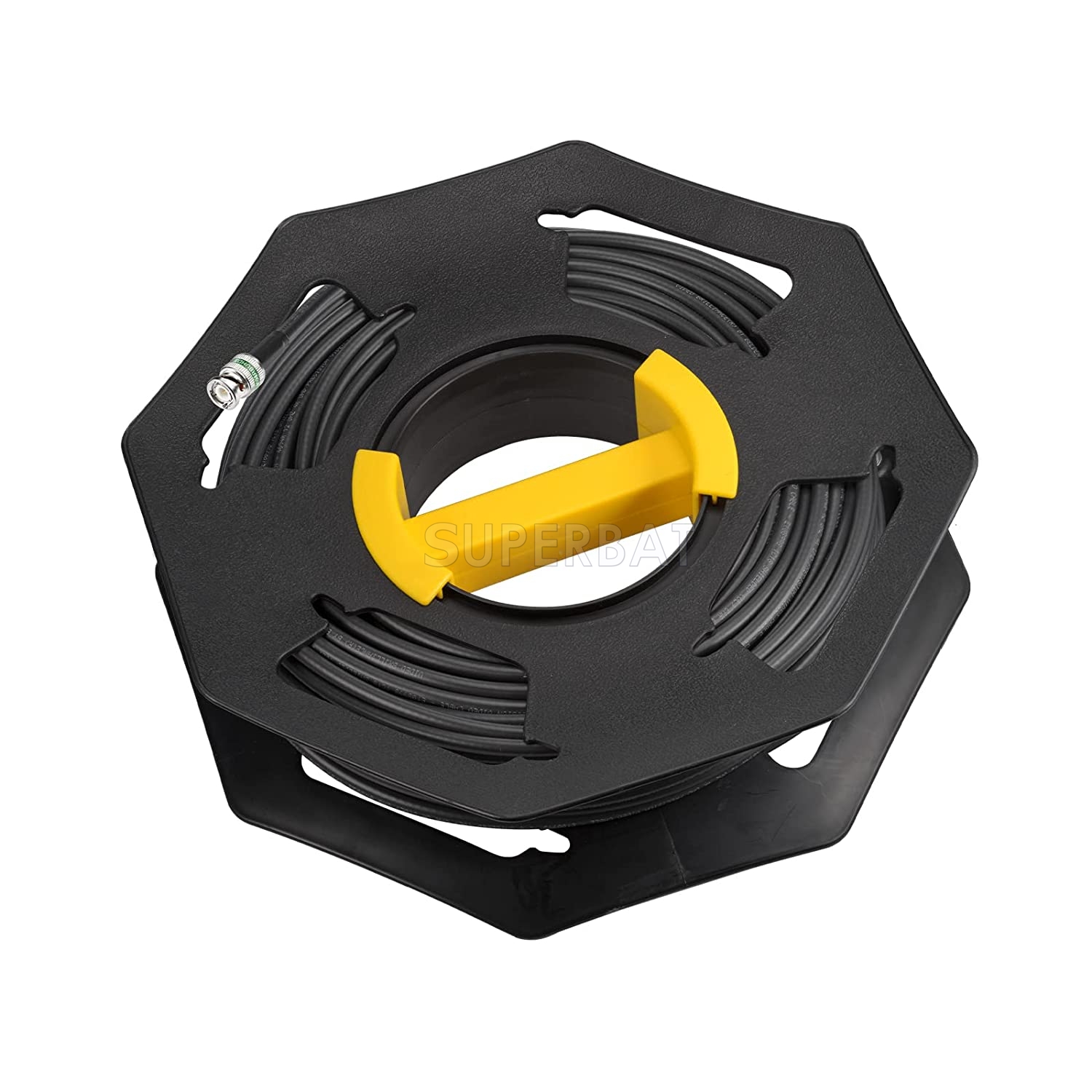

    1pcs SDI cable + 1pcs spool + a nice bag (for easier packing and storage)

Custom Service

We are a professional connectors and cables manufacturer, so we can make high quality but low price connectors and cables and we can customize the cables according to your requirements. If you are interested in them, please contact us, thank you!
