SMC Plug Female Connector Right Angle Crimp for LMR-195

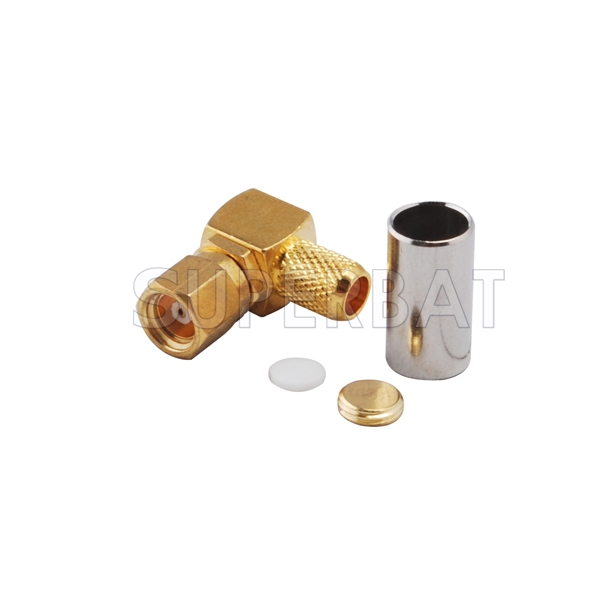

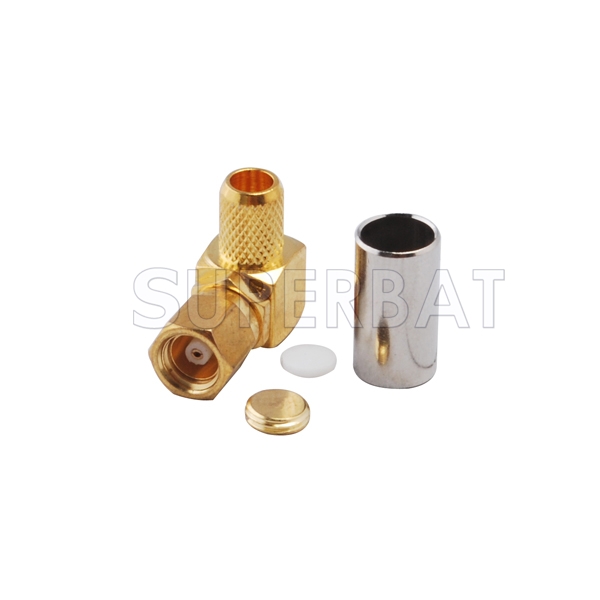

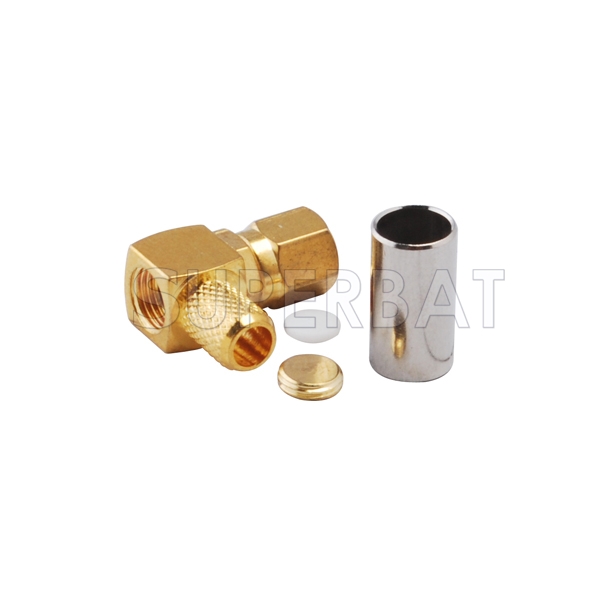

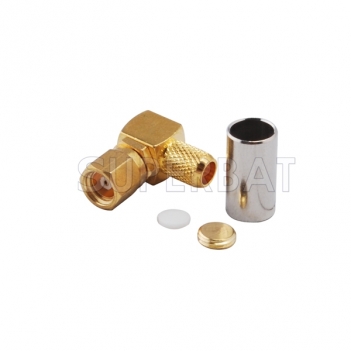

SMC Plug Male Connector Right Angle Crimp LMR-195
Unit Price: $2.77
sku:S07-RAL19-11BS00
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $2.77 $2.49 $2.24 $2.02 ASK
saving% 0% 10% 19% 27.1% -
Real Time Availability
Stock: 1971
Quantity: Units

Series: SMC Termination Type: Coaxial Cable Gender: Plug , Male Polarity: Reverse Polarity Interface Type: LMR-195 , RG58 Body Style: Right Angle Impedance: 50 Attachment Method: Crimp Body Material: Brass Body Plating: Gold Dielectric Type: PTFE Frequency Range: 3GHz

The SMC interface features threaded coupling with 10-32 threads and is available in 50 and 75 Ohm configurations. SMC connectors offer broadband performance with low reflection DC to 10 GHz and are primarily used in telecommunications and instrumentation applications.

Features and Benefits
Conforms to the interface dimensions of MIL-STD-348
Consistent electrical performance from DC to 10 GHz
54 Ohm nominal impedance
Threaded coupling ideal for applications where vibration resistance is important

Applications
Antennas
Telecommunication
Instrumentation
PC/LAN
