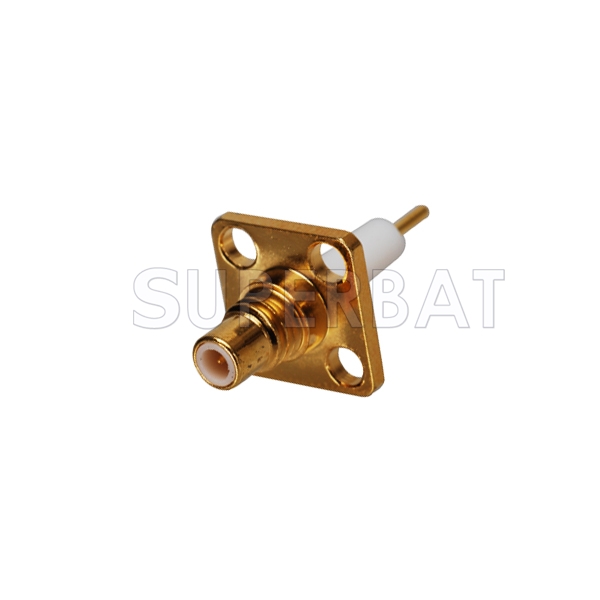

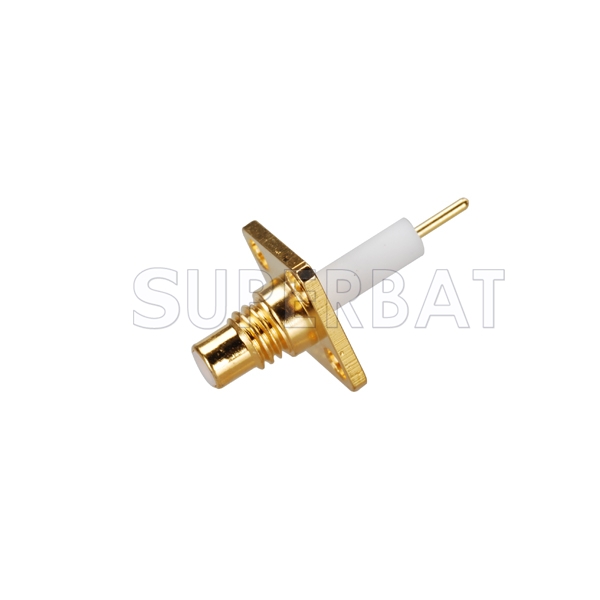

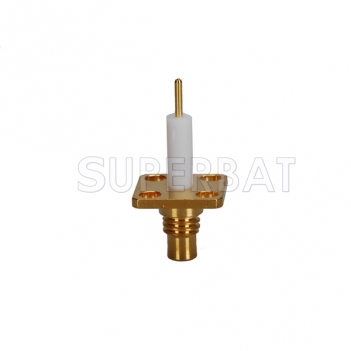

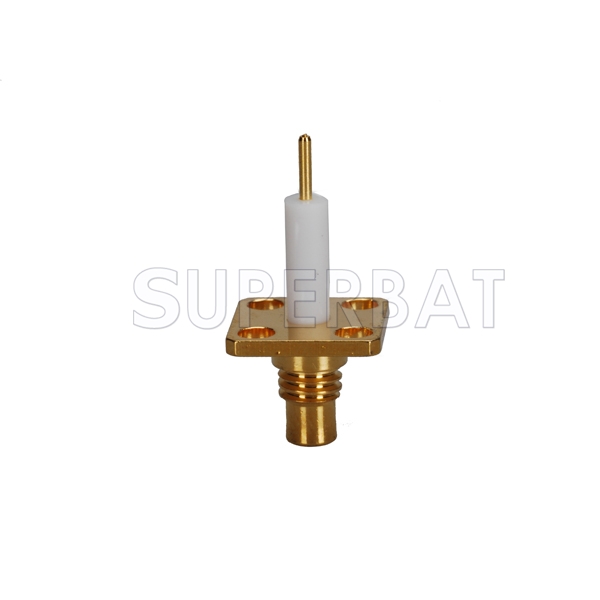

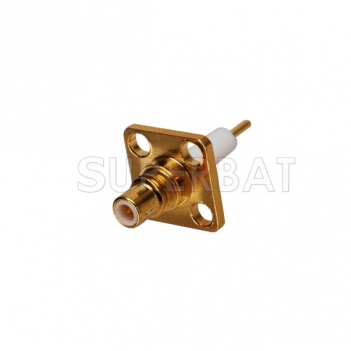

RF Connector SMC 4 hole panel mount Jack with long extended dielectric
Unit Price: $5.03
sku:S07-SJHL4-11BS00
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $5.03 $4.78 $4.28 $3.92 ASK
saving% 0% 5% 15% 22% -
Real Time Availability
Stock: 10000
Quantity: Units

Series: SMC Termination Type: Terminal Gender: Jack , Male Polarity: Reverse Polarity Body Style: Straight Mount Method: 4 Hole Flange Impedance: 50 Attachment Method: Solder Body Material: Brass Body Plating: Gold Dielectric Type: PTFE

SMC RF connectors are semi-precision, subminiature devices that provide repeatable electrical performance from DC to 10 GHz. The SMC family of connectors fill subminiature requirements, while providing a semi-permanent connection with their screw on mating mechanism.
They are best suited for use with cables in the range of .070" to .120" diameters, such as RG-178, RG-174, and RG-316.
The series is similar in size to SMB connectors. SMC type connectors are designed to conform to MIL-C-39012 specifications.
Typical applications for SMC connectors are telecommunications, test equipment, instrumentation and GPS.



TECHNICAL CHARACTERISTICS
Temp. Range ...................-65~ +165℃  (PE Cable -40--+85)
Impedance ...................50Ω
Frequency Range................... DC-10GHz
Working Voltage ...................250V rms
Withstand Voltage ...................750V rms



Contact resistance
Center Contact ................... ≤3mΩ
Outer Contact .................... ≤2mΩ
Insulation resistance ..............≥1000 mΩ
Insertion loss a...................0.15 dB/6GHz
VSWR Straight ...................≤1.25
     Right angle ................≤1.35
Durability(mating) ..............500(cycles)



MATERIAL & PLATING
Shell.................Brass ...........  ........Goldplated
Inner conductor.......Beryllium or tin brass ....Goldplated
Insulator ............PTFE
Crimping suite........Copper alloy ..............Nicked or goldplated



APPLICABLE STANDARD
MIL-C-39012;
CECC 22140;
IEC 60169-9
VG95286
