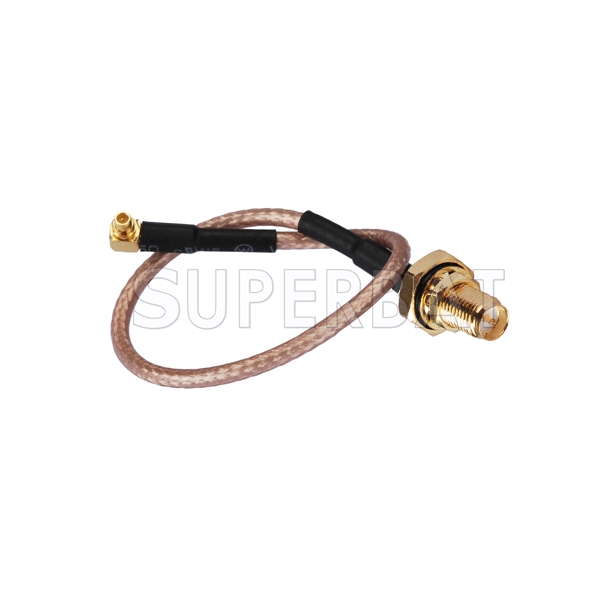

RF cable assembly MMCX RA to RP-SMA Jack bulkhead O-ring pigtail cable RG316 miniPCI cards
Unit Price: $3.52
sku:AC-M01RA-S02BO-316-15
Length(cm)
quantity 1 - 9 10 - 99 100 - 999 1000+
Price Each $3.52 $3.20 $2.85 ASK
saving% 0% 9% 19% -
Real Time Availability
Stock: 9997
Quantity: Units

Cable Type: RG316 Connector 1 Series: MMCX Connector 2 Series: RP-TNC Connector 1 Gender: Male , Plug Connector 2 Gender: Jack , Male Connector 1 Polarity: Standard Connector 2 Polarity: Reverse Polarity Body Style 1: Right Angle Body Style 2: Straight Mount Method 2: Bulkhead with O-ring

MMCX cable assemblies is work with all cards that utilize the MMCX connector such as: the SR2, Ubiquiti XR2, Ubiquiti XR5, XR9, SR71-A, SR71-12, SR71-15, DCMA-82, DCMA-82IT, AWPCI085H, WLM54-SA26, EMP-8603, R5H, and WMR-400 miniPCI cards,and works with the 2511 CD PLUS EXT2 PCMCIA card, the 2011 CD PLUS EXT2, Proxim, Aironet, Cisco, Arlan and Symbol cards.

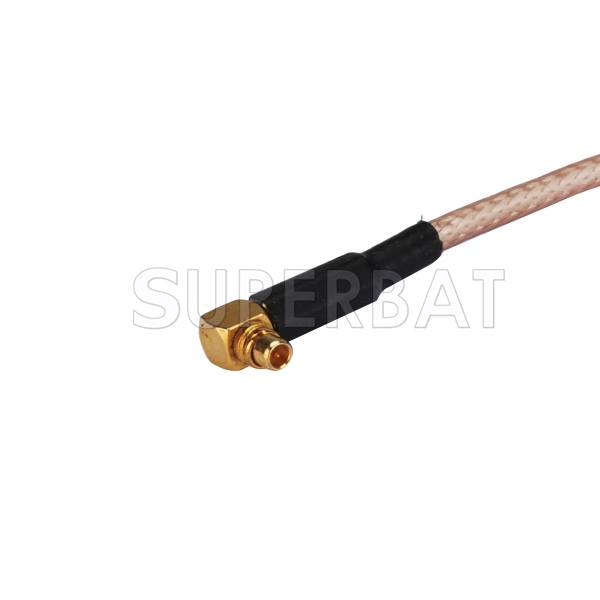

Connector:MMCX male Right Angle
Body Plating:Goldplated
Mating Way: Snap On

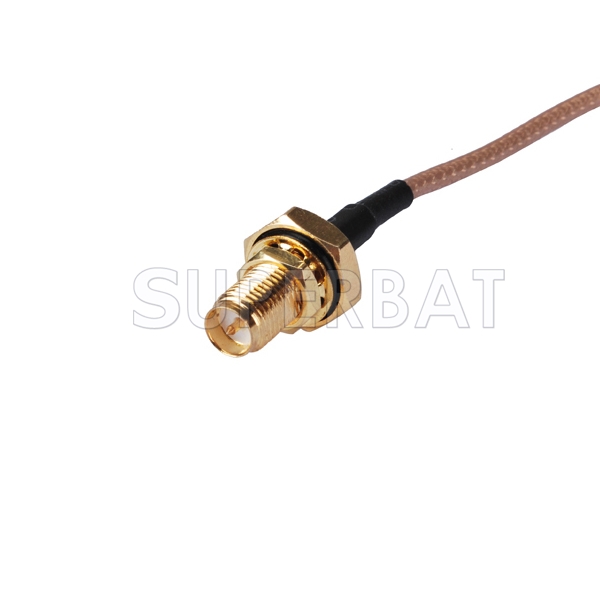

Connector:RP-SMA female bulkhead O-ring straight
Body Plating:Goldplated
Mating Way: Screw Type (Thread Coupling)



Typical applications for MMCX connectors are PCMCIA cards MINI-PIC Antenna and other small hand-held communications devices.


Applications:
    IEEE 802.11 a/b/g/n
    Wi-Fi
    WLAN
    Wireless Ethernet
    RFID
    UWB
    WiMAX
    iBurst
    Zigbee
    Bluetooth Wireless
    MIMO
