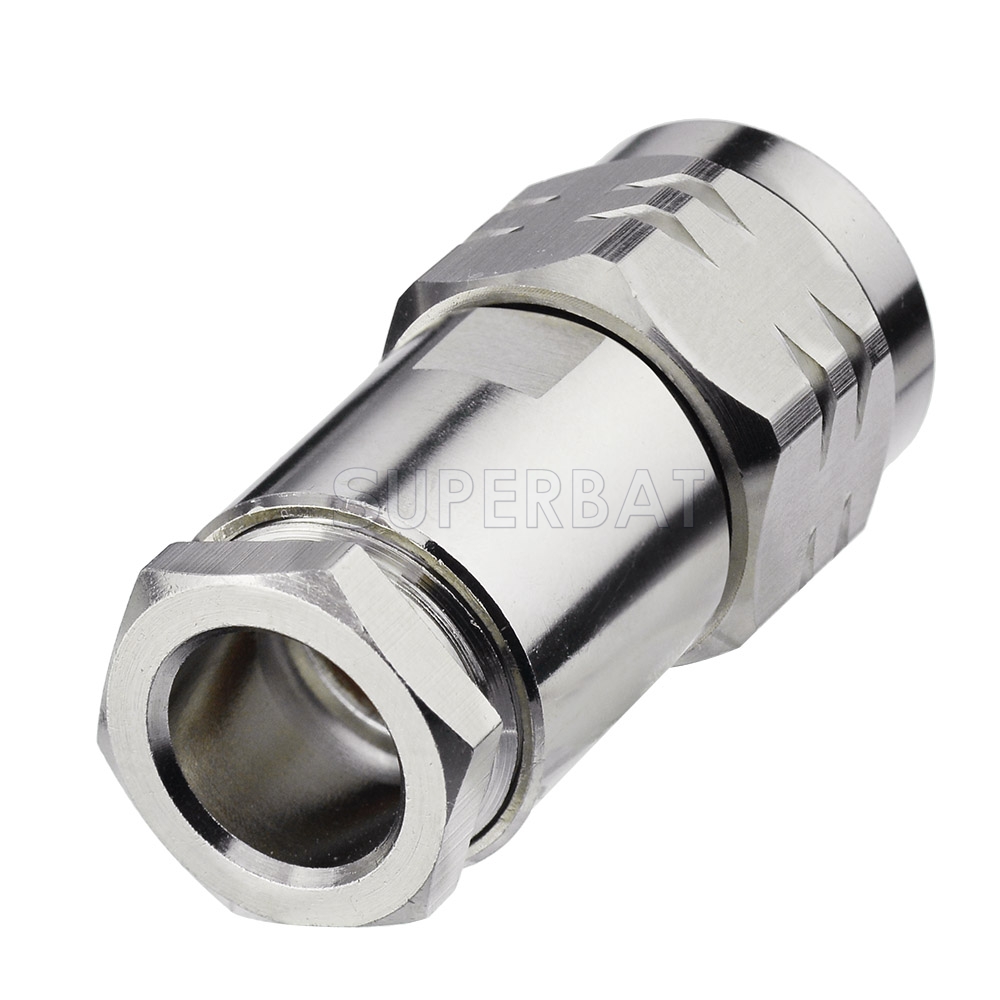

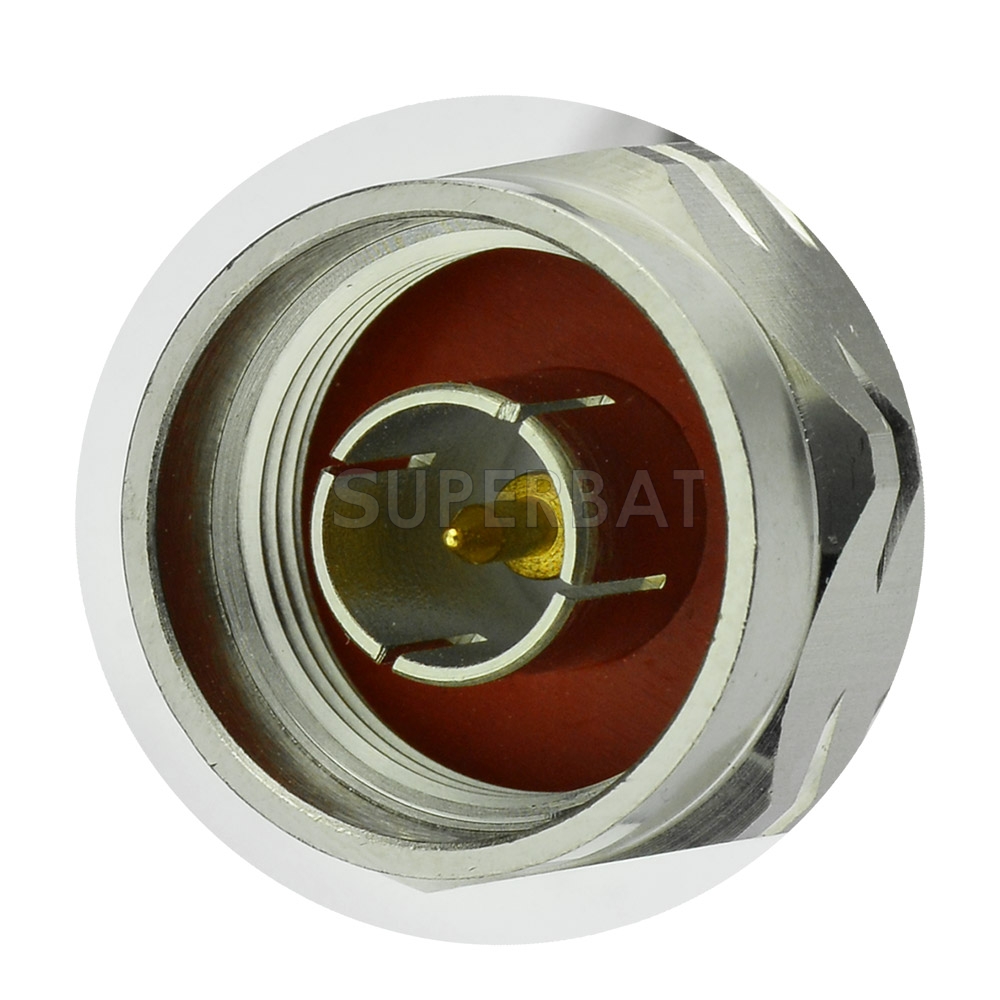

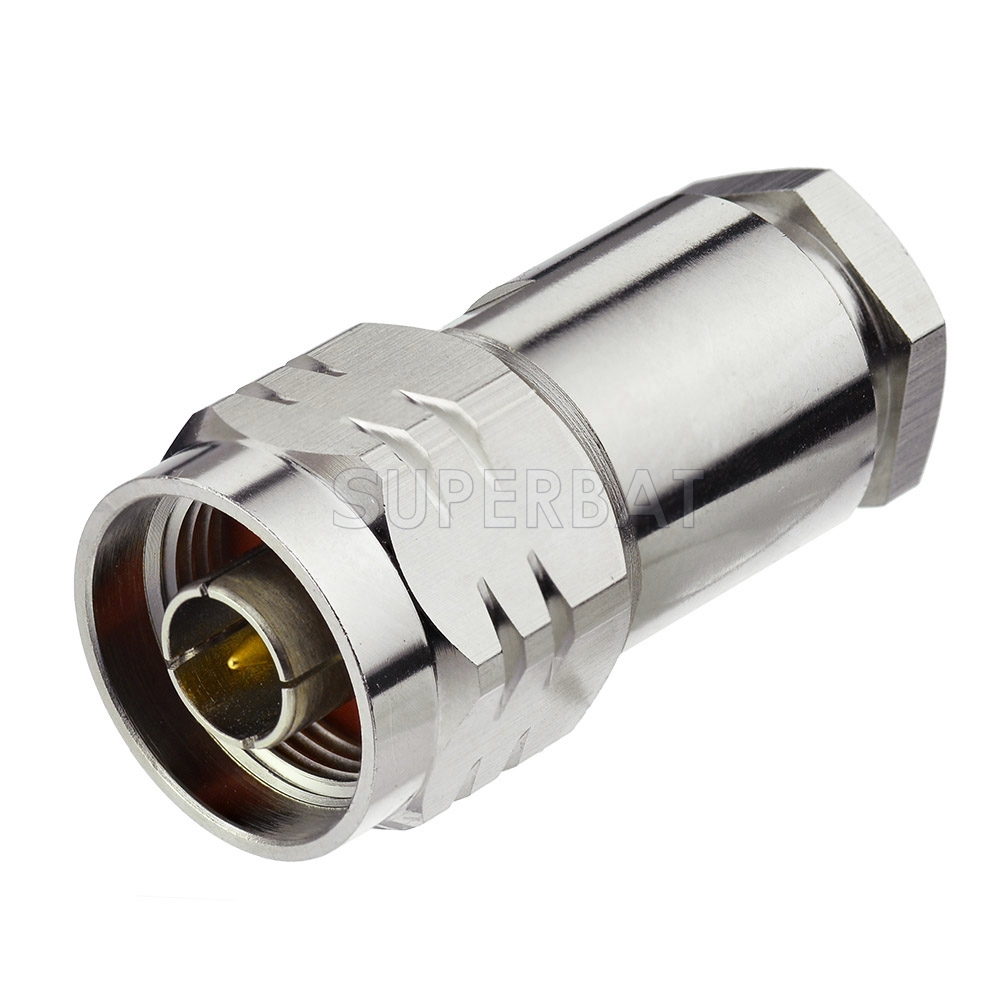

N Type male plug straight connector clamp for RG8,LMR400 CFD400 RF Coax Connector
Unit Price: $3.09
sku:N01-SPL40-41BS03
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $3.09 $2.94 $2.78 $2.63 ASK
saving% 0% 5% 10% 15% -
Real Time Availability
Stock: 9962
Quantity: Units

N Type male plug straight connector clamp for RG8,LMR400 CFD400 RF Coax Connector


Product description:


N series RF connectors are 50 ohm constant impedance connectors with a consistently low VSWR across its frequency range of 0 to 11GHz. They are high quality medium size connectors standardly used with coaxial cables from .350" to .450" OD, but designs can also acccomodate .078" to .875" cables. N type connectors are threaded and gasketed for weatherproof operation. The threaded coupling incurs low noise and withstands shock and vibration. LTI N connectors are designed to conform to MIL-C-39012 specifications.



Offers a few styles of 75 ohm impedance versions of N connectors. They are not matable with the 50 ohm connectors.



The N series connector is the most popular medium sized connector. Applications include test and measurement, antennae, base stations, transmitters, etc.



Product specification:


Product Series:N


Product Type:Cable mount



Application:Clamp



Attachment/Affixment:



Body Plating:Nickel-plated



Body Termination:Clamp



Cable Type:RG214,RG8,LMR400



Connector Body Style:Straight



Connector Material:Brass



Contact Plating:Nickel



Contact Termination:Solder



Gender:Plug



Impedance:50 Ohm
