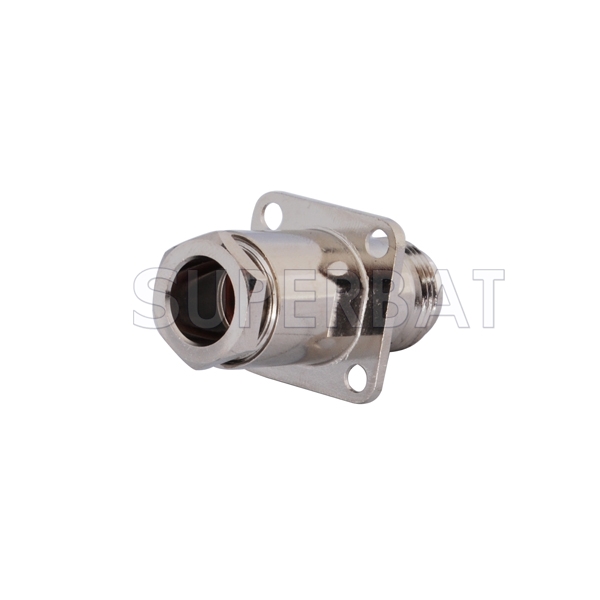

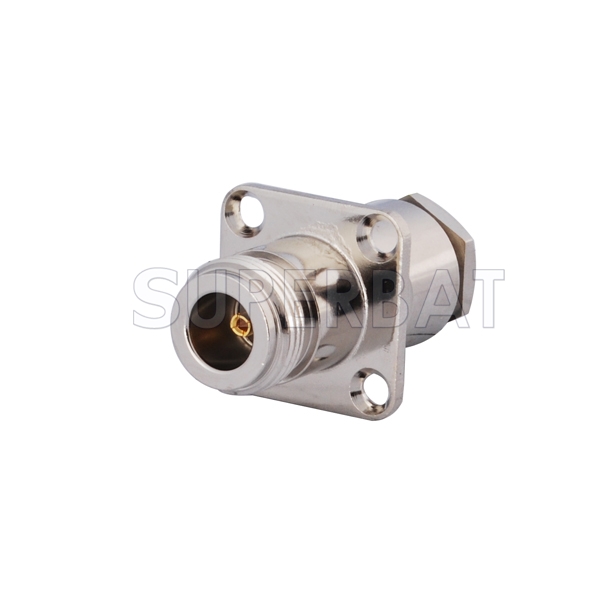

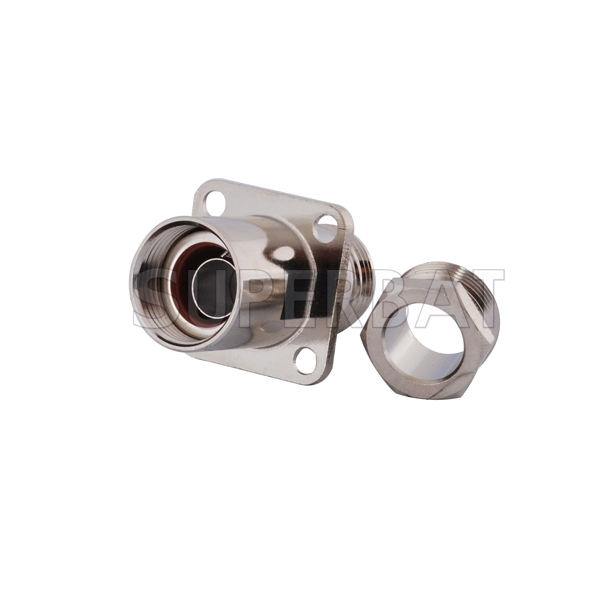

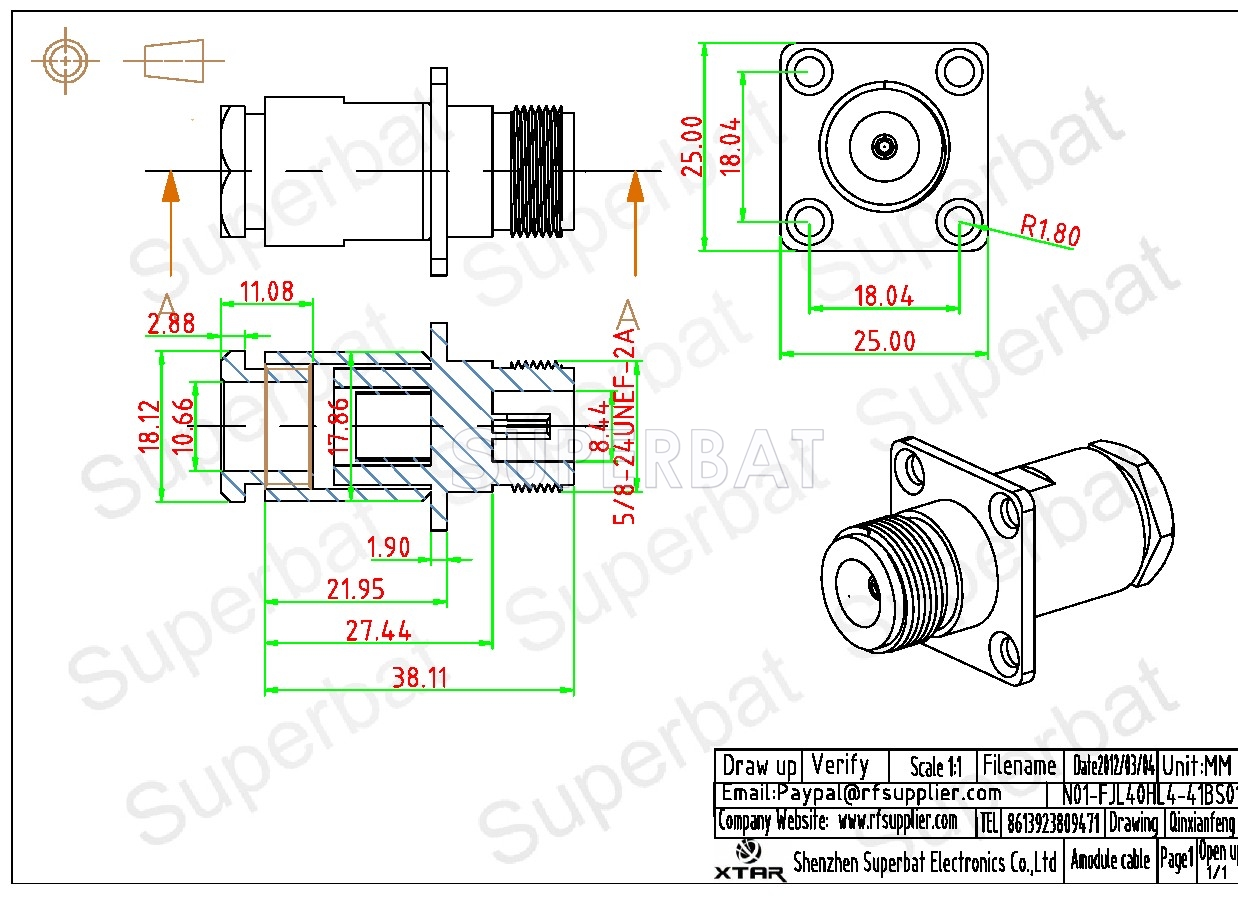

N Jack Female Connector Straight 4 Hole Flange Clamp LMR-400
N Jack Female Connector Straight 4 Hole Flange Clamp LMR-400
Unit Price: $5.70
sku:N01-FJL40HL4-41BS01
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $5.70 $5.13 $4.62 $4.16 ASK
saving% 0% 10% 19% 27.1% -
Real Time Availability
Stock: 1926
Quantity: Units

Series: N Termination Type: Coaxial Cable Gender: Jack , Female Polarity: Standard Interface Type: LMR-400 Body Style: Straight Mount Method: 4 Hole Flange Impedance: 50 Attachment Method: Clamp Body Material: Brass Body Plating: Nickel Dielectric Type: PTFE Frequency Range: 3GHz

N-Type connectors are designed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance through 11 GHz. Our N-Type connectors feature threaded coupling mechanisms and are fully interchangeable with N-Type connectors made to the MIL-C-39012 specification. These connectors are used in all systems where excellent RF and mechanical performance is critical.

Features and Benefits
Broad line of military, industrial and commercial grade products available
Excellent RF performance from DC to 45 GHz
Threaded coupling mechanism ideal for vibration resistance

Applications
Antennas
Base stations
Instrumentation
Satellite systems
WLAN
Radar systems
Broadcast
Surge protection
