Your position: Home > RF Connector > N-Type Connectors

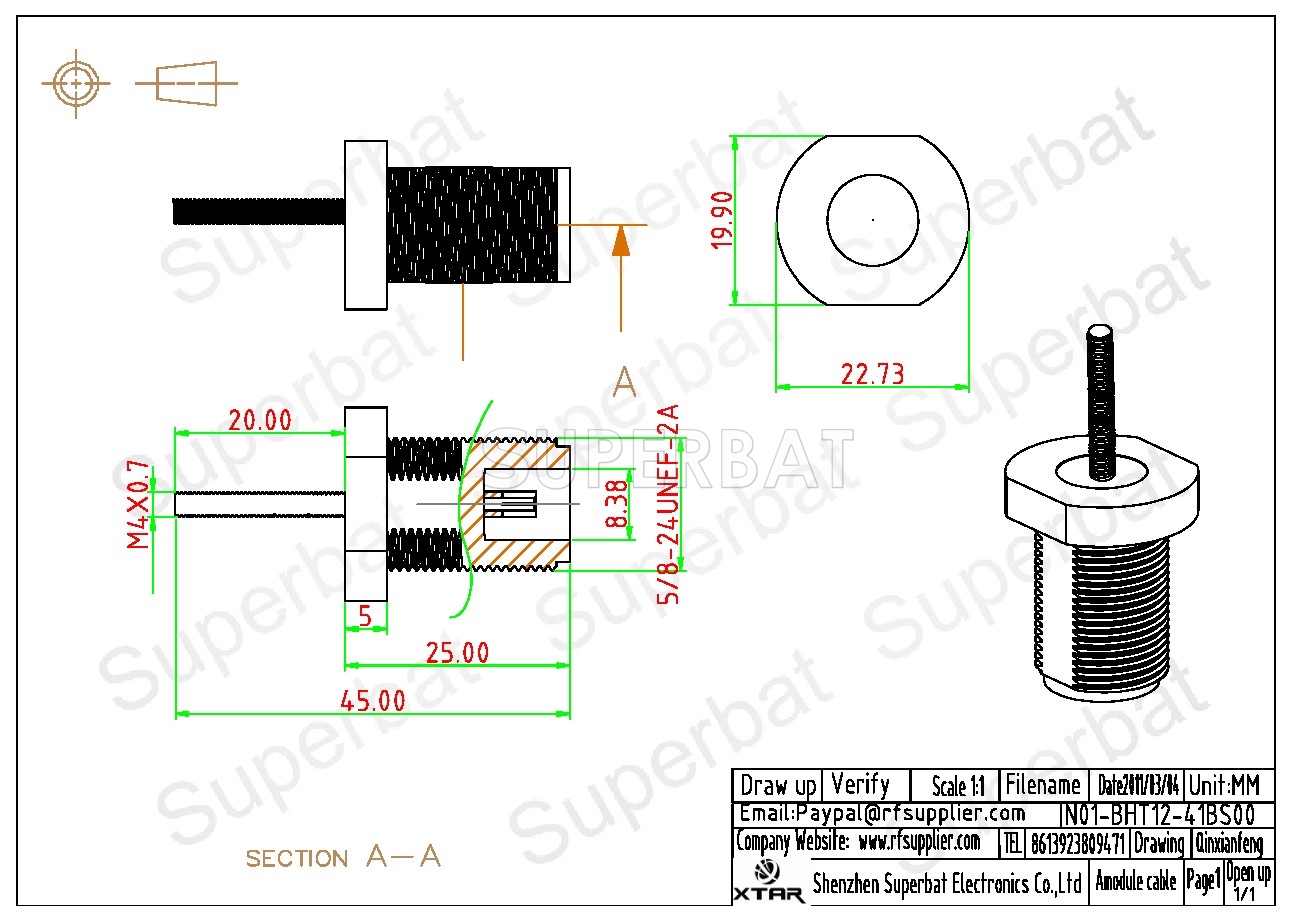

N Jack bulkhead straight RF Connector for fiber-glass antenna
N Jack Female Connector Straight Bulkhead Solder
Unit Price: $4.25
sku:N01-BHT12-41BS00
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $4.25 $3.83 $3.61 $3.40 ASK
saving% 0% 10% 15% 20% -
Real Time Availability
Stock: 1978
Quantity: Units

Series: N Termination Type: Terminal Gender: Jack , Female Polarity: Standard Body Style: Straight Mount Method: Bulkhead Impedance: 50 Attachment Method: Solder Body Material: Brass Body Plating: Nickel Dielectric Type: PTFE Frequency Range: 3GHz
Product Series:N
Connector type:Cable mount
Attachment/Affixment:Bulkhead
Body Plating:Nickelplated
Connector Body Style:Straight
Connector Material:Brass
Contact Plating:Nickel
Contact Termination:Solder
Gender:Jack
Impedance:50 Ohm


N-Type connectors are designed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance through 11 GHz. Our N-Type connectors feature threaded coupling mechanisms and are fully interchangeable with N-Type connectors made to the MIL-C-39012 specification. These connectors are used in all systems where excellent RF and mechanical performance is critical.

Features and Benefits
Broad line of military, industrial and commercial grade products available
Excellent RF performance from DC to 26 GHz
Threaded coupling mechanism ideal for vibration resistance

Applications
Antennas
Base stations
Instrumentation
Satellite systems
WLAN
Radar systems
Broadcast
Surge protection
