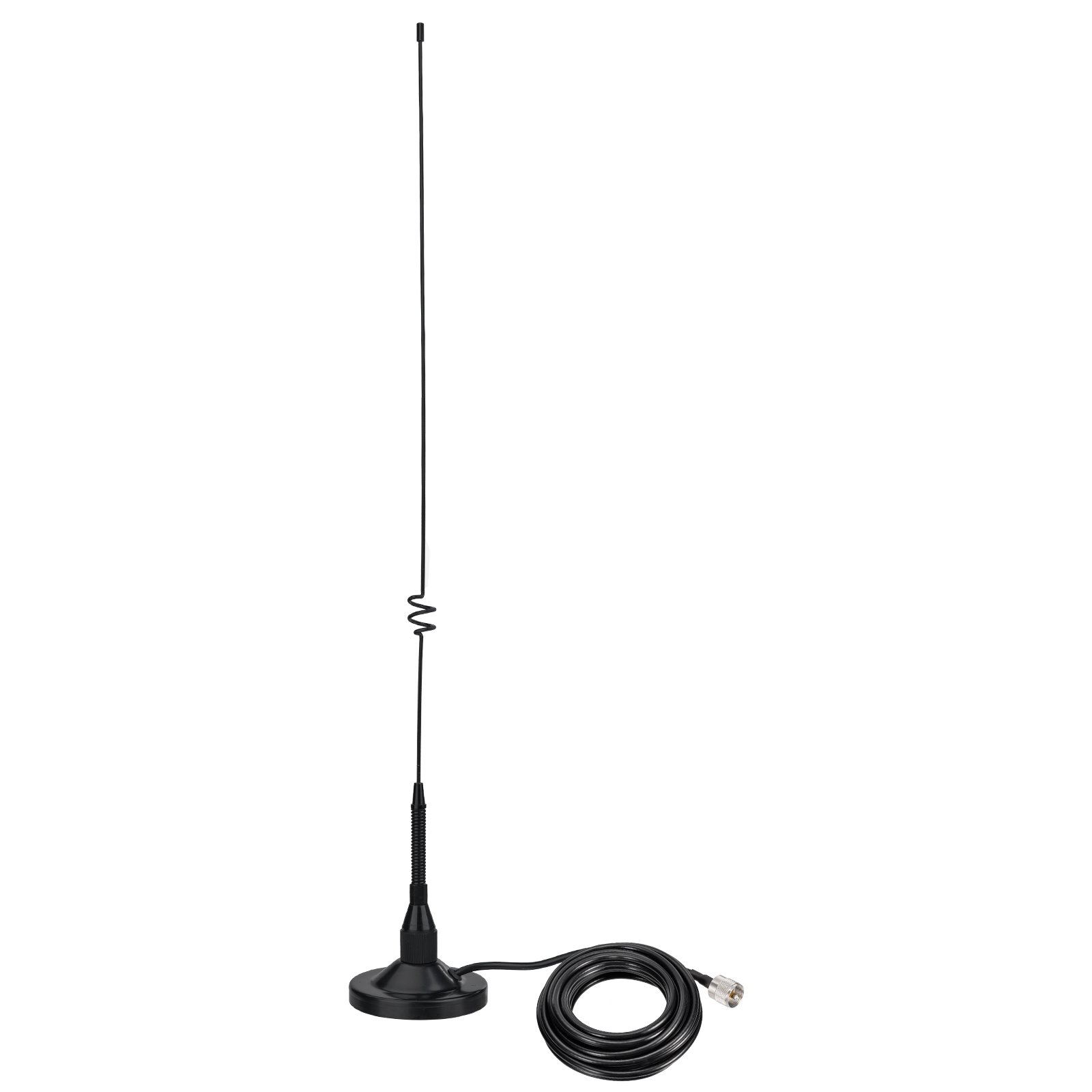

Vehicle Dual Band Ham Radio Mobile Radio Antenna PL259 VHF UHF 136-174MHz 400-470MHz Amateur antenna

Frequency range: Very High Frequency (VHF) 136-174MHz, Ultra High Frequency (UHF) 400-470MHz: Gain: 3.5dBi (136-174MHz), 6dBi (400-470MHz)

Maximum power: 50 watts, length: 53 cm/20.8 inches; Antenna connector: UHF PL259 male connector, 50 ohms

Improve Signal: Reduced VSWR to improve the performance of the carriage, increases gain and improves reception sensitivity

Application: Compatible with Amateur Mobile Radio, Ham Radio, FRS GMRS Two Way Radio: BTECH, ICOM, Kenwood, Midland, Yaesu, TYT, AnyTone, Radioddity, Cobra, Uniden, President, Galaxy Audio, Pro Trucker, Stryker, Marine Boat VHF Radio, Amateur Radio, MURS Radio, Walkie Talkies

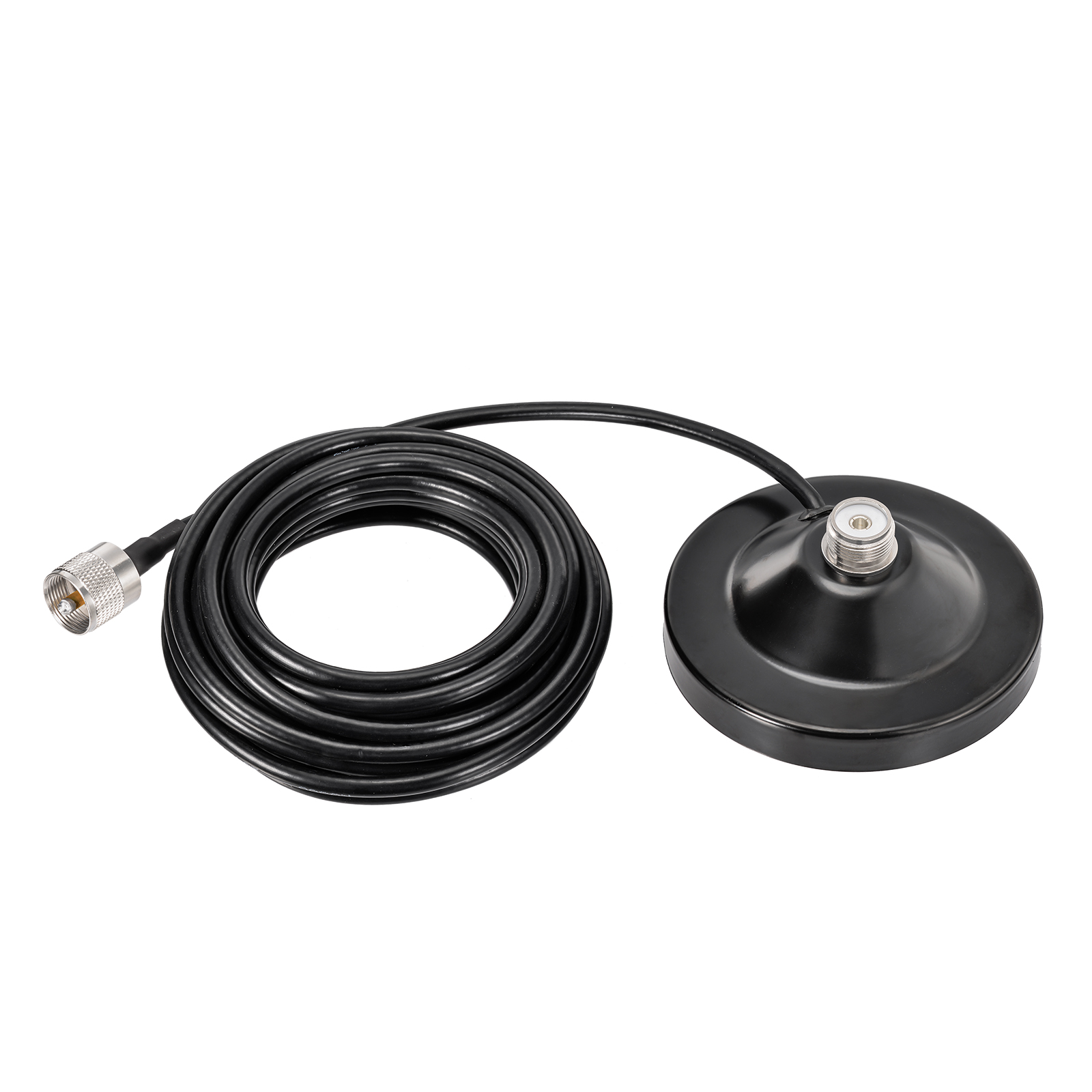

Strong Magnetic Base: 3.54inches diameter magnetic base and 16.4ft RG58 coaxial cable, strong magnetism, easy to use and install

Frequency Range: VHF 136-174MHz, UHF 400-470MHz;

Gain:3.5dBi (VHF) ,6dBi(UHF);

Impedance: 50 ohms

Max Power: 50W

VSWR:less than 2.0

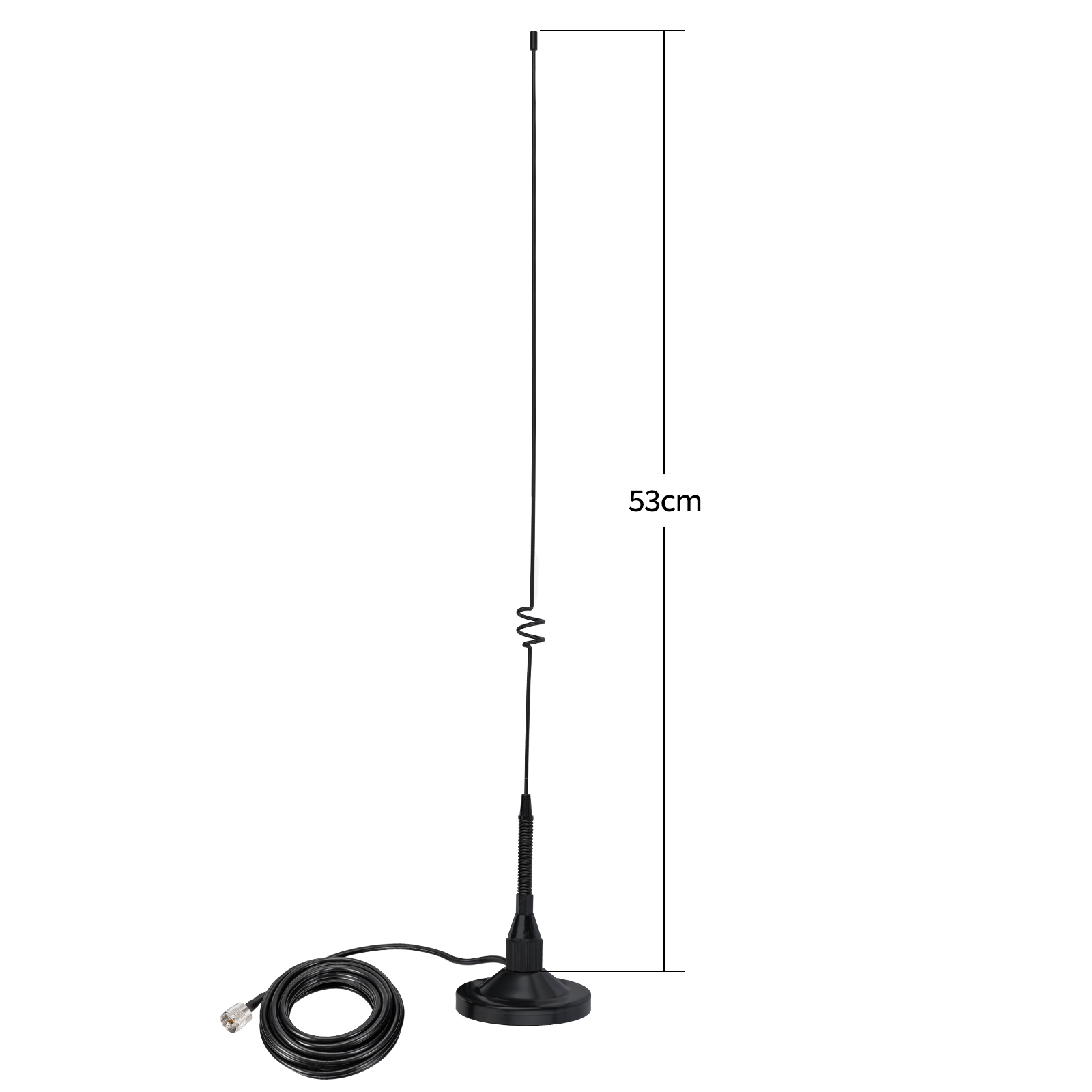

Antenna Length:20.8inch /53cm

Cable: 16.4ft / 5m RG58 coaxial cable

Connector: UHF PL259 Male

Magnetic base diameter: 9 cm

Waterproof: Raining Proof

Material: Stainless steel

Polarisation: Vertical polarisation

Direction: Omni-directional

Operating Temperature: -20°С ~ +80°С

Storage Temperature: -30°С ~ +85°С

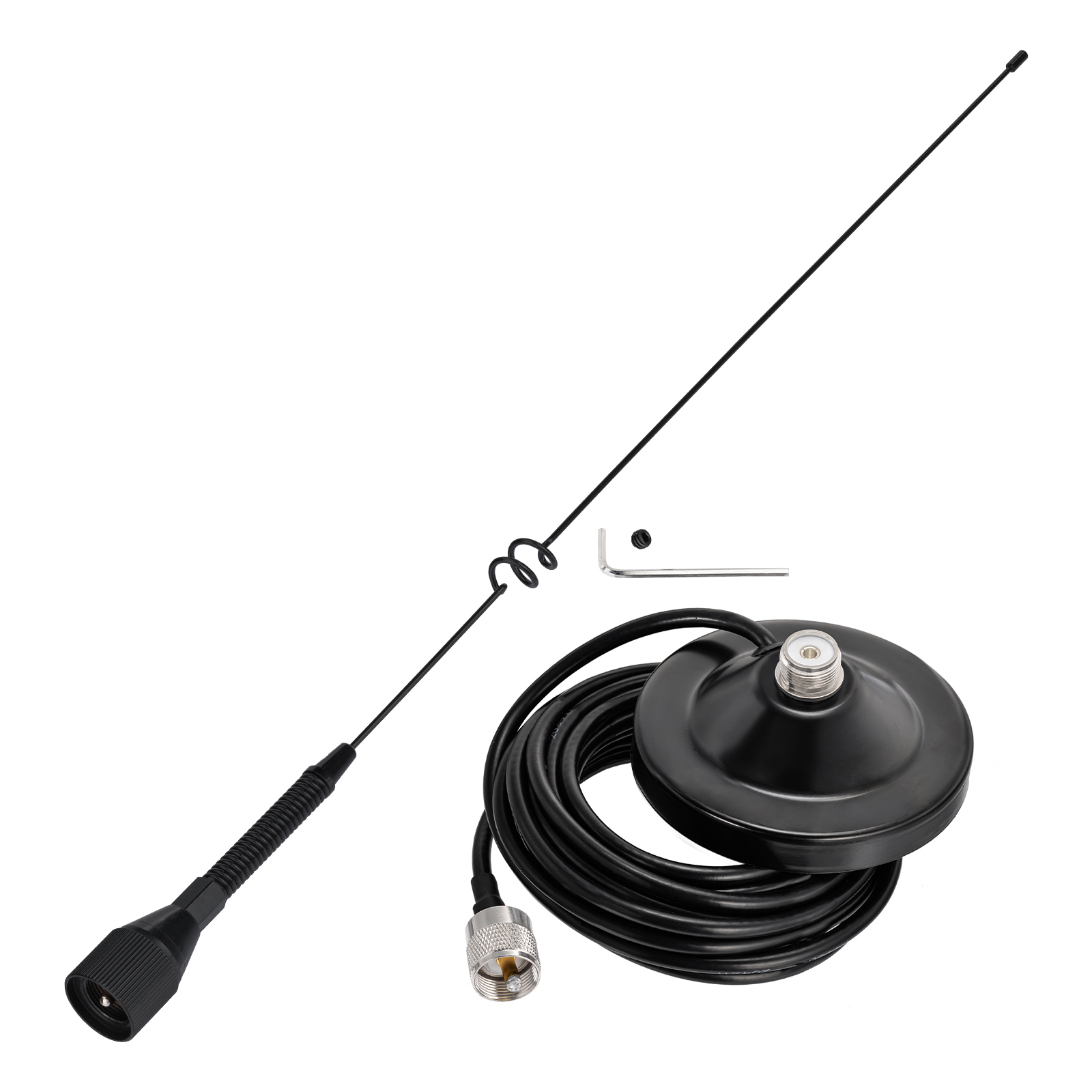

Package List:1 x Antenna, 1 x magnetic base

Compatible with: FRS GMRS MURS Radio; Amateur Radio; Vehicle Mobile Radio; Ham Radio; Two Way Radio; Public Radio Scanner; Marine VHF Radio;

Compatible with Amateur Mobile Radio, Ham Radio, FRS GMRS Two Way Radio: BTECH, ICOM, Midland, Yaesu, TYT, AnyTone, Radioddity, Cobra, Uniden, President, Galaxy Audio, Pro Trucker, Stryker;

BTECH UV-50X2 UV-25X2;

ICOM 2300H F6021 A120;

T M-D710G;

Midland MXT275;

Yaesu Original FT M-3100R FT-2980R FT-2980;

TYT TH-9800 TH-7800;

AnyTone AT-5555N AT-588UV AT-6666 AT-D578UV AT-788UV;

Radioddity DB25;
