Features:

High gain, easy installation and operation.

Full-duplex, single-port design.

Use ALC technology, adjust extent automatically.

LED Light Working & Signal Condition Indicators.

Big linear power, control intermodulation & scatteration stably.

Dependability stand by GB6993-86 standard.

Compatibility of electromagnetism according with ETS300 609-4.

Specification:

Frequency range :

890MHz--915MHz(Up link)

935MHz--960MHz(Down link)

Power: -70 ~-40 dBm/ FA (1.23MHz)

Gain : (Up link) 50/55/60/65Db/±10DB (Down link) 55/60/65/70Db±10DB

Signal coverage : Up to cover for 150 square meters use

Seclusion : >65dB

Power supply : AC110/220V(Used AC/DC Adapter 12V DC)

Compact design: Indoor use

Size: 140*100*20mm/5.51*3.94*0.79"

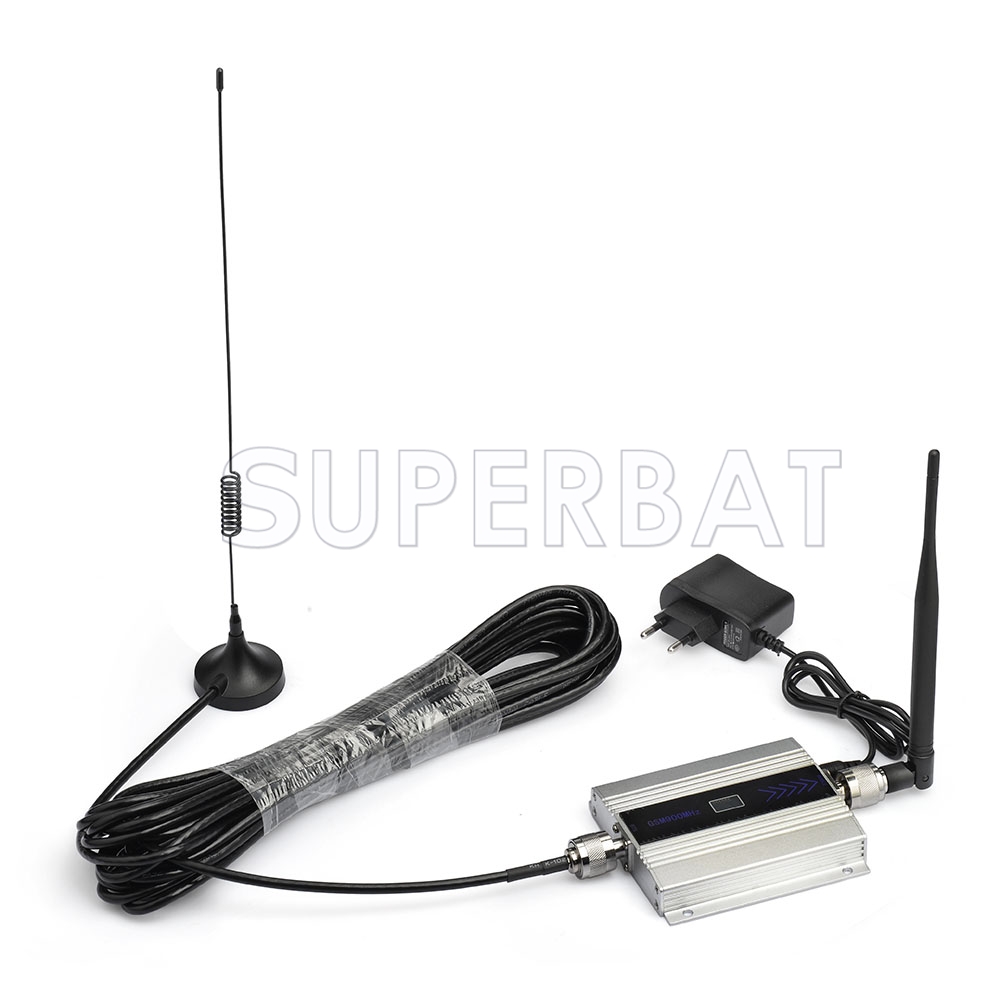

Installation Approaches

1. Fix up outdoor antenna reception on housetop and point to signal tower.

2. Connect outdoor antenna to "BTS" port in repeater machine through cable.

3. Connect indoor antenna(s) to "MOBILE" port in repeater machine through cable also.

4. Plug power adaptor into AC power socket and finish installation.

Installation note:

1. please make sure distance above 10M between indoor and outdoor antenna, it’s better divides one from another by a wall.

2. Please try to choose a good signal place to set up outdoor antenna.

3. Please sure that there are good signal 4-5 bars on your outdoor, or it will not work on your room.

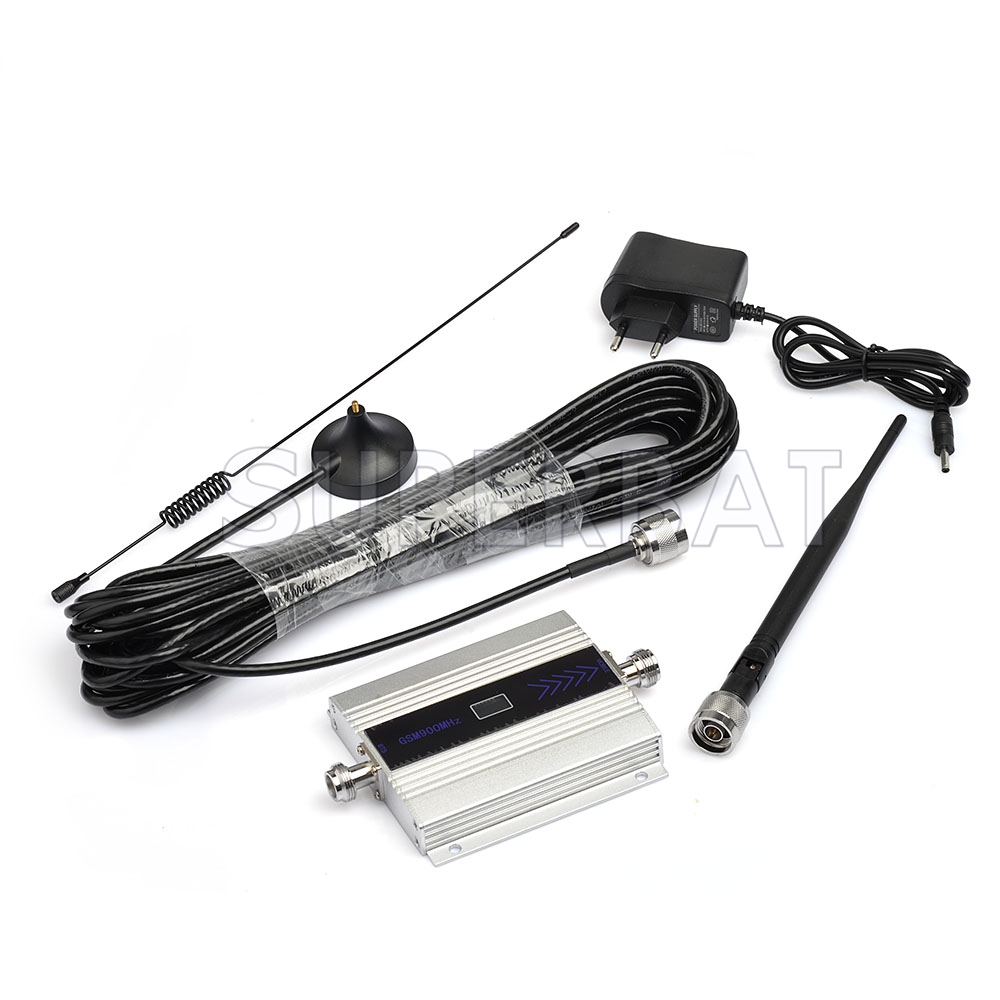

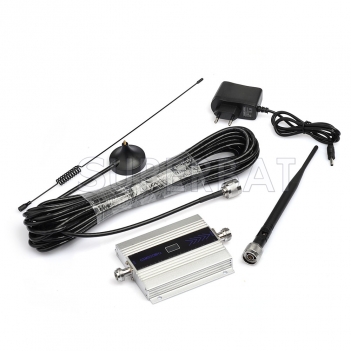

Package:

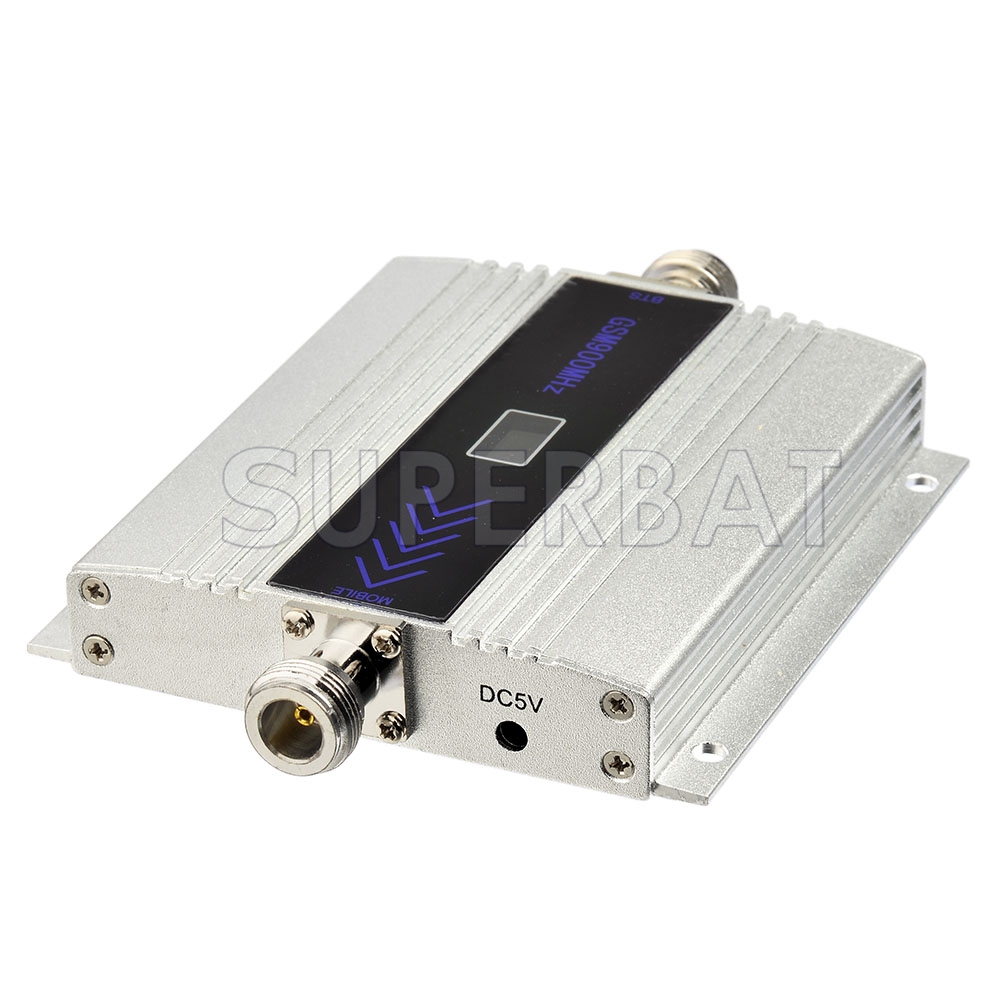

1 x Mobile Signal Repeater

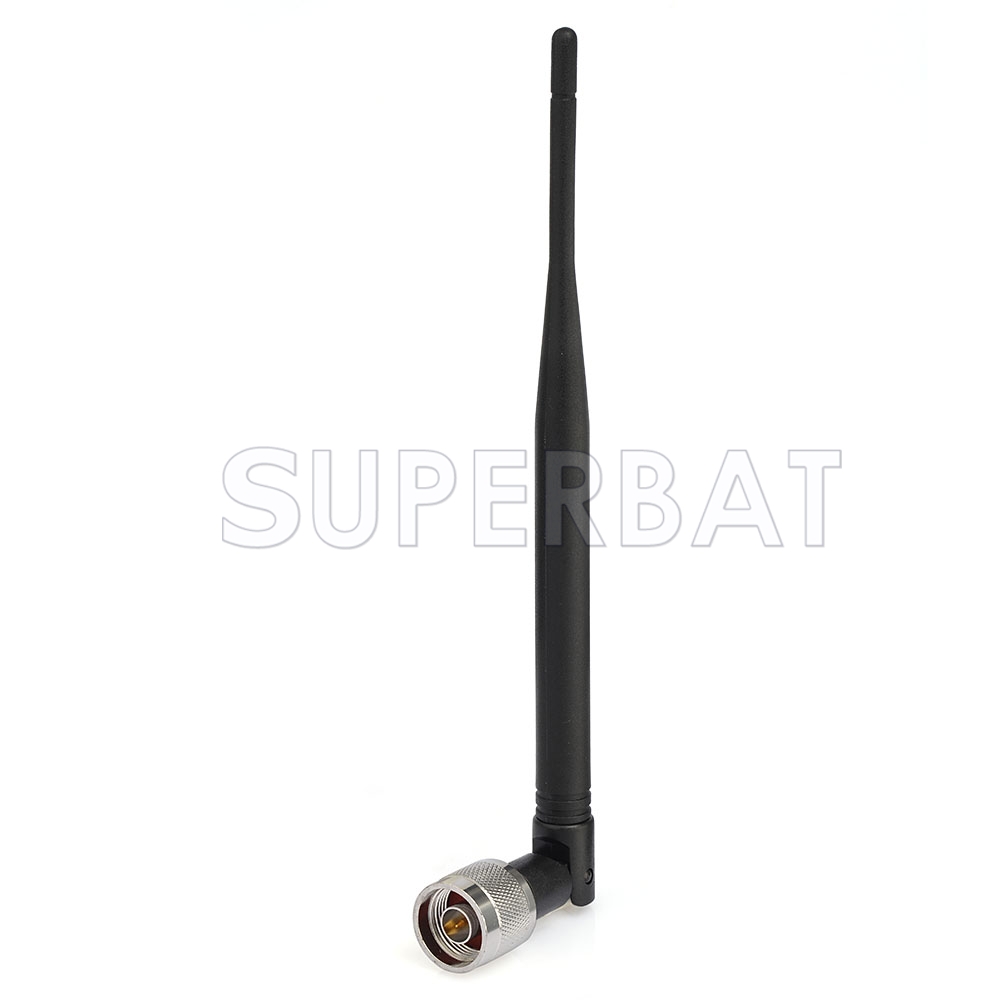

1x Indoor antenna

1 x Outdoor 10m sucker antenna

1 x use use Manual

1 x power adapter
