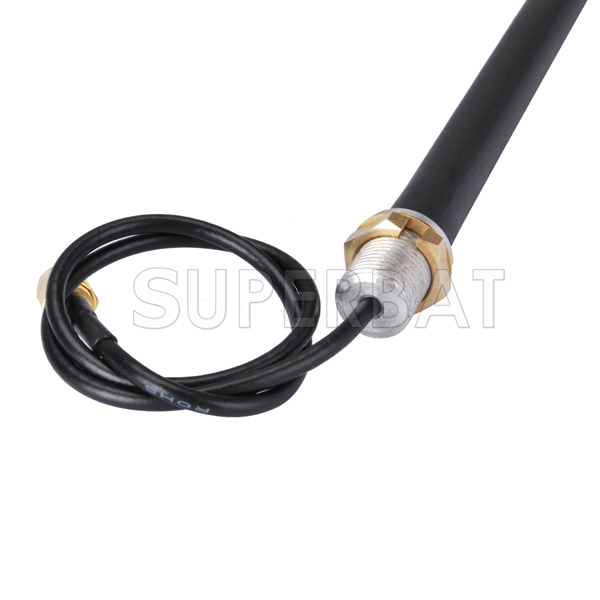

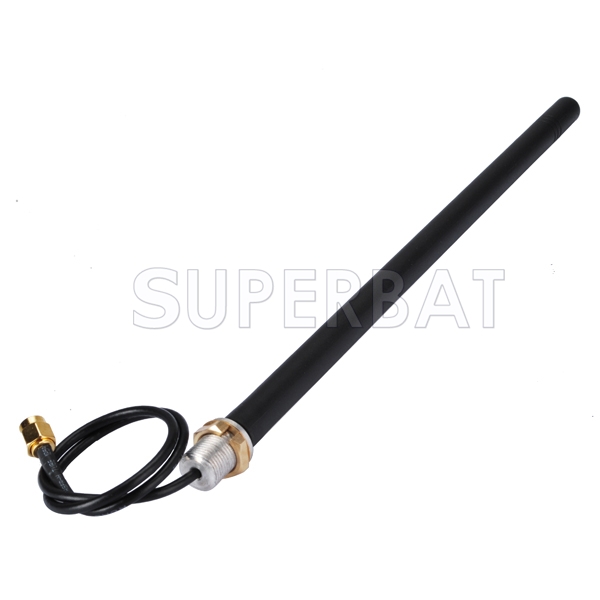

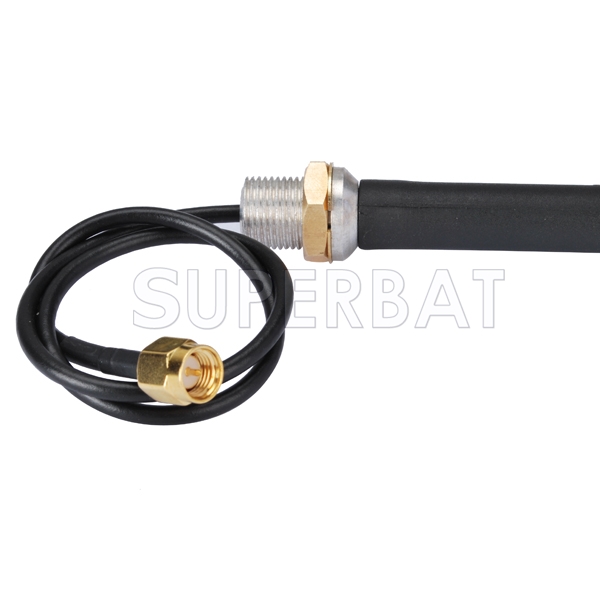

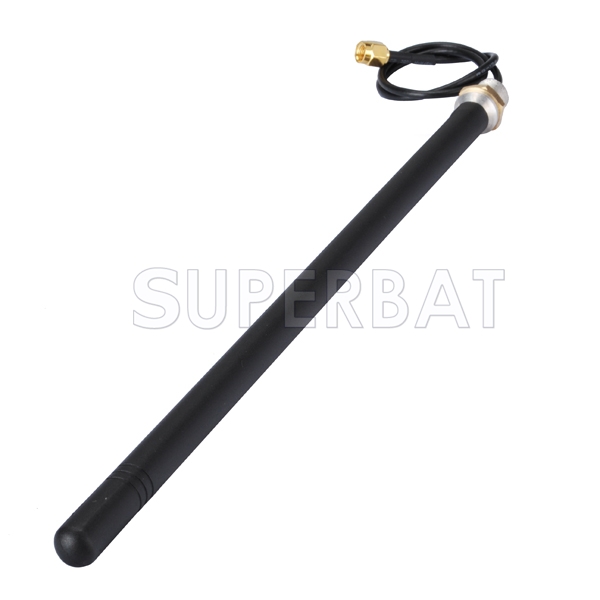

Mobile GSM Antenna 890-960/1710-1880MHz 3.5dbi Antenna Vertical SMA plug male
Unit Price: $9.69
sku:GM3-2298-S01SP-035-30
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $9.69 $8.72 $7.85 $7.07 ASK
saving% 0% 10% 19% 27% -
Real Time Availability
Stock: 1000
Quantity: Units

Antenna Type: Hole/Fixed/Wall/Ceiling Mount Network: GSM/GPRS/EDGE/CDMA Antenna Frequency: 890-960/1710-1880MHz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 3.5dBi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG174 Cable Length: 30cm Weight: 33g

Frequency Range(MHz): 890-960/1710-1880MHz
Gain 3.5dBi
VSWR ≤2.0
Polarization Vertical
Impedance 50Ω
Maximum Input Power 50W
Cable type RG174
Cable length 30CM
Cable Connector: SMA male or customized
Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

Operating Temperature:-40℃ to+80℃
Mechanical Specifications:
Antenna Dimension Φ11×270mm

Weight: 33g
