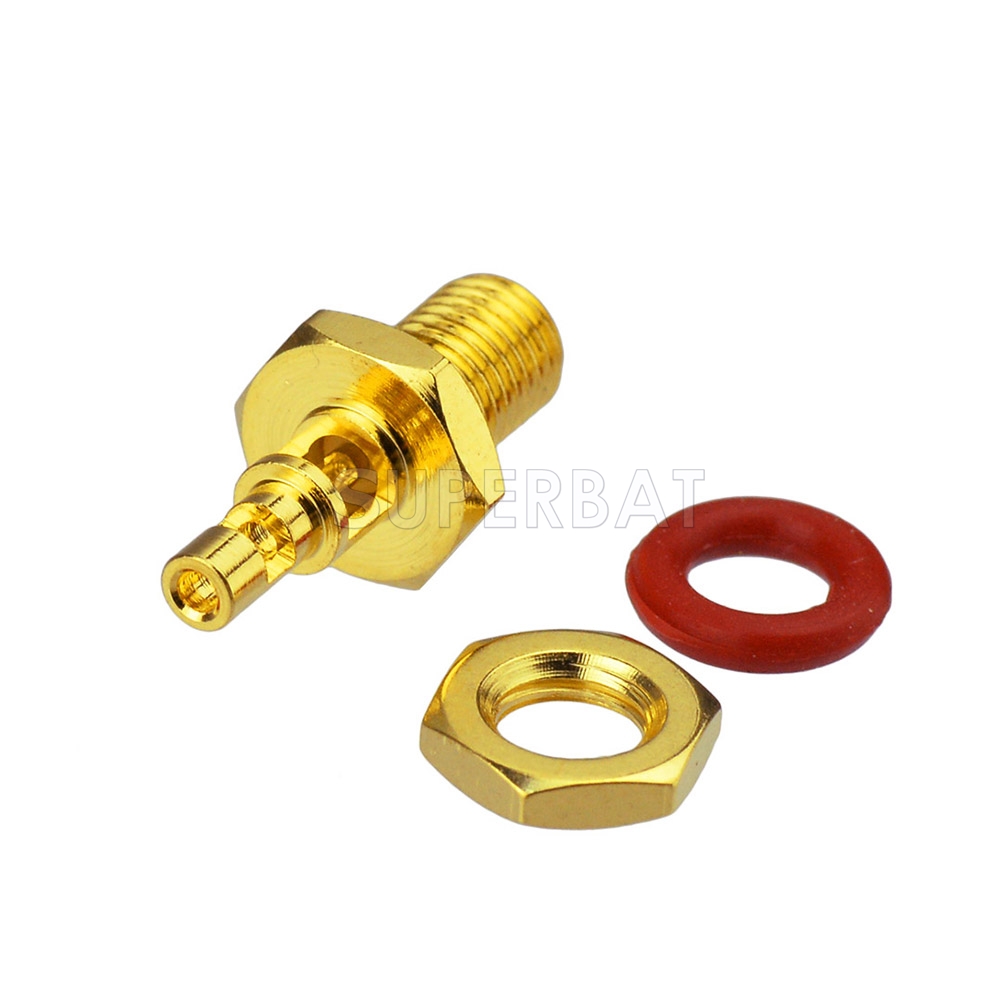

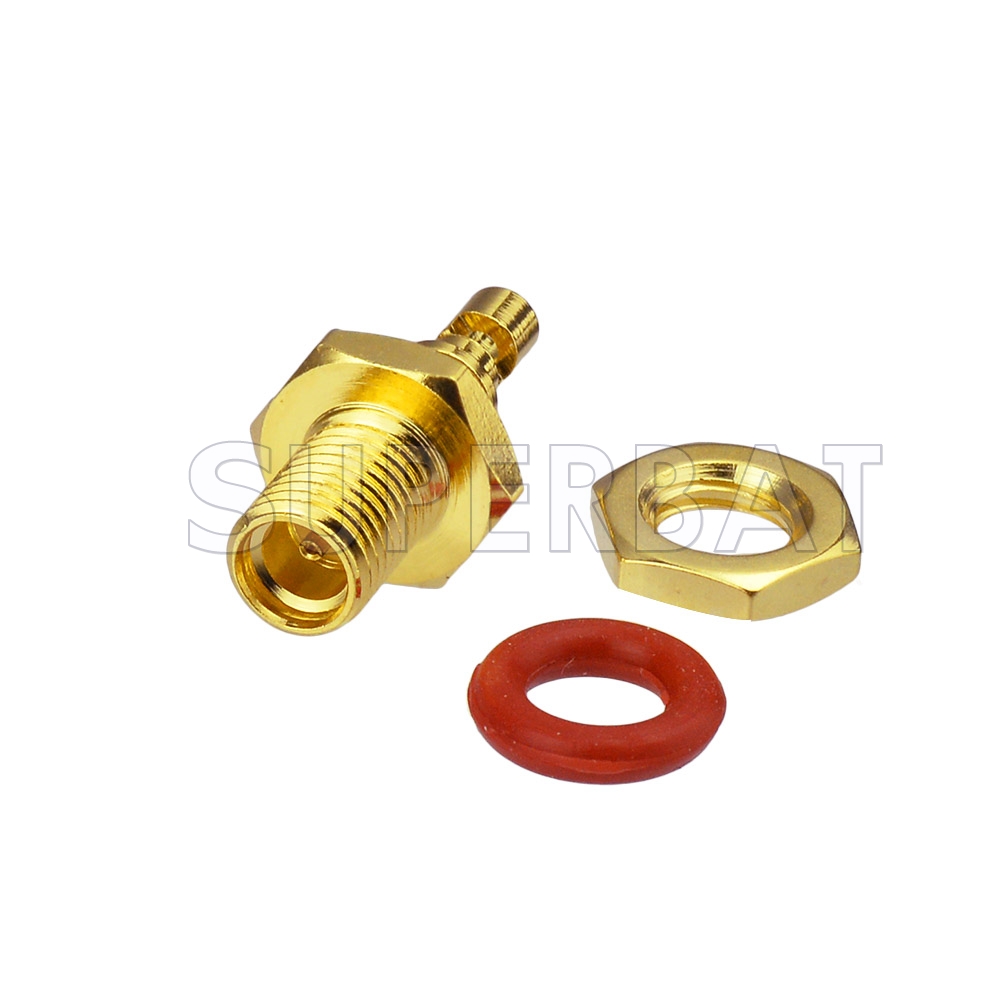

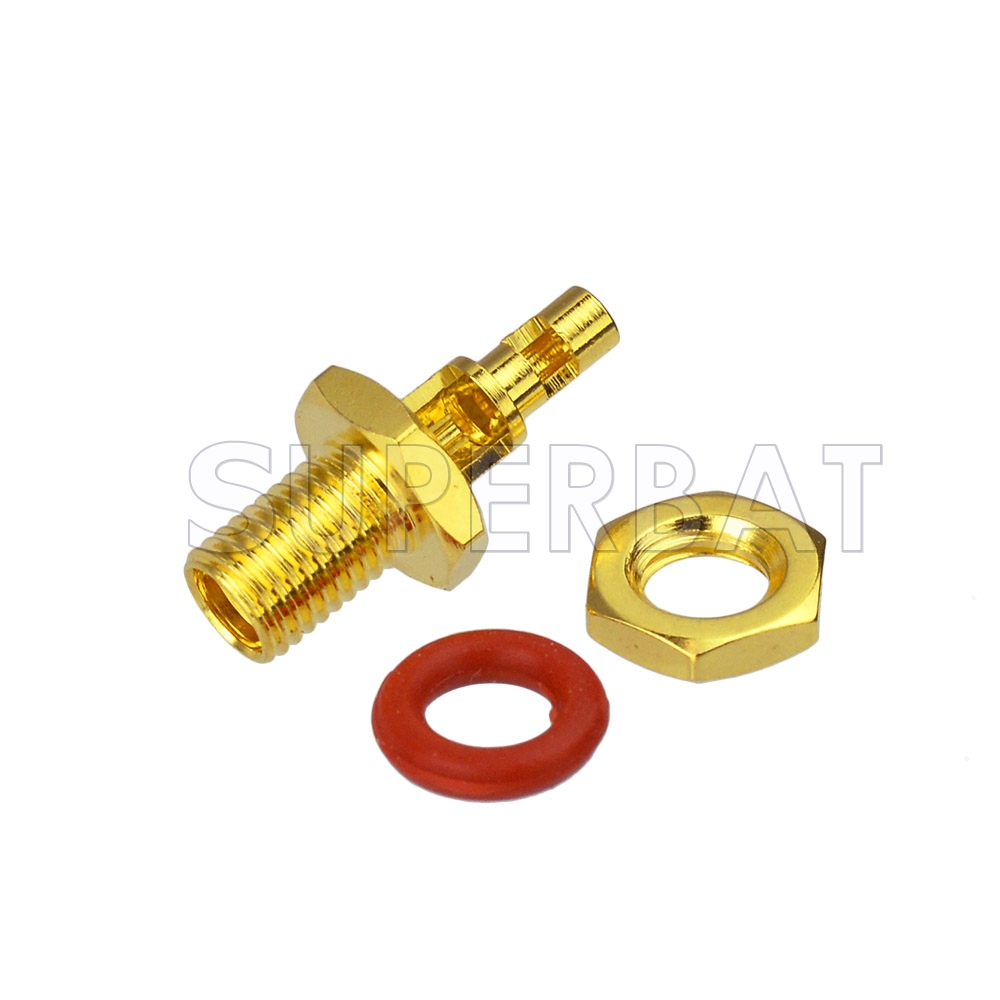

MMCX Female Bulkhead Jack with O-ring for 1.13MM Cable
Unit Price: $1.88
sku:M01-BOF13-11BS00
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $1.88 $1.79 $1.69 $1.60 ASK
saving% 0% 5% 10% 15% -
Real Time Availability
Stock: 10000
Quantity: Units

Series: MMCX Termination Type: Coaxial Cable Gender: Jack , Female Polarity: Standard Interface Type: .600 inch Body Style: Straight Mount Method: Bulkhead With O-Ring Impedance: 50 Attachment Method: Solder Body Material: Brass Body Plating: Gold Dielectric Type: PTFE

M01-BOF13-11BS00 MMCX female coaxial connector has an interface type of 1.13MM and a 50 Ohm impedance.MMCX female connector uses shield/contact crimp/solder as an attachment method. Our Jack MMCX coaxial connector provides a minimum frequency of DC and a maximum frequency of 3 GHz.

M01-BOF13-11BS00 MMCX female coaxial connector has a teflon dielectric type. MMCX coaxial connector has a brass body with gold plating. Our M01-BOF13-11BS00 MMCX connector uses brass contact. This MMCX female coaxial RF connector is RoHS and REACH compliant.
