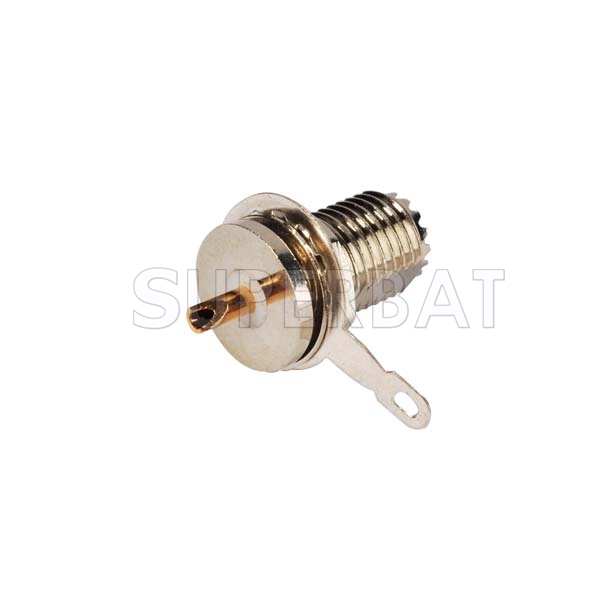

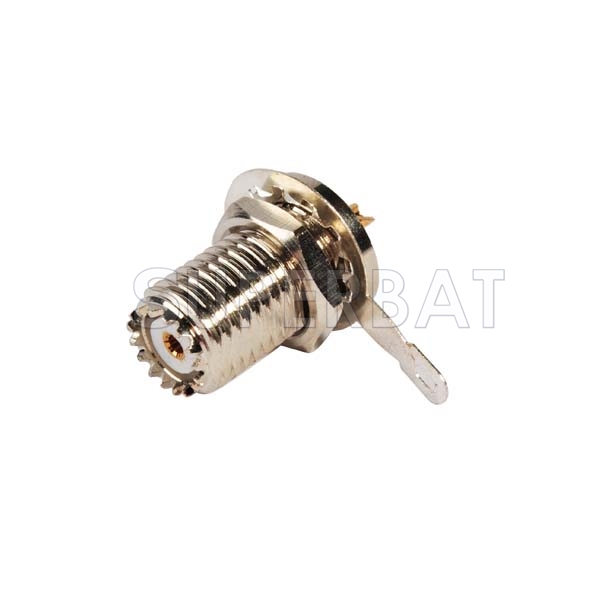

Mini UHF Jack Female Connector Straight Bulkhead Solder
Unit Price: $2.19
sku:U02-BHT15-41BS00
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $2.19 $1.97 $1.77 $1.60 ASK
saving% 0% 10% 19% 27% -
Real Time Availability
Stock: 1978
Quantity: Units

Series: Mini UHF Termination Type: Terminal Gender: Jack , Female Polarity: Standard Body Style: Straight Mount Method: Bulkhead Impedance: 50 Attachment Method: Solder Body Material: Brass Body Plating: Nickel Dielectric Type: PTFE Frequency Range: 3GHz

Miniature versions of UHF connectors, Mini-UHF connectors are designed for applications where size, weight, and cost factors are critical. With a miniature 3/8-24 thread size, these connectors provides excellent RF performance for applications up to 2.5 GHz.
Mini-UHF connectors terminate to RG-58, RG-58A, RG-58B, RG-58C, and Belden 9258 cables. Crimp-type cable plugs and jacks are available as well as panel and printed circuit board receptacles.

Features and Benefits
Crimp-type cable terminations provide low installation cost
Diecast bodies and molded insulators ensure low cost
Teflon insulators provide higher temperature range
Peak high voltage rating of 504 volts

Applications
Antennas
Cable Modems
PC/LAN
