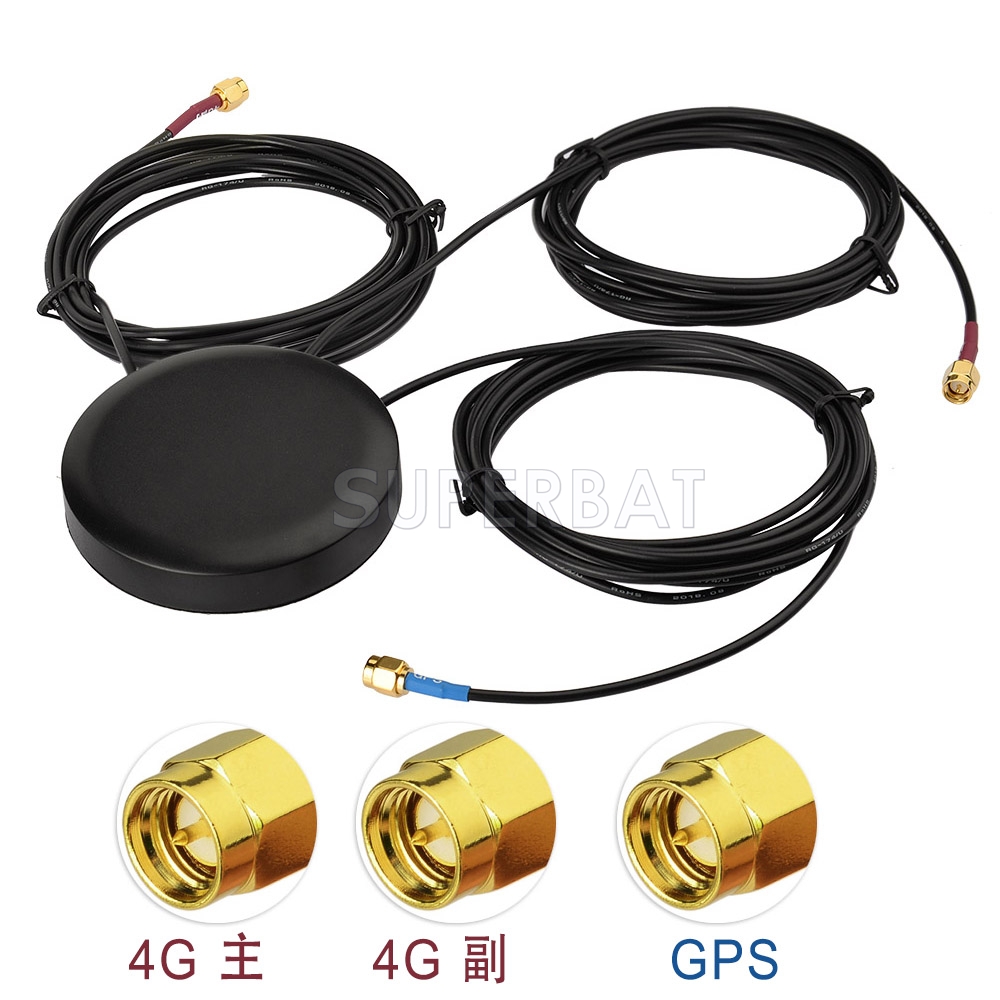

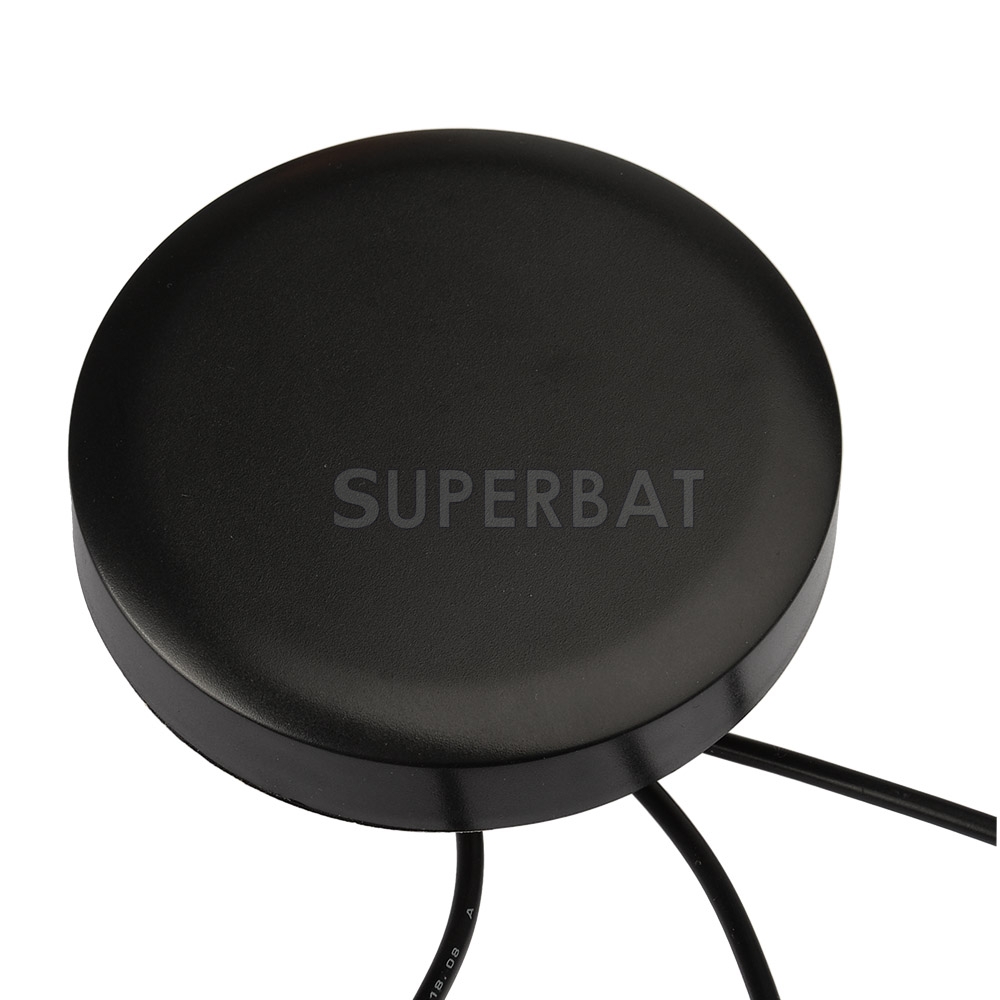

Low Profile GPS 4G LTE MIMO Screw Mount Omni-directional Antenna for Vehicle Truck RV Motorhome GPS Navigation 4G LTE Router Cell Phone Booster System
Unit Price: $25.42
sku:GA45-300-S01SP-S01SP-S01SP-JCB046LM
quantity 1 - 9 10 - 99 100 - -1 0+
Price Each $25.42 $22.88 $20.59 ASK
saving% 0% 10% 19% -
Real Time Availability
Stock: 499
Quantity: Units

Antenna Type: Combined Network: 4G/LTE Antenna Frequency: 698~960/1710~2690MHz + 1575.42MHz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Radiation: Omnidirectional V.S.W.R: <3.0 Cable Type: RG174 Cable Length: 3M Weight: 180g

Low Profile 4G LTE Screw Mount Omni-directional SMA Male Antenna for 4G LTE Router Vehicle Truck RV Motorhome Marine Boat Cell Phone Booster System


GPS Antenna Specification:

Center Frequency: L1:1575.42MHz±1.023 MHz

Polarization: RHCP

Gain: 2dBic(Zenith)

V.S.W.R: <1.5

Impendance: 50Ω

LNA Gain: 28±2dB

LNA Noise Figure: <2.0

LNA V.S.W.R: <2.0

LNA Supply Voltage:  3~5V DC

LNA Current Consumption:  20mA


4G LTE Antenna MAIN Specification:

Frequency Range: 698~960/1710~2690MHz

V.S.W.R: <3.0

Polarization: Linear

Gain: 2.5dBi

Impendance: 50Ω


4G LTE Antenna AUX Specification:

Frequency Range: 698~960/1710~2690MHz

V.S.W.R: <3.0

Polarization: Linear

Gain: 2.0dBi

Impendance: 50Ω

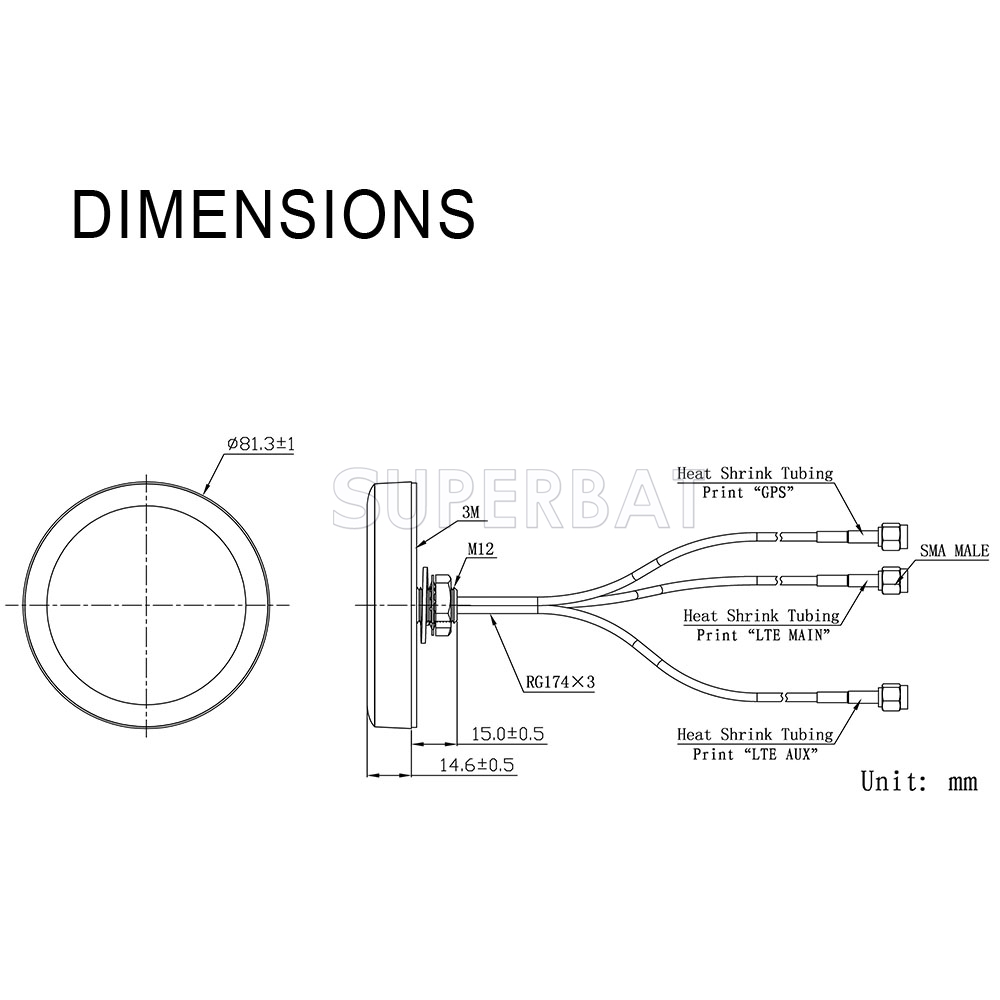

Mechanical:

Cable: RG174

Cable Length: 3 Meters

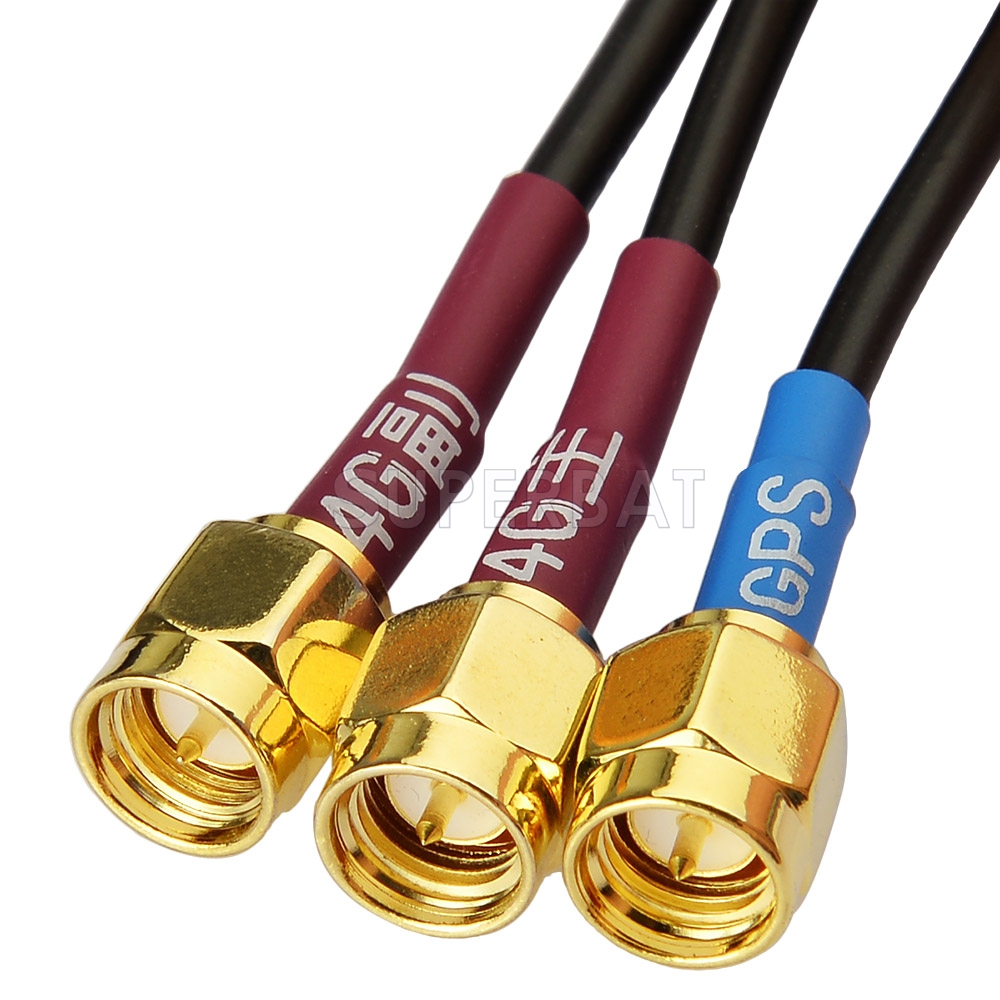

Connector: SMA Male Connector

Material: ABS

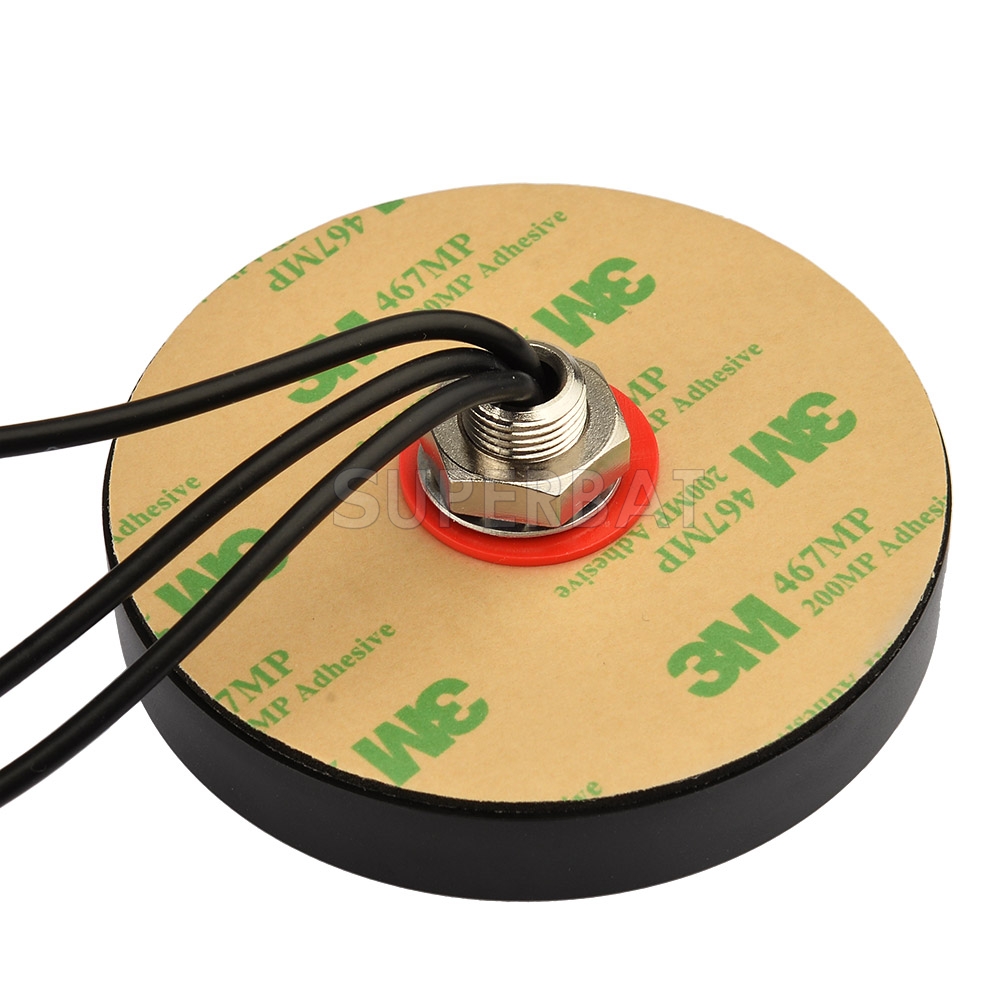

Mounting Method: Screw Thru Hole of 12mm Diameter

Weight: 180g

Environmental:

Operating Temperature: -40℃~+85℃

Relative Humidity: Up to 95%

Ingress Protection: IP67

Vibration: 10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly: ROHS Compliant
