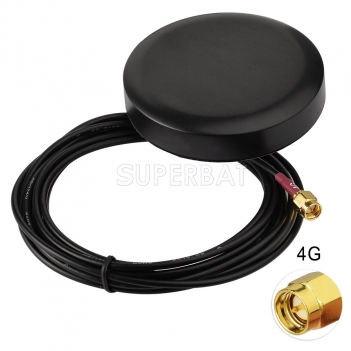

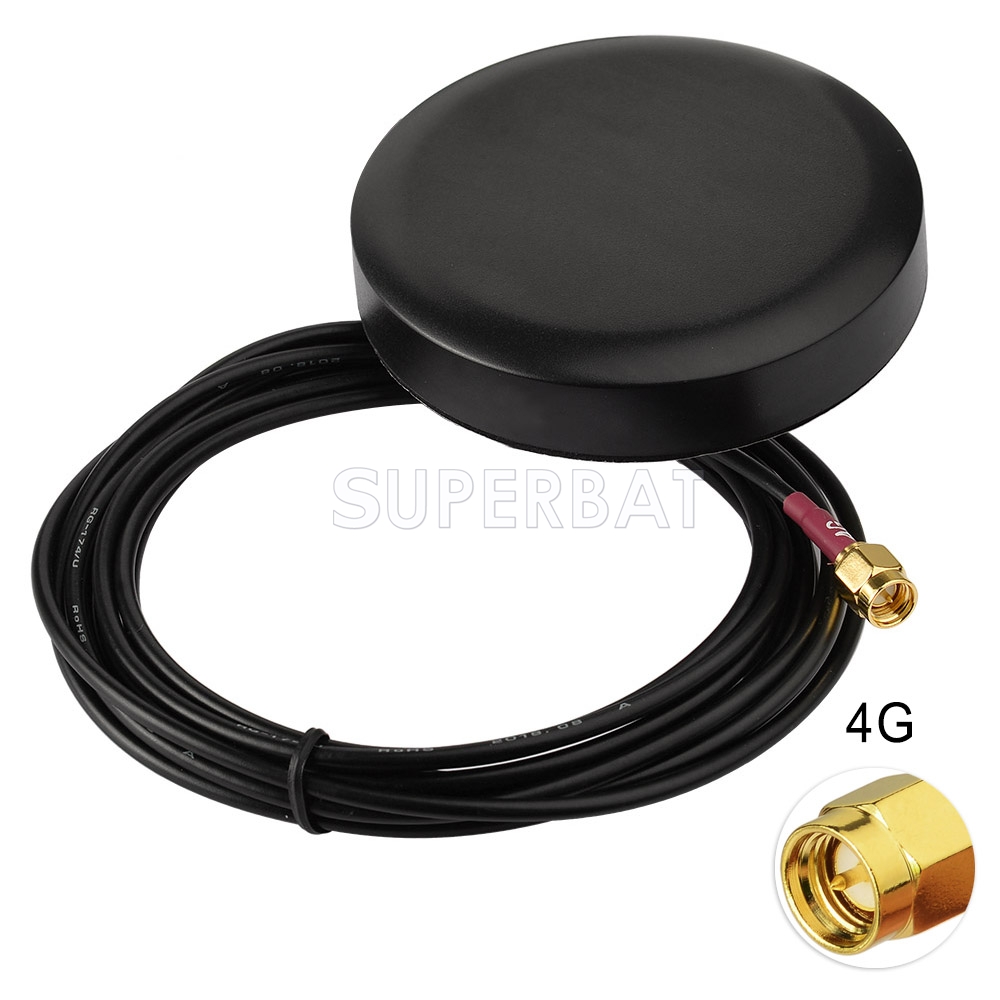

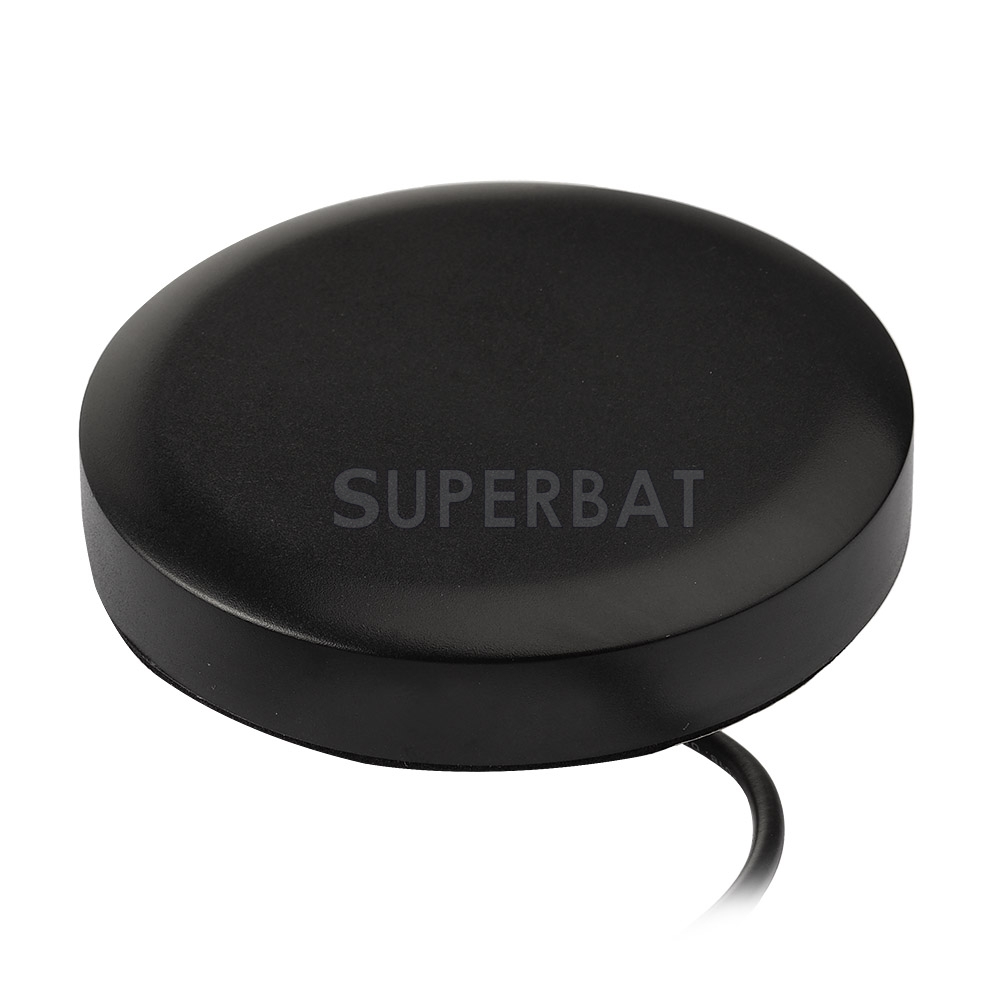

Low Profile 4G LTE Screw Mount Omni-directional SMA Male Antenna for 4G LTE Router Vehicle Truck RV Motorhome Marine Boat Cell Phone Booster System
Low Profile 4G LTE Screw Mount Omni-directional SMA Male Antenna for 4G LTE Router Vehicle Truck RV Motorhome Marine Boat Cell Phone Booster System
Unit Price: $9.11
sku:4A3-0155-S01SP-020-300-JCG046L
quantity 1 - 9 10 - 99 100 - 499 500+
Price Each $9.11 $8.20 $7.38 ASK
saving% 0% 10% 19% -
Real Time Availability
Stock: 500
Quantity: Units

Antenna Type: Hole/Fixed/Wall/Ceiling Mount Network: 4G/LTE Antenna Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Radiation: Omnidirectional

Low Profile 4G LTE Screw Mount Omni-directional SMA Male Antenna for 4G LTE Router Vehicle Truck RV Motorhome Marine Boat Cell Phone Booster System

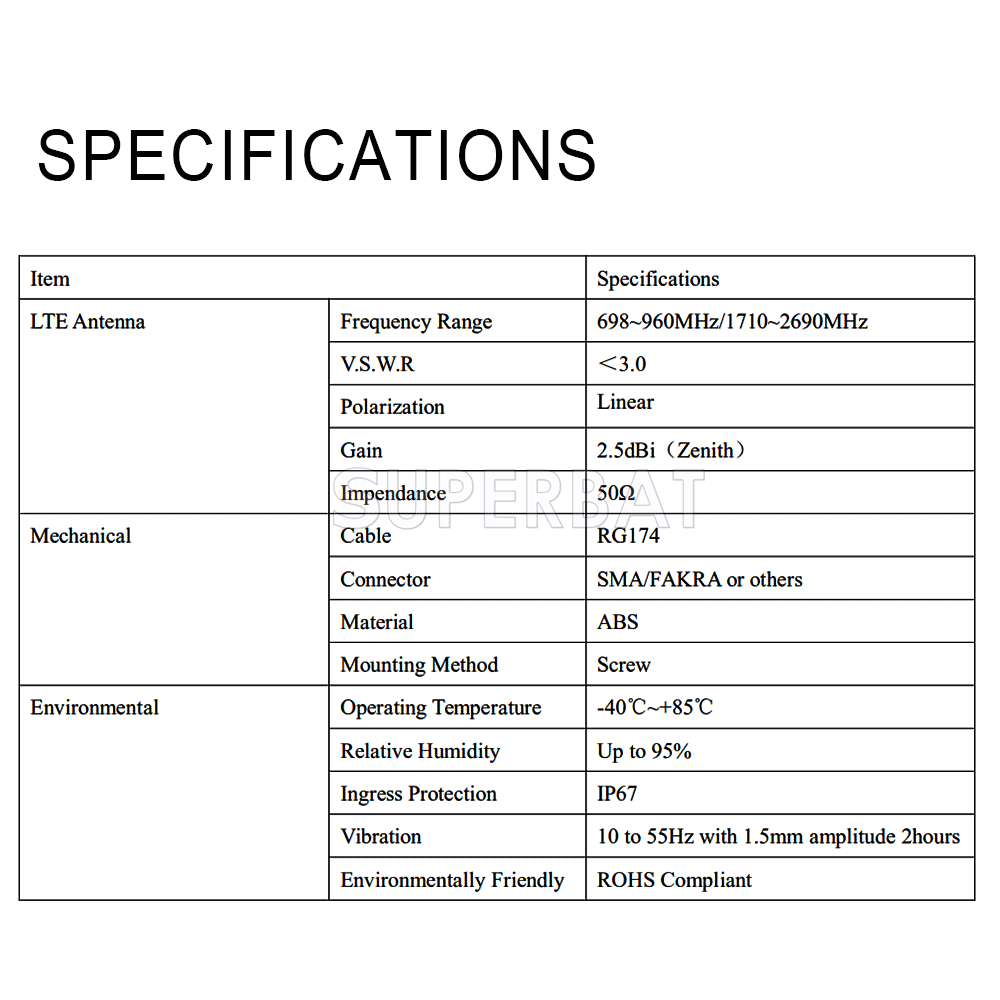

4G LTE Antenna Specification:

Frequency Range: 698~960/1710~2690MHz

V.S.W.R: <3.0

Polarization: Linear

Gain: 2.5dBi(Zenith)

Impendance: 50Ω

Weight: 101

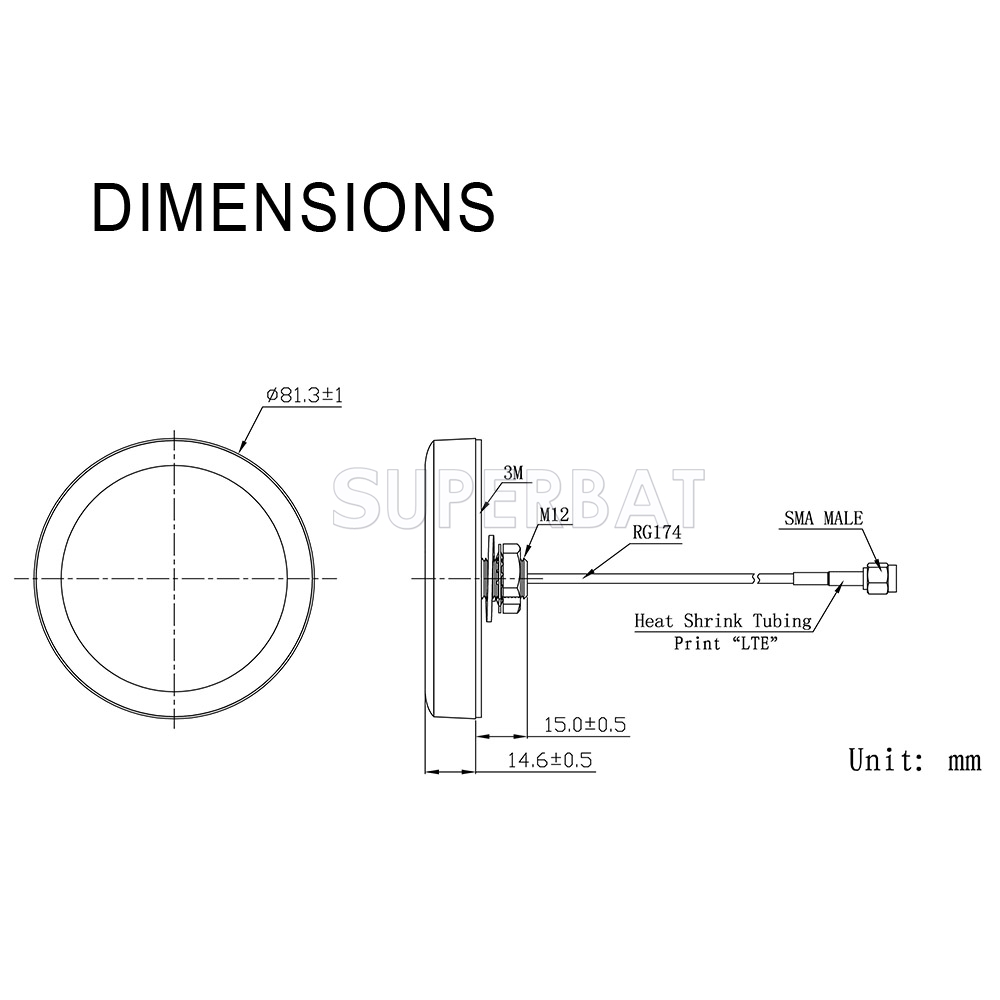

Mechanical:

Cable: RG174

Cable Length: 3 Meters

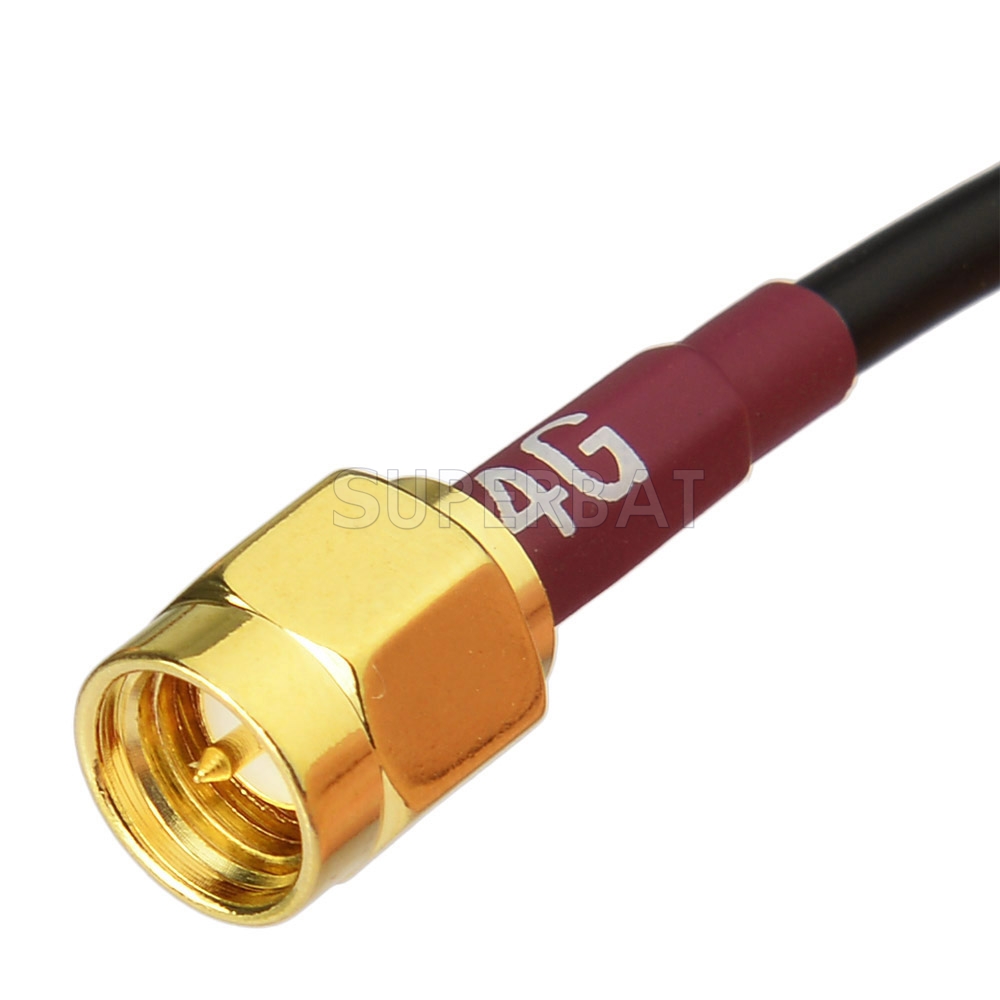

Connector: SMA Male Connector or customized
Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

Material: ABS

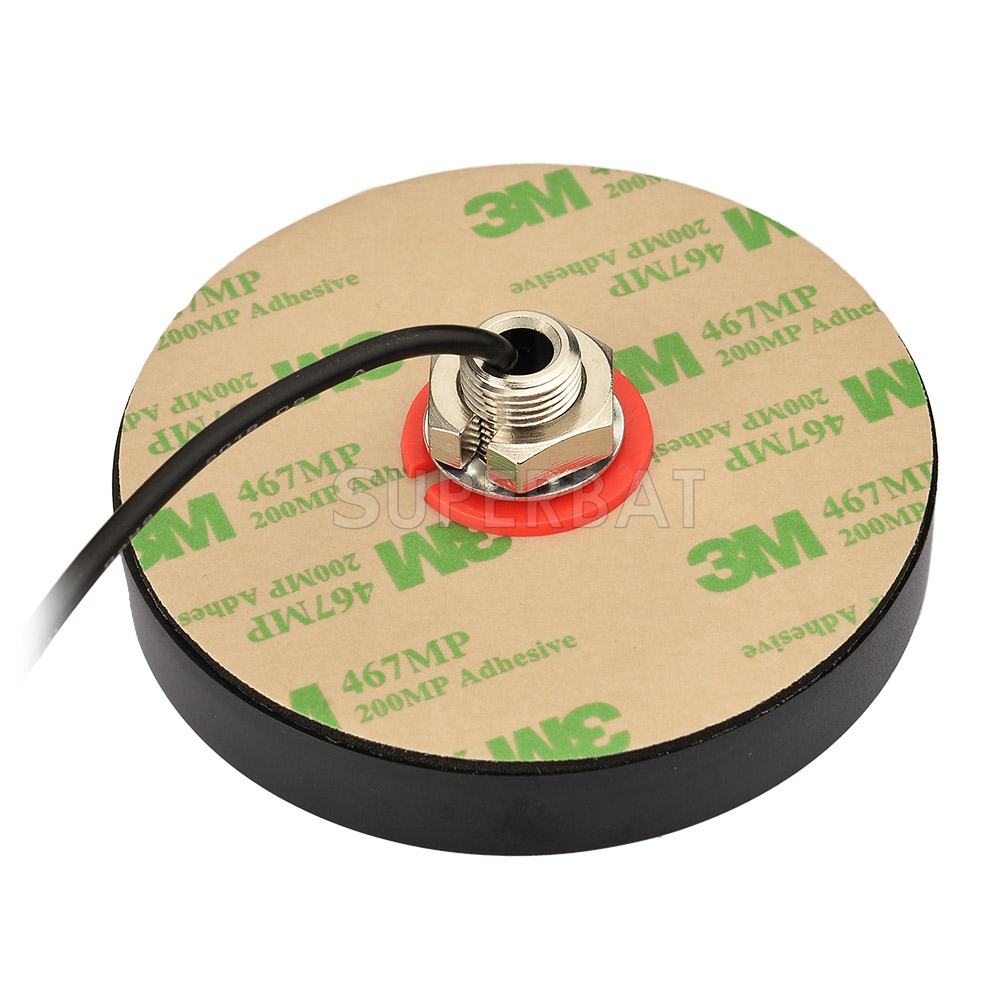

Mounting Method: Screw Thru Hole of 12mm Diameter


Environmental:

Operating Temperature: -40℃~+85℃

Relative Humidity: Up to 95%

Ingress Protection: IP67

Vibration: 10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly: ROHS Compliant
