FAKRA Z CODE INTERFACE - Water blue (RAL 5021) housing with coded key follows the FAKRA Z color-code standard; the female jack (center socket) mates with FAKRA Z male plugs for a correct-by-design connection on car antenna systems
WATERPROOF SEALED CONSTRUCTION - O-ring seals on the connector body and a rubber-gasketed waterproof cap keep moisture and dust out of weather-exposed runs in door sills, pillars and roof lines
CRIMP TERMINATION FOR 3 CABLE TYPES - Machined right-angle body with crimp ferrule terminates RG316, RG174 and LMR100 coax for secure, strain-relieved terminations on custom jumpers and repair jobs

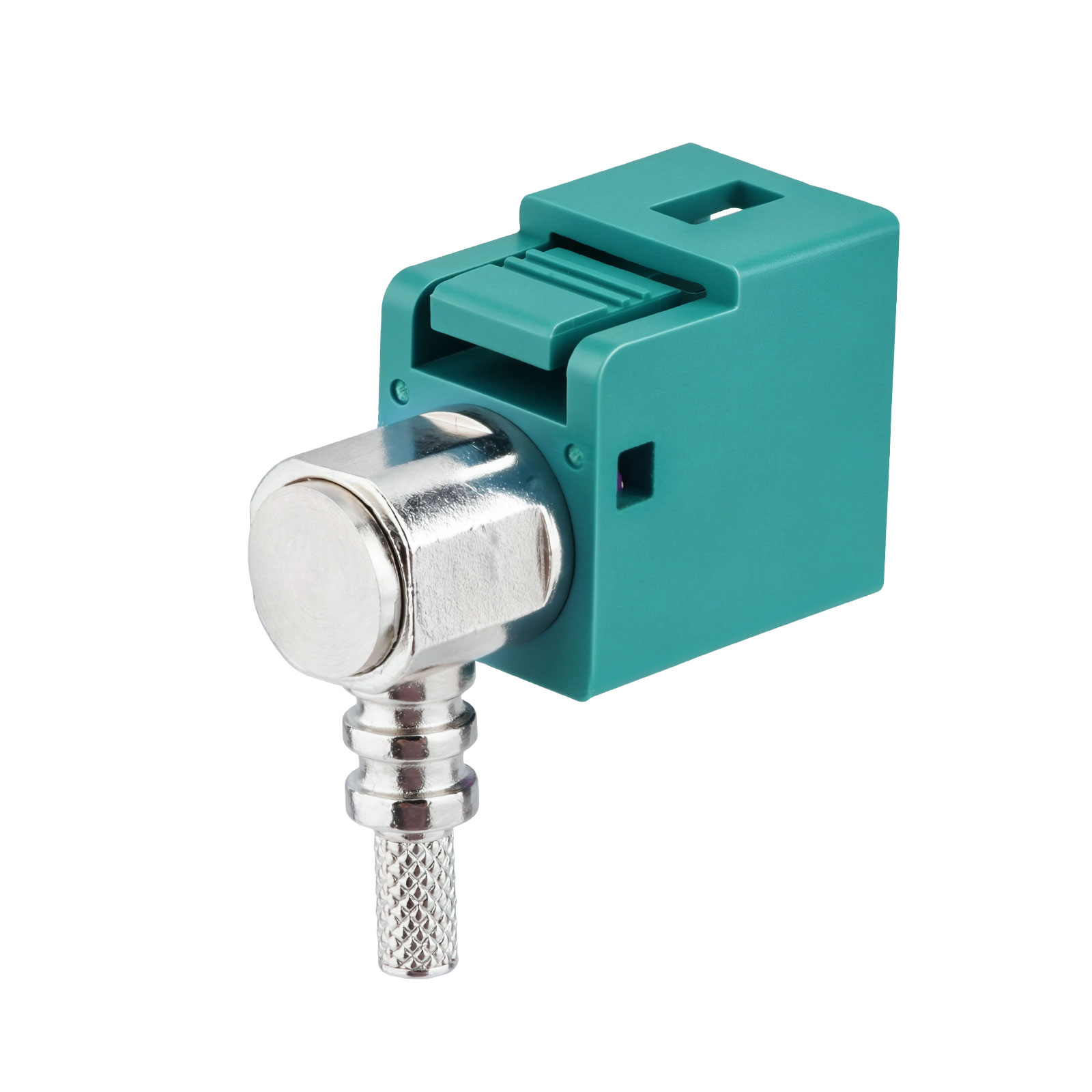

90 DEGREE SPACE SAVER - Right-angle exit routes the cable flat against the head unit or antenna module in cramped dash, pillar and trunk cavities where a straight connector will not fit
COMPLETE TERMINATION KIT - Each set includes housing, right-angle contact body, waterproof cap, coded key insert and crimp ferrule to rebuild one factory-style antenna cable end
Product Description

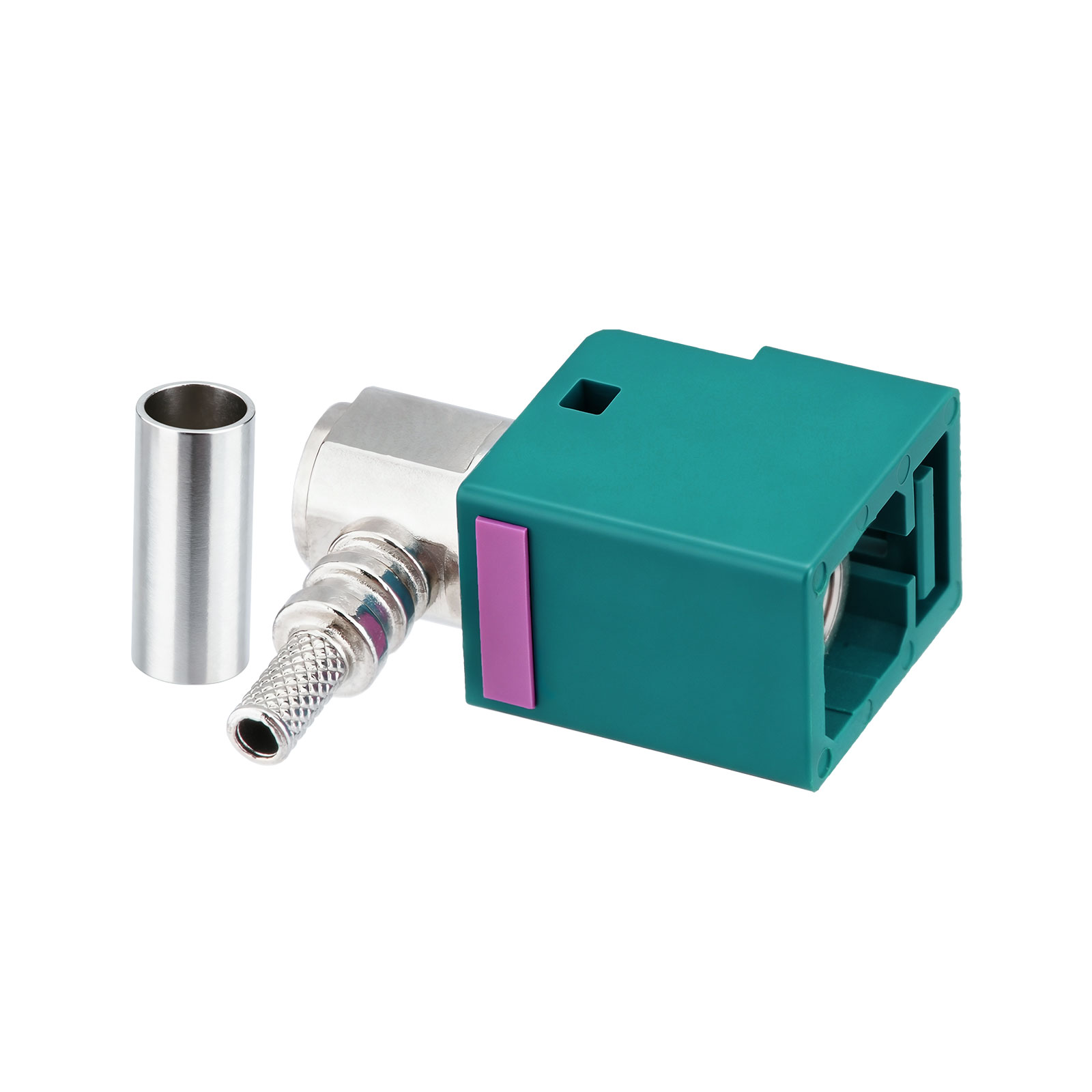

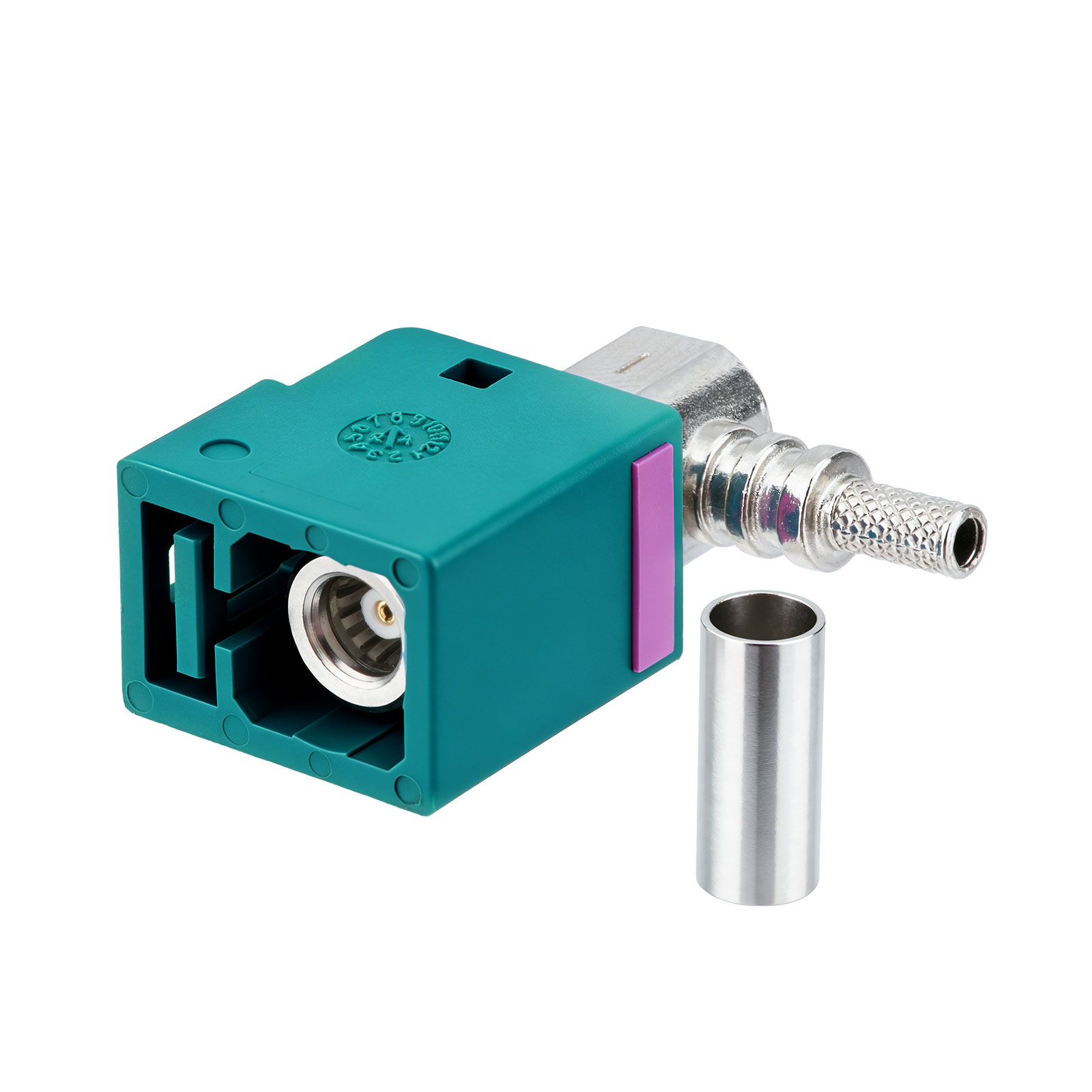

The waterproof FAKRA Z female jack connector is a right-angle crimp connector for terminating RG316, RG174 and LMR100 coaxial cable. Built to the FAKRA Z color-code standard with a water blue RAL 5021 housing and coded key, it rebuilds factory-style antenna cable ends for car radio and automotive RF applications.
Why It Works:
FAKRA interfaces lock with an audible click and use a keyed housing-and-key system, so a Code Z connector only latches with matching Code Z equipment - preventing wrong connections before they happen. Red O-ring seals on the body and a rubber-gasketed waterproof cap block moisture and dust at exposed mounting points. The 90-degree body exits the cable flat against the mounting surface, and the crimp ferrule delivers a mechanically secure, electrically stable termination.
Typical Applications:
Car radio AM/FM antenna cable repair
DAB+ radio antenna systems
GPS antenna cable termination
Satellite radio antenna runs
Head units, splitters and antenna modules using FAKRA Z plugs
Custom RG316 / RG174 / LMR100 jumper and pigtail builds
Cable match: for RG316, RG174 and LMR100 only. Ferrule sizing is critical - verify your cable diameter before crimping.
Waterproof scope: O-ring and gasket sealing is for splash and weather exposure; not rated for submersion.
Passive component: like any RF connector, it adds natural insertion loss at the joint. It does not boost or amplify signal.
Assembly: proper coax crimp tooling is required for a reliable, weatherproof termination.
Specifications:
FAKRA Code: Z
Gender: Jack (Female)
Housing Color: Water Blue (RAL 5021)
Body Style: Right Angle (90 Degree)
Cable Compatibility: RG316 / RG174 / LMR100
Termination: Crimp
Sealing: O-ring seals with gasketed waterproof cap
Impedance: 50 ohm

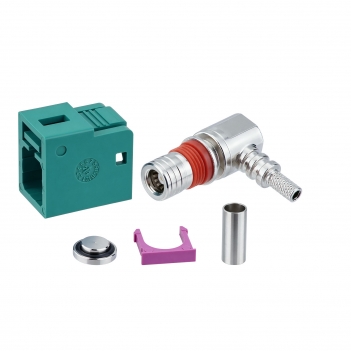

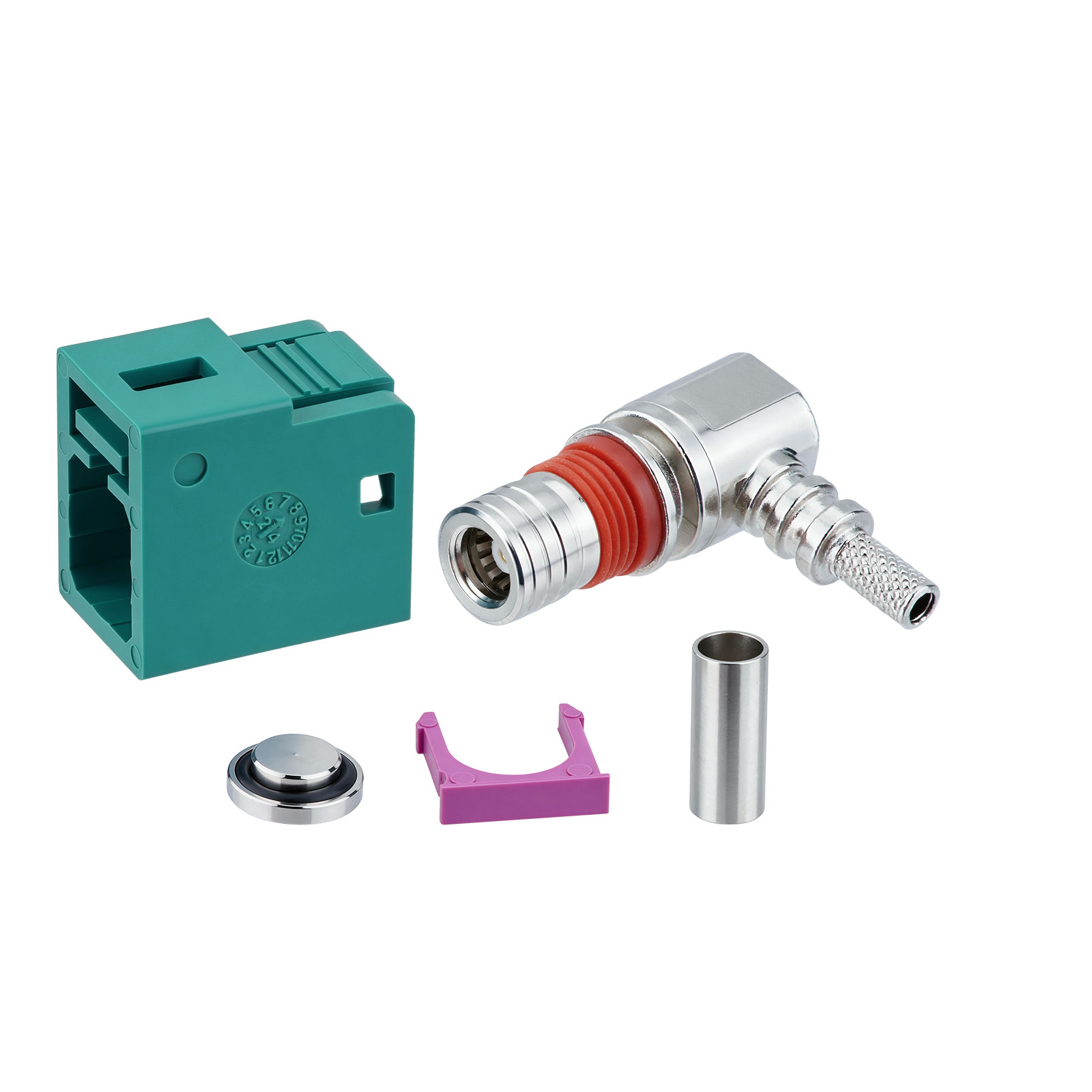

Package Contents (per set):
Connector housing x 1
Right-angle contact body x 1
Waterproof cap x 1
Coded key insert x 1
Crimp ferrule x 1
