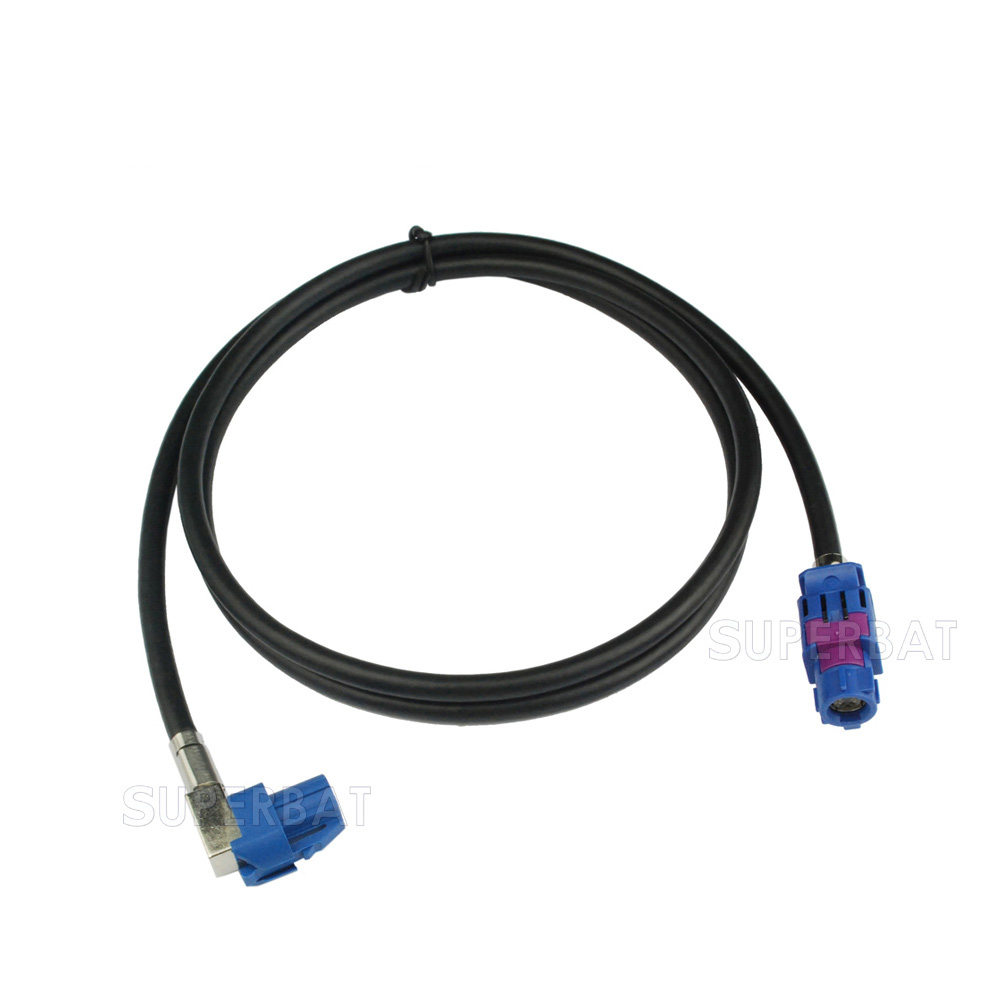

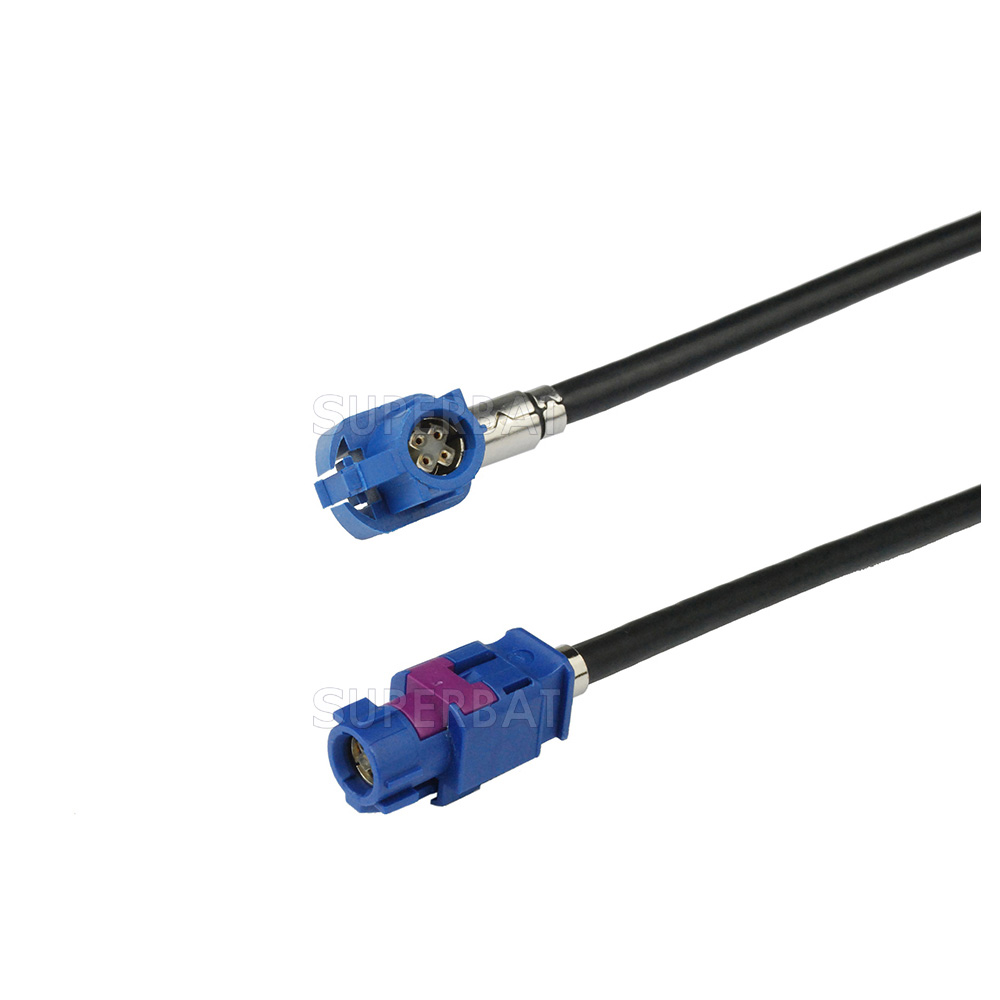

HSD Cable Assembly C Code Right Angel Jack to C Code Straight Jack 120cm
The HSD cable assembly High anti-jamming capability, low noise, and two-channel high speed data transmission Fakra HSD 4-cores shielded cable, meet the needs of vehicle high-speed digital data transmission.
Five times faster transmission speed than FAKRA
Unit Price: $23.50
sku:AC-HSDCRJ-HSDCSJ-535
Length(cm)
quantity 10 10 - 99 100 - 1000 1001+
Price Each $23.50 $21.15 $19.97 ASK
saving% 0% 10% 15% -
Real Time Availability
Stock: 1000
Quantity: Units

Cable Type: Dacar 535 Connector 1 Series: HSD Connector 2 Series: HSD Connector 1 Gender: Female , Jack Connector 2 Gender: Female , Jack Connector 1 Coding: C Connector 2 Coding: C Connector 1 Polarity: Standard Connector 2 Polarity: Standard Body Style 1: Right Angle Body Style 2: Straight Mount Method 1: None Mount Method 2: None Cable Impedance: 100

Brand Name: Superbat


Type: Coaxial Cable


Product Type: FAKRA HSD LVDS


Application: Vehicle/Automobile


Impedance: 100 Ω


Connector A: FAKRA HSD LVDS C Right Angle Straight Female


Connector B: FAKRA HSD LVDS C Straight Female


Cable: Similar as Dacar 535 4-Core Cable


Length: 120cm (Default) ,Accept Customized length ,other length,pls contact us!


Application Scenarios :

         Widely used as vehicle high-speed data transmission connections, in-car entertainment systems, in-car audio and video transmission, LVDS cameras, tire pressure monitoring, and alarm systems, water supply systems, vehicle radios, vehicle telephone, vehicle antennas.



Details :

        High anti-jamming capability, low noise, and two-channel high-speed data transmission Fakra HSD 4-cores shielded cable, meet the needs of vehicle high-speed digital data transmission.

        Five times faster transmission speed than FAKRA SMB connections available in the current market.

The nominal impedance of 100 ohms,

        Appearance and structure have inherited vehicle connector bayonet mechanical design, color selection and avoiding misalignment design.

        High stability and reliability, high-precision, perfect docking with the original vehicle. Apply to Benz, BMW, Audi, Tesla, VW, New Bora, and other automakers interface compatibility.


Offer custom:


         If you require a different mounting, types of Fakra connectors and length of cables, we will be happy to consider your requirements to provide a working solution. Please contact us.
