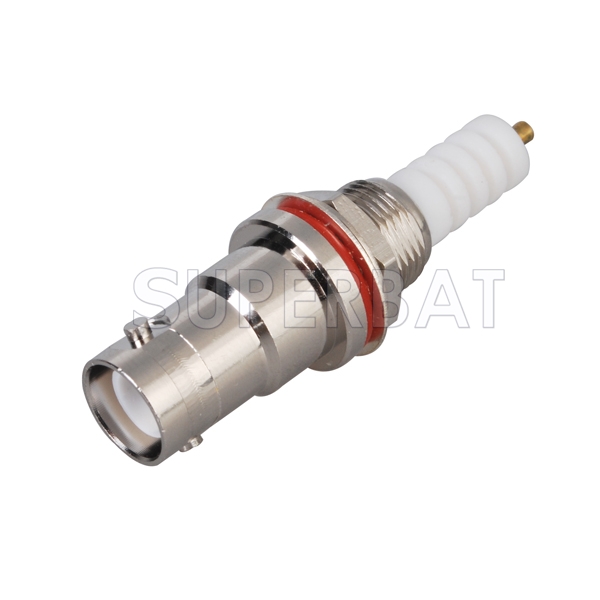

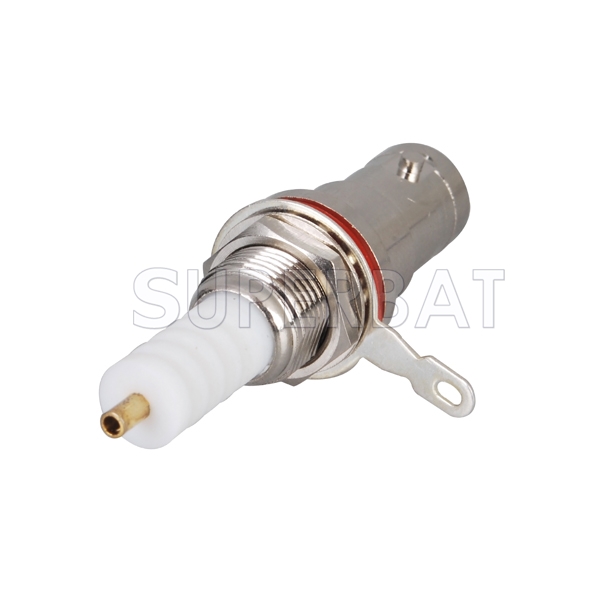

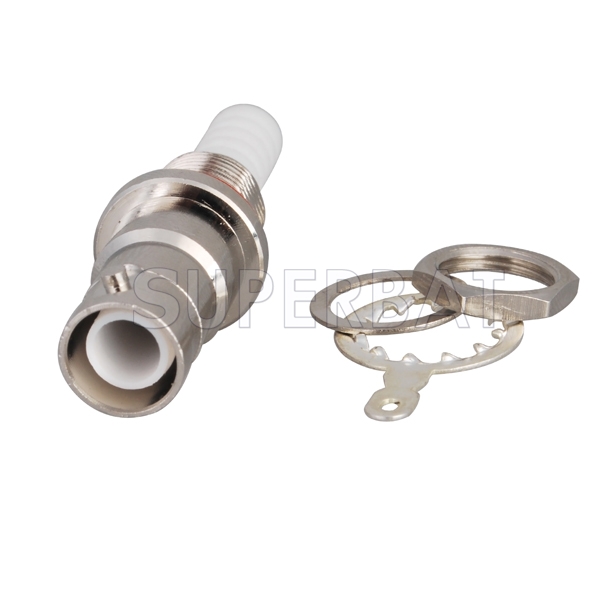

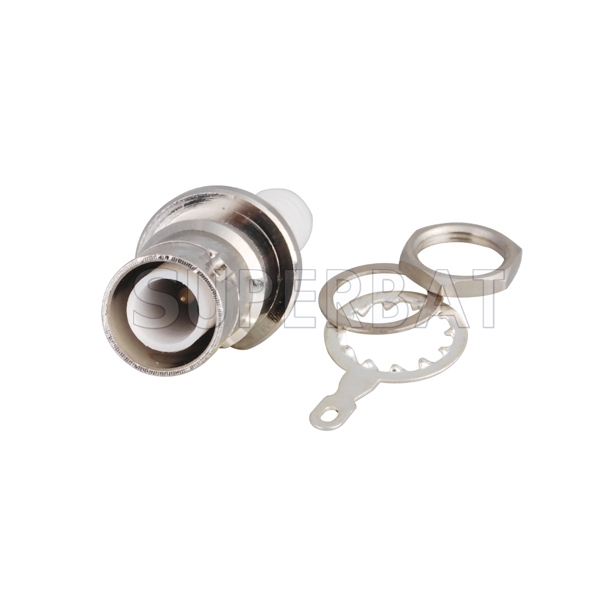

High voltage RF BNC Connector solder bulkhead Jack
Unit Price: $3.94
sku:SHV-BOT15-41BS00
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $3.94 $3.55 $3.35 $3.15 ASK
saving% 0% 10% 15% 20% -
Real Time Availability
Stock: 10000
Quantity: Units

Series: SHV Termination Type: Coaxial Cable Gender: Jack , Female Polarity: Standard Mount Method: Bulkhead With O-Ring Impedance: 50 Attachment Method: Solder Body Material: Brass Body Plating: Nickel

BNC RF connectors are the most popular coaxial connector. The special bayonet design allows easy mating and un-mating. BNC 50 ohm connectors provide repeatable electronic performance from DC to 4 GHz. BNC 75 ohm connectors are suitable for applications up to 1 GHz. All 50 and 75 ohm connectors are intermatable .



BNC type connectors are designed to accommodate a large variety of RG and industry standard cables. They are available in crimp, clamp, and twist on cable styles. A full line of printed circuit board receptacles, bulkhead receptacles, and other accessories complement the product offering.



BNC connectors are designed to conform to MIL-C-39012 IEC 60169-8 CECC 22120 and BS 9210N004 specifications.



The BNC series coaxial connector works well in lower microwave frequency applications including monitors, LAN, telecommunication devices and test equipment.



TECHNICAL CHARACTERISTICS
Temp.range........................-65~ +165℃ (PE Cable )
Vibration.........................MIL-STD-202,Method 213
Impedanec.........................50 ohm / 75 ohm
Frequency Range...................DC 0-4GHz (50ohm) / 0-2GHz (75ohm)
Working Voltage...................500V max
Dielectric Withstand Voltage......≥1500V rms

Contact resistance
Center Contact............≤1.5mΩ
Outer Contact.............≤1mΩ
Insulation resistance ....≥5000 mΩ
VSWR Straight.............≤1.22
Right angle?..............≤1.30
Durability(mating)........500 (cycles)



MATERIAL & PLATING
Shell ..............Brass ................Nickel-plated
Contact pin ........Brass.................Gold or nickel-plated
Socket............. Beryllium.............Gold or nickel-plated
Elastic contact.... Beryllium ............Gold or nickel-plated
Insulator ..........PTFE
Crimping suite......Copper alloy......... Nickel-plated



APPLICABLE STANDARD
MIL-C-39012;
CECC 22120;
IEC 60169-8.
