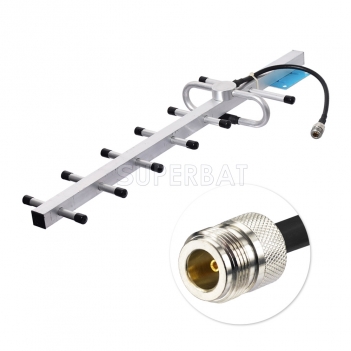

High Gain GSM Yagi directional antenna 11 dbi 900MHz N-Female Outdoors Antenna
Unit Price: $38.00
sku:GMY-1675-N01SJ-110-25
Real Time Availability
Stock: 9999
Quantity: Units

Antenna Type: Yagi Network: GSM/GPRS/EDGE/CDMA Antenna Frequency: 900MHz Connector Series: N Connector Polarity: Standard Connector Gender: Jack Gain: 11dbi Radiation: Directional V.S.W.R: ≤1.5 Cable Type: RG58 Cable Length: 25cm Weight: 355g

This compact 900MHz directional GSM antenna provides broad coverage and 11dBi gain. It is a Alnminum alloy directional pattern.

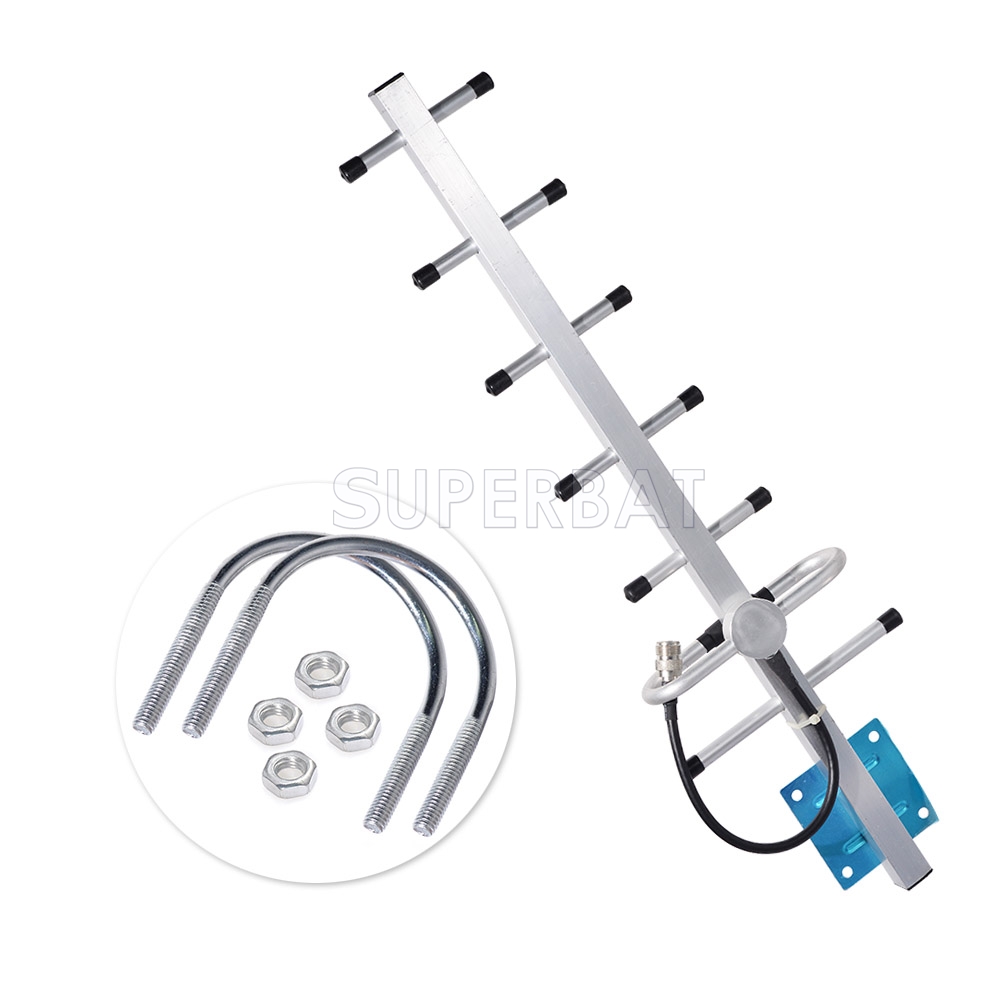

Aluminum Alloy Yagi directional antenna, high gain before and after the radiation ratio, anti-interference ability, suitable for 806 ~ 960MHz frequency band, is designed for long-distance directional communication design. The antenna structure is simple, robust, easy set up.


Product Name: Yagi Antennas



Electrical specifications:



Frequency Range-MHz: 824~960MHz


BaVSWR: ≤1.5


Input Impedance-Ω: 50


Gain-dBi : 11dbi


Polarization Vertical


F/B ratio-dB


Horizontal Beamwidth : 54/48/40/36/30


Vertical Beamwidth : 48/40/36/32/30



Maximum Power -W: 100



Bandwidth-MHz: 154/154/154/140/120



Connector: N-Female connector (default)

Weight: 355g


Mechanical Specifications

Cable Length-cm : 25cm
