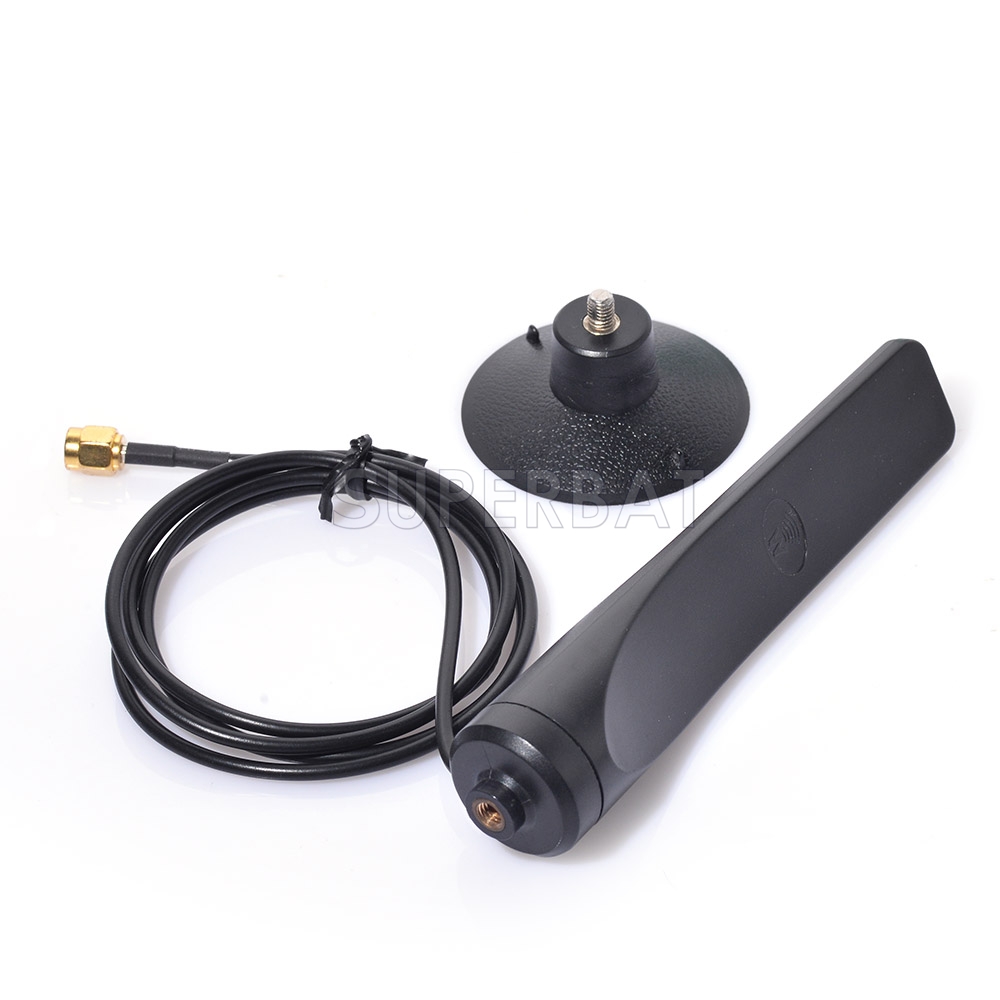

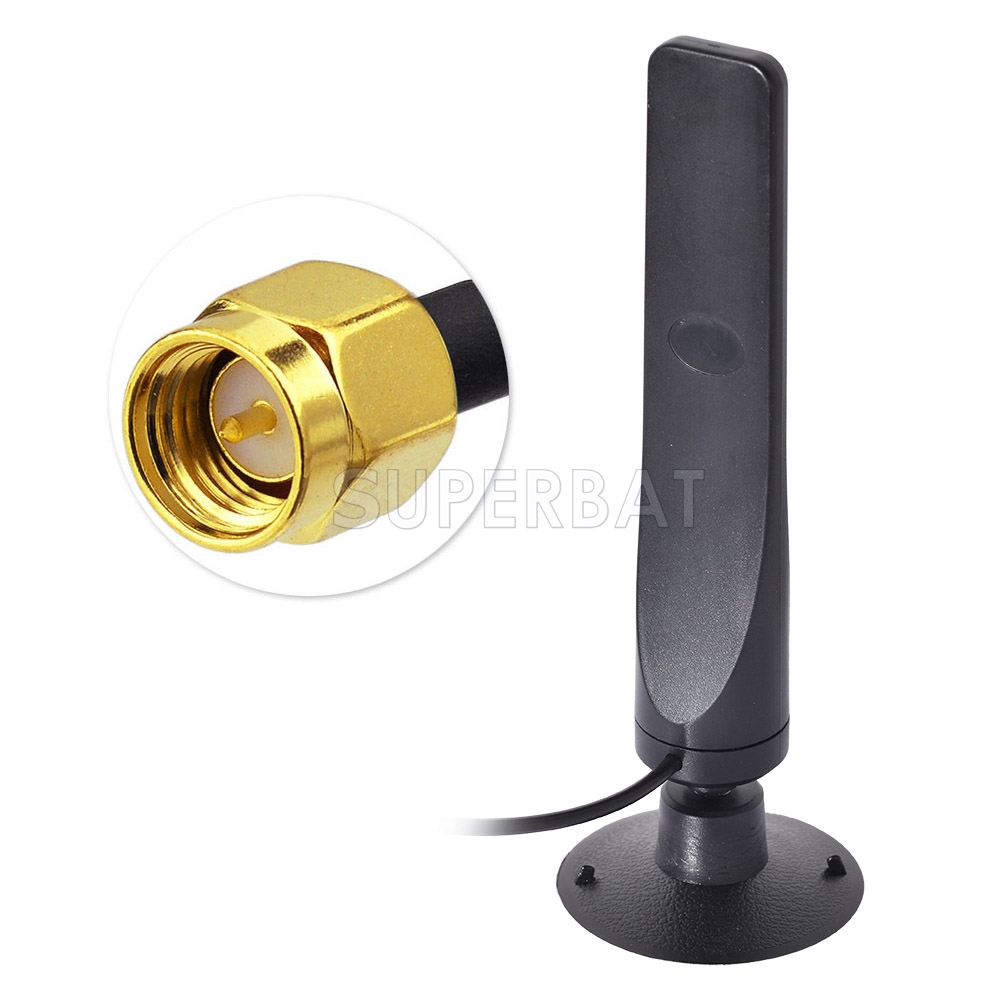

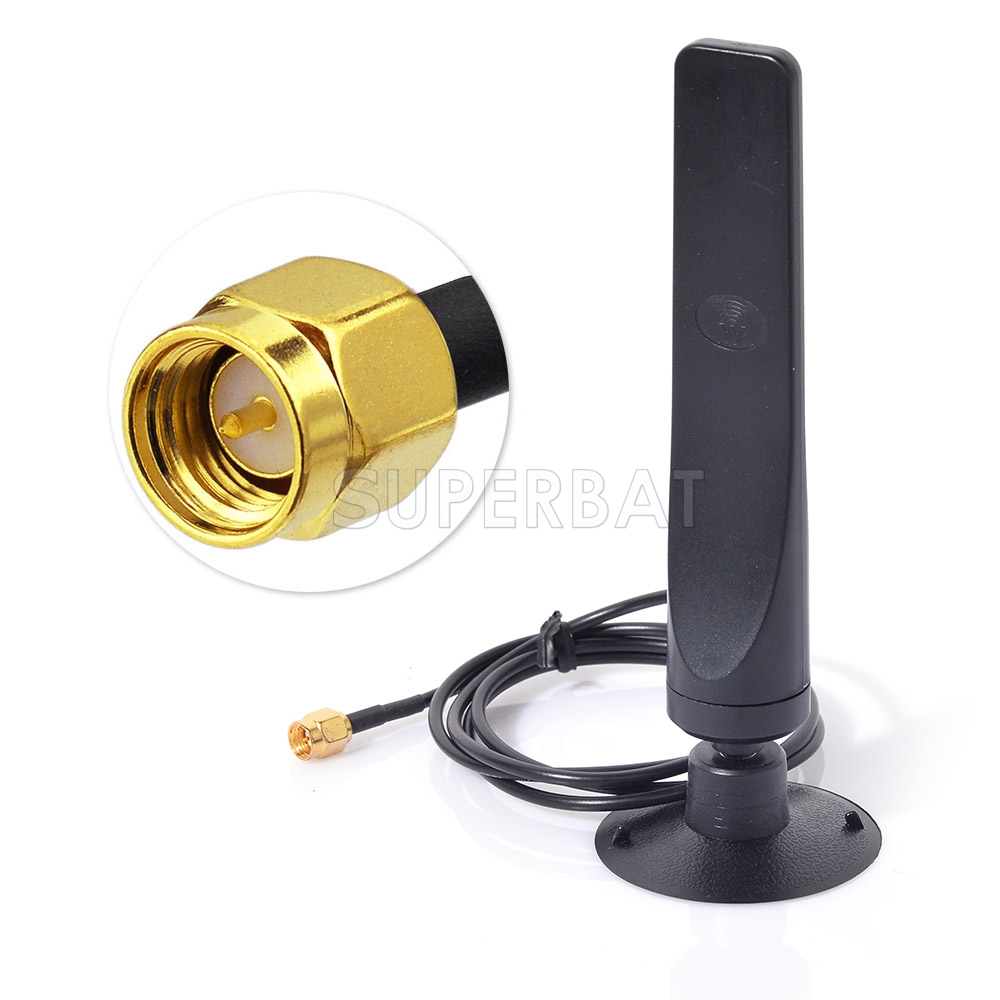

High-gain 12DBi GSM/UMTS/HSPA/CDMA/3G Antenna for 3G UDB Modem
Unit Price: $15.00
sku:3A1-1639-S01SP-120-46
End connector
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $15.00 $13.50 $12.60 $10.95 ASK
saving% 0% 10% 16% 27% -
Real Time Availability
Stock: 1000
Quantity: Units

Antenna Type: Desktop Network: 3G/UMTS/CDMA2000 Antenna Frequency: 850-960/1710-2170mhz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 12dbi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG174 Cable Length: 46cm Weight: 50g

Description:

12dbi High-gain antenna Increases the signal strength and performance of 3G Wireless Network.



Compatible with 3G mobile broadband wireless router or card.



Quick, simple installation, no software required.



Rubber base for preventing from abrasion,just unscrew your current antenna, and attach this antenna in its place.



Usable indoor or outdoors Enhance and maintain excellent signal quality.

Specification:

Frequency Range(MHz) 850-960/1710-2170
GSM/GPRS/EDGE 850/900/1800/1900MHz
HSUPA/HSDPA/UMTS 2100MHz/900MHz
CDMA 1900 MHz


VSWR ≤1.5


Gain: 12dbi


Max Input power(W): 60


Input Impedance(Ω): 50


Polarization Type: Vertical


Antenna Length(cm): 15cm


Cable Length(cm): 46cm


Cable Type: RG174 default


Connector Type: SMA or customized, optional conector: CRC9/SSMB/TS9/MCX/MMCX/FME/BNC/TNC/SMB/MC-Card/MS-147 etc. ,please give us notes if the connector is chosen!


Mounting: suctorial


Housing: Black


Weight: 50g


Storage Temperature: -45'c to +75'c


Operating Temperature: -45'c to+75'c

Instructions:

Power off wireless device
Plug connector into antenna port on wireless device
Power on wireless device
For best performance place antenna as close to exterior window as possible

Installation Tips:

Antenna should be mounted vertically to maximize performance
Antenna should not be mounted against metal
