Product description:

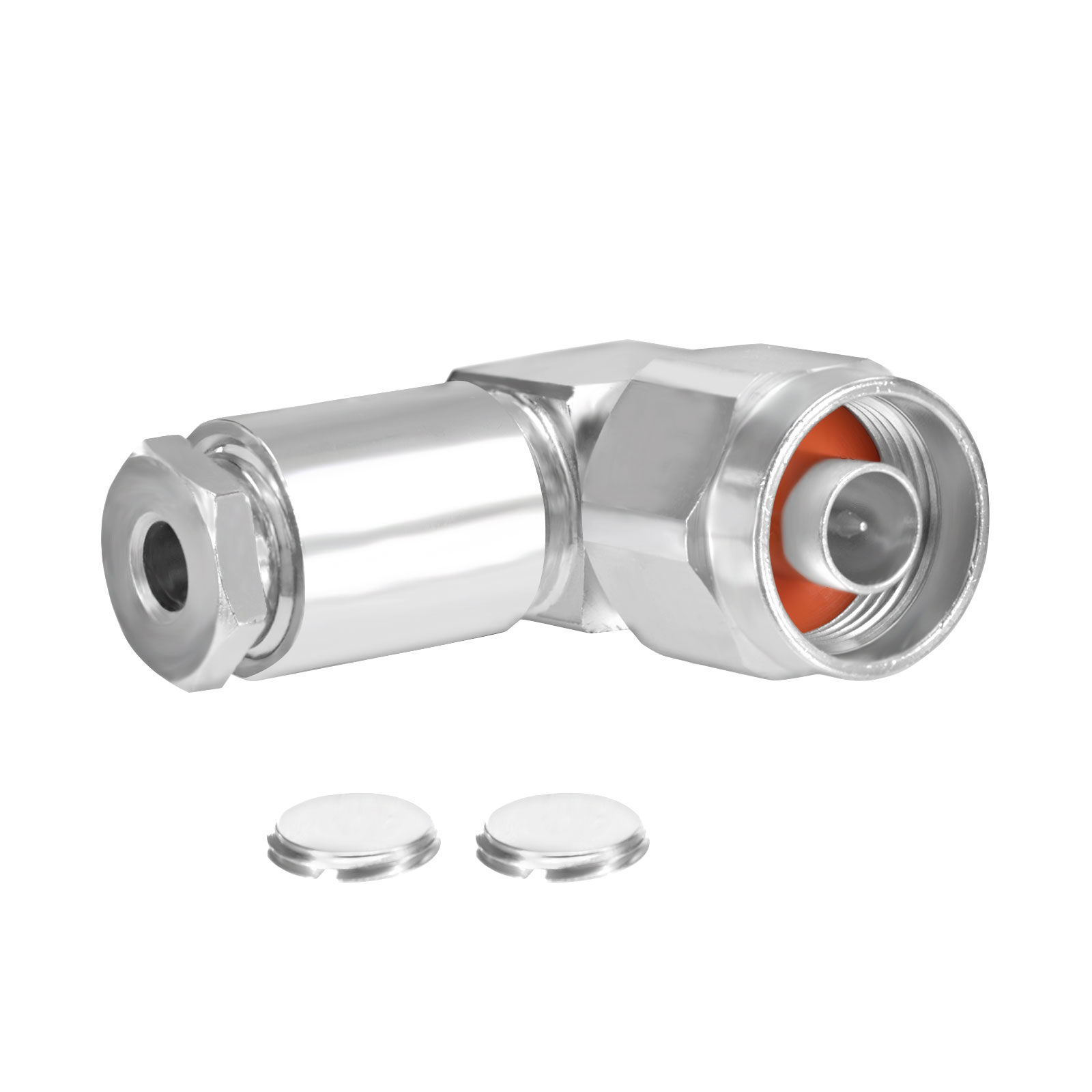

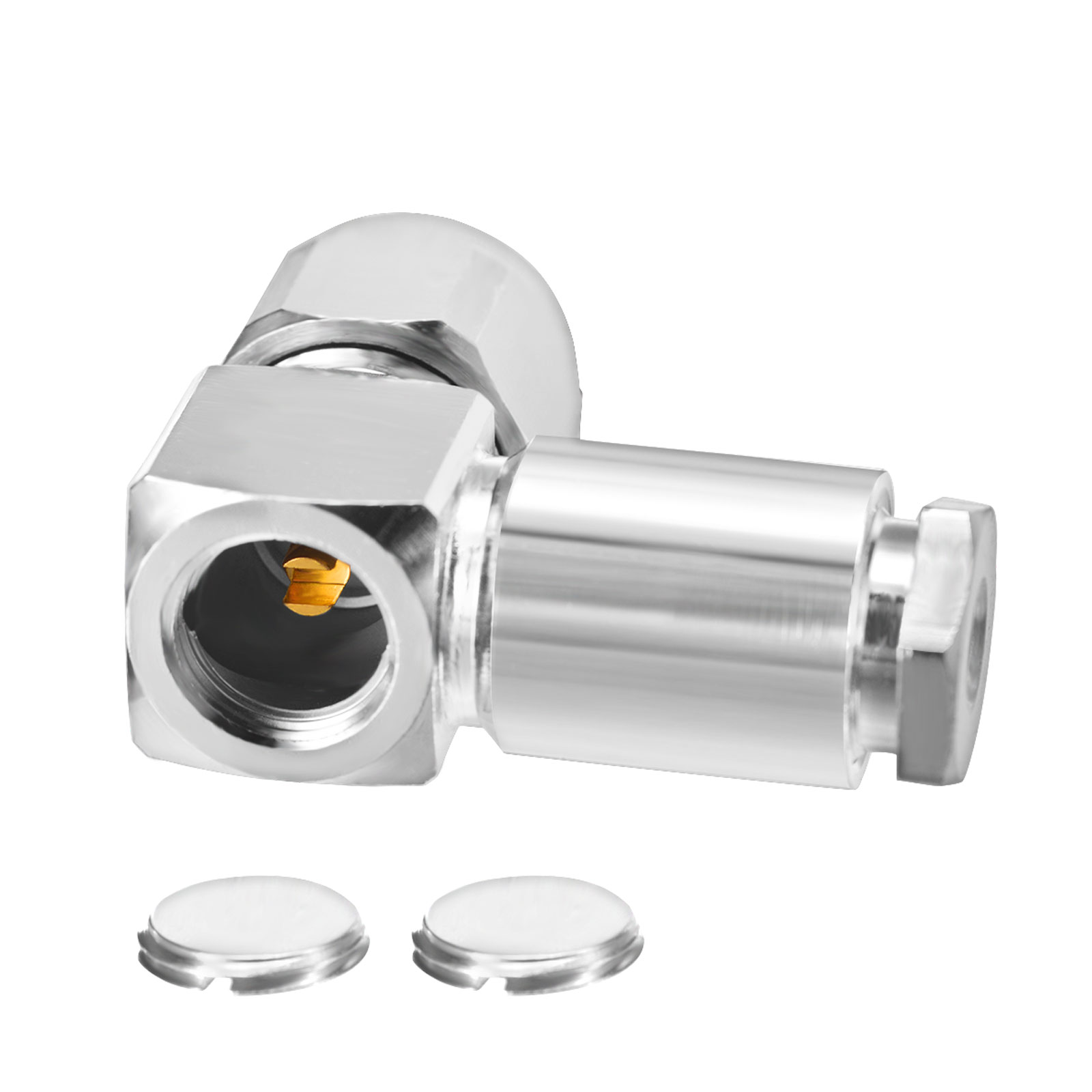

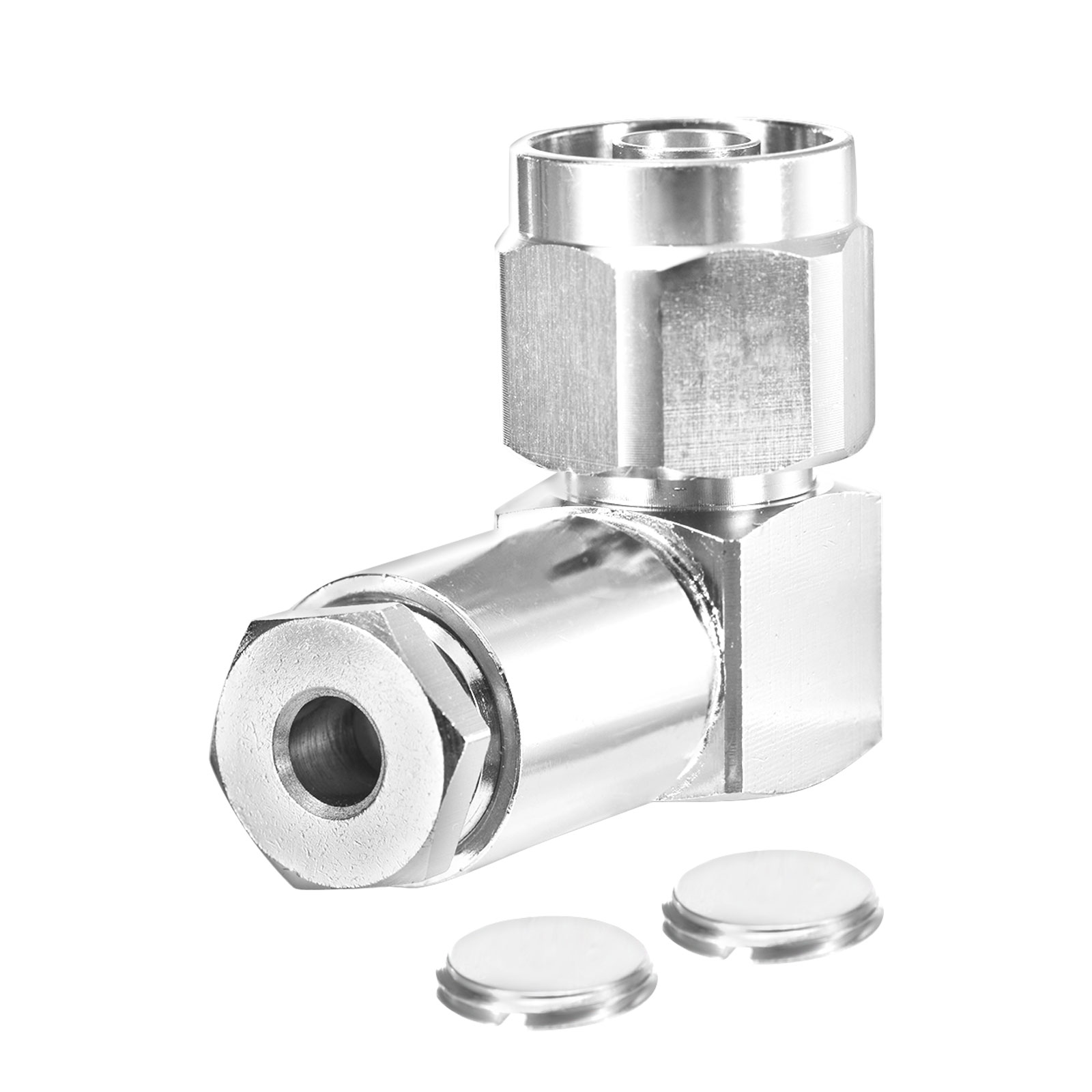

N series RF connectors are 50 ohm constant impedance connectors with a consistently low VSWR across its frequency range of 0 to 3GHz. They are high quality medium size connectors standardly used with coaxial cables from .350" to .450" OD, but designs can also acccomodate .078" to .875" cables. N type connectors are threaded and gasketed for weatherproof operation. The threaded coupling incurs low noise and withstands shock and vibration. LTI N connectors are designed to conform to MIL-C-39012 specifications.

The N series connector is the most popular medium sized connector. Applications include test and measurement, antennae, base stations, transmitters, etc.

Product specification:

Product Series:N

Product Type:Cable mount

Application:Clamp

Body Plating:Nickel-plated

Body Termination:Clamp

Cable Type:RG58,LMR195

Connector Body Style:Straight

Connector Material:Brass

Contact Plating:Nickel

Contact Termination:Solder

Gender:Plug

Impedance:50 Ohm
