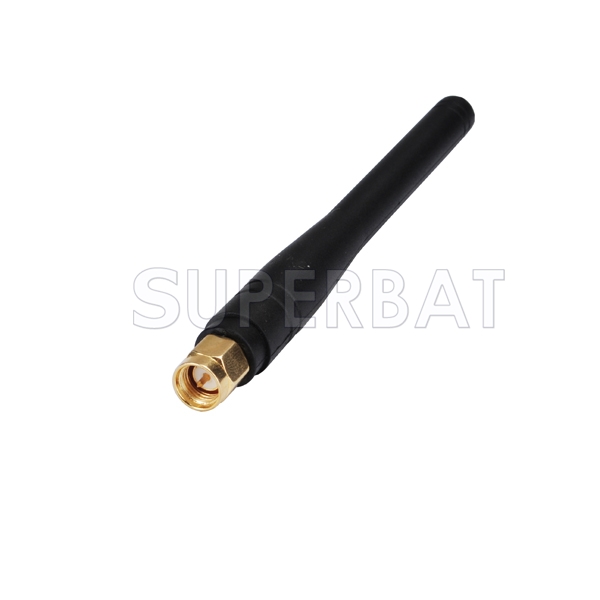

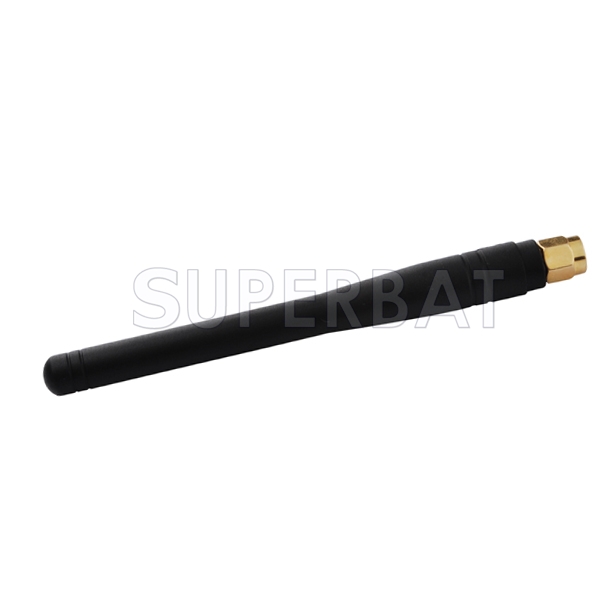

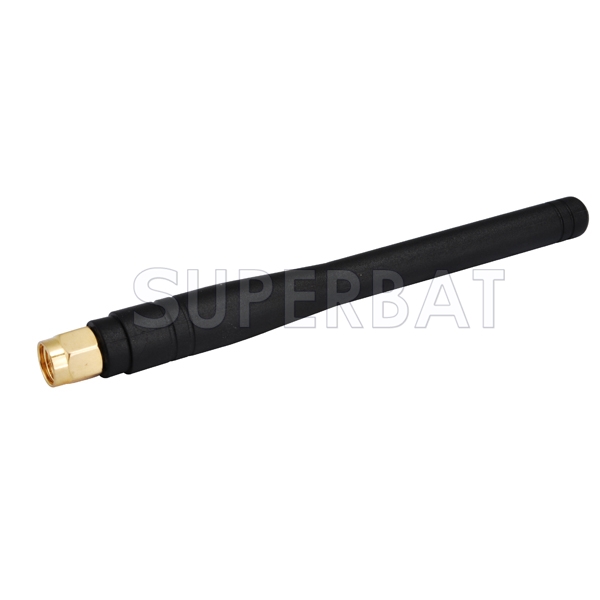

GSM/UMTS/HSPA Antenna Omni-directional 2 dbi 824-960Mhz SMA Plug male Straight
GSM/UMTS/HSPA Antenna Omni-directional 2 dbi 824-960Mhz SMA Plug male Straight
Unit Price: $2.50
sku:GM2-1295-S01SP1-020
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $2.50 $2.25 $2.00 $1.80 ASK
saving% 0% 10% 20% 28% -
Real Time Availability
Stock: 1000
Quantity: Units

Antenna Type: Rubber Duck Network: GSM/GPRS/EDGE/CDMA Antenna Frequency: 824~896MHz,890~960MHz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 2dbi Radiation: Omnidirectional V.S.W.R: ≤1.5 Weight: 7g

Electrical Specifications
Frequency Range(MHz): 824~896MHz,890~960MHz
VSWR: ≤1.5
Gain: 2dbi
Polarization: Vertical
Directionality: omnidirectional
Bandwidth: 20 MHz
Input Impedance: 50±15Ω
Max Power: 50W
Connector Type: SMA male Straight Connector
Mechanical Specifications
Operating Temperature(℃): -40~+70℃
Storage Temperature(℃): -30 ~ +50℃
Antenna Color: Black
Antenna Length:109mm
Antenna weight:7g
