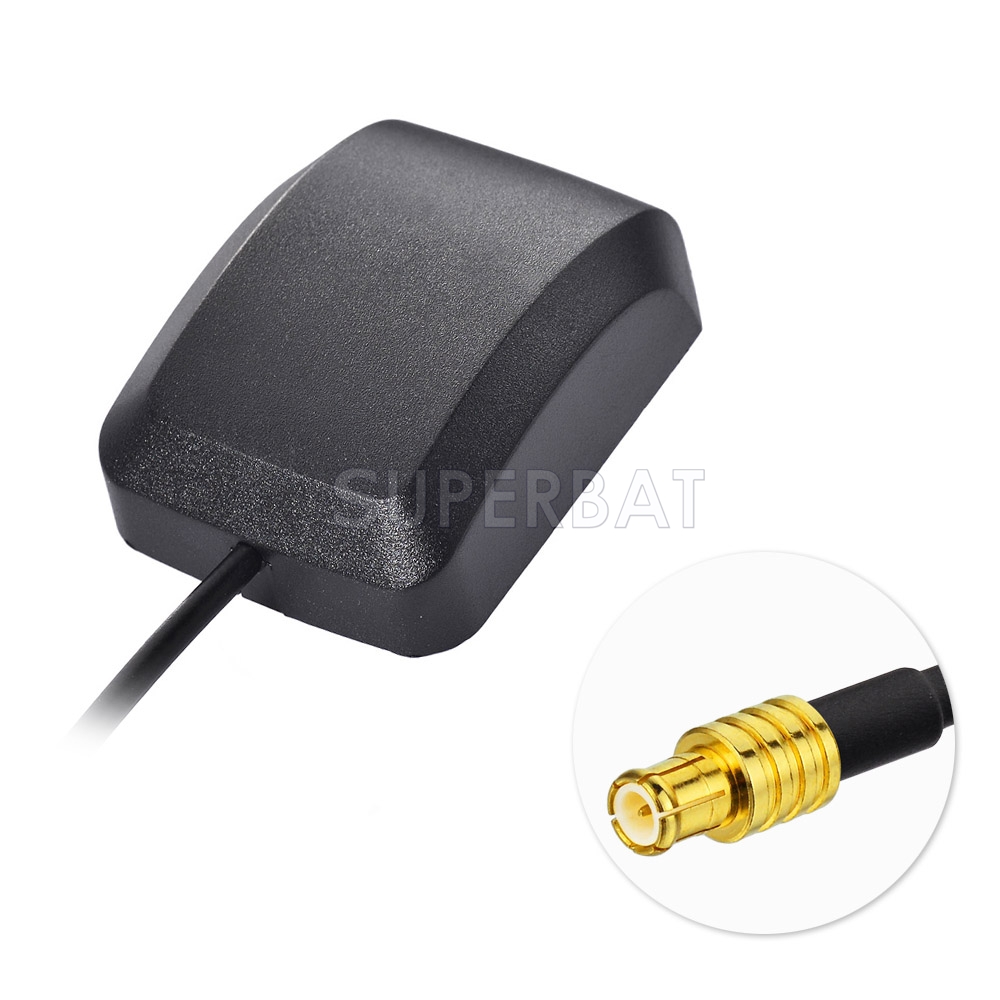

GPS Antenna MCX Plug connector for Garmin GA 27C 010-10052-05
GPS Antenna MCX Plug connector for Garmin GA 27C 010-10052-05
Unit Price: $7.60
sku:GA05-300-M03SP
cable length
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $7.60 $7.14 $6.76 $6.46 ASK
saving% 0% 6% 11% 15% -
Real Time Availability
Stock: 10000
Quantity: Units

GPS type: GA05 End connector: MCX Connector Polarity: Standard Connector Gender: Male , Plug

Characteristic:
    (i) Dieletric Antenna

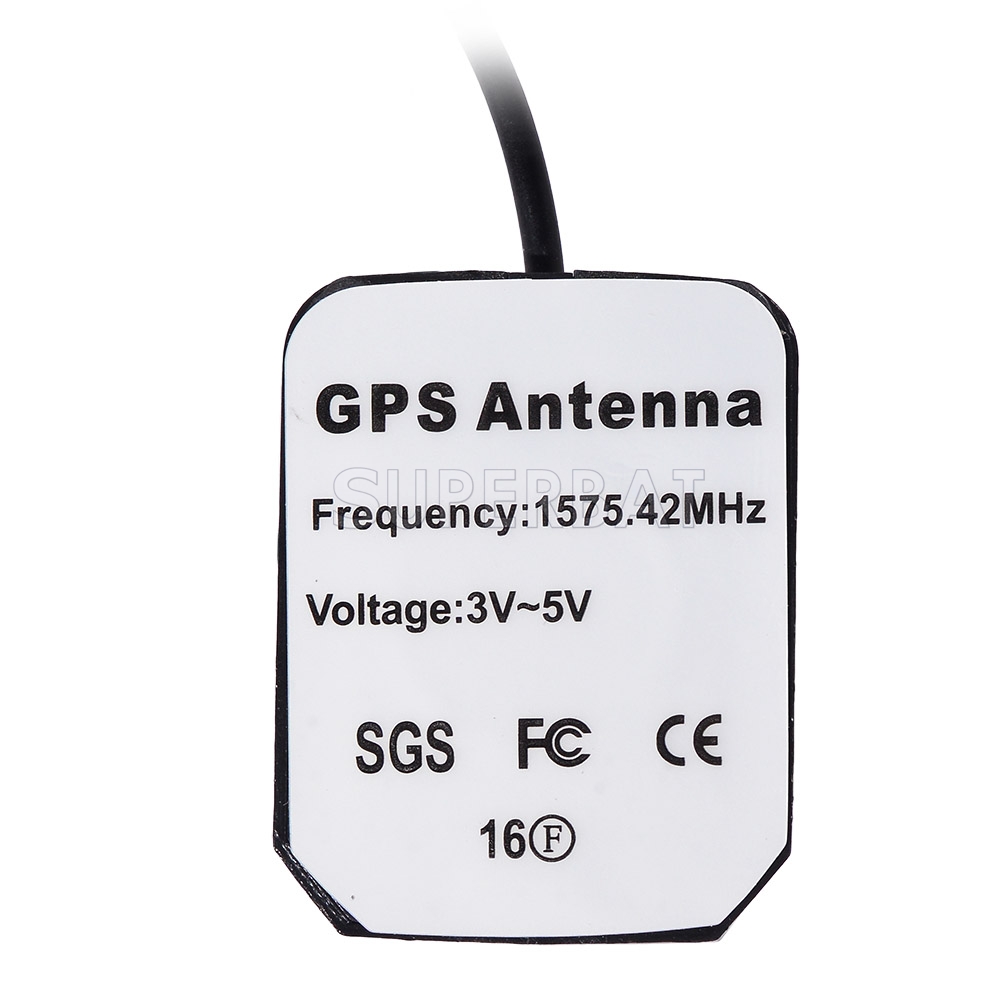

    Center Frequency 1575.42MHz±3 MHz
    V.S.W.R 1.5:1
    Band Width ±5 MHz
    Impendence 50 ohm
    Peak Gain >3dBic Based on 7×7cm ground plane
    Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
    Polarization RHCP



    (ii) LNA/Filter
    LNA Gain (Without cable) 28+/-3dB
    Noise Figure 1.5dB Typ.
    Filter Out Band Attenuation (f° =1575.42MHz)
    7dB Min f0+/-20MHZ ;
    20dB Min f0+/-50MHZ;
    30dB Min f0+/-100MHZ
    V.S.W.R <2.0
    DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
    DC Current 5mA /11mA/15mA Max



    (iii)Mechanical
    Weight <100gram
    Size :48x39x16mm

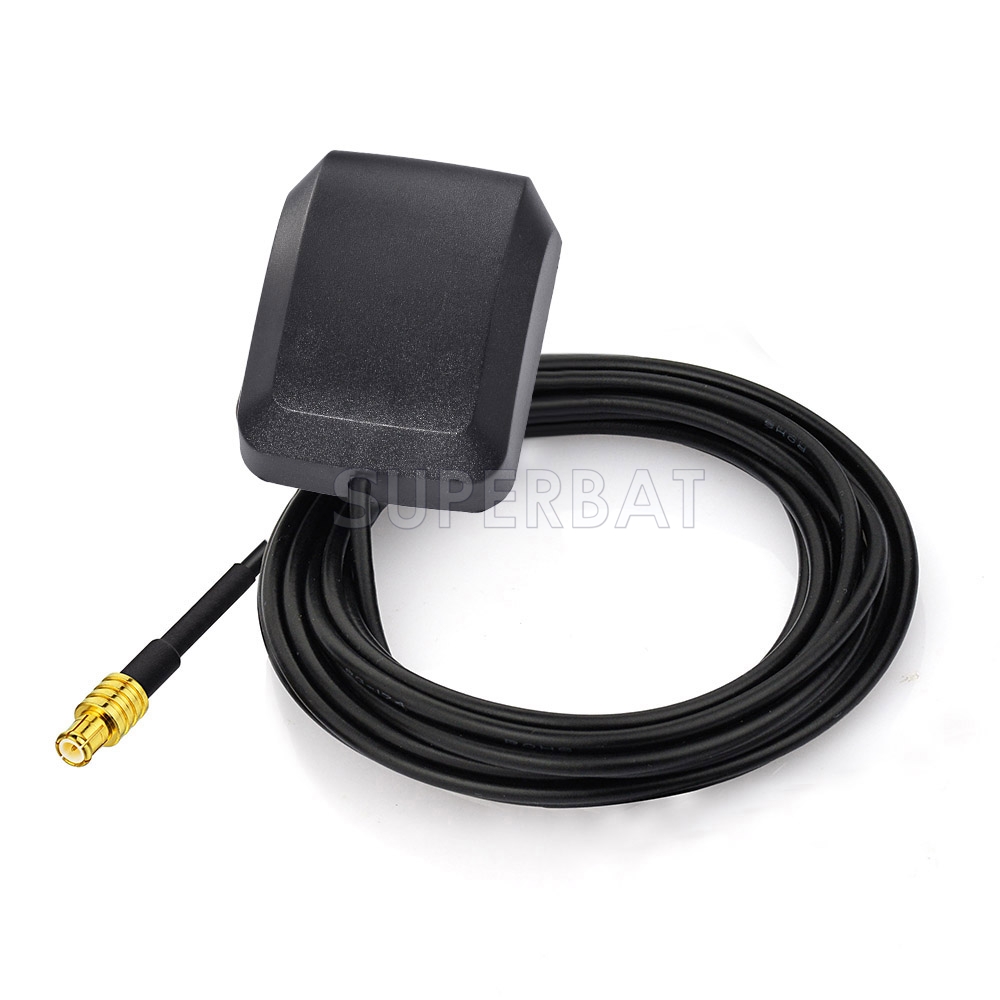

    Cable :RG174 3 meter / Contact us for other length

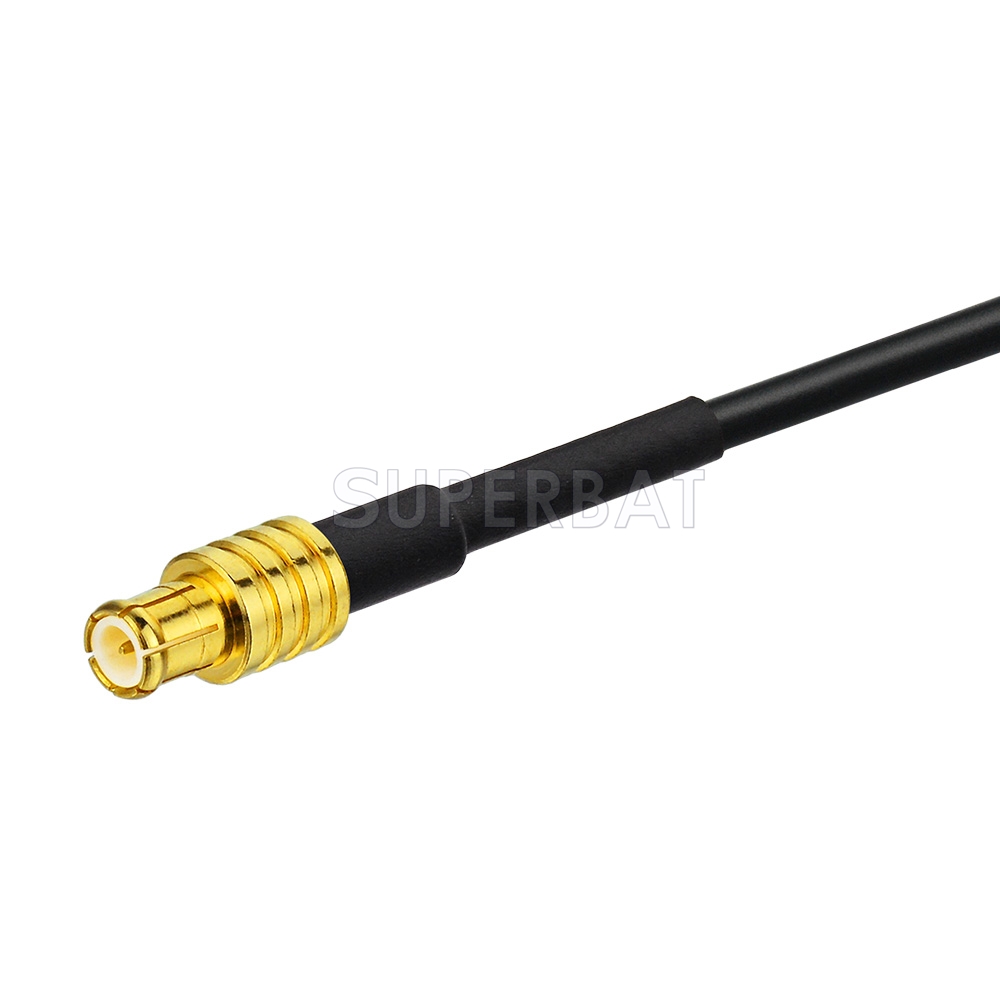

    Connector :MCX Plug default/SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/WICLIC in straight or right angle
    please give us some notes if the antenna connector is chosen.Tks!
    Mounting Magnetic base

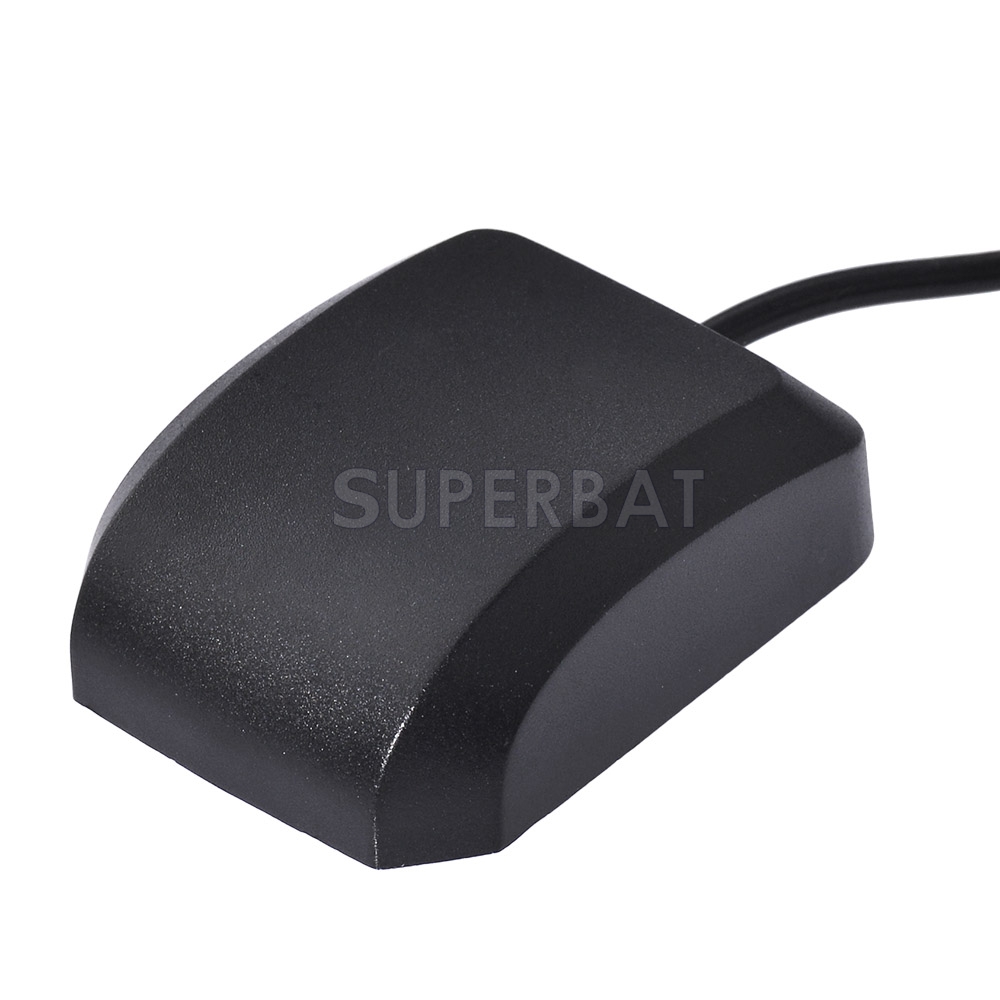

    Housing Black


    (iv)Environmental
    Working Temp -40℃~+85℃
    Storage Temp. -45℃~+100℃
    Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
    Relative Humidity 95% non-condensing
    Weatherproof 100% Waterproof
