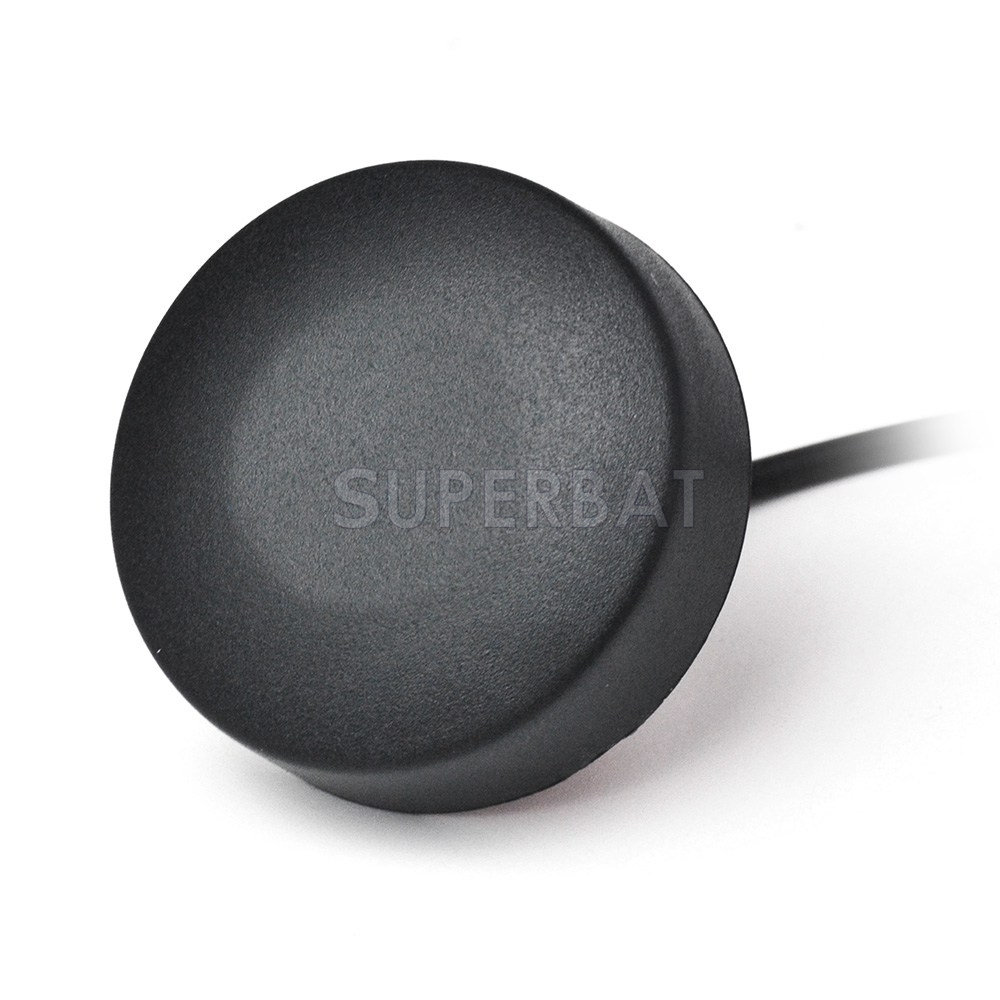

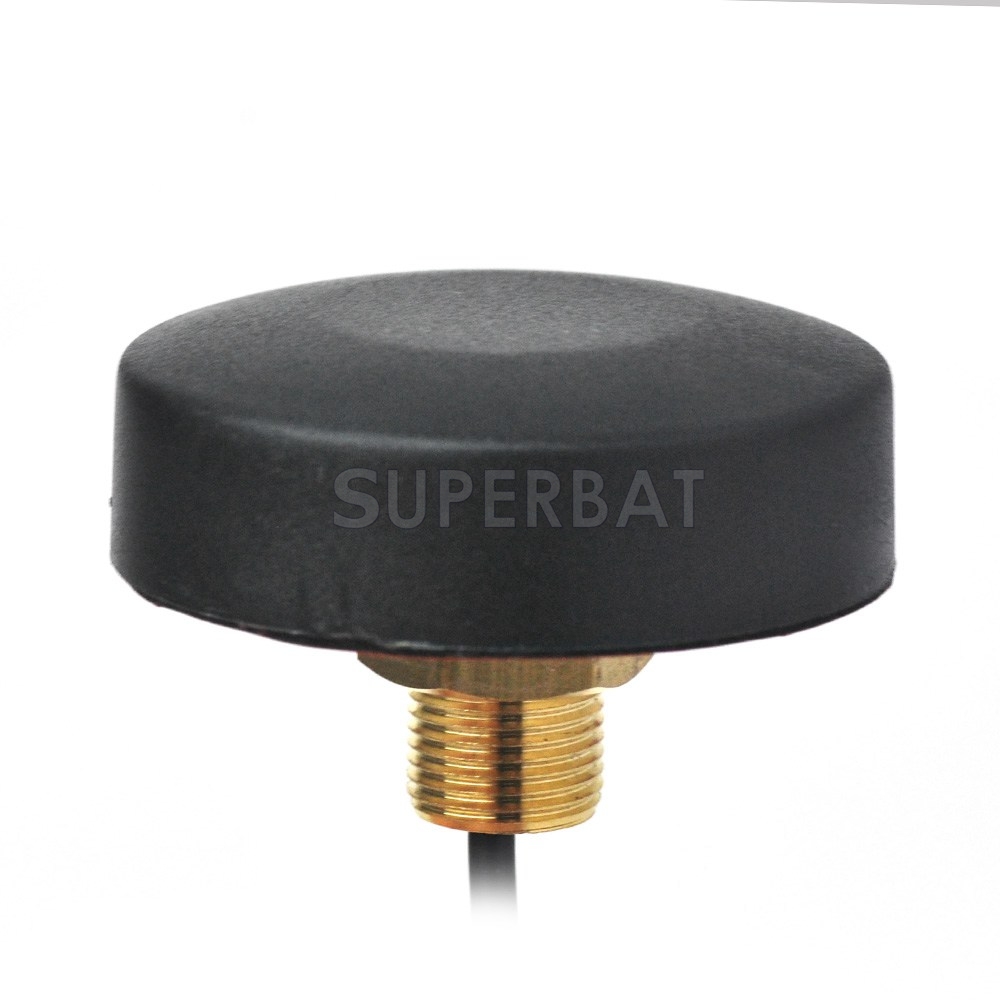

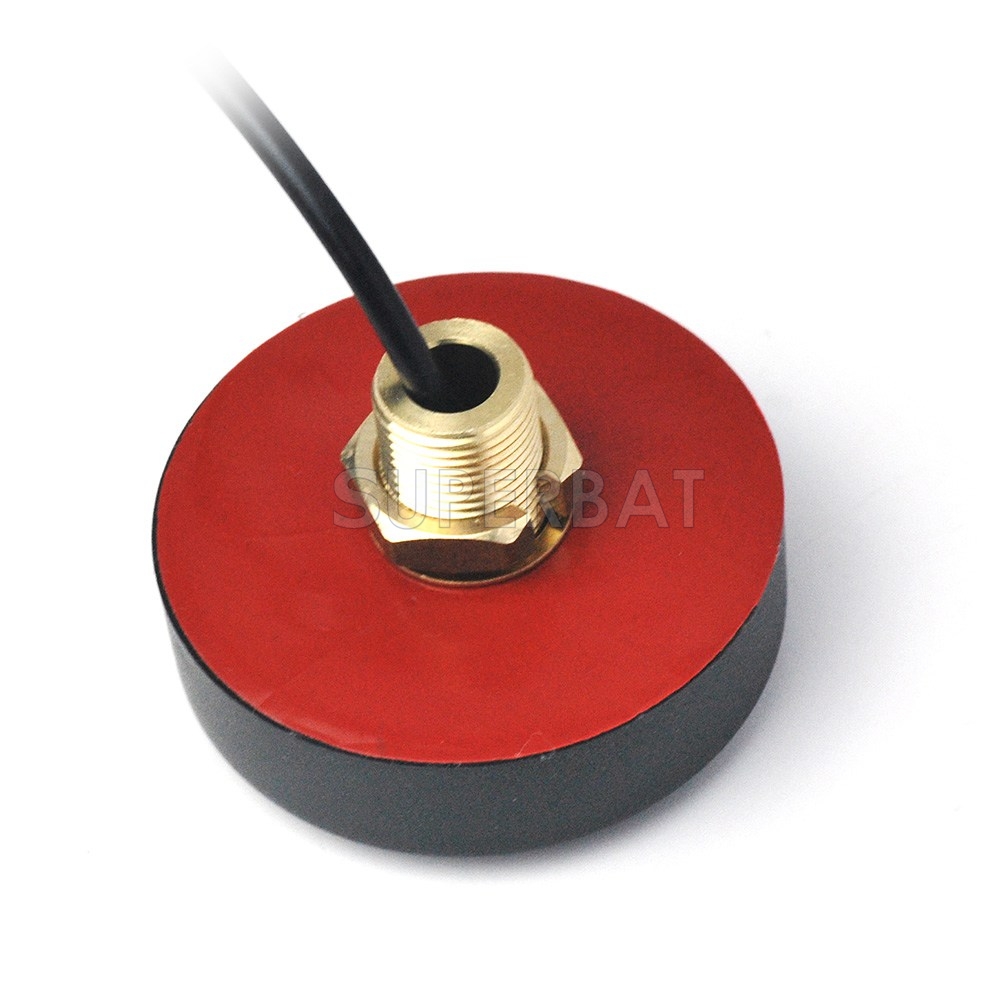

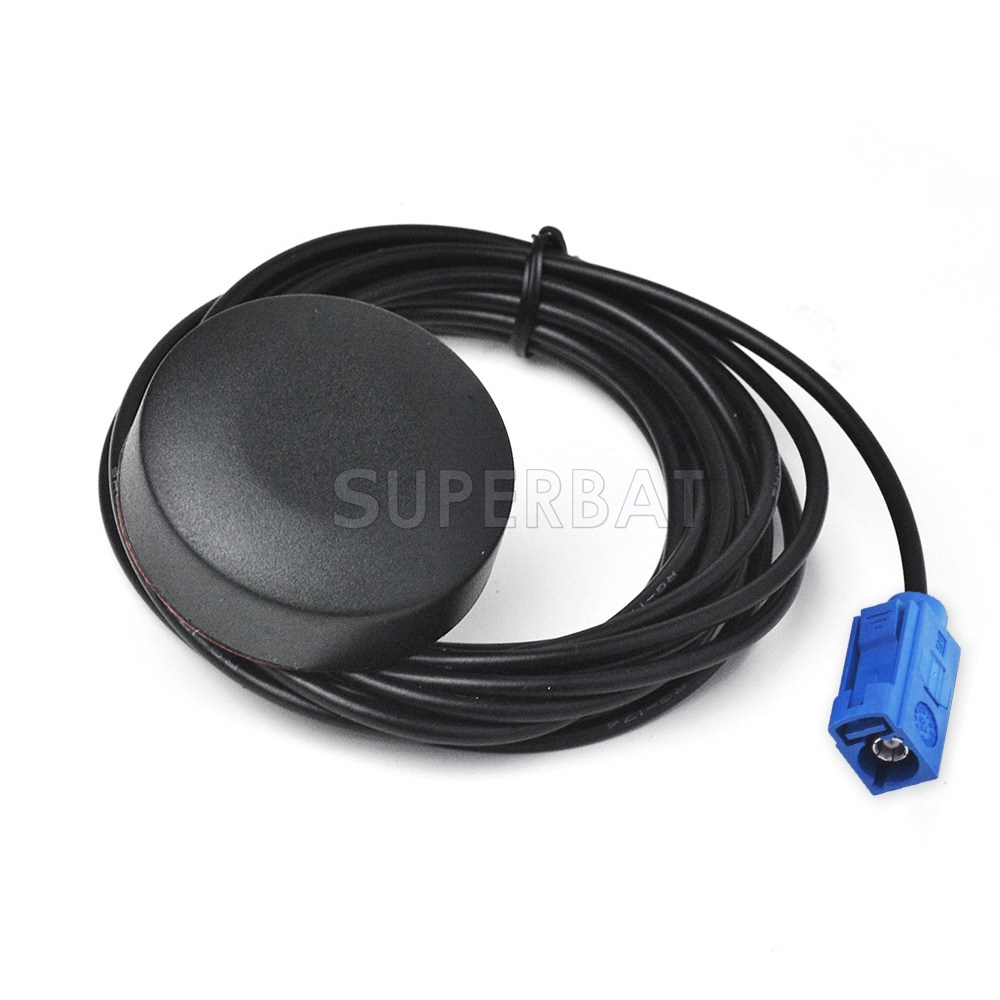

GPS Antenna FAKRA 1575.42MHz±3 MHz 3M Active Antenna GA06
Unit Price: $10.00
sku:GA06-300-F03CSJ
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $10.00 $9.50 $8.80 $7.30 ASK
saving% 0% 5% 12% 27% -
Real Time Availability
Stock: 10000
Quantity: Units

GPS type: other End connector: Fakra Connector Polarity: Standard Connector Gender: Female , Jack Connector Coding: C

(i) Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain >3dBic Based on 7×7cm ground plane
Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
Polarization RHCP
(ii) LNA/Filter
LNA Gain (Without cable) 13dB/26dB/28dB/other Typical
Noise Figure 1.5dB
Filter Out Band Attenuation (f0=1575.42 MHZ)
7dB Min f0+/-20MHZ ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max
(iii)Mechanical
Weight <100gram
Antenna Size:Size 46(D)*15(H)mm
Cable :RG174 3 meter / contact us for other length

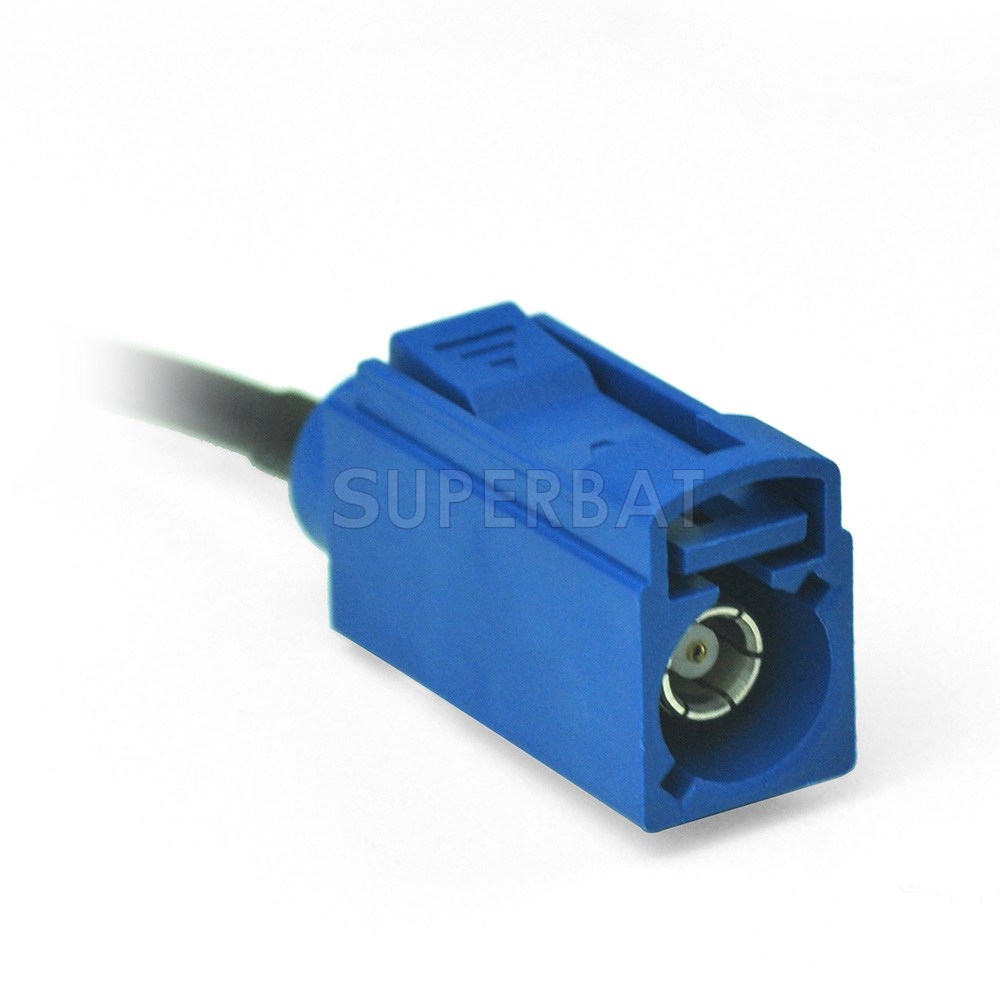

Connector :FAKRA jack straight default  BNC/SMB/SMC/FME/TNC/MCX /MMCX /Fakra/SMA/WICLIC please give us some notes if the antenna connector is chosen.Tks!
Housing Black
(iv)Environmental
Working Temp -40℃~+85℃
Storage Temp. -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity Humidity95%~100%RH
Weatherproof 100%Waterproo
