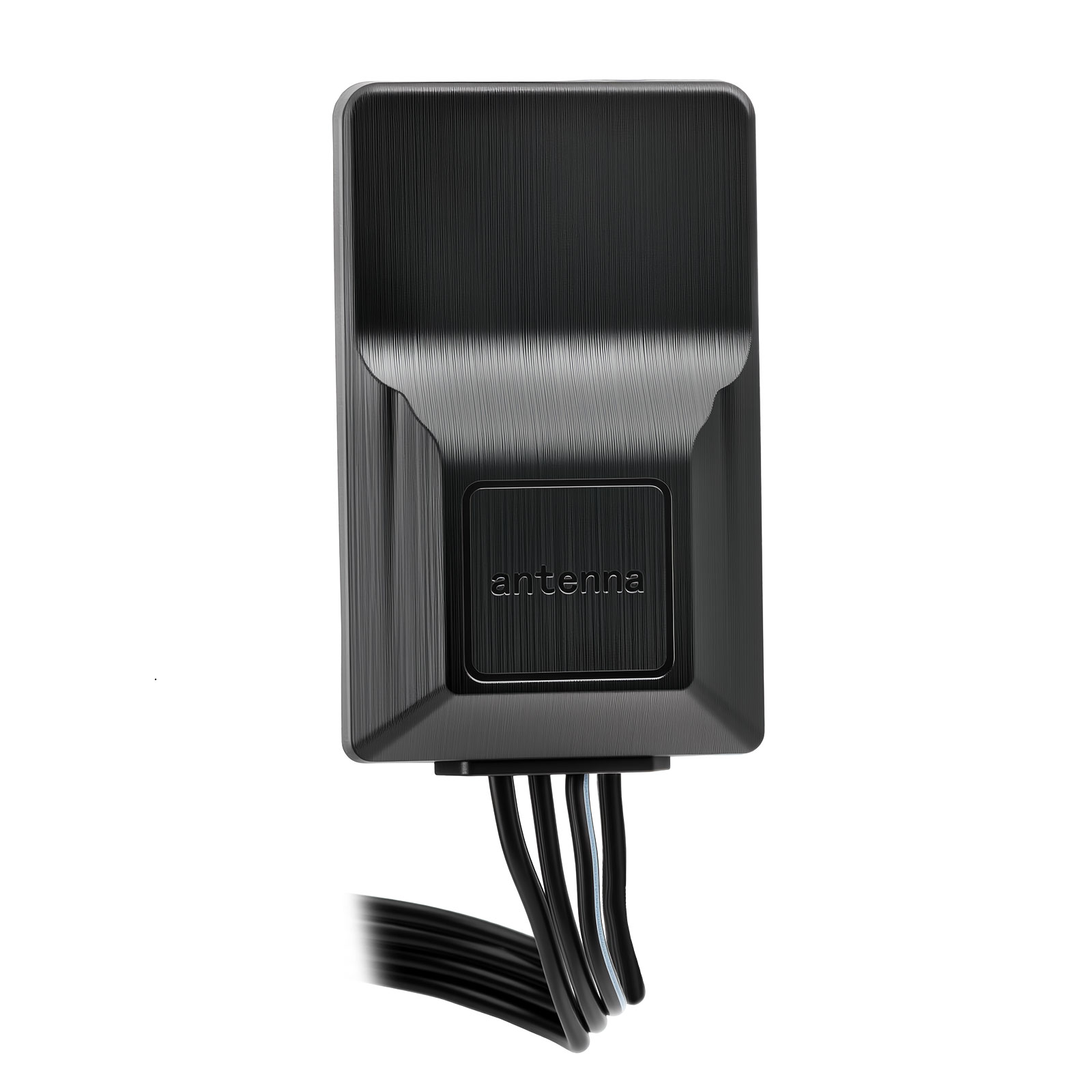

Dual GPS/BeiDou + Dual 4G Integration

Features two independent GPS/BeiDou modules (1561/1575MHz) and dual 4G antennas  with reliable MIMO support (Main: 824-960/1710-2690MHz, Aux: 1710-2690MHz); Ensures fail-safe connectivity for critical applications.

High-Precision LNA Performance

28±3dB gain with <1.5dB noise coefficient; ≤2.0 VSWR and SAW filtering for meter-level accuracy in urban/harsh environments.

Industrial-Grade Durability

IP65-rated ABS housing (87x53x19mm); Operates in -40°C to +85°C; Vibration-resistant (sine sweep 10-50Hz) for automotive/outdoor use.

Plug-and-Play Deployment

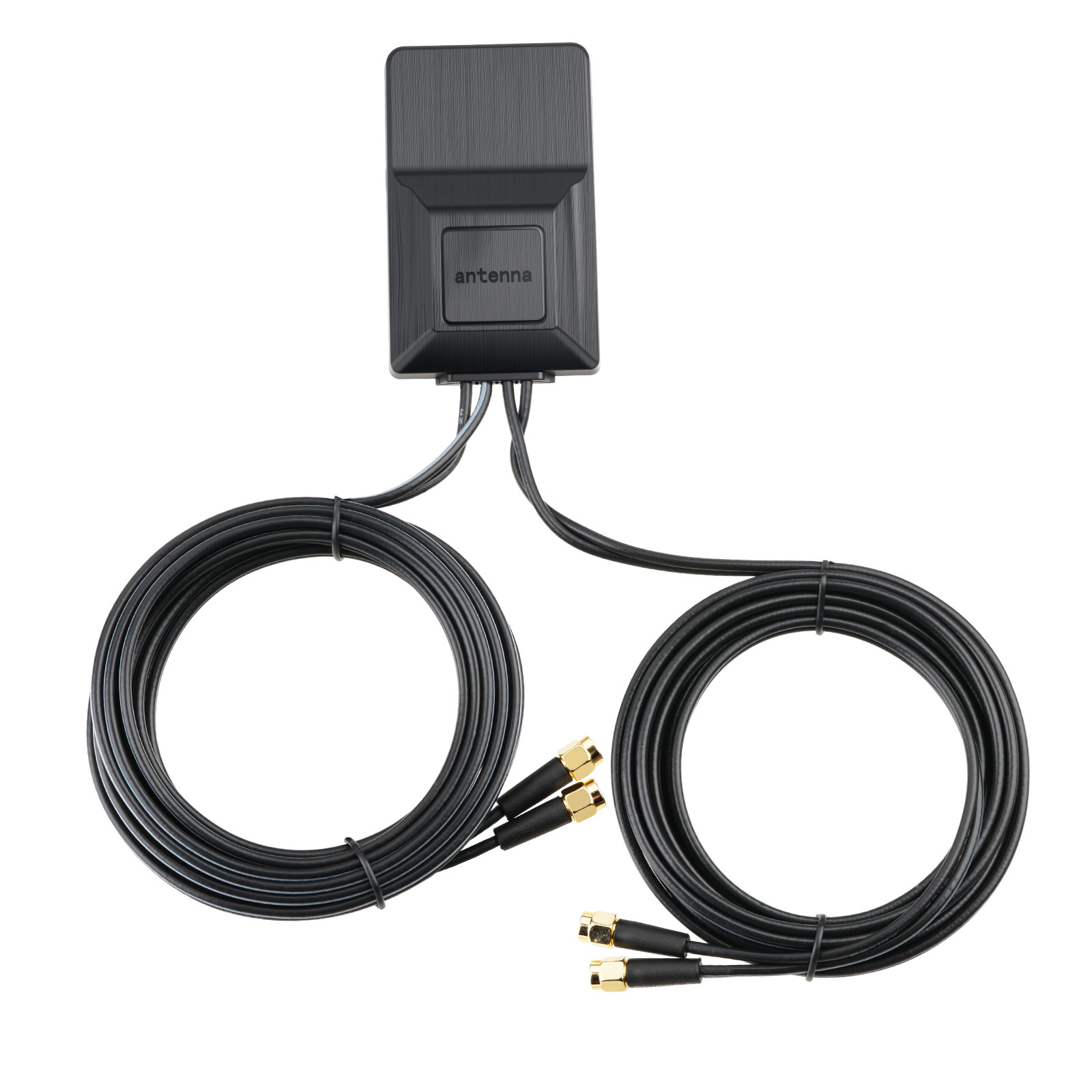

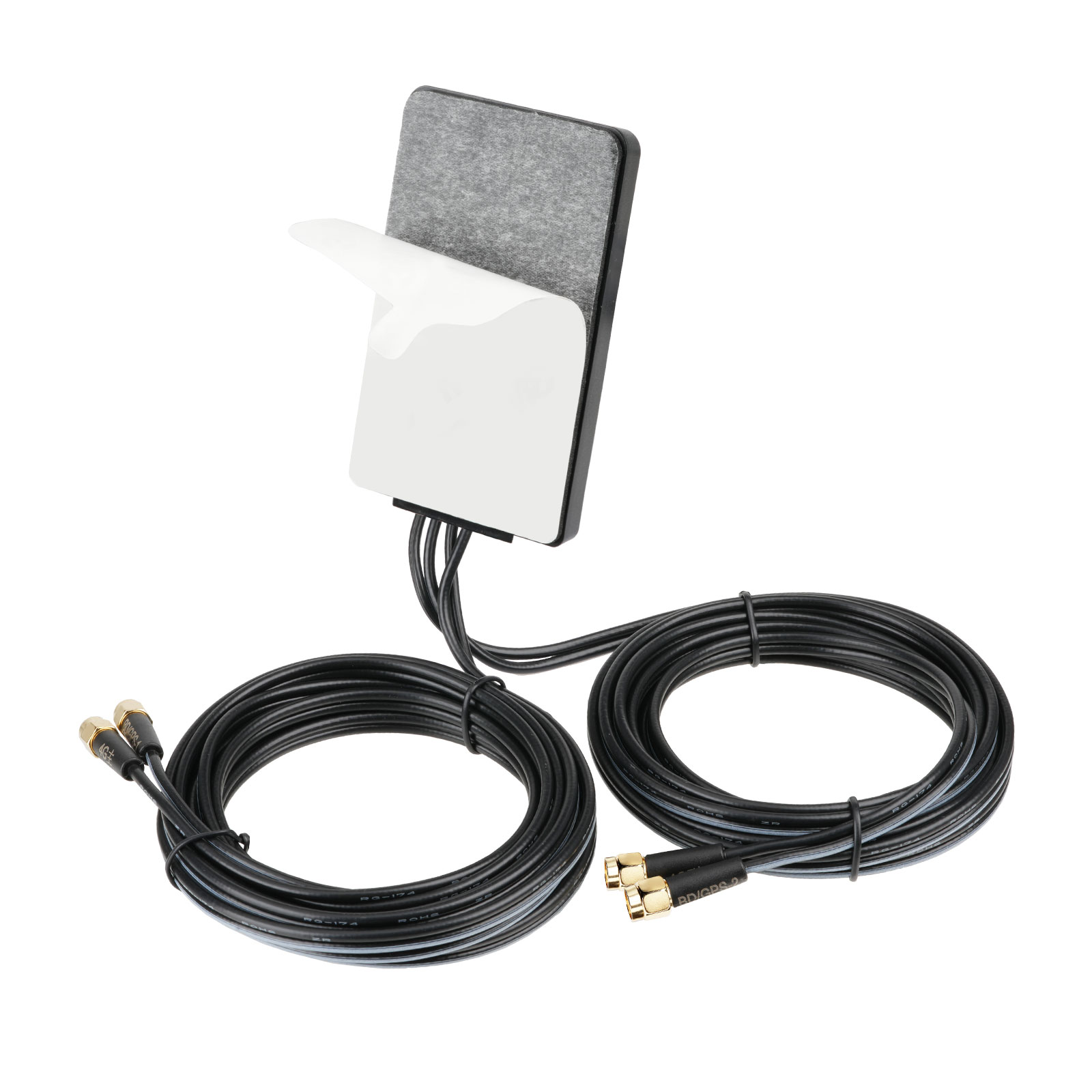

Includes 3M RG174 cable with four SMA connectors; Horizontal mounting optimized for GPS/BeiDou signal reception.IP65 waterproof rating;Vibration resistant (sine sweep 10-50Hz)

Applications:

Autonomous vehicle navigation

Industrial machine telematics

Redundant cellular networks for remote sites

Public safety communication systems

Specification:

Dual GNSS Modules:

Frequency:

BeiDou: 1561.098±2.046MHz

GPS: 1575.42±1.023MHz (per module)

Bandwidth: >5MHz

Gain: 4.5dBic (70x70mm ground plane)

VSWR: ≤2.0

Polarization: RHCP

LNA Specifications:

Gain: 28±3dB

Noise Figure: <1.5dB

Operating Voltage: 3.0-3.6V DC

Current Consumption: ≤30mA @3.3V

4G LTE Modules:

Main Antenna:

Bands: 824-960MHz & 1710-2690MHz

Efficiency: 43.16-48.61%

Gain: 2.5dBi

Aux Antenna:

Bands: 1710-2690MHz

Efficiency: 45.01-46.31%

Gain: 2.5dBi

Mechanical & Environmental:

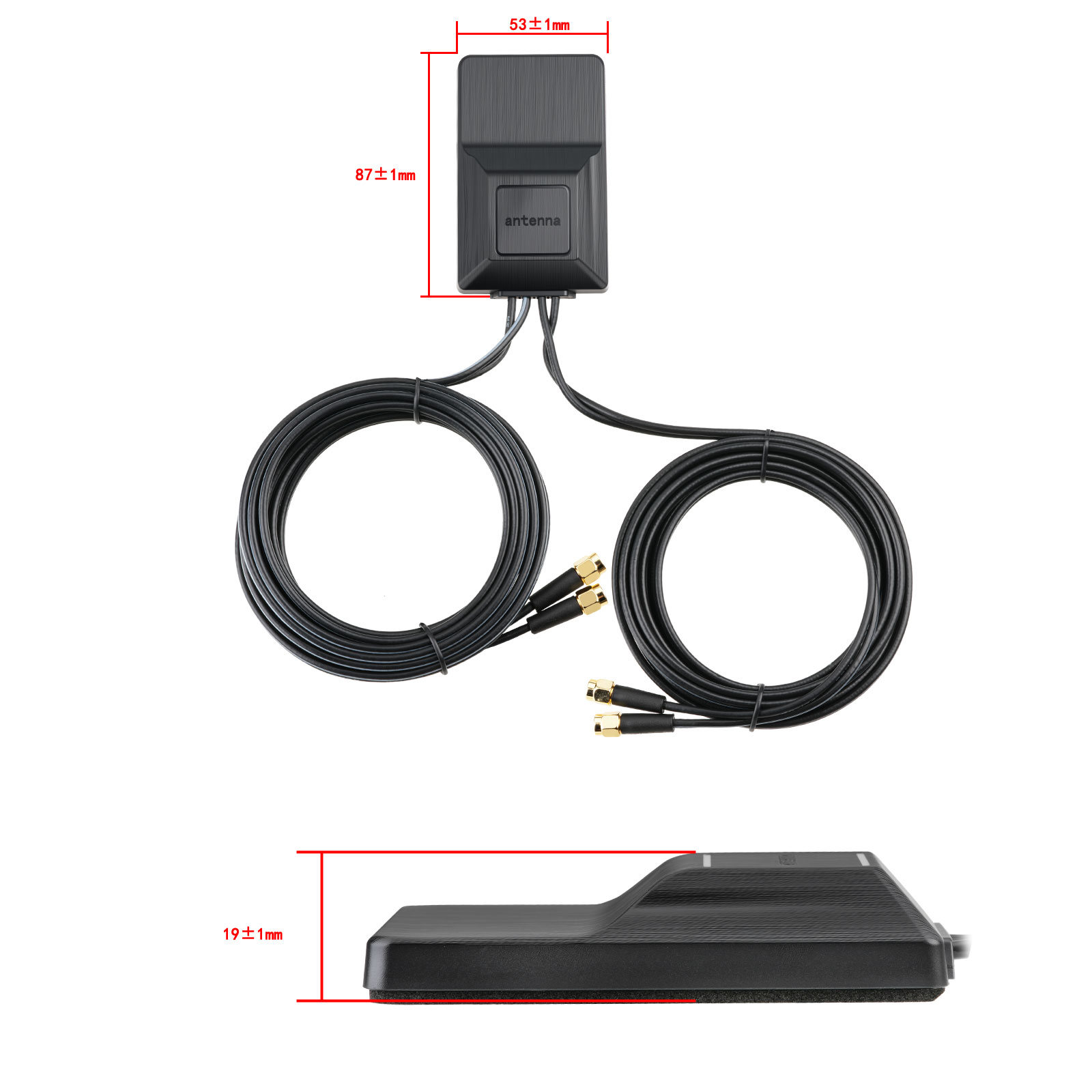

Dimensions: 87x53x19mm(optimized for horizontal mounting)

Cable: RG174, 3Meter

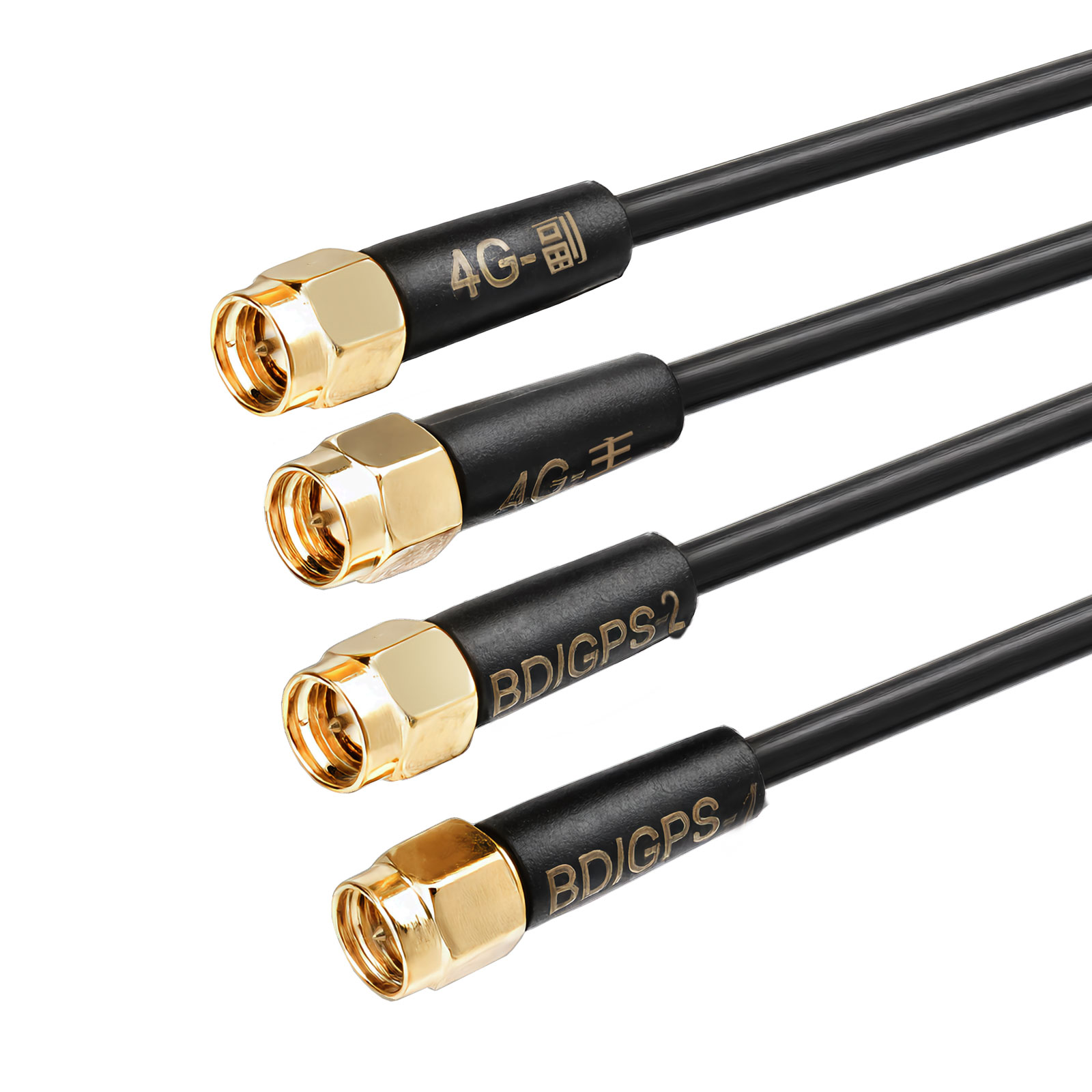

Connectors: SMA male

Operating Temperature: -40°C to +85°C

Storage Temperature: -40°C to +90°C

Certifications & Compliance:

RoHS compliant

IP65 waterproof rating

Vibration resistant (sine sweep 10-50Hz)

Applications:

Autonomous vehicle navigation

Industrial machine telematics

Redundant cellular networks for remote sites

Public safety communication systems

List:1 x Combination Antenna
